HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116175

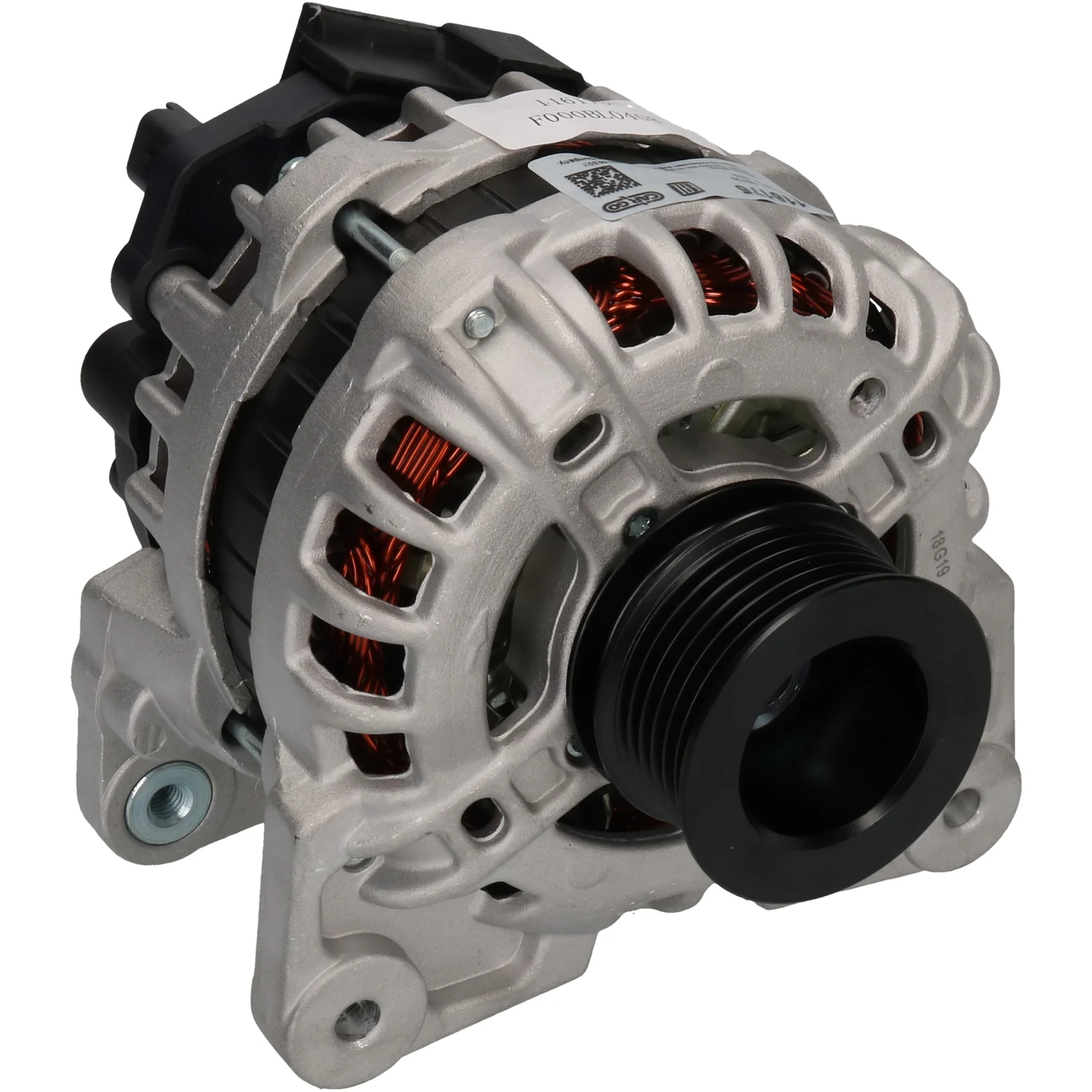

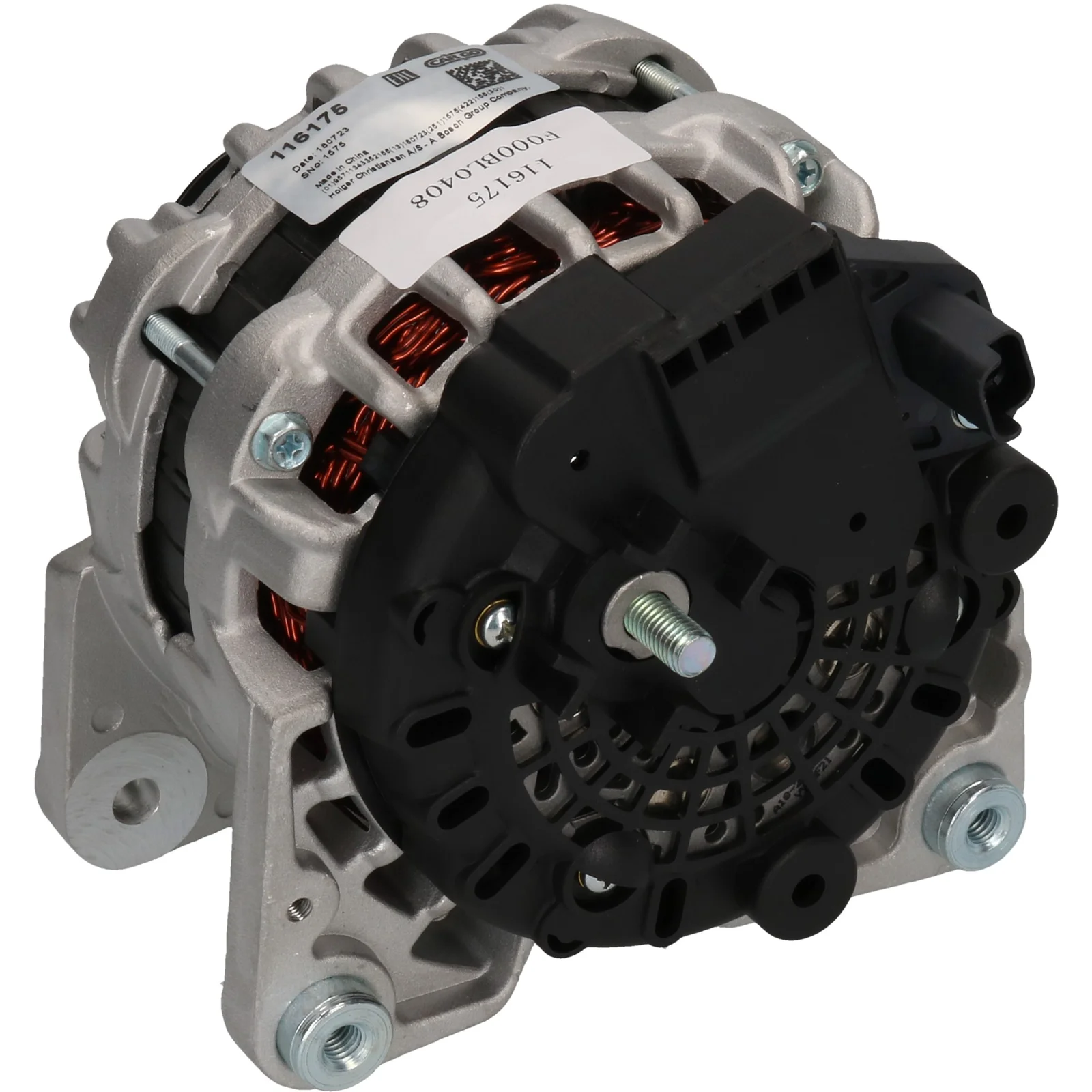

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 90, Rotation: CW, Mounting bracket distributor: 61.00

Description

Voltage: 14
Amp: 90
Pulley distance: 39.00
Width/holder arm: 14.00
Mounting bracket distance: 61.00
Bracket hole: 8.50
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 55.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Rotation: CW
Plug no.: PL72
Total length mm: 173.50
Pulley: SP
Voltage regulator type: IR

Files

  • OEM
    F000BL0408, F000BL04C9, F000BL04CU, F000BL04E9, F000BL04F0, F000BL04L1, F000BL04L8, F000BL04LI, F000BL04M7, F032116175, 1986A01066, 1986A01068, 23100-2299R, 23100-7633R, 231005780R, 231007175R, 231007633R, 231008432

  • Normalised article numbler
    a0311, cal10450, dra1220, f000bl0408, f000bl04c9, f000bl04cu, f000bl04e9, f000bl04f0, f000bl04l1, f000bl04l8, f000bl04li, f000bl04m7, f032116175, 1986a01066, 1986a01068, 20399n, 209056, 209056a, 446541, 553952ri, 12090429, 32083190, 32446541, 231002299r, 231005780r, 231007175r, 231007633r, 231008432, 575950090, 575985090
  • Description
    Voltage: 14
    Amp: 90
    Pulley distance: 39.00
    Width/holder arm: 14.00
    Mounting bracket distance: 61.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 8.50
    Pulley diameter: 55.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Rotation: CW
    Plug no.: PL72
    Total length mm: 173.50
    Pulley: SP
    Voltage regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F000BL0408, F000BL04C9, F000BL04CU, F000BL04E9, F000BL04F0, F000BL04L1, F000BL04L8, F000BL04LI, F000BL04M7, F032116175, 1986A01066, 1986A01068, 23100-2299R, 23100-7633R, 231005780R, 231007175R, 231007633R, 231008432

    • Normalised article numbler
      a0311, cal10450, dra1220, f000bl0408, f000bl04c9, f000bl04cu, f000bl04e9, f000bl04f0, f000bl04l1, f000bl04l8, f000bl04li, f000bl04m7, f032116175, 1986a01066, 1986a01068, 20399n, 209056, 209056a, 446541, 553952ri, 12090429, 32083190, 32446541, 231002299r, 231005780r, 231007175r, 231007633r, 231008432, 575950090, 575985090
