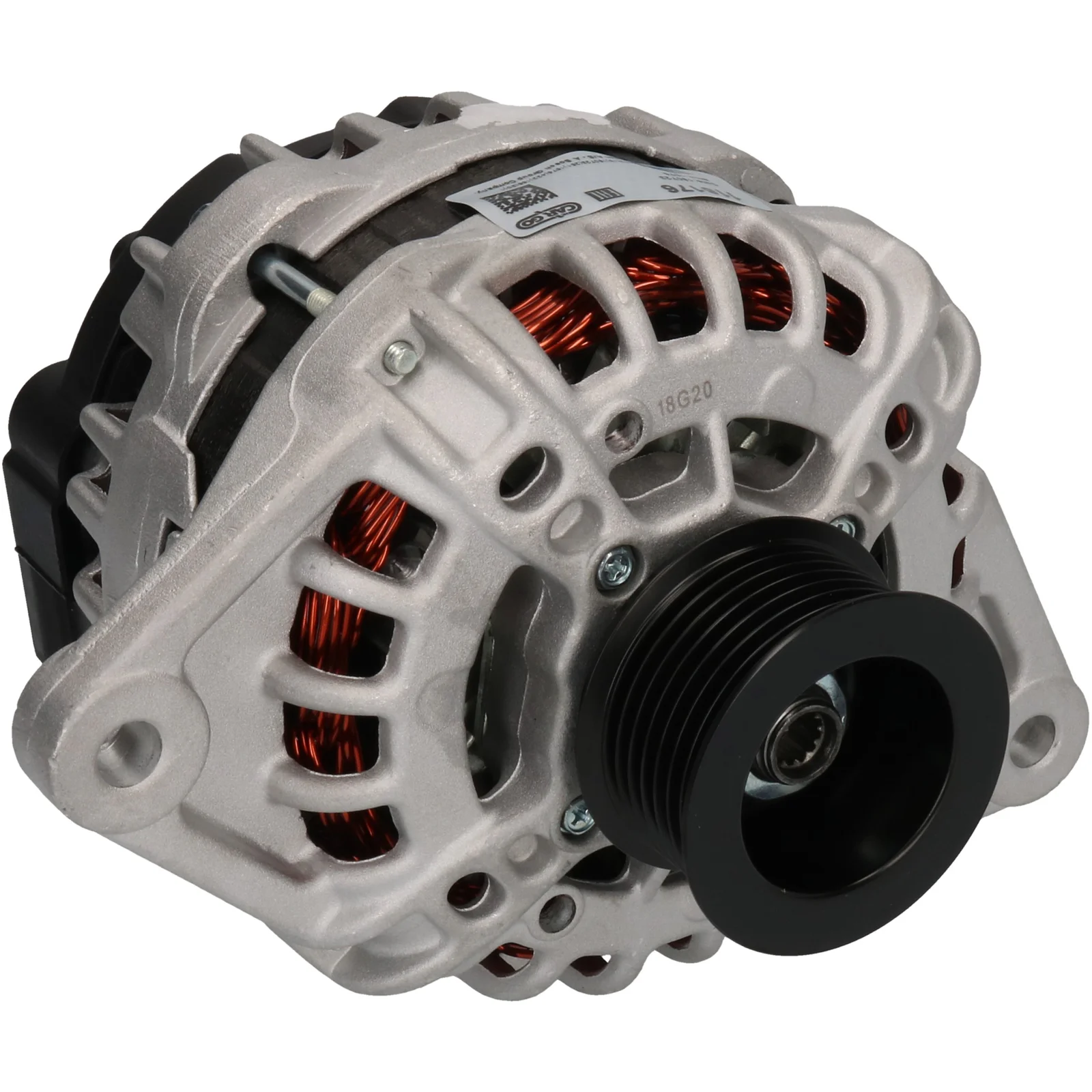

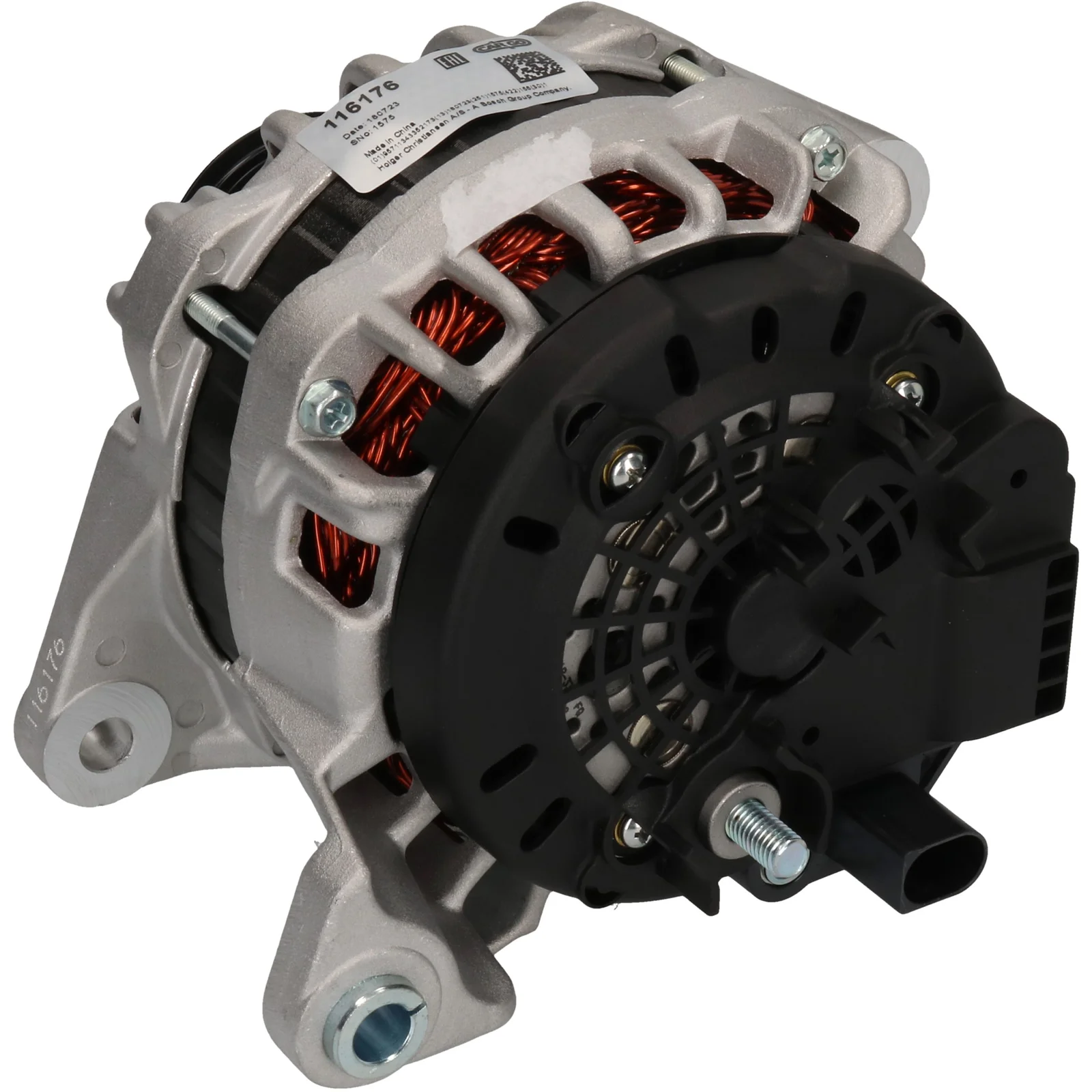

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116176

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 110, Rotation: CW, Mounting bracket distributor: 80.20

Description

Voltage: 14
Amp: 110
Pulley dist.: 41.50
Width/holder arm: 14.00
Mount. bracket dist.: 80.20
Bracket hole: 10.50
Belt. adj. brackethole pos.: 55
Belt. adj. bracket hole 1: 11.00
Pulley dia.: 55.00
Grooves/pulley: 7
Radius: 94.20
Radius 2: 95.70
B+: M8
Rotation: CW
Plug no.: PL61
Total length mm: 181.50
Pulley: SP
Voltage regulator type: IR

Files

  • OEM
    A0403, ALT10774, CAL10422, DRA1208, F000BL0707, F032116176, LRA03564, 8EL011713-221, 28-6674, 218.322.1102, 505.577.110, 1986A01090, 20544N, 209057, 209057A, 440831, 553616RI, 12090446, 71723391, 71723392, 71780156, 0000504009977, 504009977, 504010576, 504385133, 0986082320, 5040099777

  • Normalised article numbler
    a0403, alt10774, cal10422, dra1208, f000bl0707, f032116176, lra03564, 8el011713221, 1986a01090, 20544n, 209057, 209057a, 286674, 440831, 553616ri, 12090446, 71723391, 71723392, 71780156, 0000504009977, 504009977, 504010576, 504385133, 505577110, 0986082320, 2183221102, 5040099777
  • Description
    Voltage: 14
    Amp: 110
    Pulley dist.: 41.50
    Width/holder arm: 14.00
    Mount. bracket dist.: 80.20
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 55
    Belt. adj. bracket hole 1: 11.00
    Pulley dia.: 55.00
    Grooves/pulley: 7
    Radius: 94.20
    Radius 2: 95.70
    B+: M8
    Rotation: CW
    Plug no.: PL61
    Total length mm: 181.50
    Pulley: SP
    Voltage regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      A0403, ALT10774, CAL10422, DRA1208, F000BL0707, F032116176, LRA03564, 8EL011713-221, 28-6674, 218.322.1102, 505.577.110, 1986A01090, 20544N, 209057, 209057A, 440831, 553616RI, 12090446, 71723391, 71723392, 71780156, 0000504009977, 504009977, 504010576, 504385133, 0986082320, 5040099777

    • Normalised article numbler
      a0403, alt10774, cal10422, dra1208, f000bl0707, f032116176, lra03564, 8el011713221, 1986a01090, 20544n, 209057, 209057a, 286674, 440831, 553616ri, 12090446, 71723391, 71723392, 71780156, 0000504009977, 504009977, 504010576, 504385133, 505577110, 0986082320, 2183221102, 5040099777
