HC-Cargo Alternator

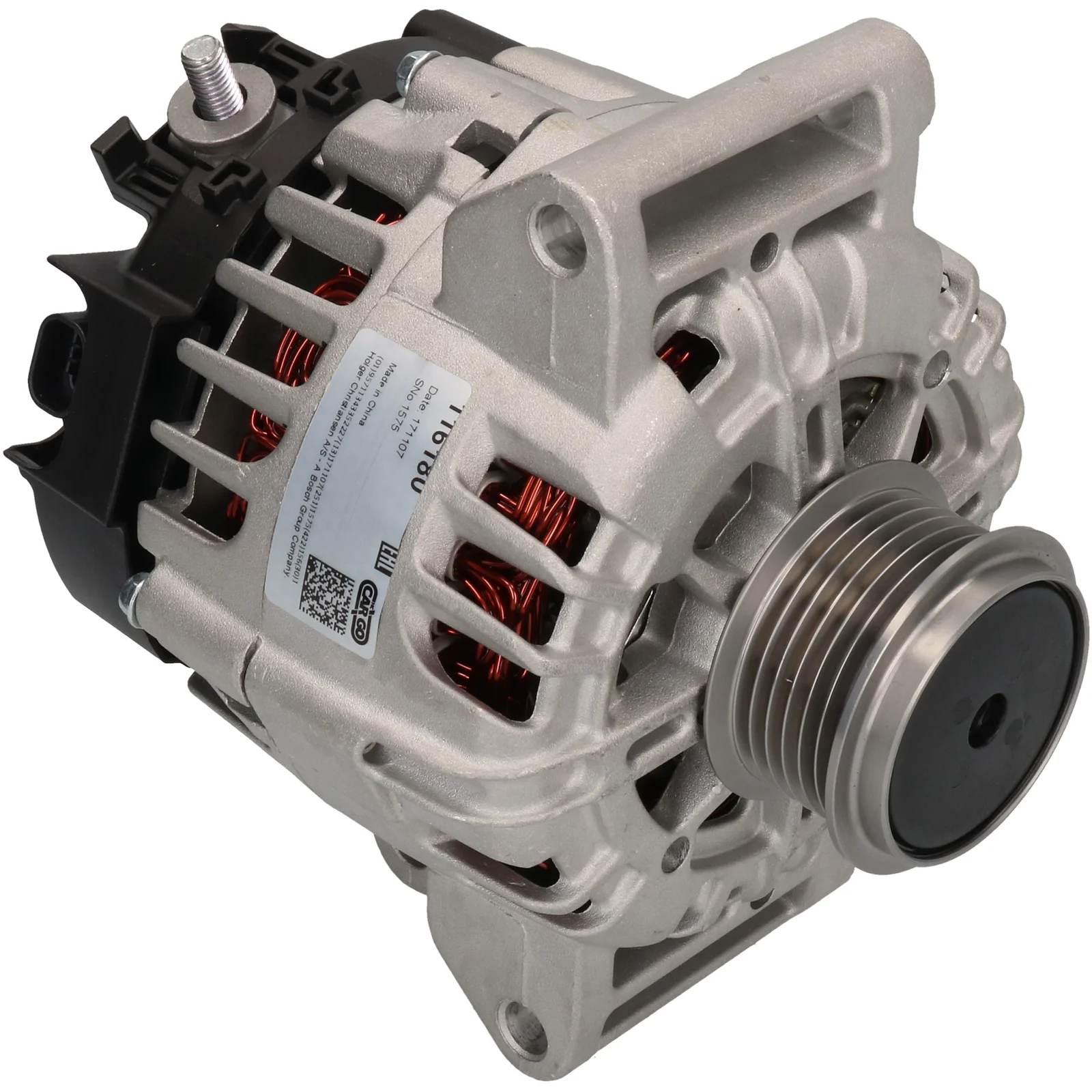

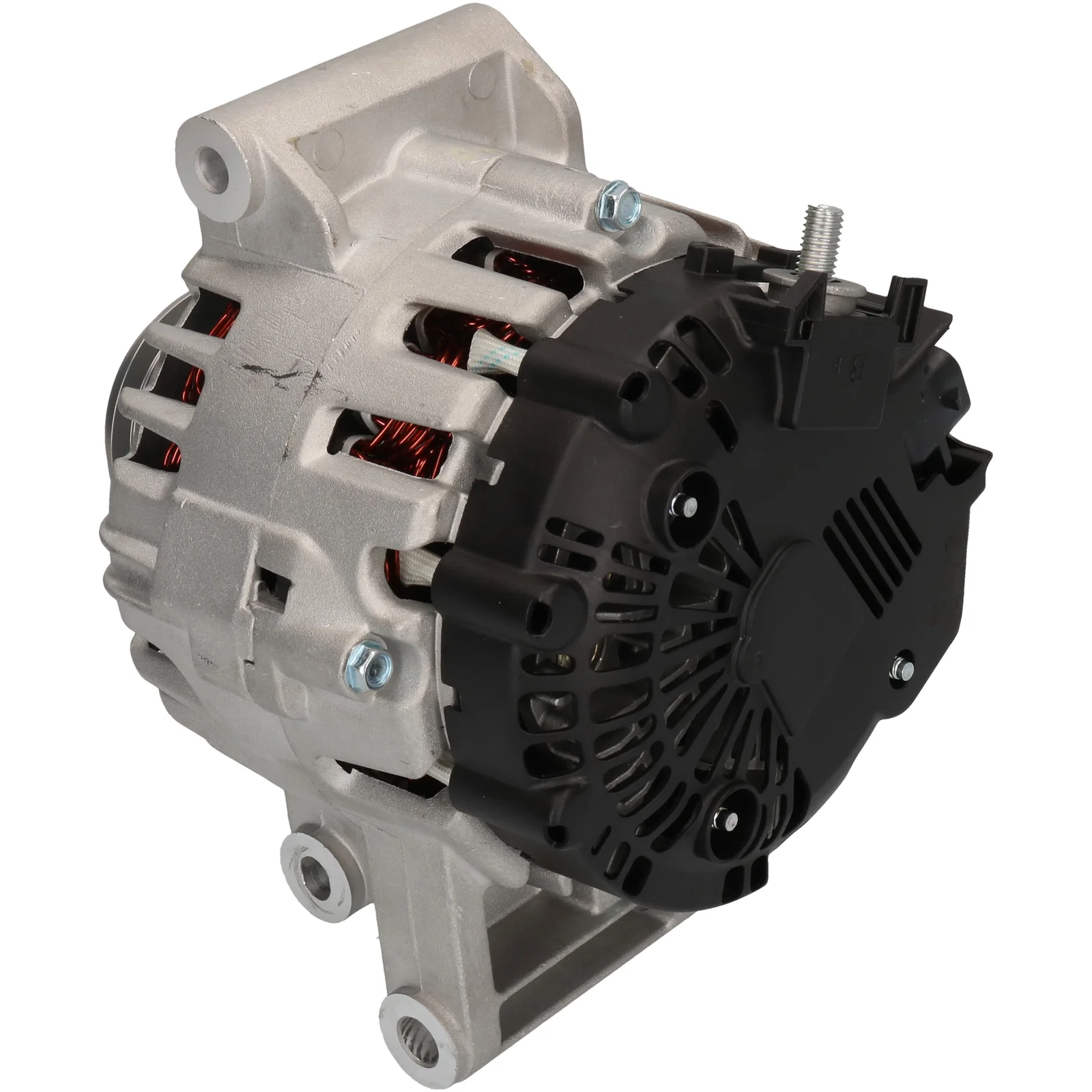

HC-Cargo Alternator
Article no.: F032116180

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperes: 140, Rotation: CW, Mounting bracket distance: 56.00

Description

Voltage: 14
Amp: 140
Pulley: 32.00
Width/holder arm: 79.00
Mounting bracket distance: 56.00
Bracket hole: 8.50
Belt adjustment bracket hole 1: 10.50
Pulley diameter: 55.00
Grooves/pulley: 6
Radius: 81.50
Radius 2: 81.50
B+: M8
Position/B+ in min.: 4
D+ Size: Plug
Rotation: CW
Plug no.: PL180
Total length mm: 173.00
Terminal type: L-F
Communication: PWM
Pulley: SP/FW
Voltage regulator type: IR
Remarks: This Alternator has a PWM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116180, TG12C065, TG12C177, 1204651, 2605326A, 13500332, 13512761

  • Normalised article numbler
    a3276, cal15505, dra1043, f032116180, tg12c065, tg12c177, 24107n, 209246, 209246a, 287571, 440618, 849241, 1204651, 2605326a, 12090603, 13500332, 13512761, 32004040, 135592140, 2283041402
  • Description
    Voltage: 14
    Amp: 140
    Pulley: 32.00
    Width/holder arm: 79.00
    Mounting bracket distance: 56.00
    Bracket hole: 8.50
    Belt adjustment bracket hole 1: 10.50
    Pulley diameter: 55.00
    Grooves/pulley: 6
    Radius: 81.50
    Radius 2: 81.50
    B+: M8
    Position/B+ in min.: 4
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL180
    Total length mm: 173.00
    Terminal type: L-F
    Communication: PWM
    Pulley: SP/FW
    Voltage regulator type: IR
    Remarks: This Alternator has a PWM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116180, TG12C065, TG12C177, 1204651, 2605326A, 13500332, 13512761

    • Normalised article numbler
      a3276, cal15505, dra1043, f032116180, tg12c065, tg12c177, 24107n, 209246, 209246a, 287571, 440618, 849241, 1204651, 2605326a, 12090603, 13500332, 13512761, 32004040, 135592140, 2283041402
