HC-Cargo Alternator

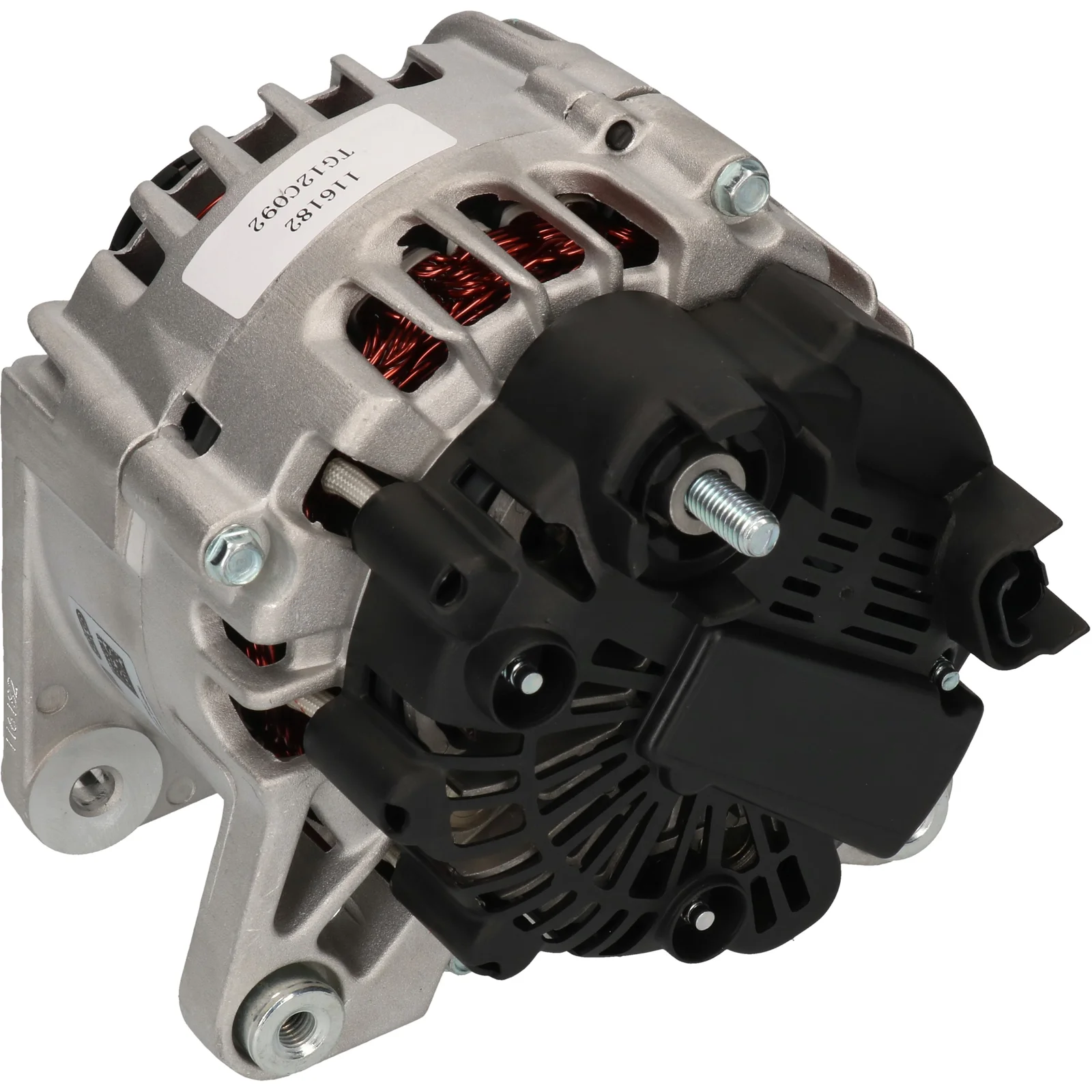

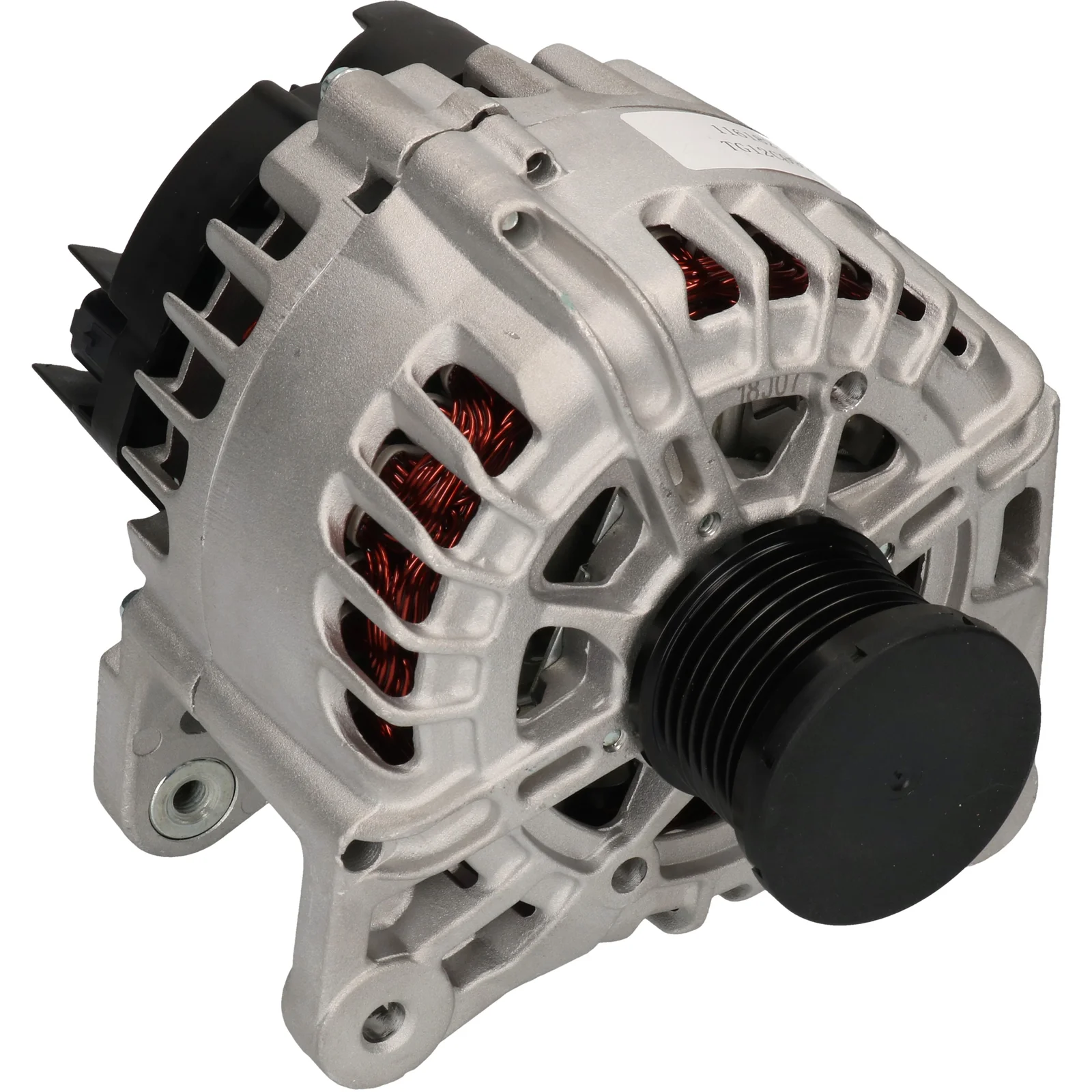

HC-Cargo Alternator
Article no.: F032116182

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 120, Rotation: CW, Mount. bracket dist.: 60.50

Description

Voltage: 14
Amp: 120
Pulley distance: 33.00
Width/holder arm: 14.00
Mounting bracket distance: 60.50
Bracket hole: 8.50
Belt adjustment bracket hole position: 15
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 48.60
Grooves/pulley: 7
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in minutes: 10
D+ Size: Plug
Rotation: CW
Plug number: PL72
Pulley: SP/FW
Regulator type: IR

Files

  • OEM
    A3282, CAL15532, DRA1402, F032116182, TG12C092, TG12C198, tg12c199, TG12C199, TG12C2013, TG12S274, 575.922.120, 20594N, 23100-7562R, 439790, 440427, 494719, 554195RI, 2607401A, 2607401C, 2714145A, 12090683, 231000091, 231000091R, 231000803R, 231000861R, 231003288, 231003288R, 231005225, 231005225R, 231007035, 231007035R, 231007562R, 231007788, 231007788R, 231007820R, 231008573, 231008573R

  • Normalised article numbler
    a3282, cal15532, dra1402, f032116182, tg12c092, tg12c198, tg12c199, tg12c2013, tg12s274, 20594n, 439790, 440427, 494719, 554195ri, 2607401a, 2607401c, 2714145a, 12090683, 231000091, 231000091r, 231000803r, 231000861r, 231003288, 231003288r, 231005225, 231005225r, 231007035, 231007035r, 231007562r, 231007788, 231007788r, 231007820r, 231008573, 231008573r, 575922120
  • Description
    Voltage: 14
    Amp: 120
    Pulley distance: 33.00
    Width/holder arm: 14.00
    Mounting bracket distance: 60.50
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 15
    Belt adjustment bracket hole 1: 8.50
    Pulley diameter: 48.60
    Grooves/pulley: 7
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in minutes: 10
    D+ Size: Plug
    Rotation: CW
    Plug number: PL72
    Pulley: SP/FW
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      A3282, CAL15532, DRA1402, F032116182, TG12C092, TG12C198, tg12c199, TG12C199, TG12C2013, TG12S274, 575.922.120, 20594N, 23100-7562R, 439790, 440427, 494719, 554195RI, 2607401A, 2607401C, 2714145A, 12090683, 231000091, 231000091R, 231000803R, 231000861R, 231003288, 231003288R, 231005225, 231005225R, 231007035, 231007035R, 231007562R, 231007788, 231007788R, 231007820R, 231008573, 231008573R

    • Normalised article numbler
      a3282, cal15532, dra1402, f032116182, tg12c092, tg12c198, tg12c199, tg12c2013, tg12s274, 20594n, 439790, 440427, 494719, 554195ri, 2607401a, 2607401c, 2714145a, 12090683, 231000091, 231000091r, 231000803r, 231000861r, 231003288, 231003288r, 231005225, 231005225r, 231007035, 231007035r, 231007562r, 231007788, 231007788r, 231007820r, 231008573, 231008573r, 575922120
