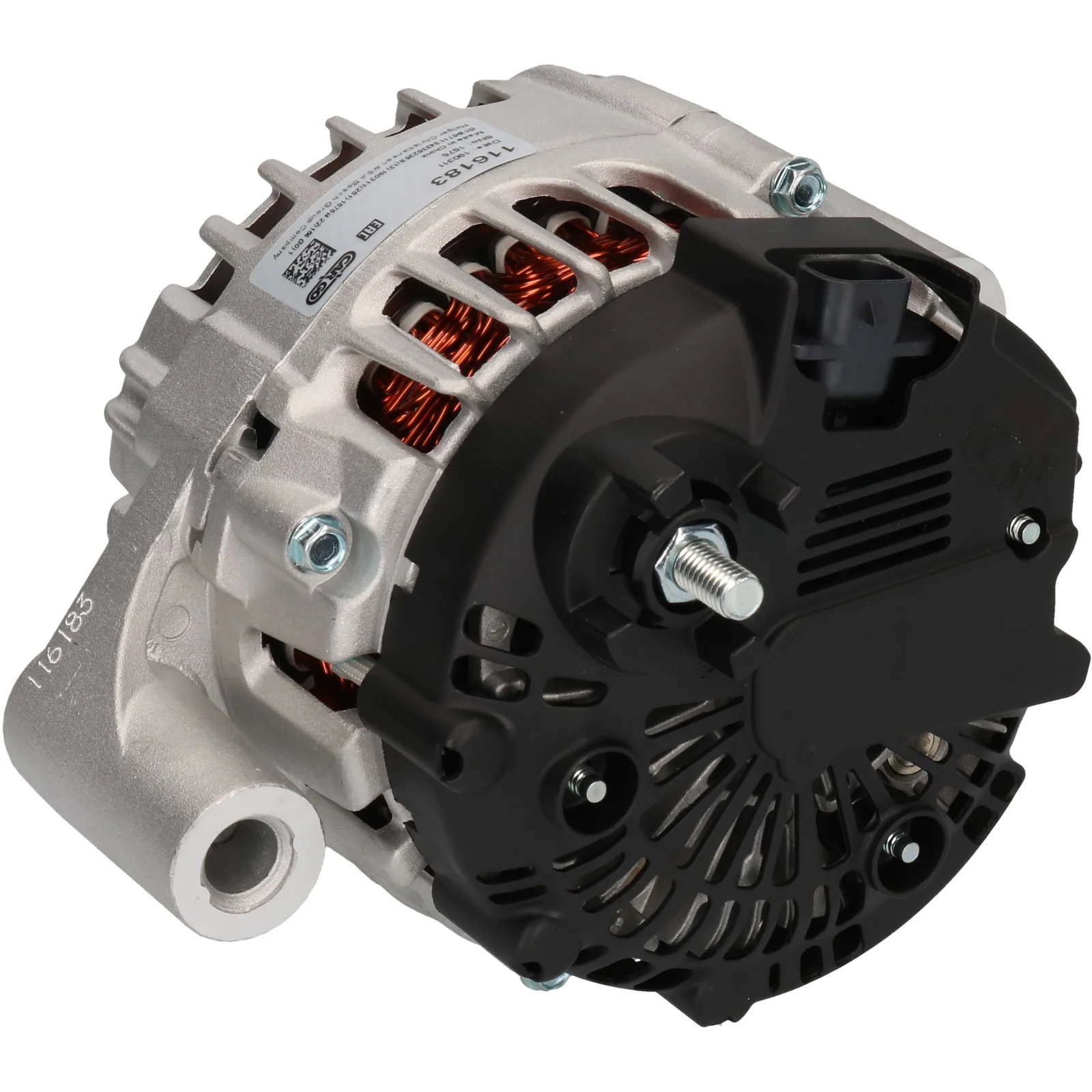

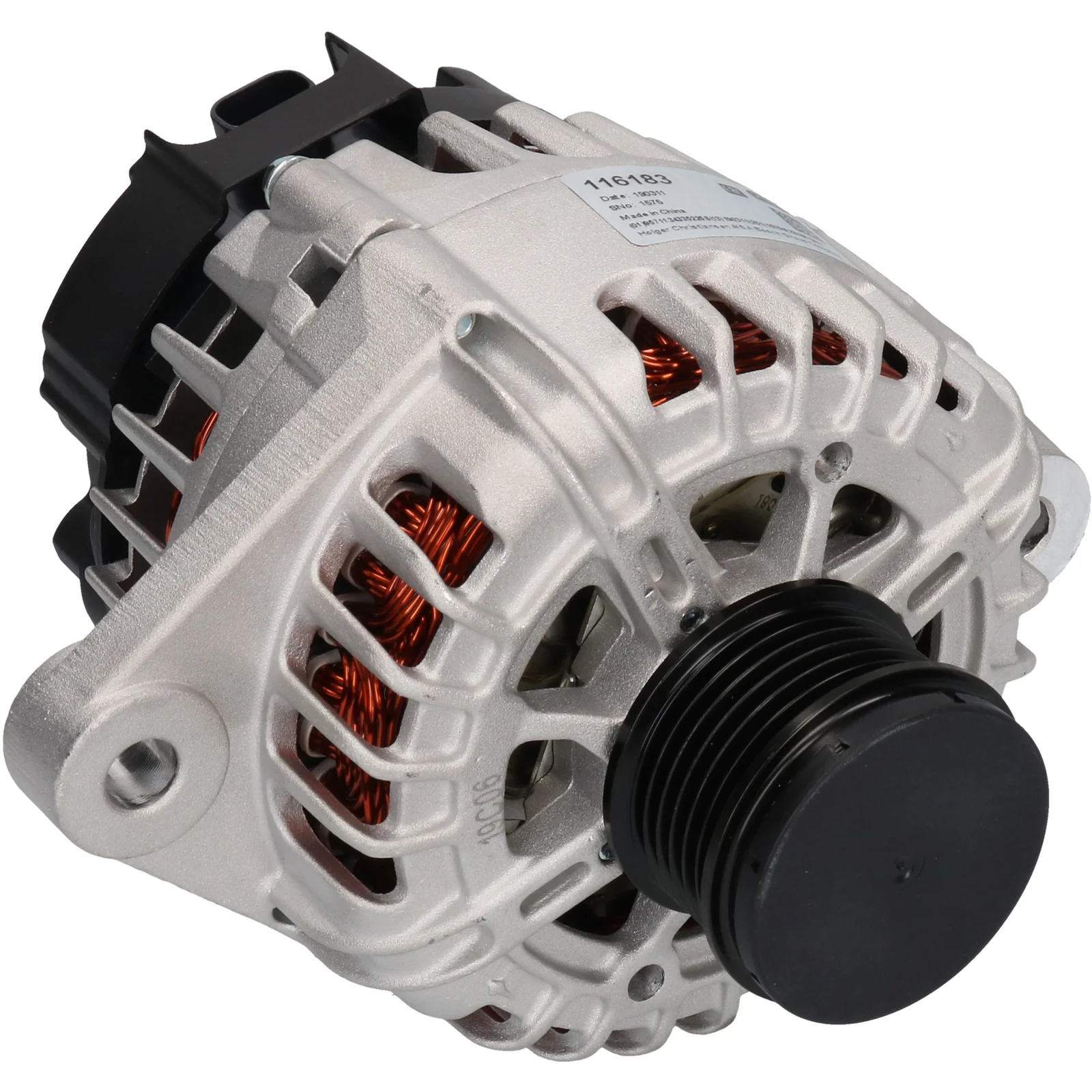

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116183

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 120, Rotation: CW, Pulley diameter: 53.70

Description

Voltage: 14
Amp: 120
Pulley distributor: 112.50
Width/holder arm: 60.80
Bracket hole: 12.00
Belt adjustment bracket hole position: 58
Belt adjustment bracket hole 1: 12.00
Pulley diameter: 53.70
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 40
D+ Size: Plug
Rotation: CW
Plug no.: PL180
Total length mm: 190.00
Terminal type: L-F
Communication: PWM
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116183, TG12C036, TG12C143, 1986A01502, 1202317, 1204642, 2650800, 2650800A, 13502582, 95515964

  • Normalised article numbler
    a3190s, a3223, cal15499, dra1375, f032116183, lra03580, tg12c036, tg12c143, 1986a01502, 209138, 209138a, 286690, 440621, 554024ri, 849120, 1202317, 1204642, 2650800, 2650800a, 12090526, 13502582, 95515964, 135585120, 135590120
  • Description
    Voltage: 14
    Amp: 120
    Pulley distributor: 112.50
    Width/holder arm: 60.80
    Bracket hole: 12.00
    Belt adjustment bracket hole position: 58
    Belt adjustment bracket hole 1: 12.00
    Pulley diameter: 53.70
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 40
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL180
    Total length mm: 190.00
    Terminal type: L-F
    Communication: PWM
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116183, TG12C036, TG12C143, 1986A01502, 1202317, 1204642, 2650800, 2650800A, 13502582, 95515964

    • Normalised article numbler
      a3190s, a3223, cal15499, dra1375, f032116183, lra03580, tg12c036, tg12c143, 1986a01502, 209138, 209138a, 286690, 440621, 554024ri, 849120, 1202317, 1204642, 2650800, 2650800a, 12090526, 13502582, 95515964, 135585120, 135590120
