HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116184

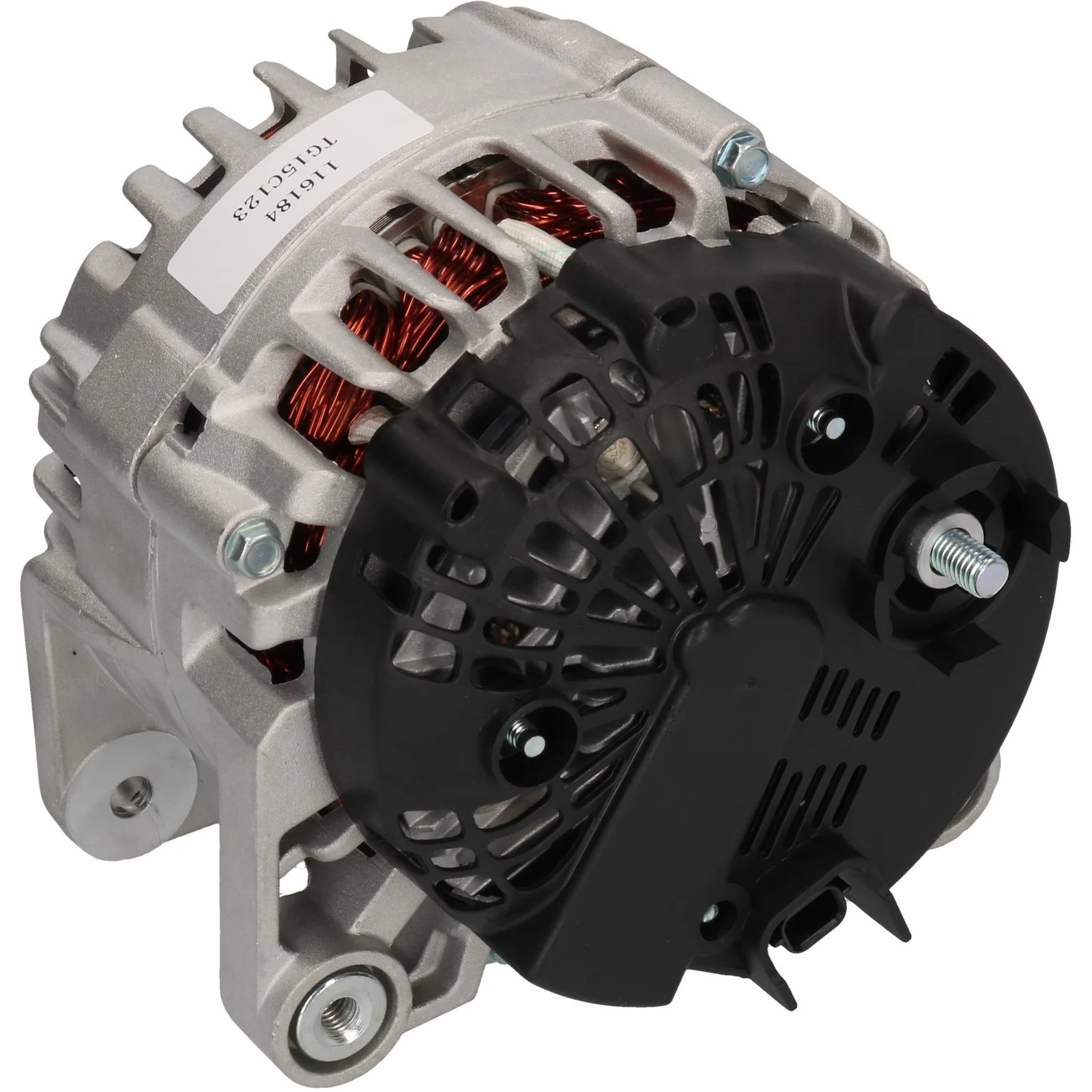

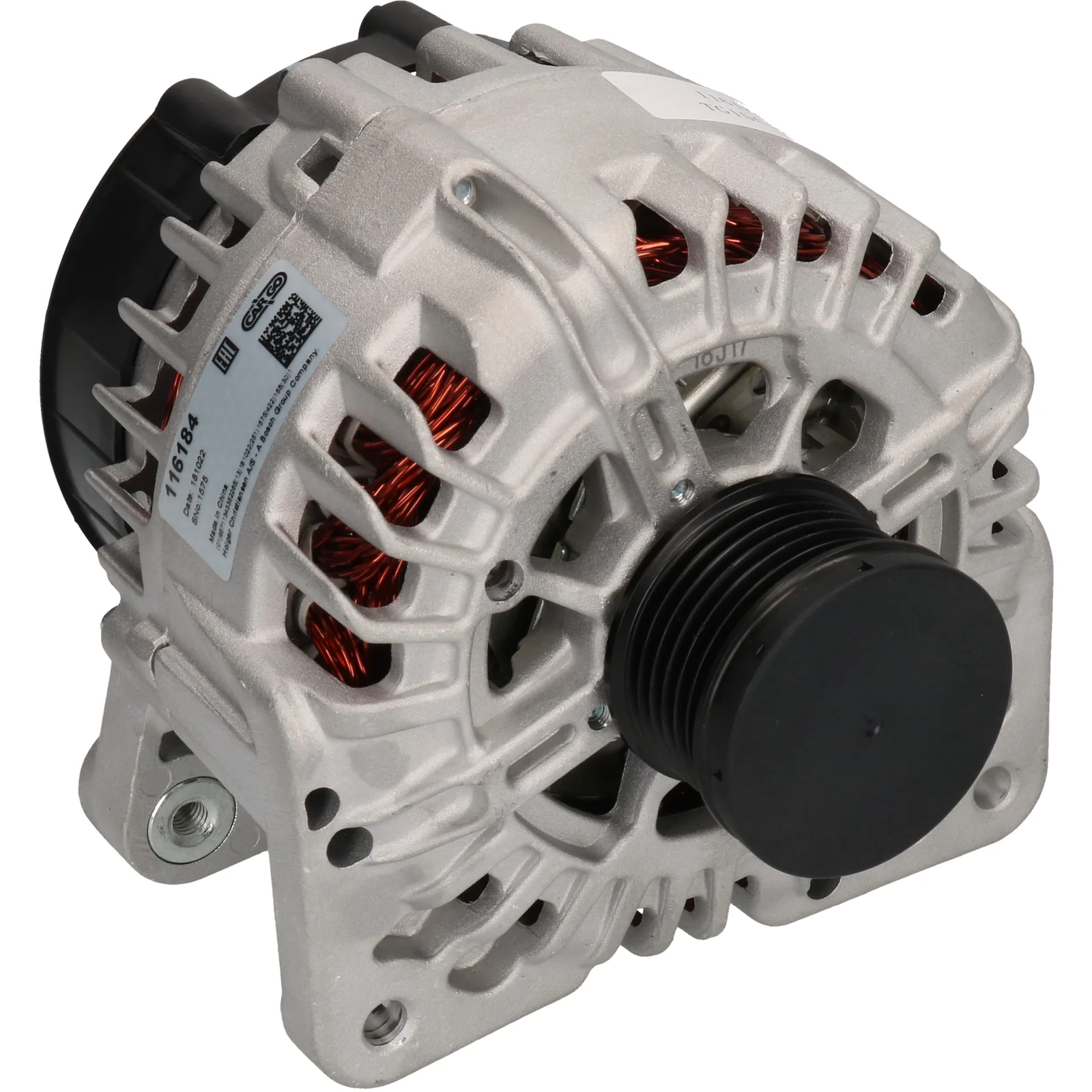

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 150, Rotation: clockwise, Mounting bracket distributor: 61.00

Description

Voltage: 14
Amp: 150
Pulley diameter: 33.00
Width/holder arm: 14.00
Mounting bracket distance: 61.00
Bracket hole: 8.50
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 51.50
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 5
Rotation: CW
Plug no.: PL131
Total length mm: 185.00
Terminal type: COM
Communication: BSS
Pulley: SP/FW
Voltage regulator type: IR
Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116184, TG15C123, 23100-0011R, 2543592, 2543592A, 231000011R

  • Normalised article numbler
    a3168, cal15556, f032116184, lra03485, tg15c123, 20843n, 286595, 440187, 553151ri, 2543592, 2543592a, 9090527, 12090679, 231000011r, 575911150, 2303511502
  • Description
    Voltage: 14
    Amp: 150
    Pulley diameter: 33.00
    Width/holder arm: 14.00
    Mounting bracket distance: 61.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 8.50
    Pulley diameter: 51.50
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 5
    Rotation: CW
    Plug no.: PL131
    Total length mm: 185.00
    Terminal type: COM
    Communication: BSS
    Pulley: SP/FW
    Voltage regulator type: IR
    Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116184, TG15C123, 23100-0011R, 2543592, 2543592A, 231000011R

    • Normalised article numbler
      a3168, cal15556, f032116184, lra03485, tg15c123, 20843n, 286595, 440187, 553151ri, 2543592, 2543592a, 9090527, 12090679, 231000011r, 575911150, 2303511502
