HC-Cargo Alternator

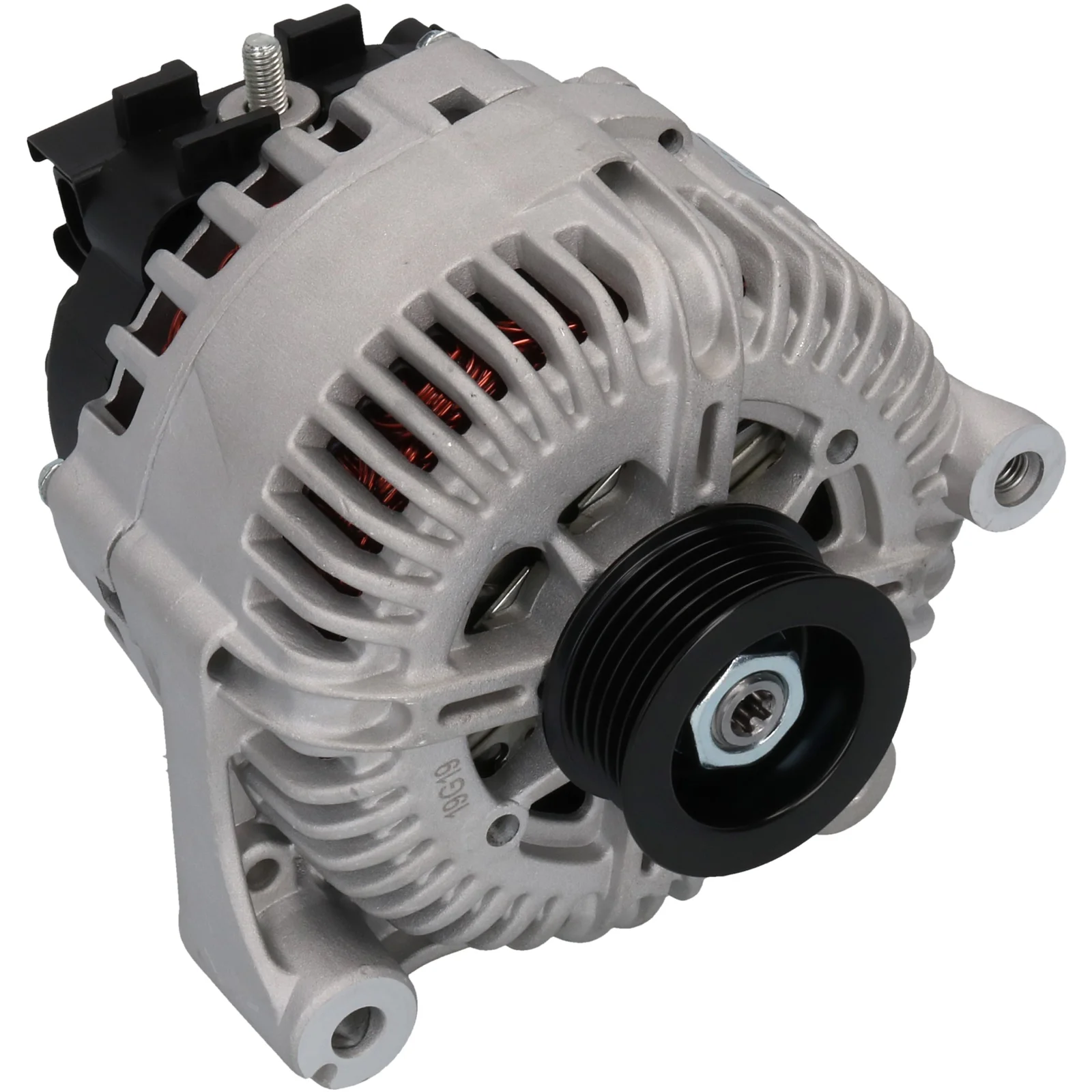

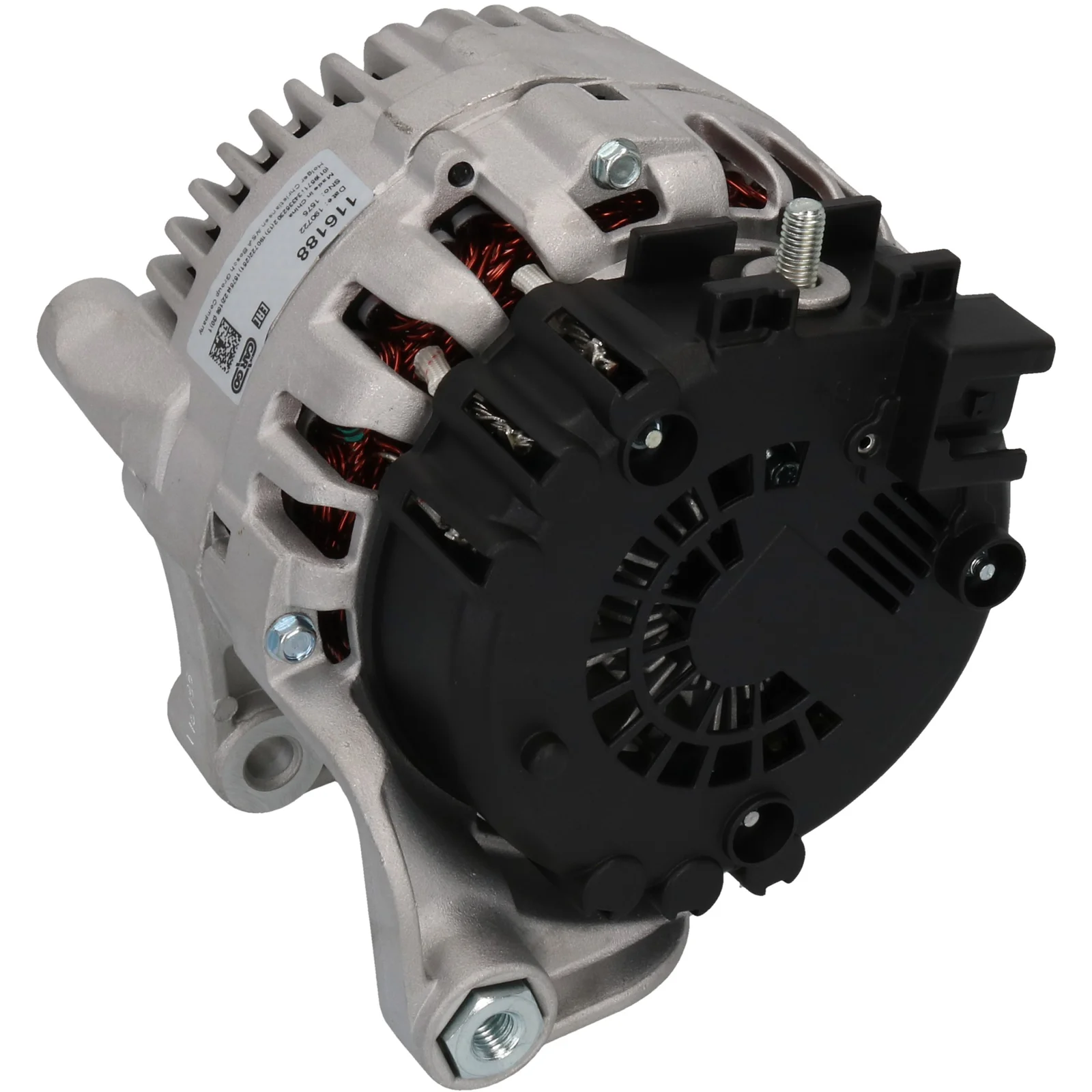

HC-Cargo Alternator
Article no.: F032116188

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 220, Rotation: CW, Mounting bracket distributor: 75.00

Description

Voltage: 14
Amp: 220
Pulley: Pulley
dist.: 56.50
Width/holder arm: 28.00
Mounting bracket dist.: 75.00
Bracket hole: 10.50
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 10.50
Pulley diameter: 57.00
Grooves/pulley: 6
Radius: 93.00
Radius 2: 93.00
B+: M8
Position/B+ in min.: 55
Rotation: CW
Plug no.: PL125
Total length mm: 180.00
Terminal type: COM
Communication: BSS
Pulley: SP
Regulator: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116188, TG23C012, 1986A01860, 2543223, 12317603775, 12317801124, 12317804266

  • Normalised article numbler
    a3597s, cal15475, dra0593, f032116188, lra03242, tg23c012, 1986a01860, 11451n, 209237, 209237a, 285854, 439606, 440109, 553411ri, 2543223, 9090478, 12090395, 215543220, 0986083460, 2151892202, 12317603775, 12317801124, 12317804266
  • Description
    Voltage: 14
    Amp: 220
    Pulley: Pulley
    dist.: 56.50
    Width/holder arm: 28.00
    Mounting bracket dist.: 75.00
    Bracket hole: 10.50
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 10.50
    Pulley diameter: 57.00
    Grooves/pulley: 6
    Radius: 93.00
    Radius 2: 93.00
    B+: M8
    Position/B+ in min.: 55
    Rotation: CW
    Plug no.: PL125
    Total length mm: 180.00
    Terminal type: COM
    Communication: BSS
    Pulley: SP
    Regulator: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116188, TG23C012, 1986A01860, 2543223, 12317603775, 12317801124, 12317804266

    • Normalised article numbler
      a3597s, cal15475, dra0593, f032116188, lra03242, tg23c012, 1986a01860, 11451n, 209237, 209237a, 285854, 439606, 440109, 553411ri, 2543223, 9090478, 12090395, 215543220, 0986083460, 2151892202, 12317603775, 12317801124, 12317804266
