HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116190

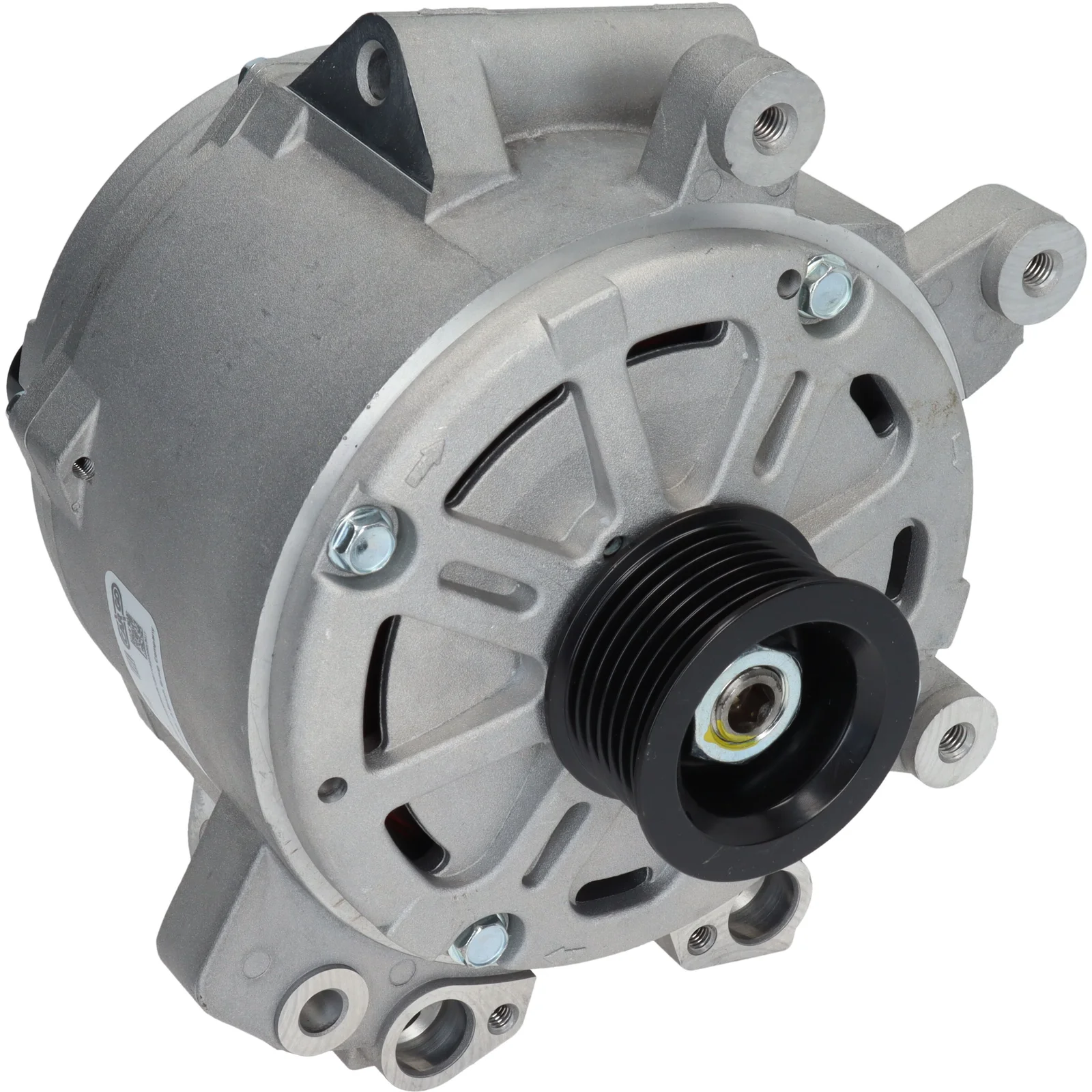

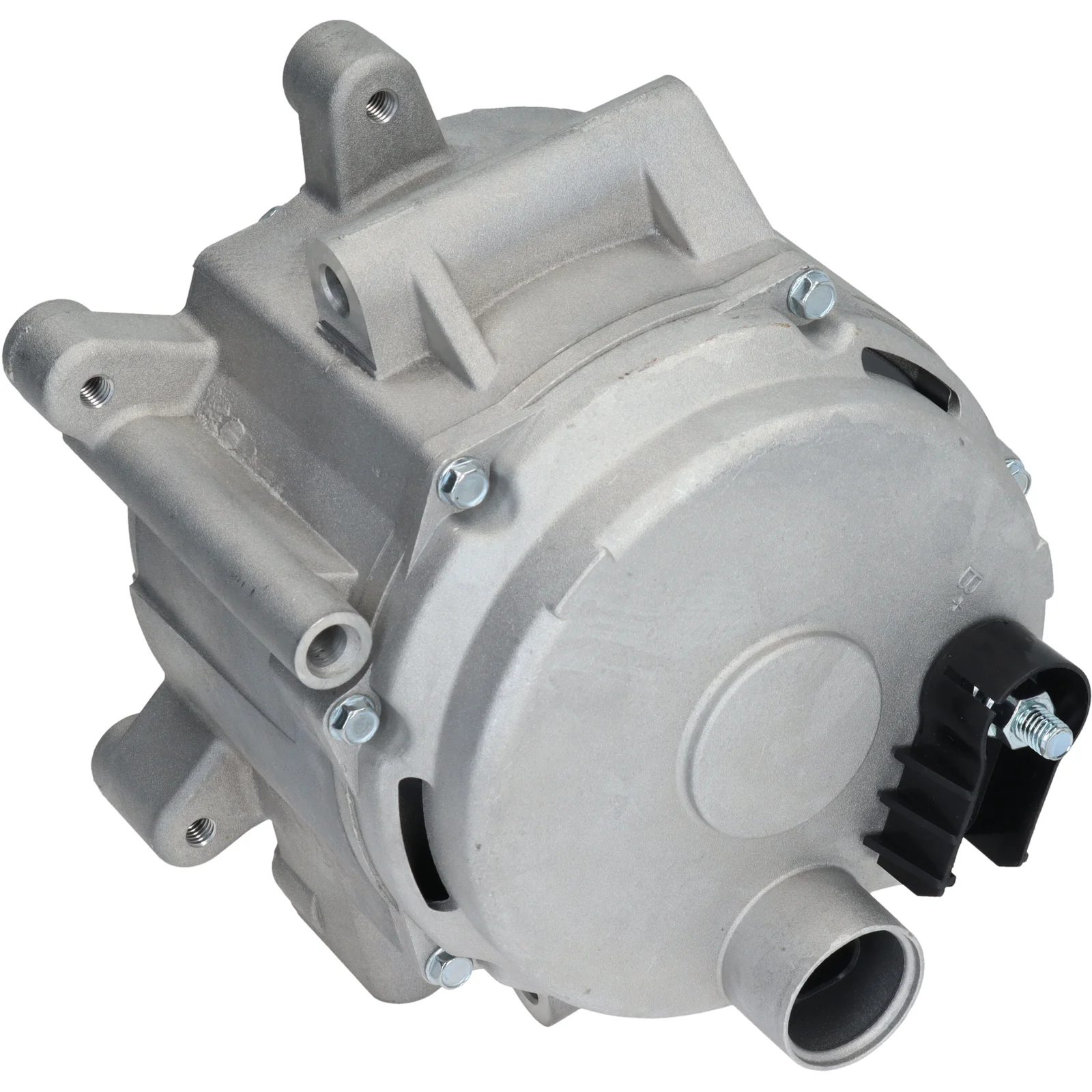

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 190, Rotation: CW, Pulley diameter: 56.00

Description

Voltage: 14
Amp: 190
Drevkugg dist.: 76.70
Width/holder arm: 80.00
Bracket hole: 9.20
Belt. adj. bracket hole 1: 9.20
Drevkugg dia.: 56.00
Grooves/pulley: 7
Radius: 87.00
Radius 2: 87.00
B+ Length mm: 18.00
B+: M8
Position/B+ in min.: 50
Rotation: CW
Plug no.: PL61
Total length mm: 201.00
Drevkugg: SP
Regulator type: IR

Files

  • OEM
    AL9420X, F00E100564, F032116190, 10480435, 10480485, 94860301501, 94860301502, 94860301503

  • Normalised article numbler
    a2129s, al9420x, cal12106, dra0766, f00e100564, f032116190, 113374, 284896, 553462ri, 10480435, 10480485, 12090436, 485401190, 485601190, 5111041902, 94860301501, 94860301502, 94860301503
  • Description
    Voltage: 14
    Amp: 190
    Drevkugg dist.: 76.70
    Width/holder arm: 80.00
    Bracket hole: 9.20
    Belt. adj. bracket hole 1: 9.20
    Drevkugg dia.: 56.00
    Grooves/pulley: 7
    Radius: 87.00
    Radius 2: 87.00
    B+ Length mm: 18.00
    B+: M8
    Position/B+ in min.: 50
    Rotation: CW
    Plug no.: PL61
    Total length mm: 201.00
    Drevkugg: SP
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      AL9420X, F00E100564, F032116190, 10480435, 10480485, 94860301501, 94860301502, 94860301503

    • Normalised article numbler
      a2129s, al9420x, cal12106, dra0766, f00e100564, f032116190, 113374, 284896, 553462ri, 10480435, 10480485, 12090436, 485401190, 485601190, 5111041902, 94860301501, 94860301502, 94860301503
