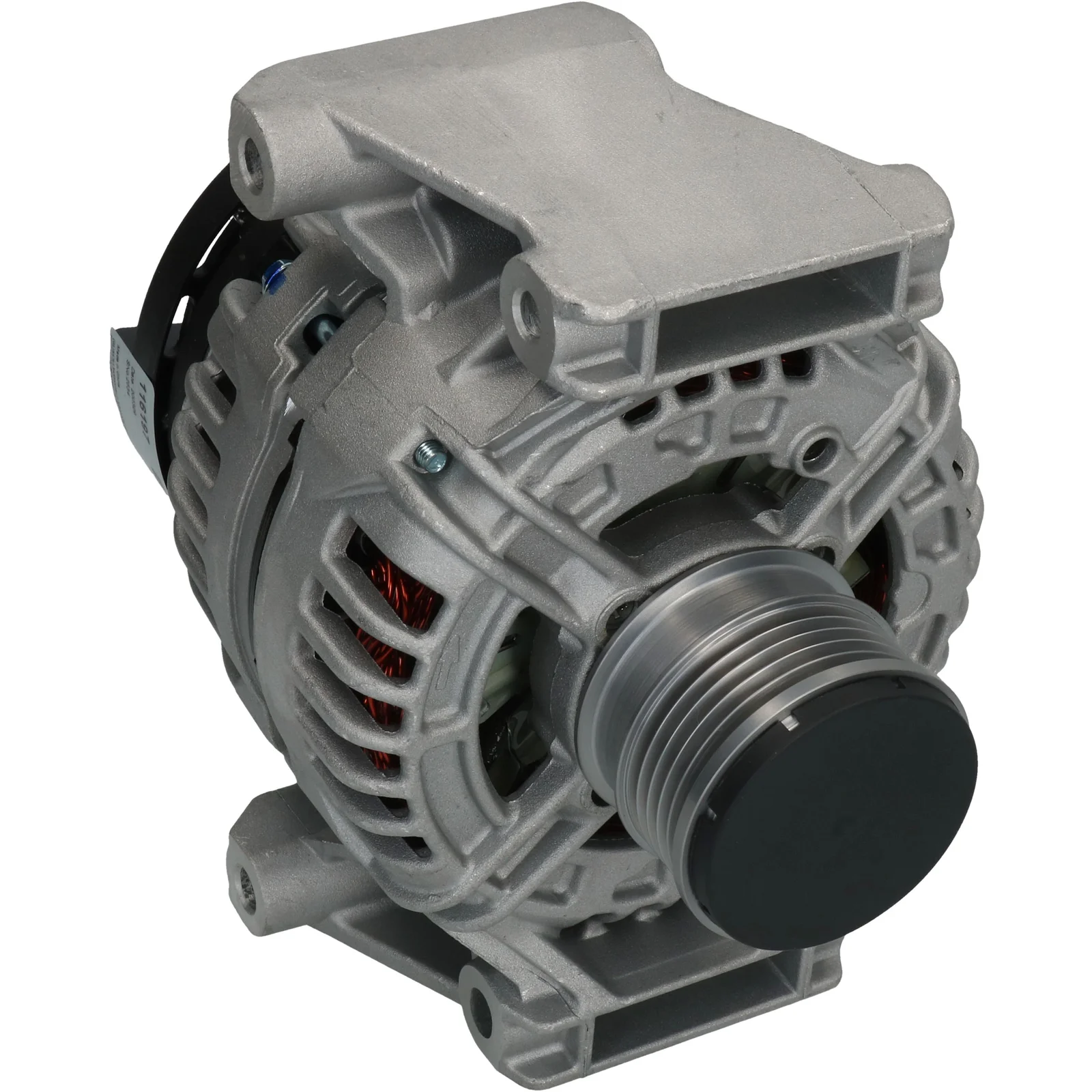

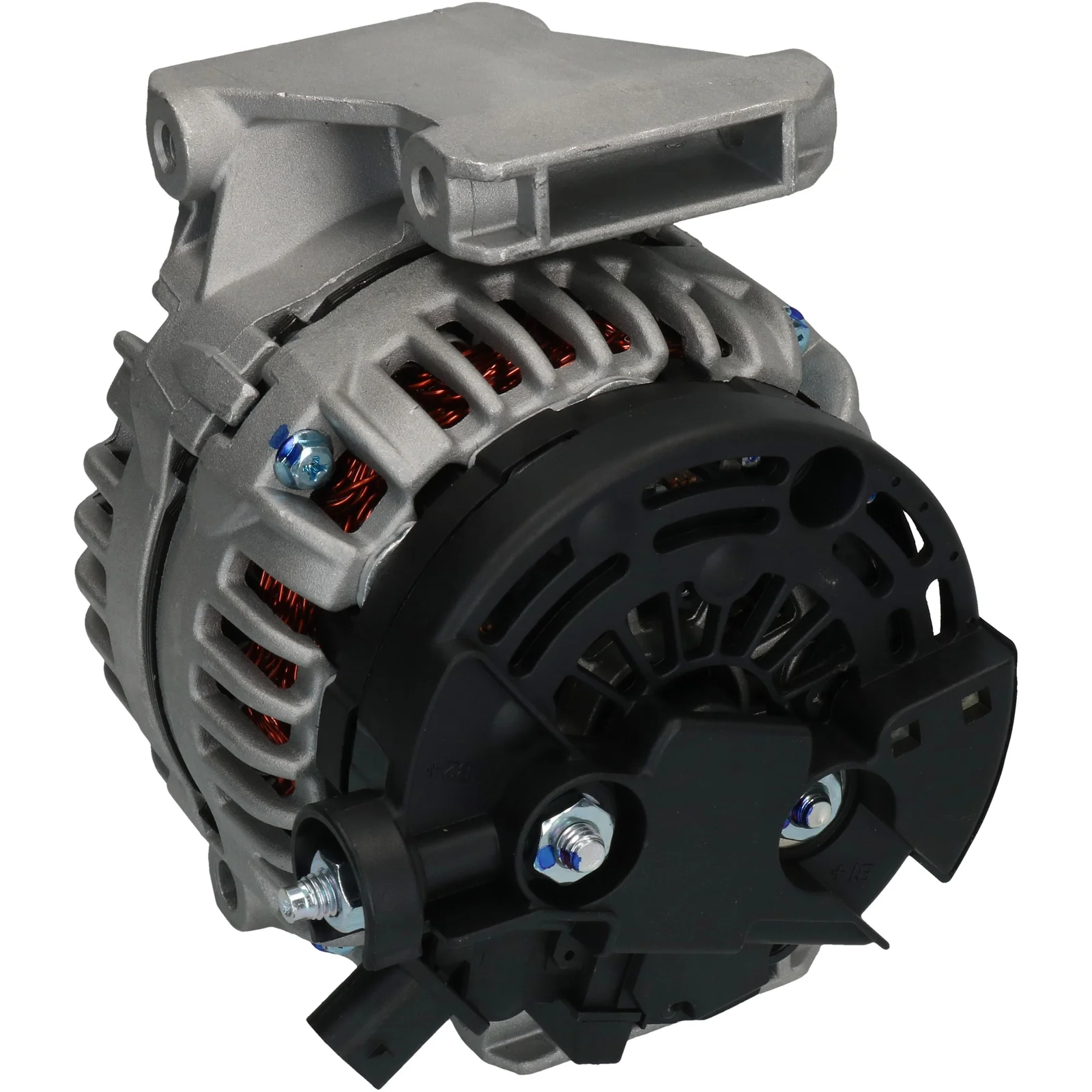

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116197

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 120, Rotation: CW, Mounting bracket distributor: 56.00

Description

HC-Cargo Alternator 14V - 120A, 5 teeth

Voltage: 14
Amp: 120
Pulley dist.: 32.50
Width/holder arm: 79.00
Mount. bracket dist.: 56.00
Bracket hole: 8.50
Belt. adj. bracket hole 1: 8.00
Pulley dia.: 57.00
Grooves/pulley: 5
Radius: 81.50
Radius 2: 81.50
B+: M8
D+ Size: Plug
Rotation: CW
Plug no.: PL75
Total length mm: 189.50
Terminal type: L-DFM
Pulley: SP/FW
Voltage regulator: with
Voltage regulator type: IR

Files

  • OEM
    F032116197, 0124 425 033, 0124 425 040, 1986A00823, 1986A01147, 116197, 12755484, 12757363, 0124425033, 0124425040

  • Normalised article numbler
    a0744s, drb8070, f032116197, 1986a00823, 1986a01147, 11043rw, 11186n, 116197, 12048070, 12755484, 12757363, 32046200, 0124425033, 0124425040, 0986046203, 0986048070, 0986048073, 0986048077
  • Description
    HC-Cargo Alternator 14V - 120A, 5 teeth

    Voltage: 14
    Amp: 120
    Pulley dist.: 32.50
    Width/holder arm: 79.00
    Mount. bracket dist.: 56.00
    Bracket hole: 8.50
    Belt. adj. bracket hole 1: 8.00
    Pulley dia.: 57.00
    Grooves/pulley: 5
    Radius: 81.50
    Radius 2: 81.50
    B+: M8
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL75
    Total length mm: 189.50
    Terminal type: L-DFM
    Pulley: SP/FW
    Voltage regulator: with
    Voltage regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032116197, 0124 425 033, 0124 425 040, 1986A00823, 1986A01147, 116197, 12755484, 12757363, 0124425033, 0124425040

    • Normalised article numbler
      a0744s, drb8070, f032116197, 1986a00823, 1986a01147, 11043rw, 11186n, 116197, 12048070, 12755484, 12757363, 32046200, 0124425033, 0124425040, 0986046203, 0986048070, 0986048073, 0986048077
