HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116201

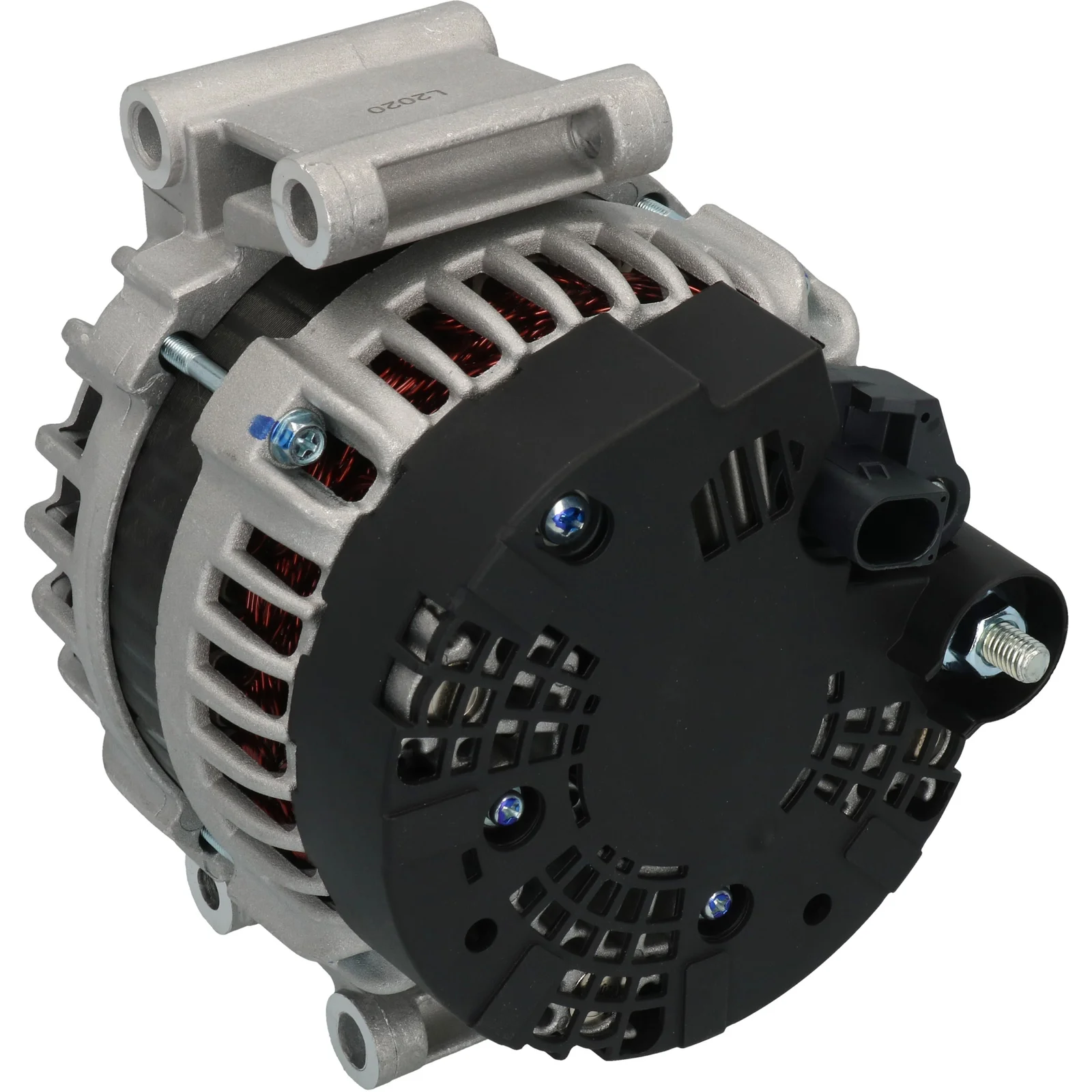

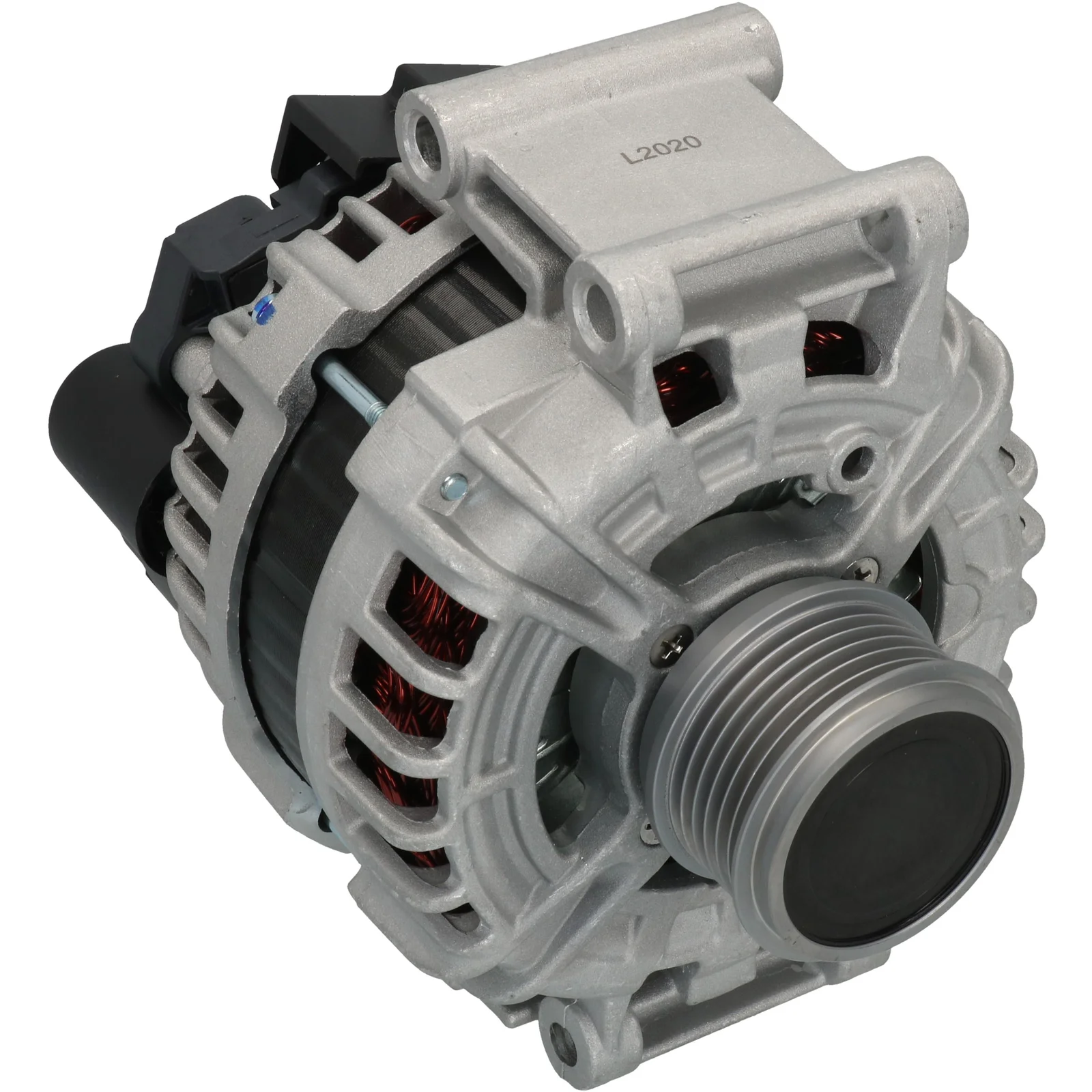

HC-Cargo Alternator

Technical info:

Voltage: 14, Amper: 150, Rotation: CW, Mounting bracket distance: 56.30

Description

Voltage: 14
Amp: 150
Pulley dist.: 29.50
Width/holder arm: 70.00
Mount. bracket dist.: 56.30
Bracket hole: 10.20
Belt. adj. bracket hole 1: 10.20
Belt. adj. bracket hole 2: 10.20
Pulley dia.: 56.00
Grooves/pulley: 6
Radius: 81.50
Radius 2: 81.50
B+: M8
Position/B+ in min.: 44
Rotation: CW
Plug no.: PL86
Total length mm: 192.50
Terminal type: COM
Lamp type: Active
ID Code: 64
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116201, 06H903017J, 06H903017JX, 06H903017T, 06H903017TX, 06H903017X, 06H903018H, 06H903018HX, 06H903018P, 1986A01039, 0121711051, 0121711090, 0125711044, 0125711051, 0125711090, 0125711127, 0125711128, 0125711187, 0125711188

  • Normalised article numbler
    a0566s, a0567pr, a0567s, a0567s2, cal10004, dra1029, dra1397, f032116201, 06h903017j, 06h903017jx, 06h903017t, 06h903017tx, 06h903017x, 06h903018h, 06h903018hx, 06h903018p, 8el015637071, 1986a01039, 11725n, 209254, 209254a, 287517, 442424, 443301, 444206, 12090694, 12090737, 0121711051, 0121711090, 0125711044, 0125711051, 0125711090, 0125711127, 0125711128, 0125711187, 0125711188, 0986083150, 0986083157
  • Description
    Voltage: 14
    Amp: 150
    Pulley dist.: 29.50
    Width/holder arm: 70.00
    Mount. bracket dist.: 56.30
    Bracket hole: 10.20
    Belt. adj. bracket hole 1: 10.20
    Belt. adj. bracket hole 2: 10.20
    Pulley dia.: 56.00
    Grooves/pulley: 6
    Radius: 81.50
    Radius 2: 81.50
    B+: M8
    Position/B+ in min.: 44
    Rotation: CW
    Plug no.: PL86
    Total length mm: 192.50
    Terminal type: COM
    Lamp type: Active
    ID Code: 64
    Communication: LIN
    Pulley: SP/FW
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116201, 06H903017J, 06H903017JX, 06H903017T, 06H903017TX, 06H903017X, 06H903018H, 06H903018HX, 06H903018P, 1986A01039, 0121711051, 0121711090, 0125711044, 0125711051, 0125711090, 0125711127, 0125711128, 0125711187, 0125711188

    • Normalised article numbler
      a0566s, a0567pr, a0567s, a0567s2, cal10004, dra1029, dra1397, f032116201, 06h903017j, 06h903017jx, 06h903017t, 06h903017tx, 06h903017x, 06h903018h, 06h903018hx, 06h903018p, 8el015637071, 1986a01039, 11725n, 209254, 209254a, 287517, 442424, 443301, 444206, 12090694, 12090737, 0121711051, 0121711090, 0125711044, 0125711051, 0125711090, 0125711127, 0125711128, 0125711187, 0125711188, 0986083150, 0986083157
