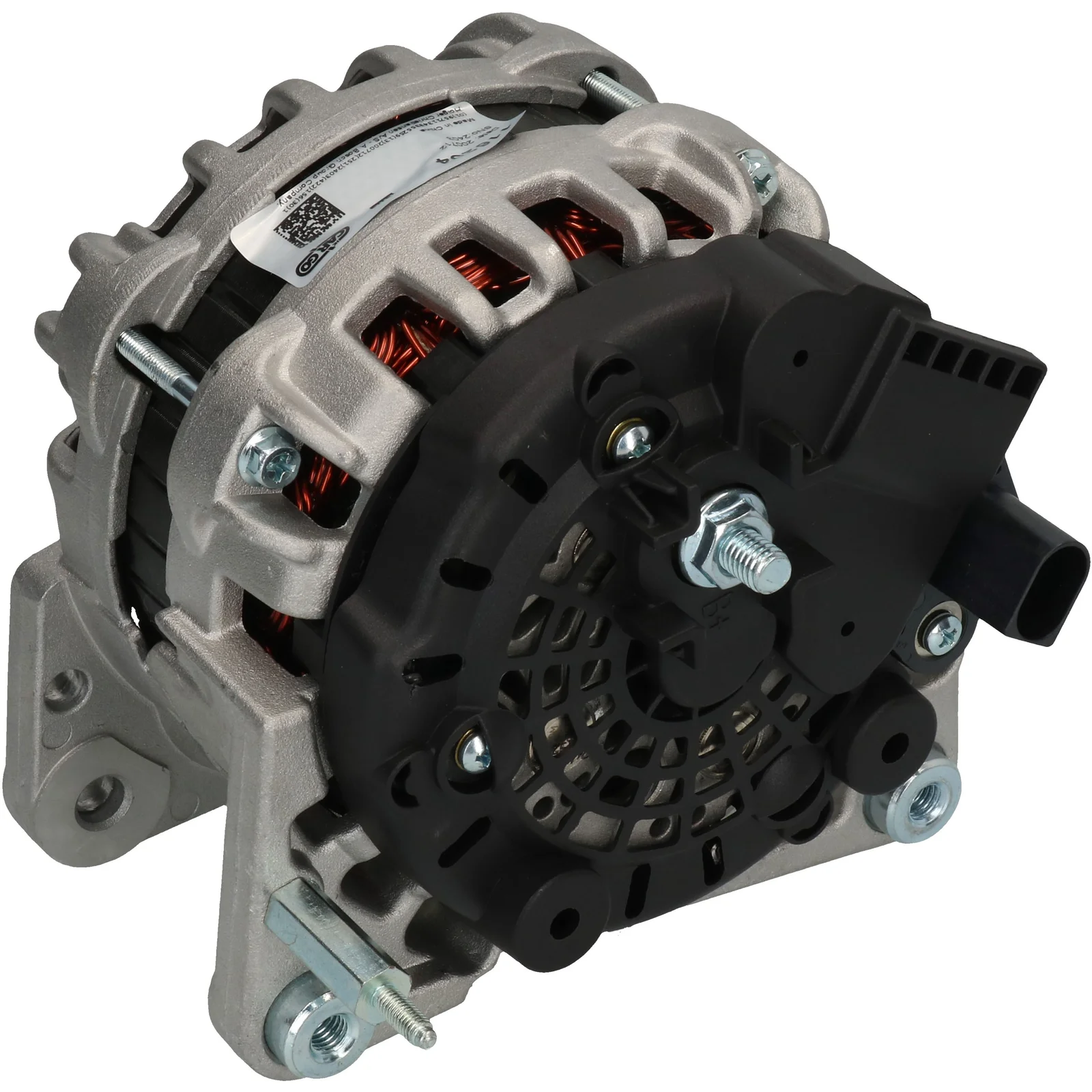

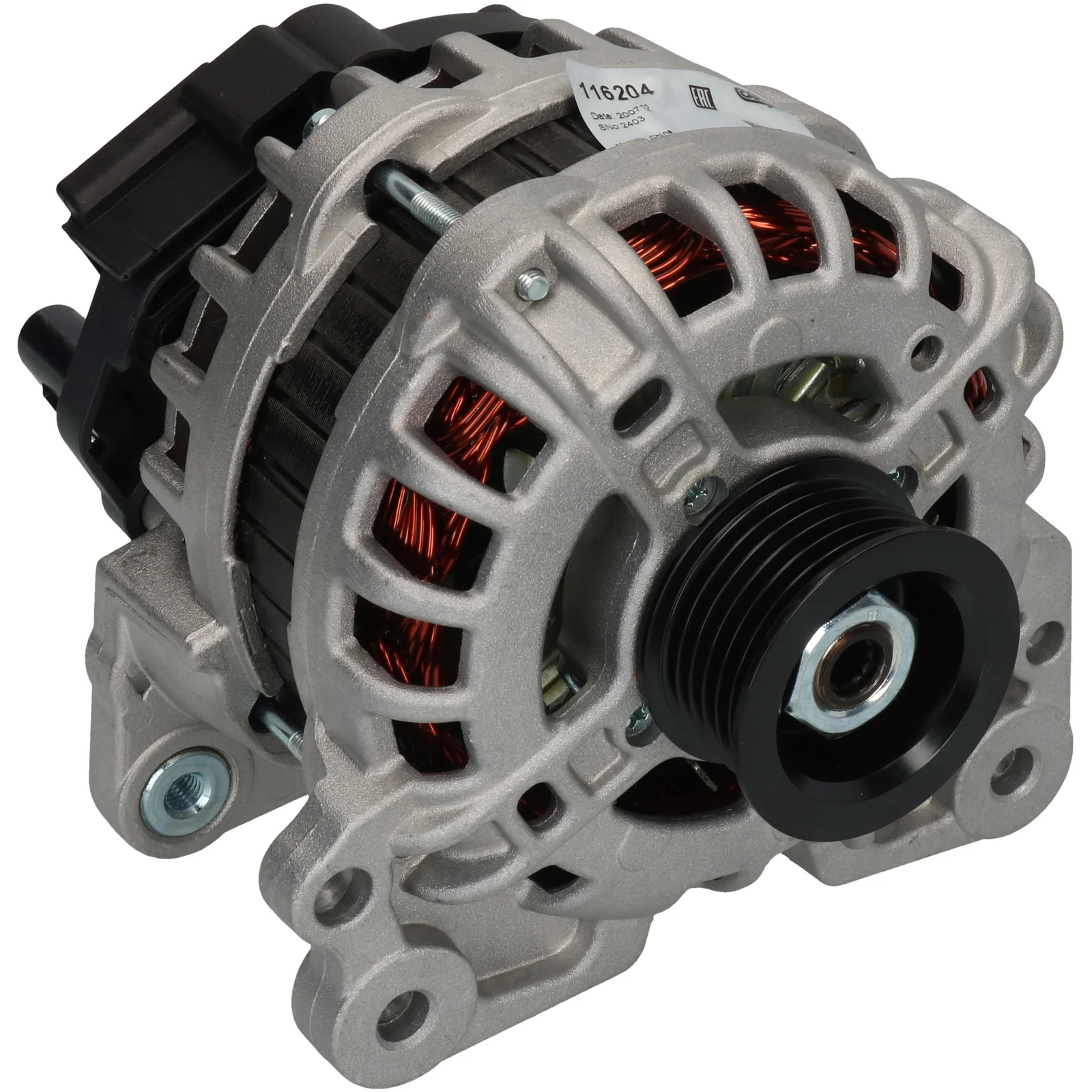

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116204

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 90, Rotation: CW, Mounting bracket distributor: 61.00

Description

Voltage: 14
Amp: 90
Pulley dist.: 30.00
Width/holder arm: 14.00
Mount. bracket dist.: 61.00
Bracket hole: 8.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 49.60
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 51
D+ Size: Plug
Rotation: CW
Plug no.: PL112
Total length mm: 180.00
Terminal type: L-DFM
Pulley: SP
Fan: IF
Regulator type: IR

Files

  • OEM
    F000BL0425, F000BL04A0, F032116204, X0039050000, X0841031000, 04C903023A, 04C903023AX, 1986A01065

  • Normalised article numbler
    dra1245, f000bl0425, f000bl04a0, f032116204, x0039050000, x0841031000, 04c903023a, 04c903023ax, 8el011712871, 1986a01065, 20800n, 286980, 456403, 12090775, 32000007, 0986083870
  • Description
    Voltage: 14
    Amp: 90
    Pulley dist.: 30.00
    Width/holder arm: 14.00
    Mount. bracket dist.: 61.00
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 49.60
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 51
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL112
    Total length mm: 180.00
    Terminal type: L-DFM
    Pulley: SP
    Fan: IF
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F000BL0425, F000BL04A0, F032116204, X0039050000, X0841031000, 04C903023A, 04C903023AX, 1986A01065

    • Normalised article numbler
      dra1245, f000bl0425, f000bl04a0, f032116204, x0039050000, x0841031000, 04c903023a, 04c903023ax, 8el011712871, 1986a01065, 20800n, 286980, 456403, 12090775, 32000007, 0986083870
