HC-Cargo Alternator
Article no.: F032116205

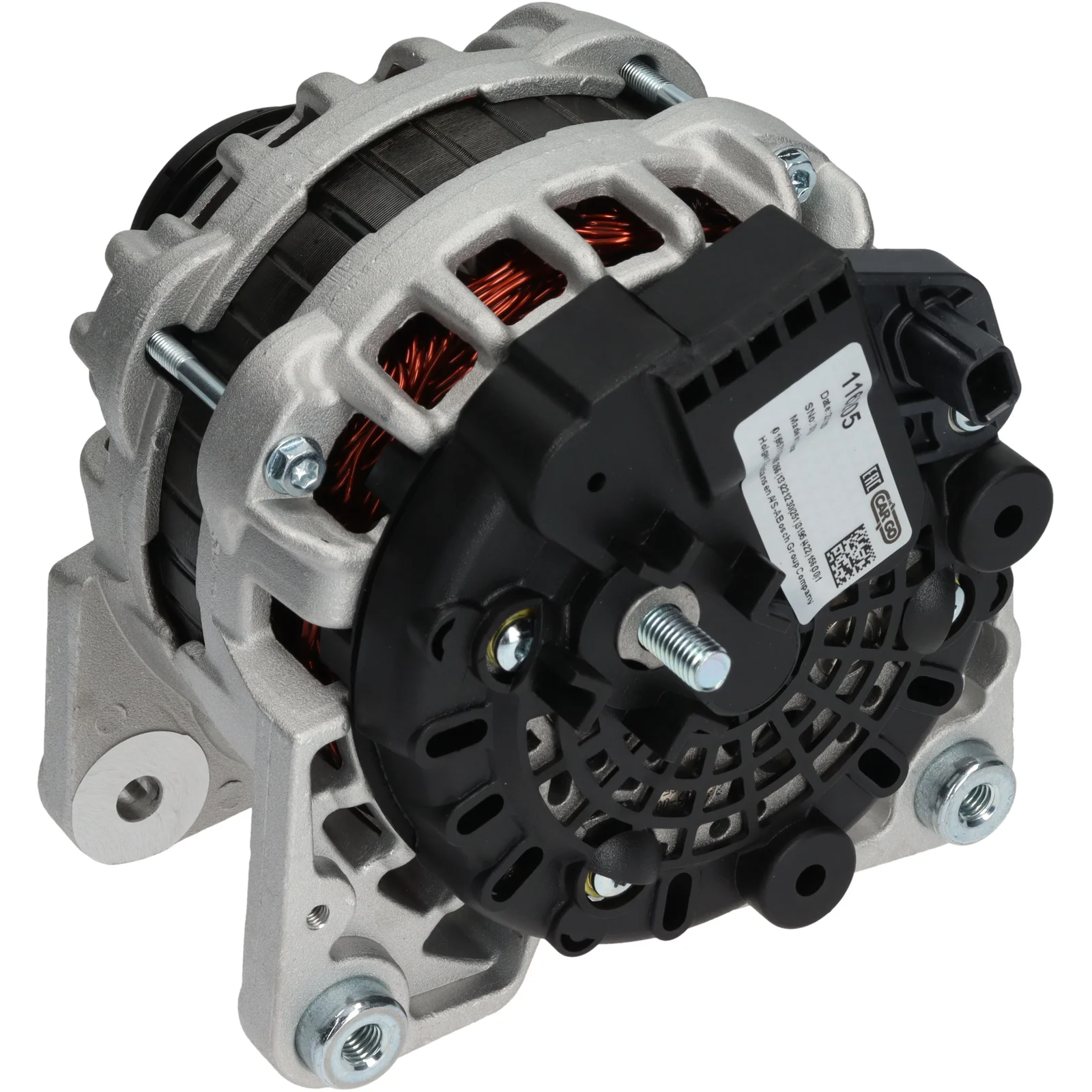

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperes: 90, Rotation: CW, Mounting bracket distributor: 60.00

Description

HC-Cargo Alternator 14V - 90A, 3-groove

Voltage: 14
Amps: 90
Pulley diameter: 47.50
Width/holder arm: 14.50
Mounting bracket diameter: 60.00
Bracket hole: 8.50
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 58.50
Grooves/pulley: 3
Radius: 90.00
Radius 2: 90.00
B+ length mm: 10.00
B+: M8
Position/B+ in min.: 40
Rotation: CW
Plug number: PL131
Total length mm: 182.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F000 BL0 458, F000 BL0 4DB, F000BL0458, F000BL04DB, F032116205, 1986A01067, 23100-3730R, 23100-4426R, 116205, 231003730R, 231004426R

  • Normalised article numbler
    a0677s, dra1152, f000bl0458, f000bl04db, f032116205, 8el015637521, 1986a01067, 116205, 286994, 440946, 446538, 12090701, 32085930, 231003730r, 231004426r, 0986085930
