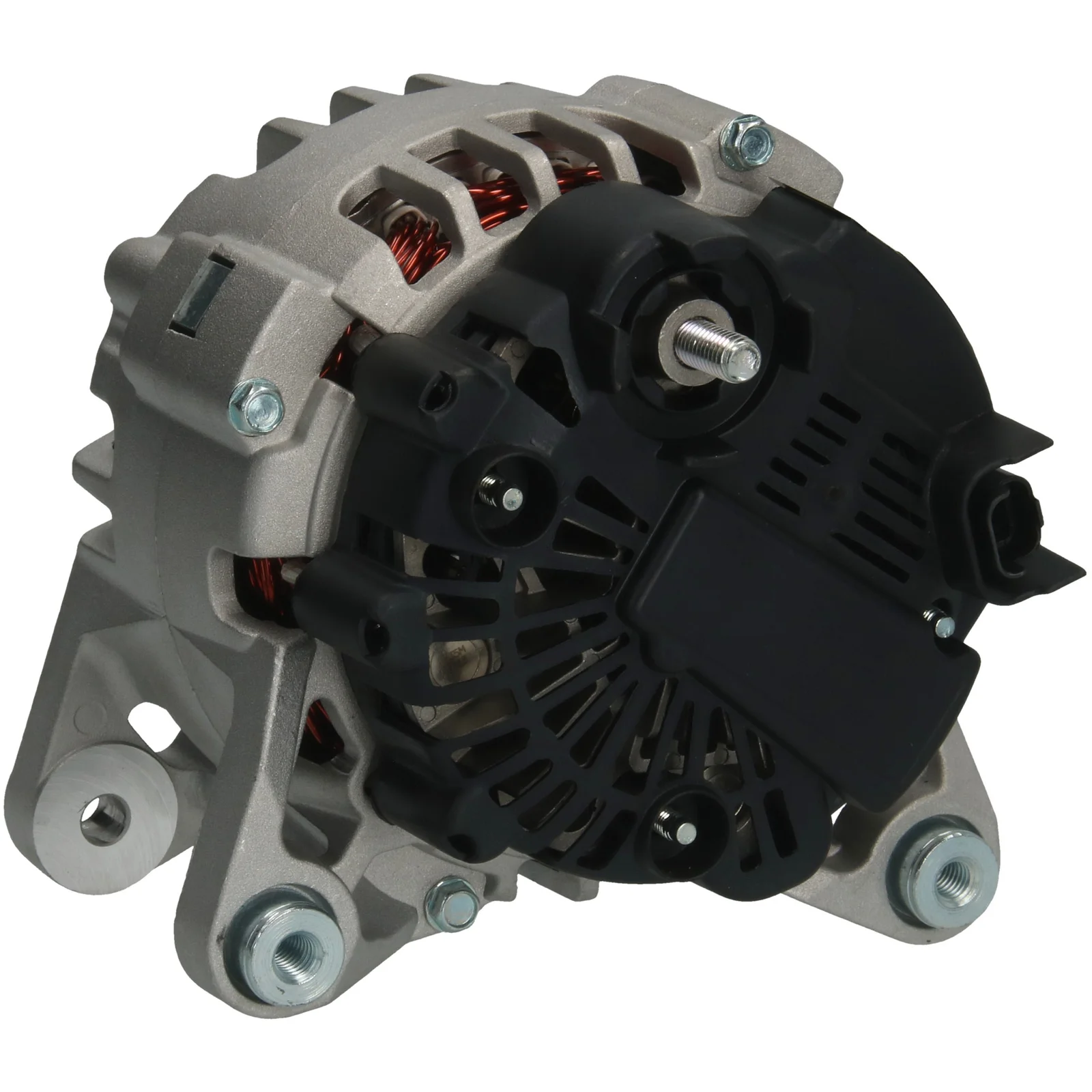

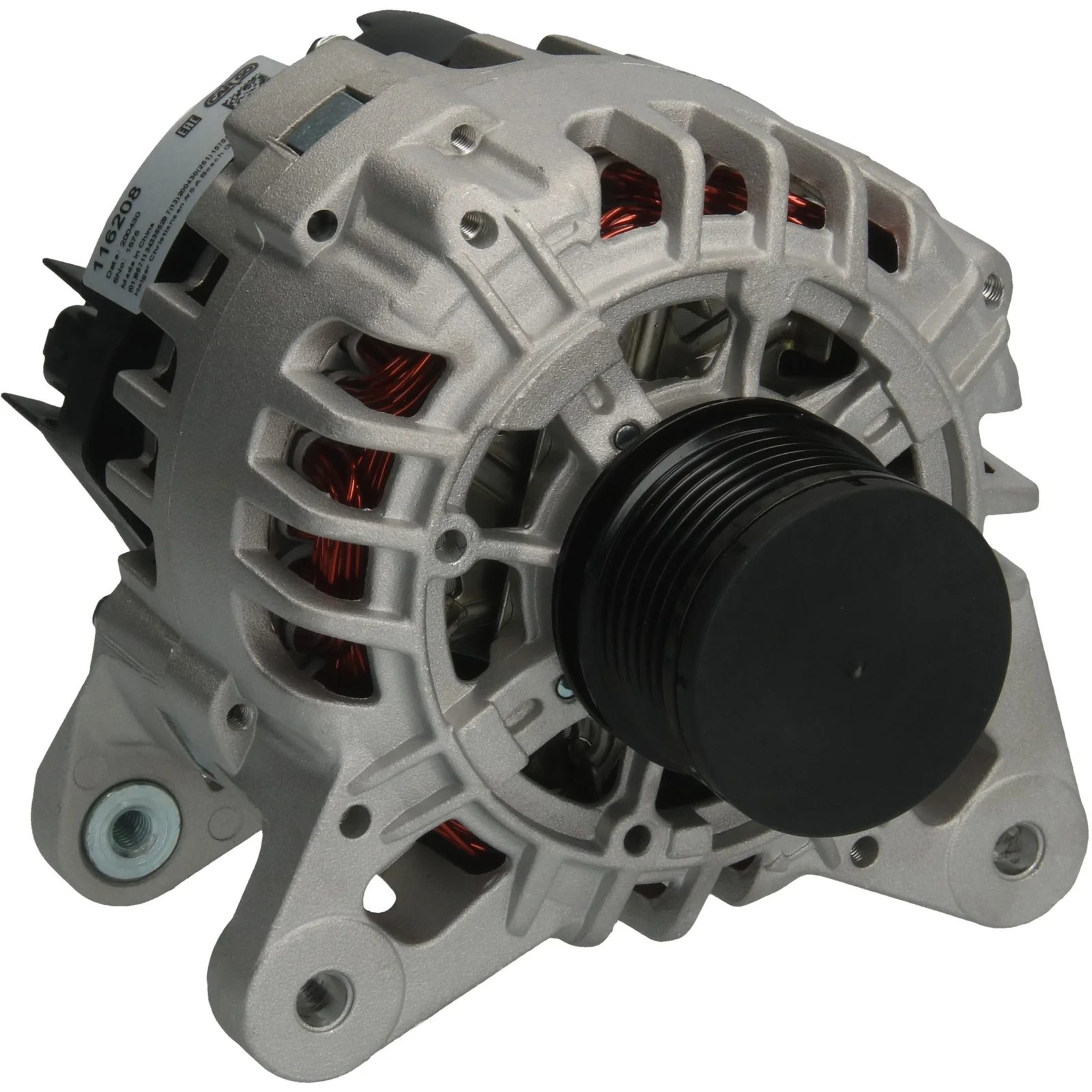

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116208

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 90, Rotation: CW, Mounting bracket distance: 60.50

Description

Voltage: 14
Amp: 90
Pulley dist.: 38.00
Width/holder arm: 15.00
Mount. bracket dist.: 60.50
Bracket hole: 8.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 55.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 51
D+ Size: Plug
Rotation: CW
Plug no.: PL72
Total length mm: 186.00
Pulley: SP/FW
Fan: IF
Regulator type: IR

Files

  • OEM
    F032116208, TG9B046, TG9B052, 1986A01325, 2543531, 2605646, 2605646B, 8200674760, 8200810614

  • Normalised article numbler
    a3345s, dra0966, f032116208, tg9b046, tg9b052, 1986a01325, 20972n, 209289, 209289a, 2543531, 2605646, 2605646b, 12090651, 8200674760, 8200810614
  • Description
    Voltage: 14
    Amp: 90
    Pulley dist.: 38.00
    Width/holder arm: 15.00
    Mount. bracket dist.: 60.50
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 55.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 51
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL72
    Total length mm: 186.00
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032116208, TG9B046, TG9B052, 1986A01325, 2543531, 2605646, 2605646B, 8200674760, 8200810614

    • Normalised article numbler
      a3345s, dra0966, f032116208, tg9b046, tg9b052, 1986a01325, 20972n, 209289, 209289a, 2543531, 2605646, 2605646b, 12090651, 8200674760, 8200810614
