HC-Cargo Alternator

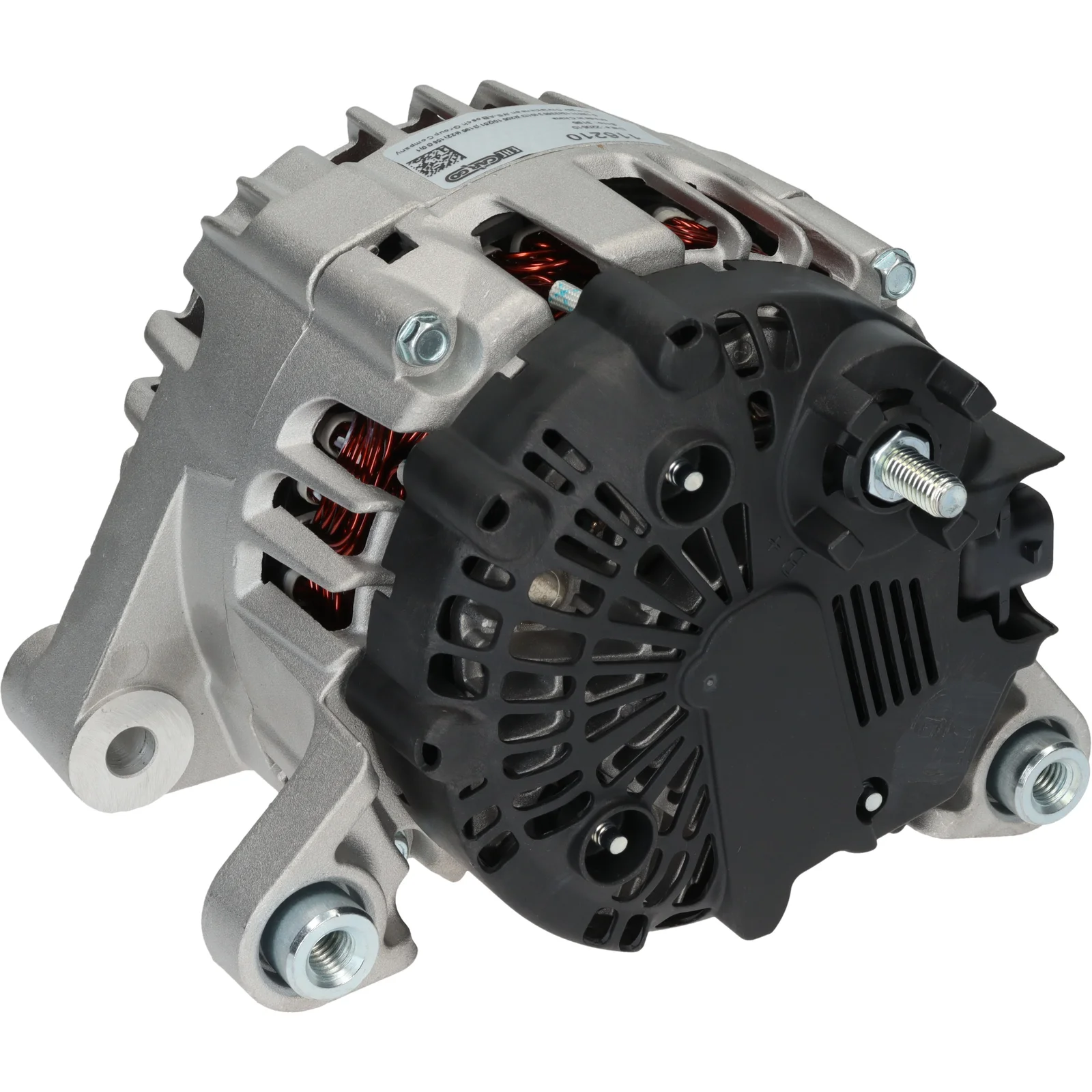

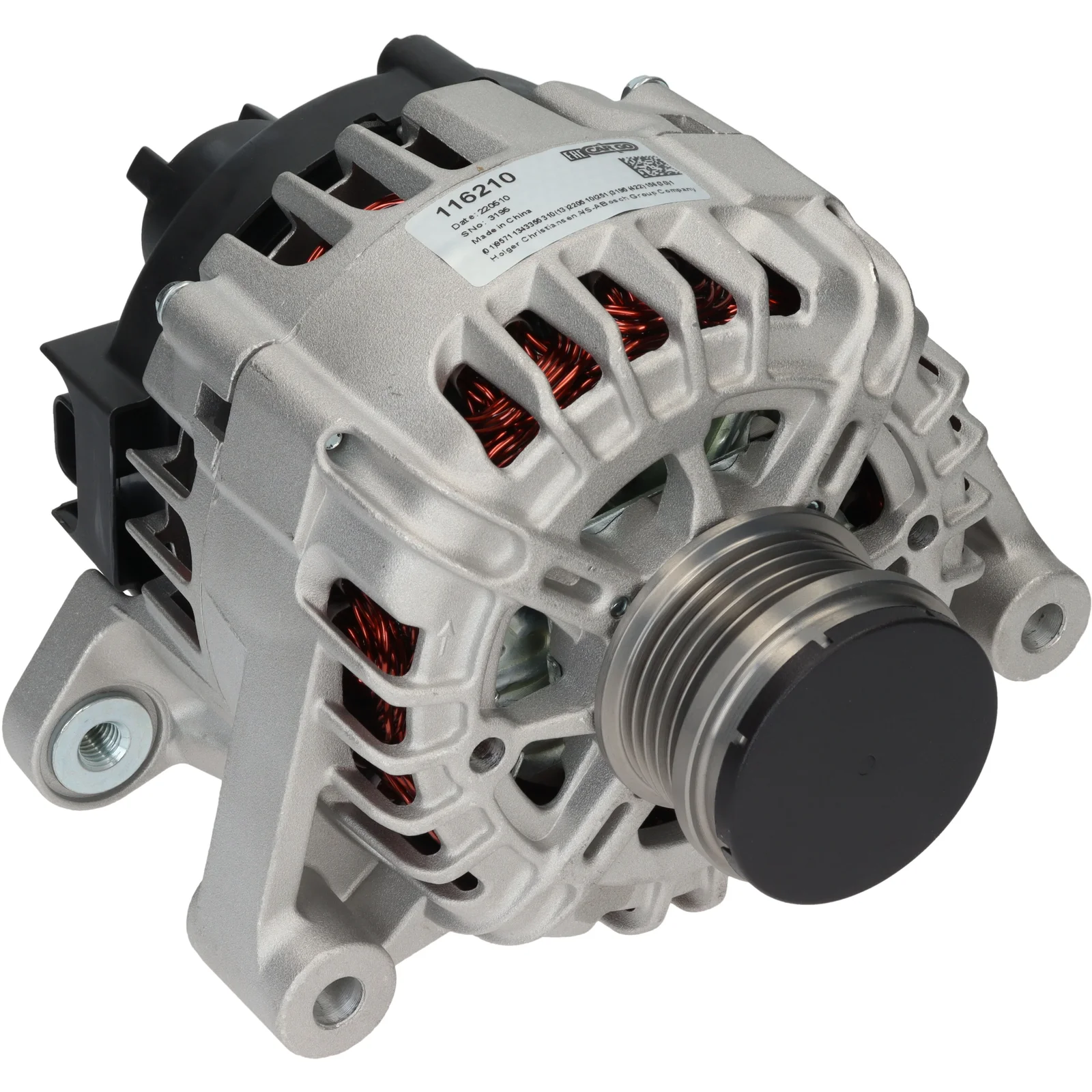

HC-Cargo Alternator
Article no.: F032116210

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 140, Rotation: CW, Mount. bracket dist.: 58.00

Description

HC-Cargo Alternator

Voltage: 14
Amp: 140
Pulley dist.: 55.00
Width/holder arm: 33.50
Mount. bracket dist.: 58.00
Bracket hole: 10.00
Belt. adj. brackethole pos.: 50
Belt. adj. bracket hole 1: 10.00
Pulley dia.: 53.50
Grooves/pulley: 5
Radius: 92.00
Radius 2: 92.00
B+: M8
Position/B+ in min.: 55
D+ Size: Plug
Rotation: CW
Plug no.: PL180
Total length mm: 194.00
Terminal type: L-F
Communication: PWM
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a PWM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116210, TG12C137, TG12C184, 19YY1715, 1202243, 1202319, 2614366A, 2620371A, 13581893, 13588296

  • Normalised article numbler
    a3525s, dra1331, f032116210, tg12c137, tg12c184, 8el011713711, 19yy1715, 24109n, 24109noe, 209406, 209406a, 440747, 849234, 1202243, 1202319, 2614366a, 2620371a, 12090929, 13581893, 13588296, 135591140, 0986086960
  • Description
    HC-Cargo Alternator

    Voltage: 14
    Amp: 140
    Pulley dist.: 55.00
    Width/holder arm: 33.50
    Mount. bracket dist.: 58.00
    Bracket hole: 10.00
    Belt. adj. brackethole pos.: 50
    Belt. adj. bracket hole 1: 10.00
    Pulley dia.: 53.50
    Grooves/pulley: 5
    Radius: 92.00
    Radius 2: 92.00
    B+: M8
    Position/B+ in min.: 55
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL180
    Total length mm: 194.00
    Terminal type: L-F
    Communication: PWM
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a PWM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116210, TG12C137, TG12C184, 19YY1715, 1202243, 1202319, 2614366A, 2620371A, 13581893, 13588296

    • Normalised article numbler
      a3525s, dra1331, f032116210, tg12c137, tg12c184, 8el011713711, 19yy1715, 24109n, 24109noe, 209406, 209406a, 440747, 849234, 1202243, 1202319, 2614366a, 2620371a, 12090929, 13581893, 13588296, 135591140, 0986086960
