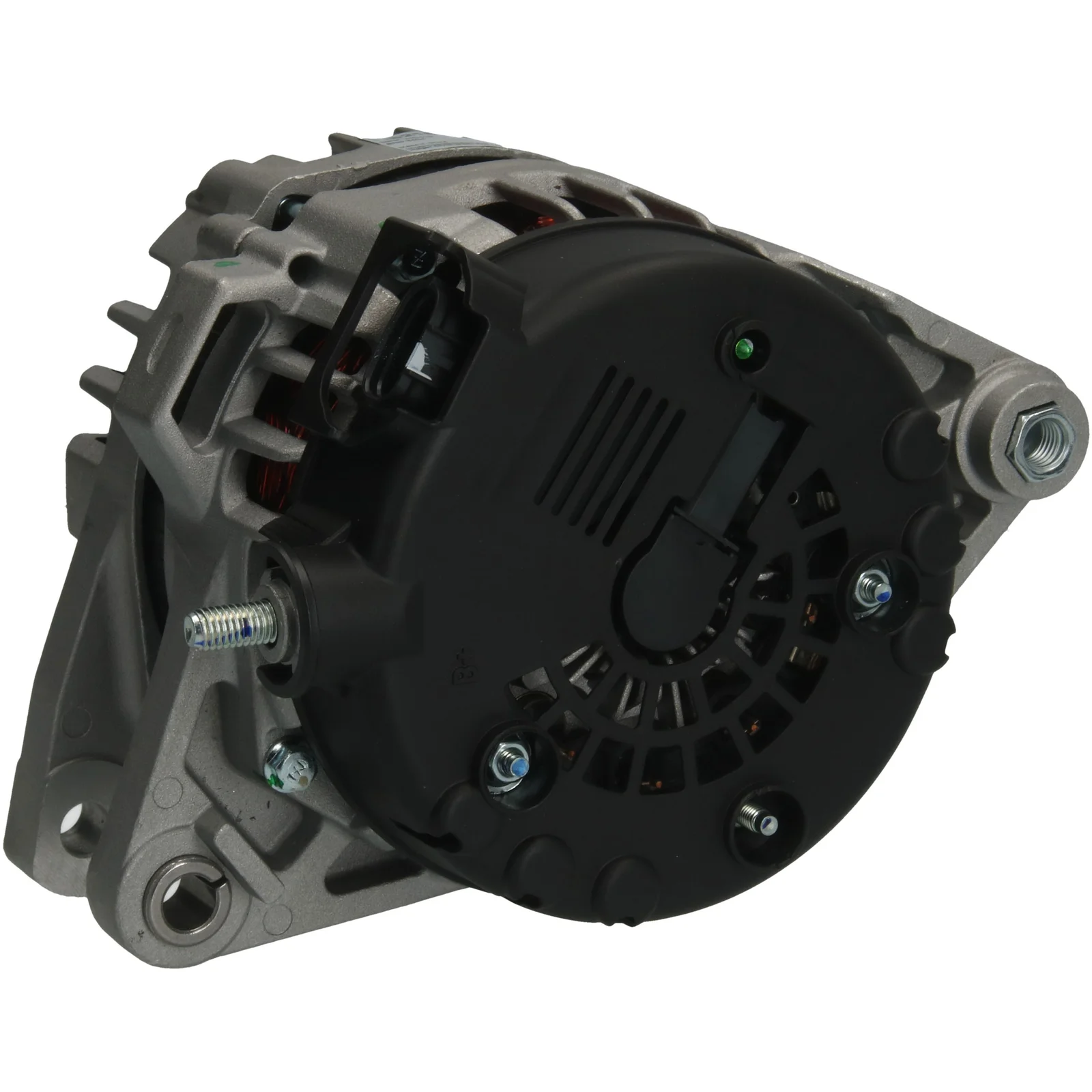

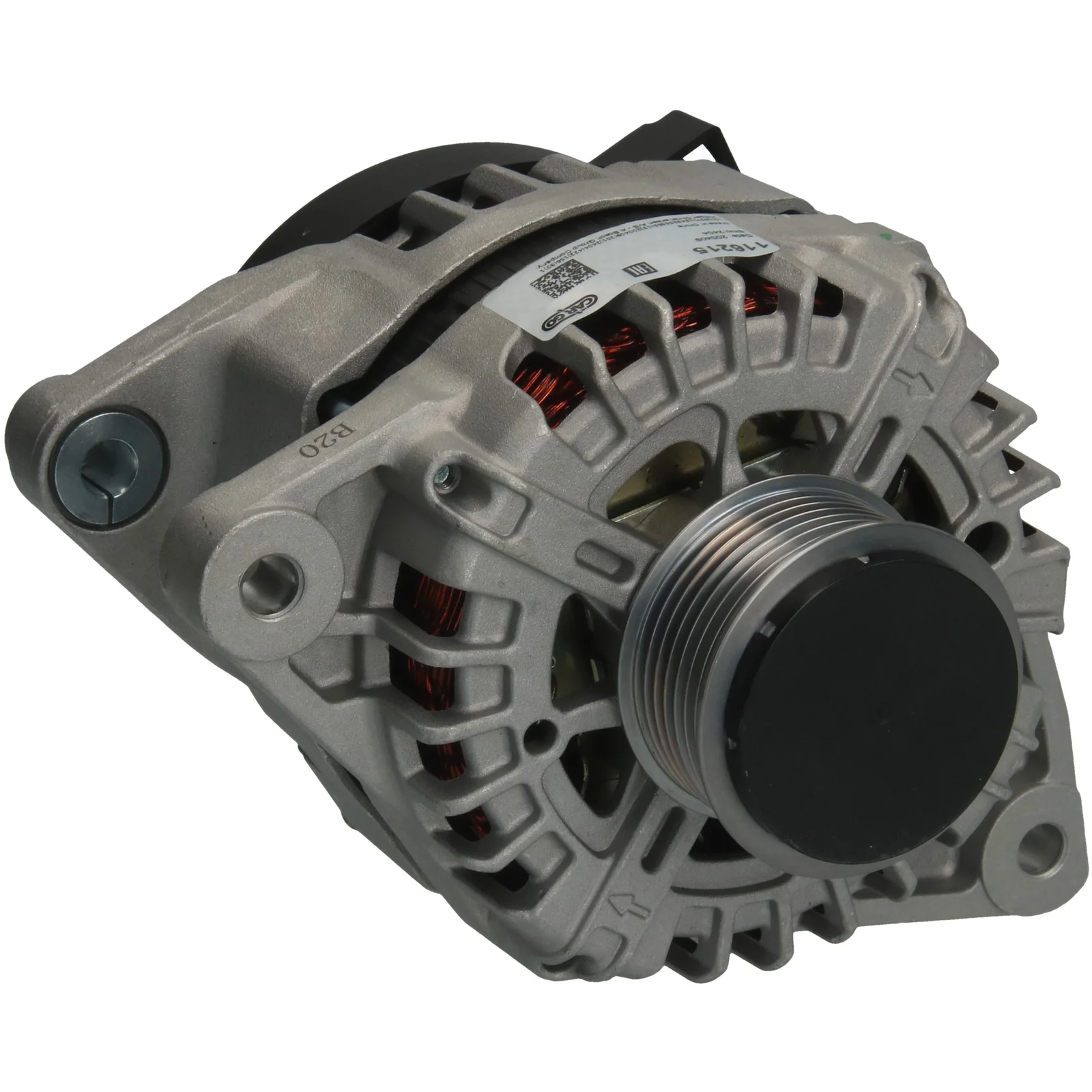

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116215

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperes: 130, Rotation: CW, Mounting bracket distance: 32.00

Description

Voltage: 14
Amp: 130
Pulley distance: 43.50
Width/holder arm: 16.00
Mounting bracket distance: 32.00
Bracket hole: 10.30
Belt adjustment bracket hole position: 5
Belt adjustment bracket hole 1: 10.50
Pulley diameter: 60.00
Grooves/pulley: 7
Radius: 97.00
Radius 2: 90.00
B+: M8
Position/B+ in minutes: 37
Rotation: CW
Plug number: PL176
Total length mm: 173.00
Pulley: SP/FW
Regulator type: IR

Files

  • OEM
    A0002610011, F032116215, 1986A01415, 37300-4A320, 2610011

  • Normalised article numbler
    a0002610011, a3554s, a9250s, cal32156, f032116215, 1986a01415, 11700n, 20957n, 209013, 209013a, 286908, 373004a320, 554170ri, 600230, 600273, 600704, 600735, 2610011, 12061213, 155910130, 0986086450, 2263181302
  • Description
    Voltage: 14
    Amp: 130
    Pulley distance: 43.50
    Width/holder arm: 16.00
    Mounting bracket distance: 32.00
    Bracket hole: 10.30
    Belt adjustment bracket hole position: 5
    Belt adjustment bracket hole 1: 10.50
    Pulley diameter: 60.00
    Grooves/pulley: 7
    Radius: 97.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in minutes: 37
    Rotation: CW
    Plug number: PL176
    Total length mm: 173.00
    Pulley: SP/FW
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      A0002610011, F032116215, 1986A01415, 37300-4A320, 2610011

    • Normalised article numbler
      a0002610011, a3554s, a9250s, cal32156, f032116215, 1986a01415, 11700n, 20957n, 209013, 209013a, 286908, 373004a320, 554170ri, 600230, 600273, 600704, 600735, 2610011, 12061213, 155910130, 0986086450, 2263181302
