HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116218

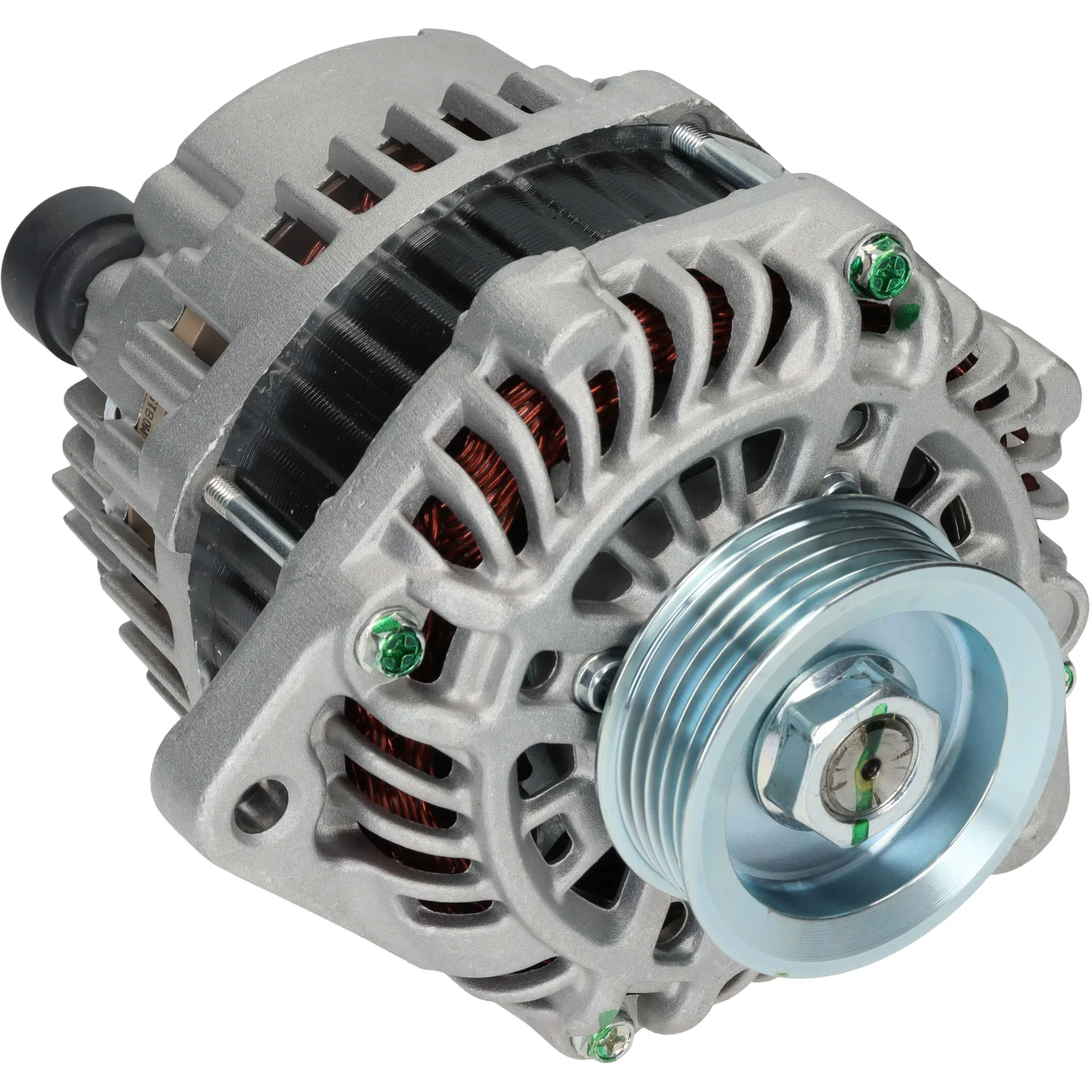

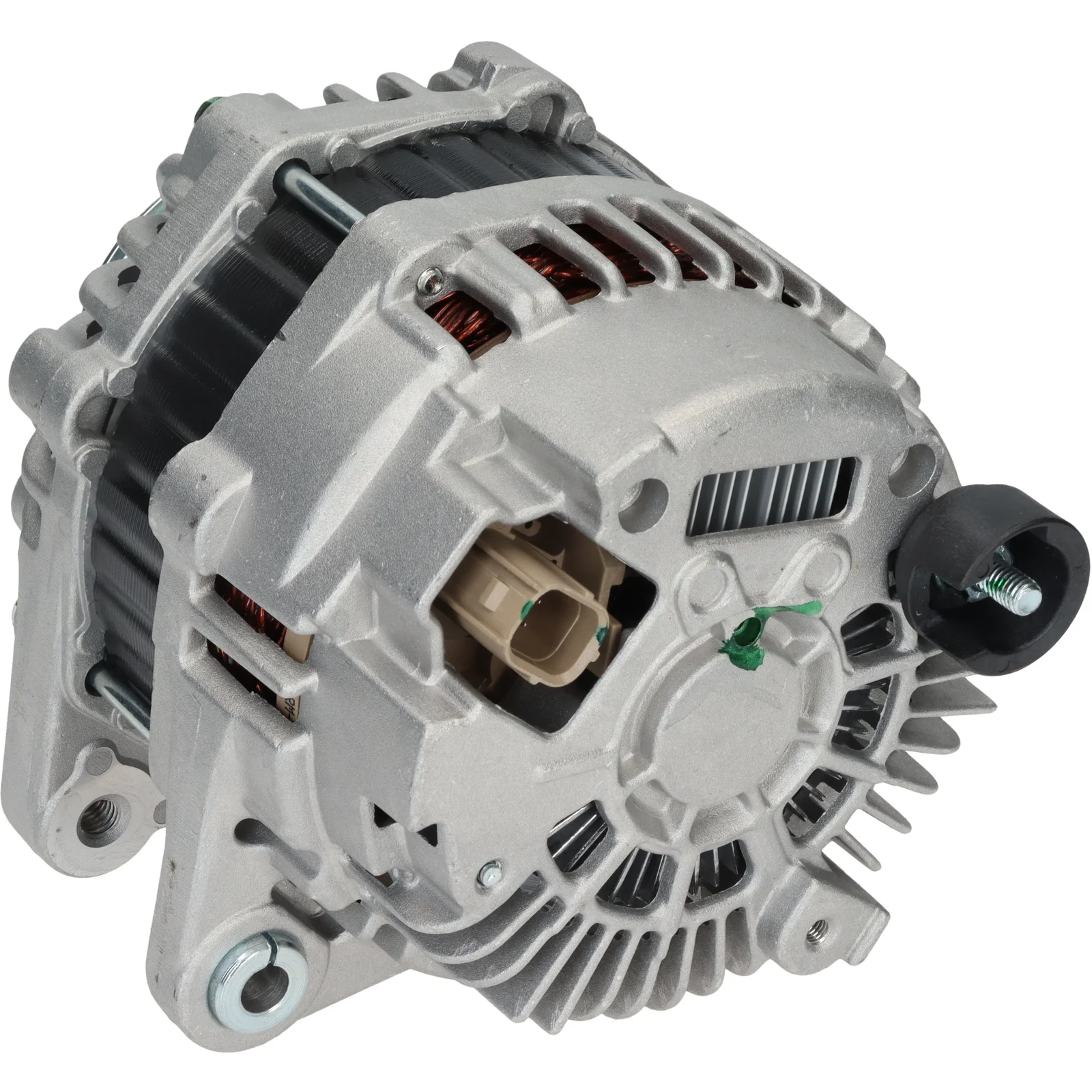

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 90, Rotation: CW, Mounting bracket distributor: 39.00

Description

Voltage: 14
Amp: 90
Pulley drive: 37.50
Width/holder arm: 17.00
Mounting bracket distance: 39.00
Bracket hole: M8
Belt adjustment bracket hole position: 53
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 62.00
Grooves/pulley: 5
Radius: 79.00
Radius 2: 76.00
B+: M6
Position/B+ in minutes: 5
Rotation: CW
Plug number: PL167
Total length mm: 150.00
Pulley: SP
Fan: IF
Regulator type: IR

Files

  • OEM
    A005TJ0091, A005TJ0091ZD, a5tj0091, A5TJ0091ZD, AHGA77, F032116218, 1986A01576, 31100-RB0-004, 31100-RB0-0041, 31100-RB0-A024, 31100-RB0-A0243

  • Normalised article numbler
    a005tj0091, a005tj0091zd, a5116, a5tj0091, a5tj0091zd, ahga77, dra0893, dra0893n, f032116218, f042205038, 8el011713611, 1986a01576, 11410n, 11410r, 31100rb0004, 31100rb00041, 31100rb0a024, 31100rb0a0243, 210953, 210953a, 286963, 443137, 12061018, 125550095, 0986082790
  • Description
    Voltage: 14
    Amp: 90
    Pulley drive: 37.50
    Width/holder arm: 17.00
    Mounting bracket distance: 39.00
    Bracket hole: M8
    Belt adjustment bracket hole position: 53
    Belt adjustment bracket hole 1: 8.50
    Pulley diameter: 62.00
    Grooves/pulley: 5
    Radius: 79.00
    Radius 2: 76.00
    B+: M6
    Position/B+ in minutes: 5
    Rotation: CW
    Plug number: PL167
    Total length mm: 150.00
    Pulley: SP
    Fan: IF
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      A005TJ0091, A005TJ0091ZD, a5tj0091, A5TJ0091ZD, AHGA77, F032116218, 1986A01576, 31100-RB0-004, 31100-RB0-0041, 31100-RB0-A024, 31100-RB0-A0243

    • Normalised article numbler
      a005tj0091, a005tj0091zd, a5116, a5tj0091, a5tj0091zd, ahga77, dra0893, dra0893n, f032116218, f042205038, 8el011713611, 1986a01576, 11410n, 11410r, 31100rb0004, 31100rb00041, 31100rb0a024, 31100rb0a0243, 210953, 210953a, 286963, 443137, 12061018, 125550095, 0986082790
