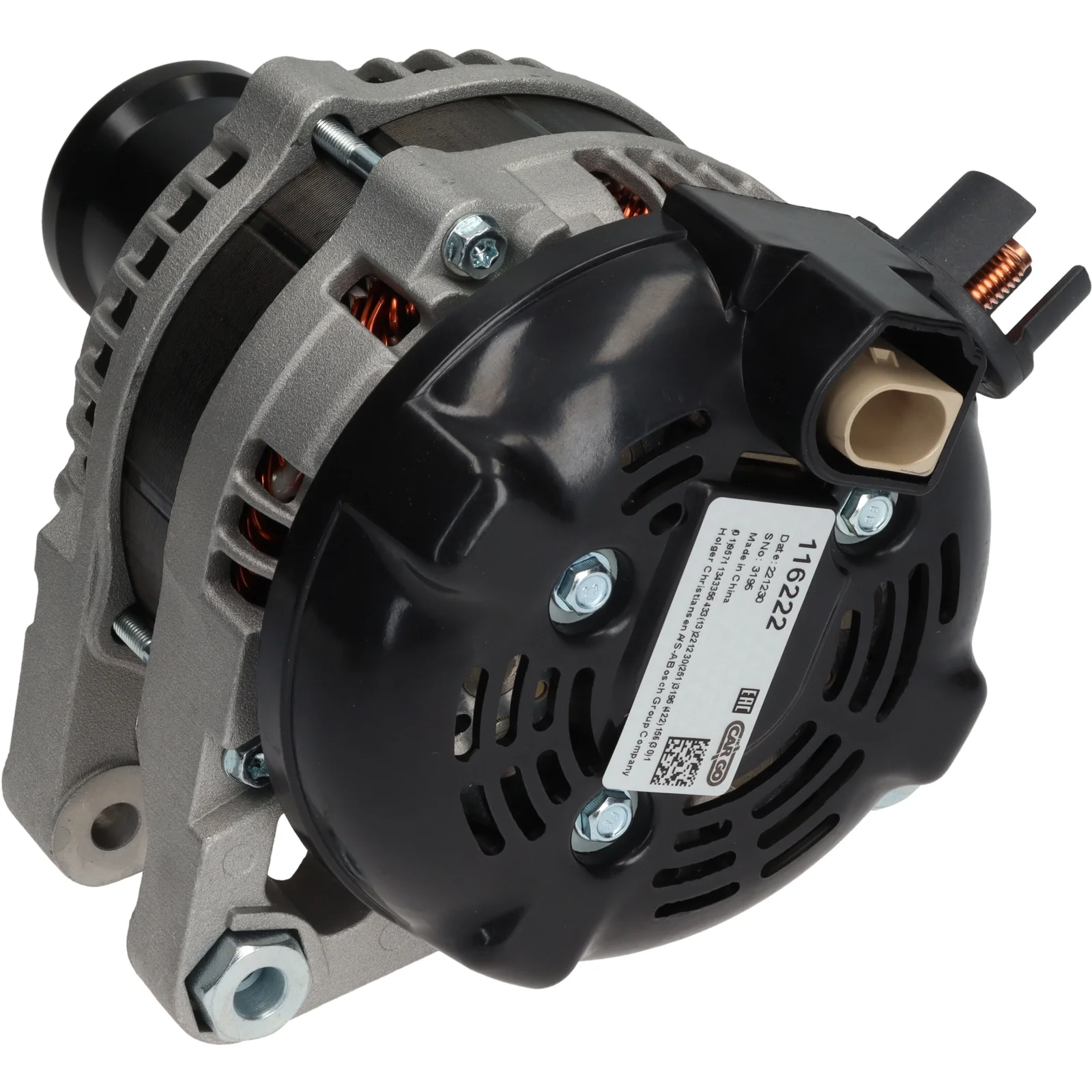

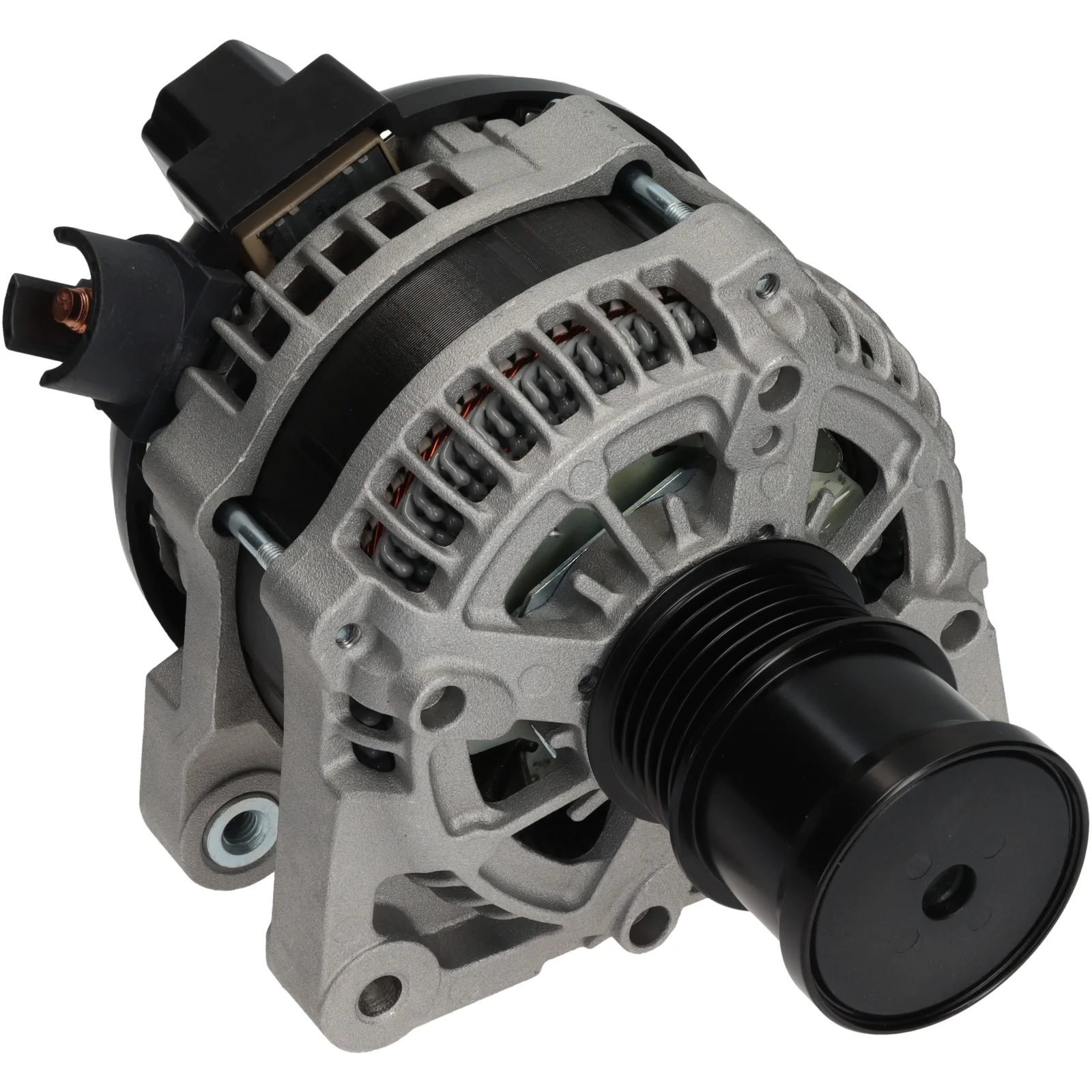

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116222

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 120, Rotation: CW, Mounting bracket distance: 31.00

Description

Voltage: 14
Amp: 120
Pulley diameter: 41.50
Width/holder arm: 21.50
Mounting bracket diameter: 31.00
Bracket hole: 8.50
Belt adjustment bracket hole position: 46
Belt adjustment bracket hole 1: 8.00
Pulley diameter: 48.50
Grooves/pulley: 6
Radius: 87.00
Radius 2: 80.50
B+ Length mm: 14.50
B+: M8
Position/B+ in min.: 5
Rotation: CW
Plug no.: PL174
Total length mm: 204.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    CV6T10300GA, F032116222, 1986A01500, 104211-3330, 1781479

  • Normalised article numbler
    a6435s, cv6t10300ga, dan1313, dra1482, f032116222, lra03821, 1986a01500, 20502, 210874, 210874a, 286931, 444213, 1781479, 12090765, 0986084670, 1042113330
  • Description
    Voltage: 14
    Amp: 120
    Pulley diameter: 41.50
    Width/holder arm: 21.50
    Mounting bracket diameter: 31.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 46
    Belt adjustment bracket hole 1: 8.00
    Pulley diameter: 48.50
    Grooves/pulley: 6
    Radius: 87.00
    Radius 2: 80.50
    B+ Length mm: 14.50
    B+: M8
    Position/B+ in min.: 5
    Rotation: CW
    Plug no.: PL174
    Total length mm: 204.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      CV6T10300GA, F032116222, 1986A01500, 104211-3330, 1781479

    • Normalised article numbler
      a6435s, cv6t10300ga, dan1313, dra1482, f032116222, lra03821, 1986a01500, 20502, 210874, 210874a, 286931, 444213, 1781479, 12090765, 0986084670, 1042113330
