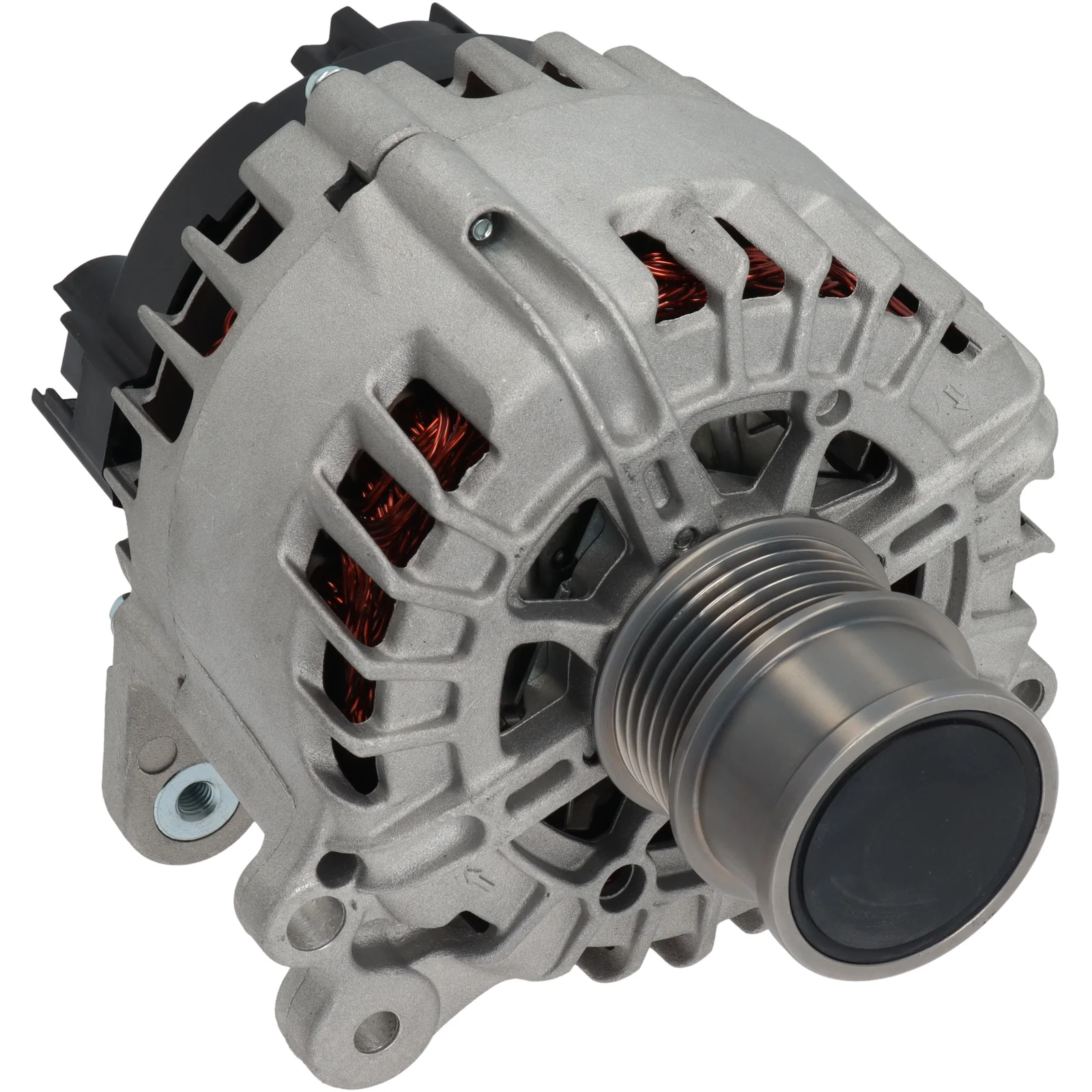

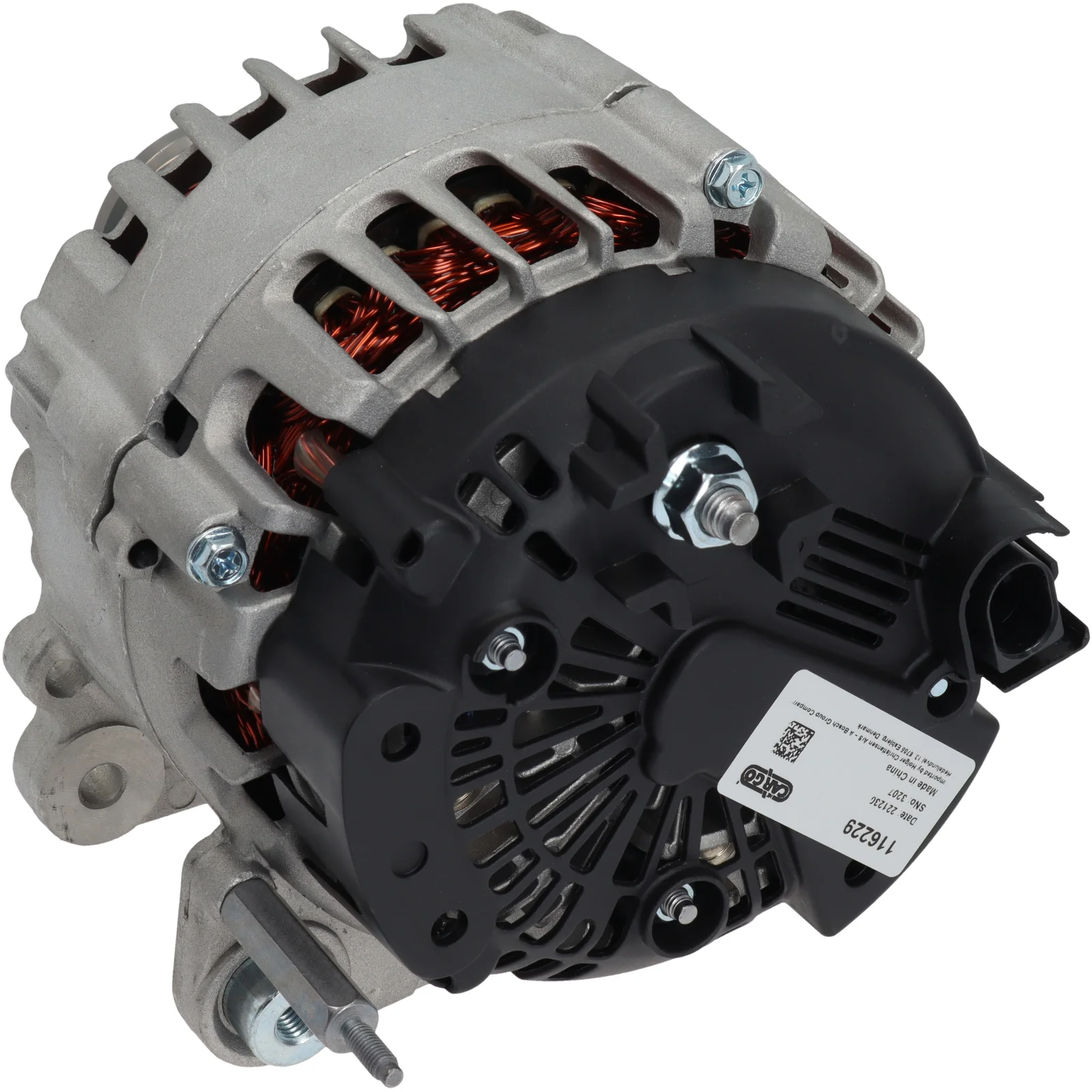

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116229

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 180, Rotation: CW, Mounting bracket distributor: 61.00

Description

Voltage: 14
Amp: 180
Pulley diameter: 30.00
Width / holder arm: 14.00
Mounting bracket diameter: 61.00
Bracket hole: 8.50
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 52.30
Grooves / pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position / B+ in min.: 52
Rotation: CW
Plug no.: PL181
Total length mm: 207.00
Terminal type: COM
ID Code: 73
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the volt regulation device. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116229, FG18T142, FG18T166, 04E903015D, 04E903021Q, 2715547A

  • Normalised article numbler
    a3384pr, cal15025, f032116229, fg18t142, fg18t166, 04e903015d, 04e903021q, 8el011713831, 20642n, 440674, 2715547a, 0986086310
  • Description
    Voltage: 14
    Amp: 180
    Pulley diameter: 30.00
    Width / holder arm: 14.00
    Mounting bracket diameter: 61.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 8.50
    Pulley diameter: 52.30
    Grooves / pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position / B+ in min.: 52
    Rotation: CW
    Plug no.: PL181
    Total length mm: 207.00
    Terminal type: COM
    ID Code: 73
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the volt regulation device. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116229, FG18T142, FG18T166, 04E903015D, 04E903021Q, 2715547A

    • Normalised article numbler
      a3384pr, cal15025, f032116229, fg18t142, fg18t166, 04e903015d, 04e903021q, 8el011713831, 20642n, 440674, 2715547a, 0986086310
