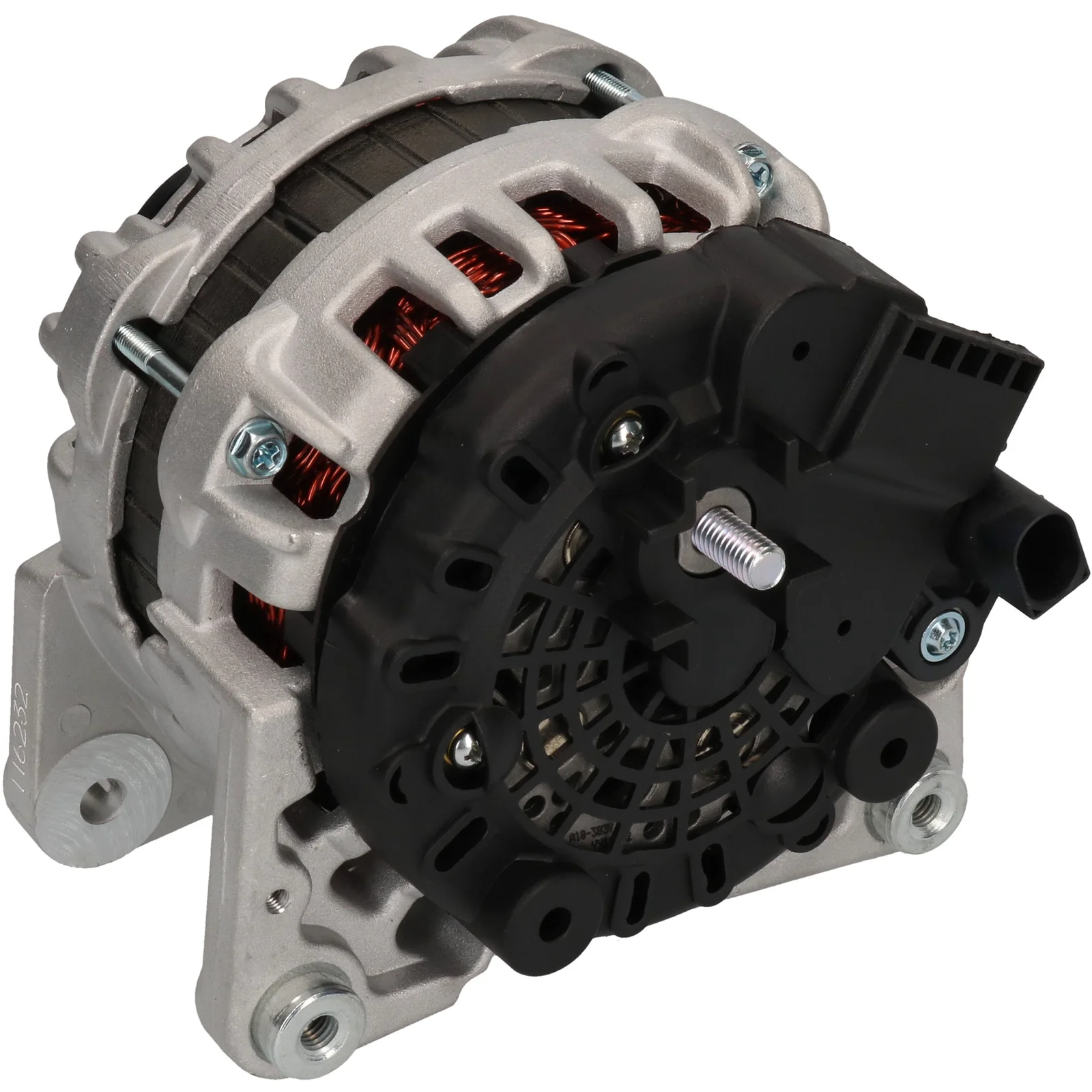

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116232

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 110, Rotation: CW, Mounting bracket distributor: 60.60

Description

Voltage: 14 Amp: 110 Pulley dist.: 29.00 Width/holder arm: 14.50 Mount. bracket dist.: 60.60 Bracket hole: 8.50 Belt. adj. brackethole pos.: 45 Belt. adj. bracket hole 1: 8.50 Pulley dia.: 49.30 Grooves/pulley: 6 Radius: 90.00 Radius 2: 90.00 B+: M8 Position/B+ in min.: 50 Rotation: CW Plug no.: PL125 Total length mm: 174.50 Terminal type: COM Communication: LIN Pulley: SP/FW Fan: IF Regulator type: IR Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F000BL0603, F000BL0664, F032116232, 04C903023D, 04C903023DX, 04C903023J, 04C903023JX, 1986A01069

  • Normalised article numbler
    a0474, a0474pr, a0513, cal10017, cal10544, dra1248, f000bl0603, f000bl0664, f032116232, 04c903023d, 04c903023dx, 04c903023j, 04c903023jx, 8el011713391, 1986a01069, 24117n, 24118n, 286976, 456405, 12090698, 12090909, 32080001, 0986085030, 2115191102
  • Description
    Voltage: 14 Amp: 110 Pulley dist.: 29.00 Width/holder arm: 14.50 Mount. bracket dist.: 60.60 Bracket hole: 8.50 Belt. adj. brackethole pos.: 45 Belt. adj. bracket hole 1: 8.50 Pulley dia.: 49.30 Grooves/pulley: 6 Radius: 90.00 Radius 2: 90.00 B+: M8 Position/B+ in min.: 50 Rotation: CW Plug no.: PL125 Total length mm: 174.50 Terminal type: COM Communication: LIN Pulley: SP/FW Fan: IF Regulator type: IR Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F000BL0603, F000BL0664, F032116232, 04C903023D, 04C903023DX, 04C903023J, 04C903023JX, 1986A01069

    • Normalised article numbler
      a0474, a0474pr, a0513, cal10017, cal10544, dra1248, f000bl0603, f000bl0664, f032116232, 04c903023d, 04c903023dx, 04c903023j, 04c903023jx, 8el011713391, 1986a01069, 24117n, 24118n, 286976, 456405, 12090698, 12090909, 32080001, 0986085030, 2115191102
