HC-Cargo Alternator

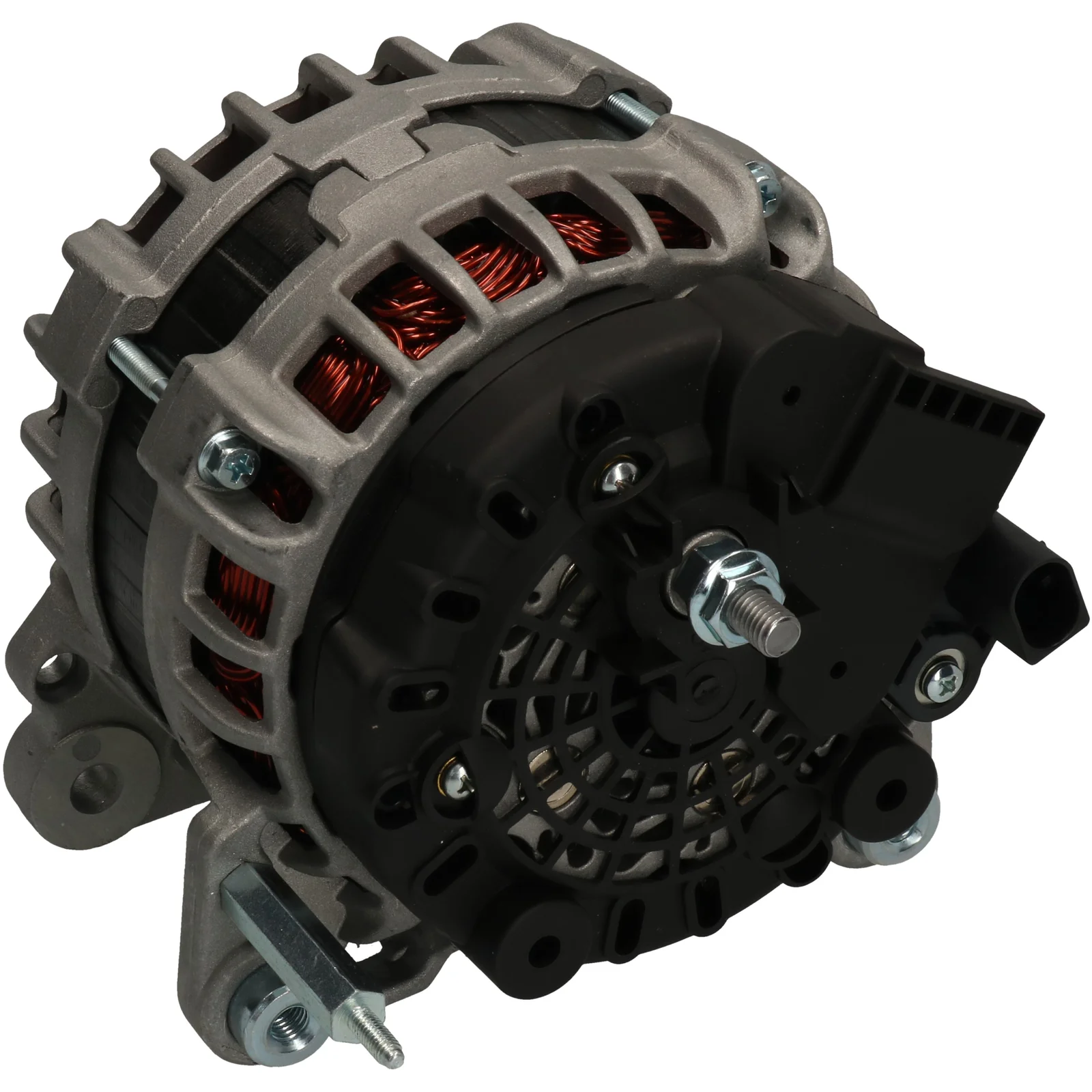

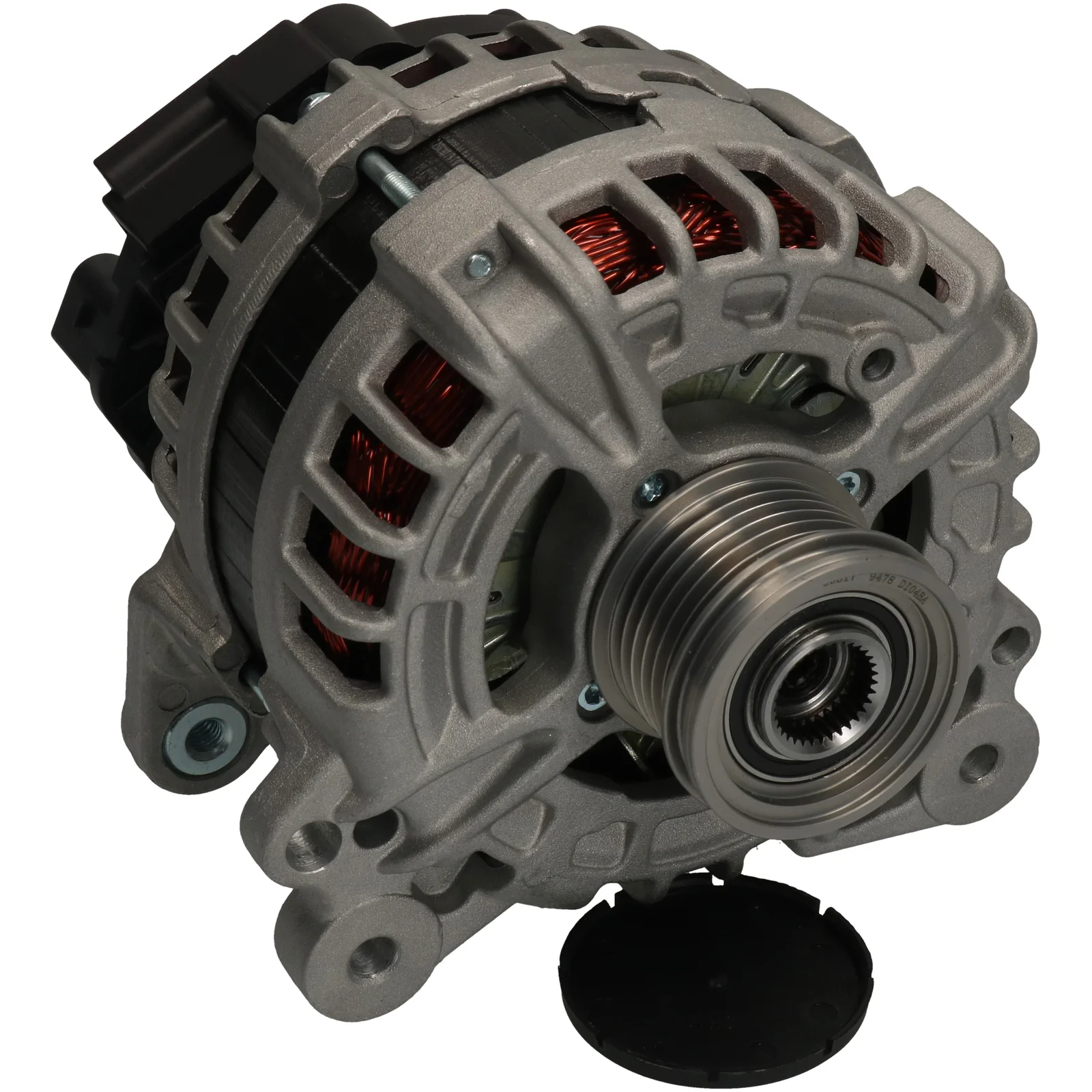

HC-Cargo Alternator
Article no.: F032116235

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 140, Rotation: CW, Mounting bracket distance: 61.70

Description

Voltage: 14
Amp: 140
Pulley dist.: 29.50
Width/holder arm: 14.00
Mount. bracket dist.: 61.70
Bracket hole: 8.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.50
Belt. adj. bracket hole 2: M8
Alternator dia.: 49.50
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 5
Rotation: CW
Plug no.: PL125
Total length mm: 191.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F000BL0805, F000BL0818, F000BL0830, F000BL08C8, F032116235, 04E903023B, 04E903023J, 04E903023JX

  • Normalised article numbler
    cal10553, f000bl0805, f000bl0818, f000bl0830, f000bl08c8, f032116235, 04e903023b, 04e903023j, 04e903023jx, 20353n, 443304, 444217, 554022ri, 12090443, 305967140, 0986083740
  • Description
    Voltage: 14
    Amp: 140
    Pulley dist.: 29.50
    Width/holder arm: 14.00
    Mount. bracket dist.: 61.70
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 8.50
    Belt. adj. bracket hole 2: M8
    Alternator dia.: 49.50
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 5
    Rotation: CW
    Plug no.: PL125
    Total length mm: 191.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F000BL0805, F000BL0818, F000BL0830, F000BL08C8, F032116235, 04E903023B, 04E903023J, 04E903023JX

    • Normalised article numbler
      cal10553, f000bl0805, f000bl0818, f000bl0830, f000bl08c8, f032116235, 04e903023b, 04e903023j, 04e903023jx, 20353n, 443304, 444217, 554022ri, 12090443, 305967140, 0986083740
