HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116237

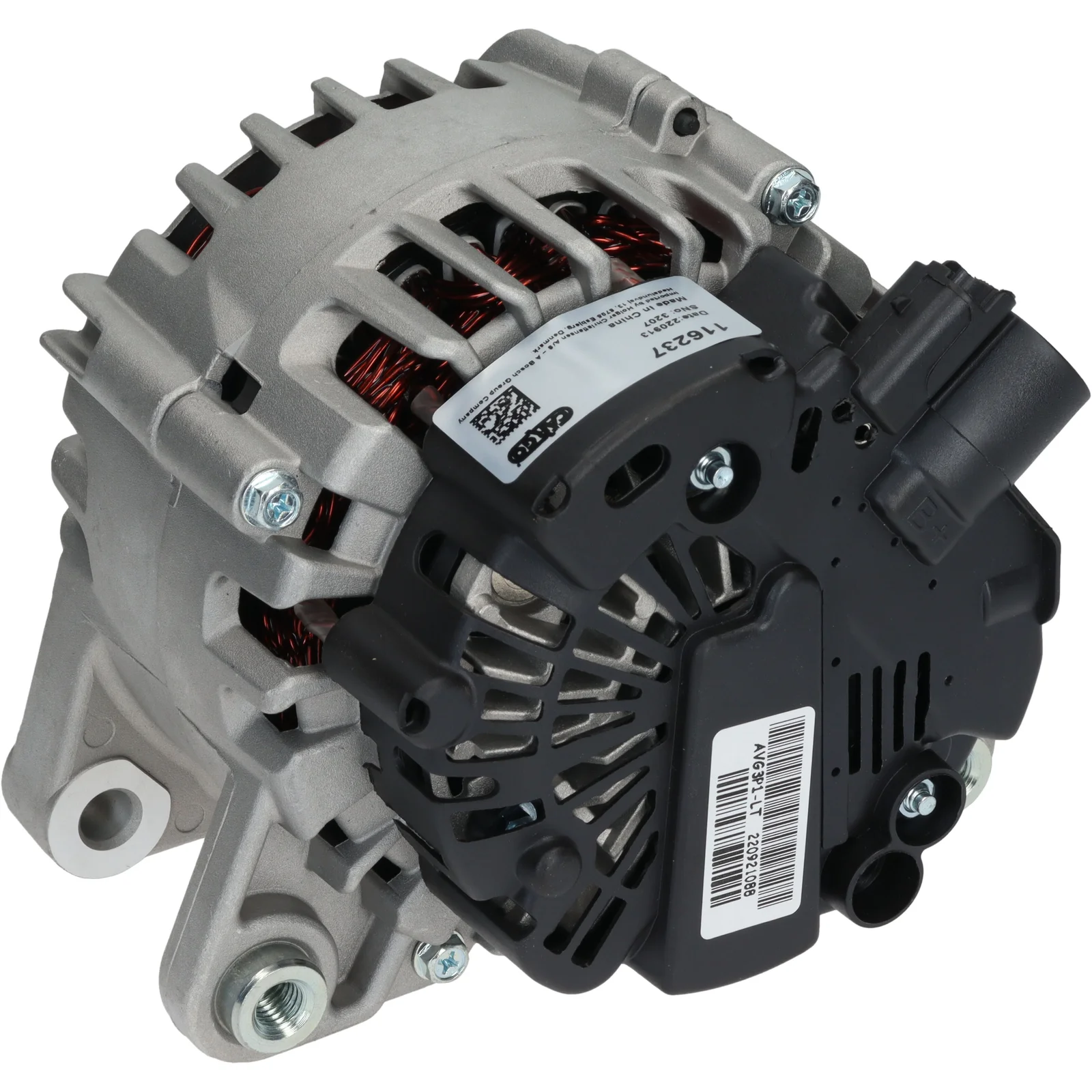

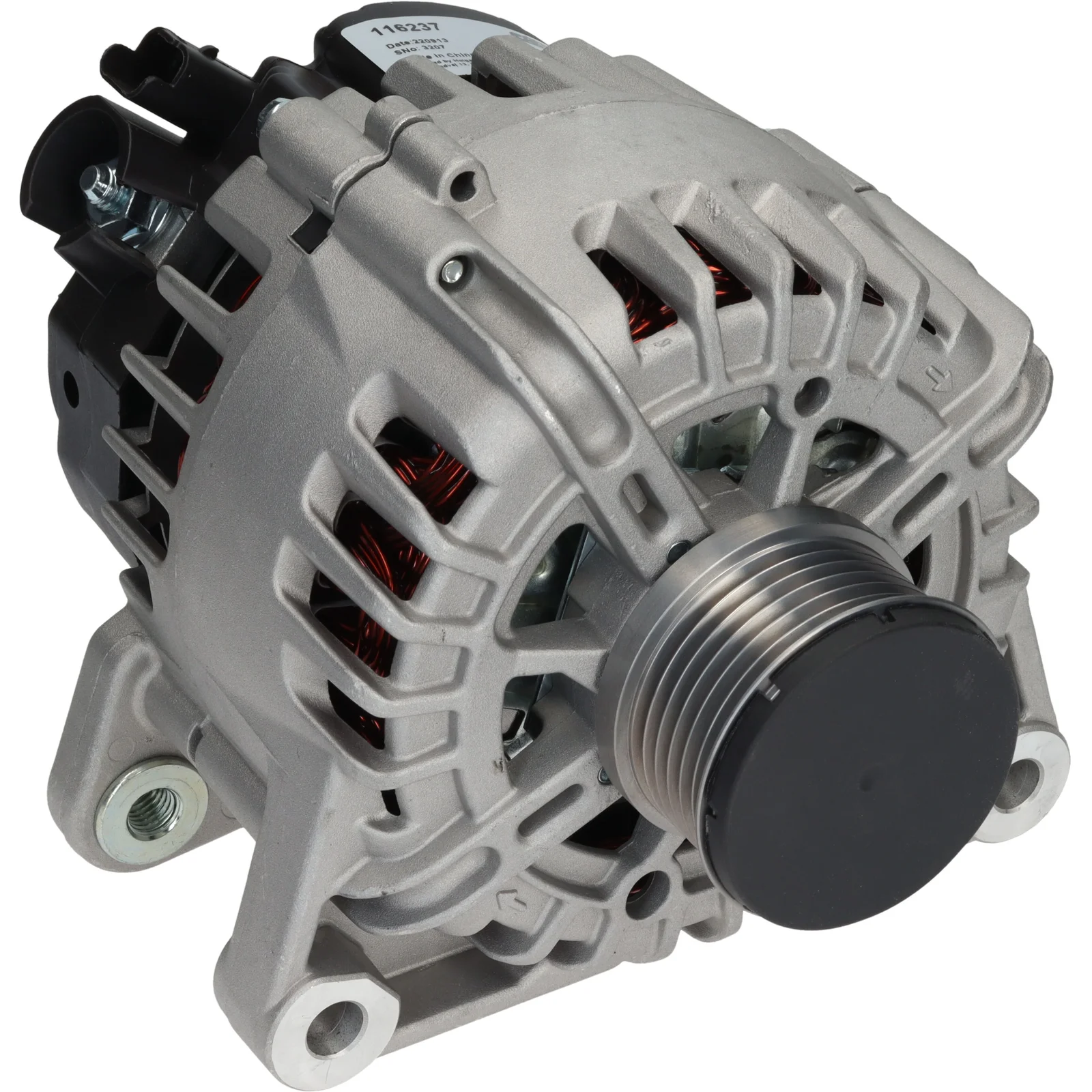

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 125, Rotation: CW, Mount. bracket distributor: 49.00

Description

HC-Cargo Alternator 14V - 125A, 6g

Voltage: 14
Current: 125
Pulley diameter: 42.50
Width / holder arm: 21.00
Mounting bracket diameter: 49.00
Bracket hole: 10.50
Belt adjustment bracket hole position: 47
Belt adjustment bracket hole 1: 10.50
Pulley diameter: 54.30
Grooves / pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position / B+ in min.: 3
Rotation: CW
Plug number: PL132
Total length mm: 178.00
Terminal type: COM
ID Code: 33
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    A 220 540 01 17, A 220 540 02 17, A3455S, A3472(VALEO), CAL15590, DRA1103, F032116237, TG12C106, TG12C228, TG12C261, 8EL011713-601, 8V21-10300-AB, 8V21-10300-BB, 16 123 800 80, 16 196 079 80, 16 482 321 80, 28-6839, 96 640 742 80, 96 780 488 80, 96 780 494 80, 98 037 509 80, 220 540 01 17, 220 540 02 17, 225.562.120, 225.580.120, 229.150.1202, 1986A00079, 4545.E9, 20653N, 20653N-OE, 27060-YV030, 116237, 200281, 200288, 209223, 209223A, 439758, 440350, 440819, 443017, 2610711B, 2610711C, 2624851, 2624851A, 2713135A, 3640165, 12090669, 95524680, 0986083800, 0986085240, 1499936080, 1608064580, 1624230480, 9665617780, 9670895580, 9670899580, 9809391880, 9810971880, 9818677980

  • Normalised article numbler
    a2205400117, a2205400217, a3455s, a3472valeo, cal15590, dra1103, f032116237, tg12c106, tg12c228, tg12c261, 8el011713601, 8v2110300ab, 8v2110300bb, 1986a00079, 4545e9, 20653n, 20653noe, 27060yv030, 116237, 200281, 200288, 209223, 209223a, 286839, 439758, 440350, 440819, 443017, 2610711b, 2610711c, 2624851, 2624851a, 2713135a, 3640165, 12090669, 95524680, 225562120, 225580120, 0986083800, 0986085240, 1499936080, 1608064580, 1612380080, 1619607980, 1624230480, 1648232180, 2205400117, 2205400217, 2291501202, 9664074280, 9665617780, 9670895580, 9670899580, 9678048880, 9678049480, 9803750980, 9809391880, 9810971880, 9818677980
  • Description
    HC-Cargo Alternator 14V - 125A, 6g

    Voltage: 14
    Current: 125
    Pulley diameter: 42.50
    Width / holder arm: 21.00
    Mounting bracket diameter: 49.00
    Bracket hole: 10.50
    Belt adjustment bracket hole position: 47
    Belt adjustment bracket hole 1: 10.50
    Pulley diameter: 54.30
    Grooves / pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position / B+ in min.: 3
    Rotation: CW
    Plug number: PL132
    Total length mm: 178.00
    Terminal type: COM
    ID Code: 33
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      A 220 540 01 17, A 220 540 02 17, A3455S, A3472(VALEO), CAL15590, DRA1103, F032116237, TG12C106, TG12C228, TG12C261, 8EL011713-601, 8V21-10300-AB, 8V21-10300-BB, 16 123 800 80, 16 196 079 80, 16 482 321 80, 28-6839, 96 640 742 80, 96 780 488 80, 96 780 494 80, 98 037 509 80, 220 540 01 17, 220 540 02 17, 225.562.120, 225.580.120, 229.150.1202, 1986A00079, 4545.E9, 20653N, 20653N-OE, 27060-YV030, 116237, 200281, 200288, 209223, 209223A, 439758, 440350, 440819, 443017, 2610711B, 2610711C, 2624851, 2624851A, 2713135A, 3640165, 12090669, 95524680, 0986083800, 0986085240, 1499936080, 1608064580, 1624230480, 9665617780, 9670895580, 9670899580, 9809391880, 9810971880, 9818677980

    • Normalised article numbler
      a2205400117, a2205400217, a3455s, a3472valeo, cal15590, dra1103, f032116237, tg12c106, tg12c228, tg12c261, 8el011713601, 8v2110300ab, 8v2110300bb, 1986a00079, 4545e9, 20653n, 20653noe, 27060yv030, 116237, 200281, 200288, 209223, 209223a, 286839, 439758, 440350, 440819, 443017, 2610711b, 2610711c, 2624851, 2624851a, 2713135a, 3640165, 12090669, 95524680, 225562120, 225580120, 0986083800, 0986085240, 1499936080, 1608064580, 1612380080, 1619607980, 1624230480, 1648232180, 2205400117, 2205400217, 2291501202, 9664074280, 9665617780, 9670895580, 9670899580, 9678048880, 9678049480, 9803750980, 9809391880, 9810971880, 9818677980
