HC-Cargo Alternator

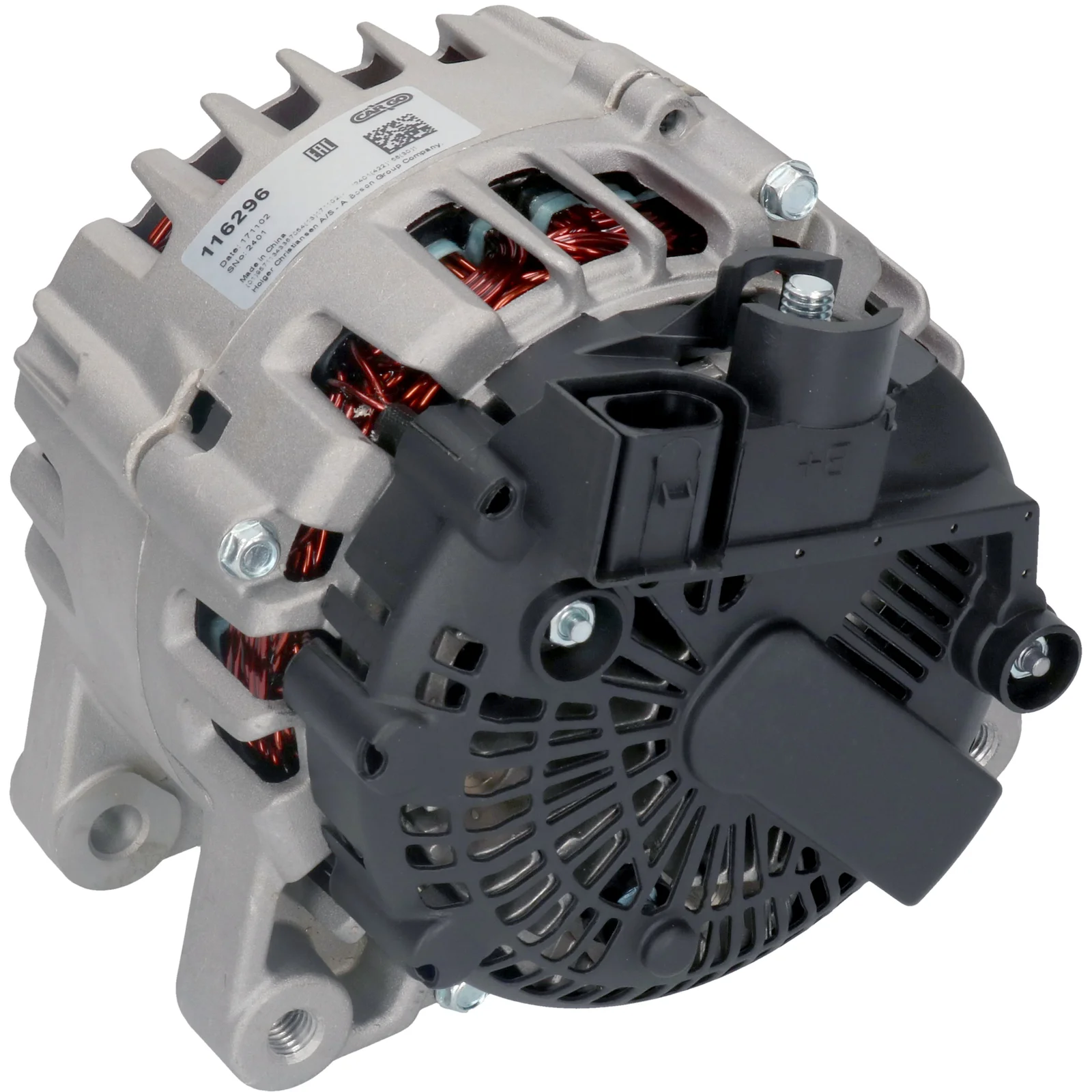

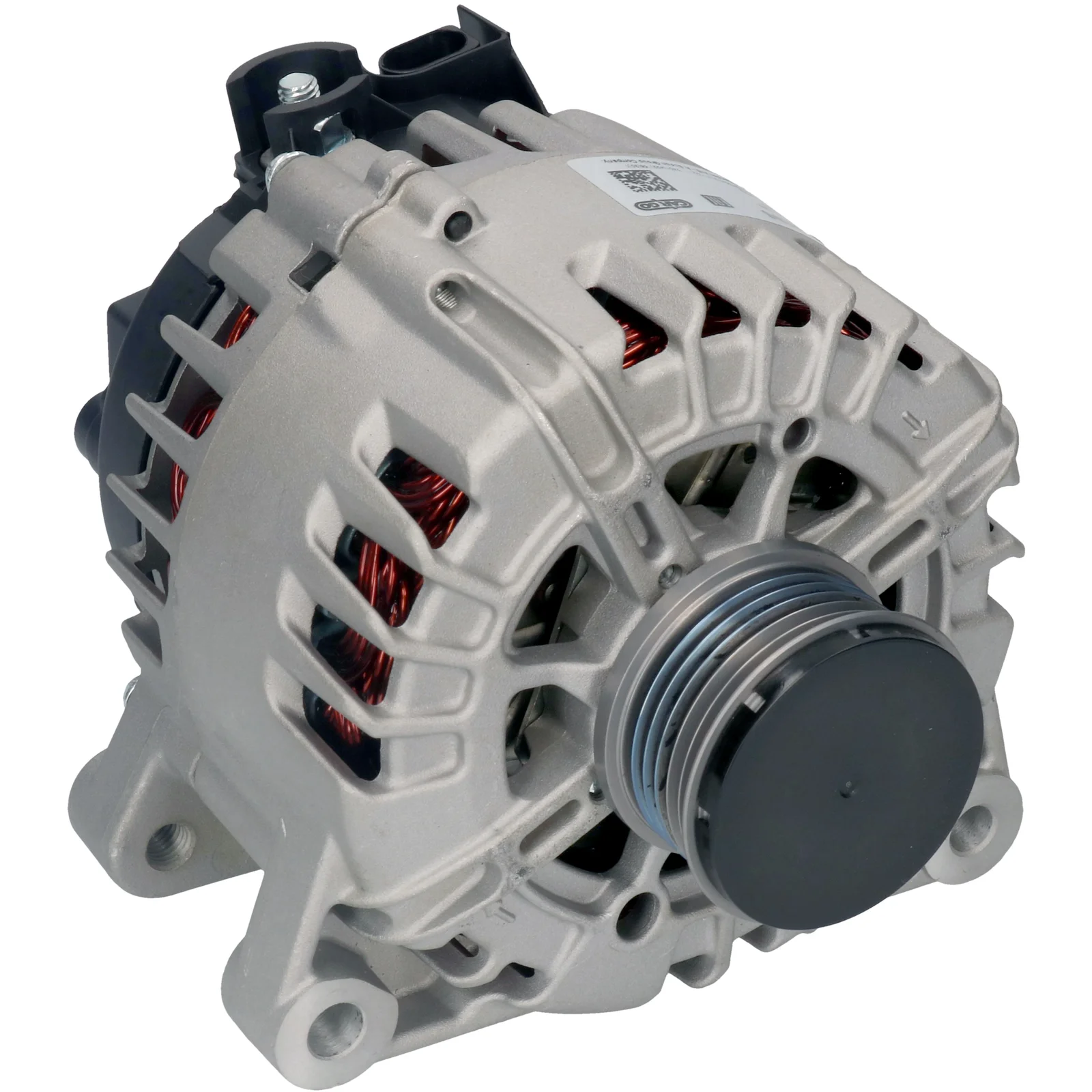

HC-Cargo Alternator
Article no.: F032116296

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 150, Rotation: CW, Mounting bracket distance: 45.00

Description

HC-Cargo Alternator 14V - 150A, 6 groovess

Voltage: 14
Amperage: 150
Pulley diameter: 42.50
Width/holder arm: 21.00
Mounting bracket diameter: 45.00
Bracket hole: 10.70
Belt adjustment bracket hole position: 48
Belt adjustment bracket hole 1: 10.00
Pulley diameter: 53.50
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 10
D+ Size: Plug
Rotation: CW
Plug number: PL174
Total length mm: 190.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Prod. info: BN
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    A3274(VALEO), A3318, AG9T-10300-DA, AG9T-10300AA, AG9T-10300CA, AG9T10300AA, AG9T10300BA, AG9T10300CA, AV6N10300GB, AV6N10300GC, AV6N10300GD, AV6N10300GE, AV6N10300MB, AV6N10300MD, CAL15520, DRA1239, F032116296, LRA03555, REAG9T10300AA, REAG9T10300BA, RMAG9T10300DA, TG15C174, TG15C176, Y40618300, 6G9N10300XA, 6G9N10300XB, 6G9N10300XC, 8EL011713-421, 8V2110300BB, 28-6665, 219.141.1502, 595.560.150, 20716N, 116296, 210878, 210878A, 439907, 439912, 439913, 440588, 553944RI, 1074769, 1376501, 1387927, 1506300, 1678607, 1678608, 1684713, 1685793, 1704769, 1707065, 1711969, 1762377, 1791839, 1857695, 1857696, 2032603, 2073241, 2260730, 2415018, 12090520, 30659390, 31419219, 36001501, 36012505, 110016789, 0986083620, 0986084940

  • Normalised article numbler
    a3274valeo, a3318, ag9t10300aa, ag9t10300ba, ag9t10300ca, ag9t10300da, av6n10300gb, av6n10300gc, av6n10300gd, av6n10300ge, av6n10300mb, av6n10300md, cal15520, dra1239, f032116296, lra03555, reag9t10300aa, reag9t10300ba, rmag9t10300da, tg15c174, tg15c176, y40618300, 6g9n10300xa, 6g9n10300xb, 6g9n10300xc, 8el011713421, 8v2110300bb, 20716n, 116296, 210878, 210878a, 286665, 439907, 439912, 439913, 440588, 553944ri, 1074769, 1376501, 1387927, 1506300, 1678607, 1678608, 1684713, 1685793, 1704769, 1707065, 1711969, 1762377, 1791839, 1857695, 1857696, 2032603, 2073241, 2260730, 2415018, 12090520, 30659390, 31419219, 36001501, 36012505, 110016789, 595560150, 0986083620, 0986084940, 2191411502
  • Description
    HC-Cargo Alternator 14V - 150A, 6 groovess

    Voltage: 14
    Amperage: 150
    Pulley diameter: 42.50
    Width/holder arm: 21.00
    Mounting bracket diameter: 45.00
    Bracket hole: 10.70
    Belt adjustment bracket hole position: 48
    Belt adjustment bracket hole 1: 10.00
    Pulley diameter: 53.50
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 10
    D+ Size: Plug
    Rotation: CW
    Plug number: PL174
    Total length mm: 190.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Regulator type: IR
    Prod. info: BN
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      A3274(VALEO), A3318, AG9T-10300-DA, AG9T-10300AA, AG9T-10300CA, AG9T10300AA, AG9T10300BA, AG9T10300CA, AV6N10300GB, AV6N10300GC, AV6N10300GD, AV6N10300GE, AV6N10300MB, AV6N10300MD, CAL15520, DRA1239, F032116296, LRA03555, REAG9T10300AA, REAG9T10300BA, RMAG9T10300DA, TG15C174, TG15C176, Y40618300, 6G9N10300XA, 6G9N10300XB, 6G9N10300XC, 8EL011713-421, 8V2110300BB, 28-6665, 219.141.1502, 595.560.150, 20716N, 116296, 210878, 210878A, 439907, 439912, 439913, 440588, 553944RI, 1074769, 1376501, 1387927, 1506300, 1678607, 1678608, 1684713, 1685793, 1704769, 1707065, 1711969, 1762377, 1791839, 1857695, 1857696, 2032603, 2073241, 2260730, 2415018, 12090520, 30659390, 31419219, 36001501, 36012505, 110016789, 0986083620, 0986084940

    • Normalised article numbler
      a3274valeo, a3318, ag9t10300aa, ag9t10300ba, ag9t10300ca, ag9t10300da, av6n10300gb, av6n10300gc, av6n10300gd, av6n10300ge, av6n10300mb, av6n10300md, cal15520, dra1239, f032116296, lra03555, reag9t10300aa, reag9t10300ba, rmag9t10300da, tg15c174, tg15c176, y40618300, 6g9n10300xa, 6g9n10300xb, 6g9n10300xc, 8el011713421, 8v2110300bb, 20716n, 116296, 210878, 210878a, 286665, 439907, 439912, 439913, 440588, 553944ri, 1074769, 1376501, 1387927, 1506300, 1678607, 1678608, 1684713, 1685793, 1704769, 1707065, 1711969, 1762377, 1791839, 1857695, 1857696, 2032603, 2073241, 2260730, 2415018, 12090520, 30659390, 31419219, 36001501, 36012505, 110016789, 595560150, 0986083620, 0986084940, 2191411502
