HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116300

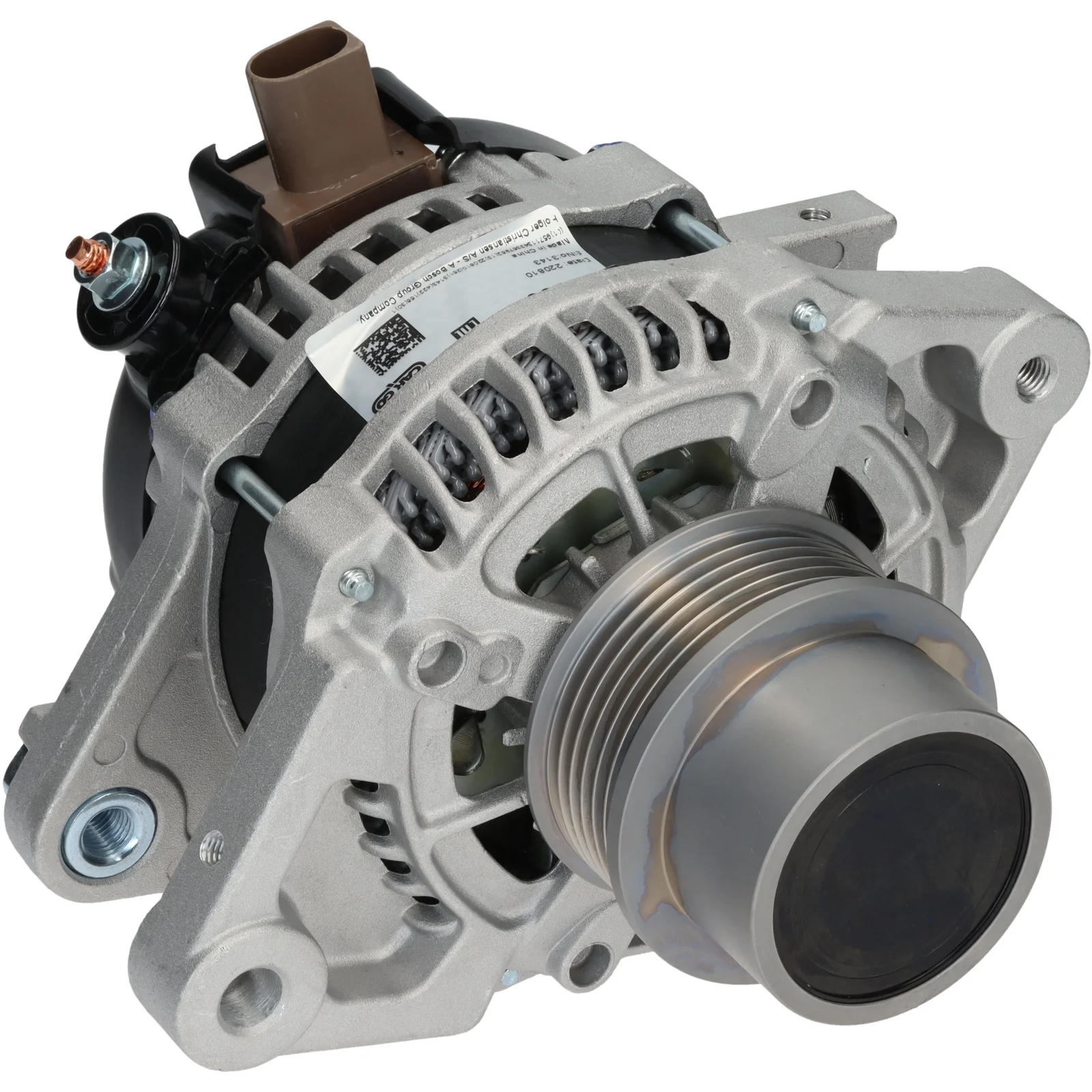

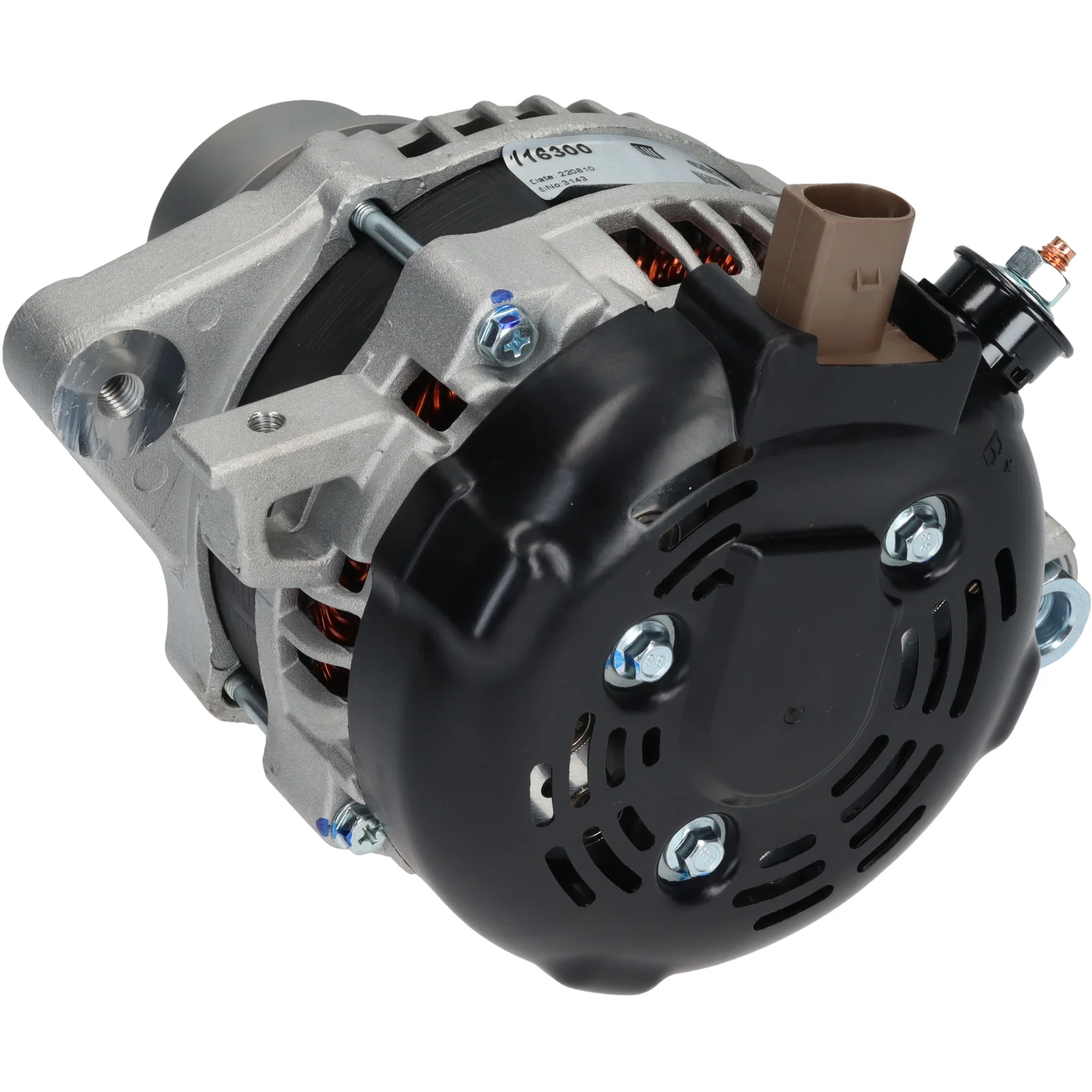

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 115, Rotation: CW, Mounting bracket distance: 37.00

Description

Voltage: 14
Amp: 115
Pulley dist.: 29.00
Width/holder arm: 19.00
Mount. bracket dist.: 37.00
Bracket hole: 11.00
Belt. adj. brackethole pos.: 59
Belt. adj. bracket hole 1: M8
Pulley dia.: 67.00
Grooves/pulley: 6
Radius: 89.00
Radius 2: 81.00
B+: M6
Position/B+ in min.: 20
Rotation: CW
Plug no.: PL181
Total length mm: 182.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Fan: IF
Voltage regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    b000912180, F032116300, 27060-0Q170, 104211-3480, 104211-3481, 1612352080

  • Normalised article numbler
    a6628s, b000912180, cal40483, dan1319, dra1458, f032116300, lra03954, 270600q170, 287564, 554641rid, 12090790, 225539100, 1042113480, 1042113481, 1612352080, 2353541002
  • Description
    Voltage: 14
    Amp: 115
    Pulley dist.: 29.00
    Width/holder arm: 19.00
    Mount. bracket dist.: 37.00
    Bracket hole: 11.00
    Belt. adj. brackethole pos.: 59
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 67.00
    Grooves/pulley: 6
    Radius: 89.00
    Radius 2: 81.00
    B+: M6
    Position/B+ in min.: 20
    Rotation: CW
    Plug no.: PL181
    Total length mm: 182.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Voltage regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      b000912180, F032116300, 27060-0Q170, 104211-3480, 104211-3481, 1612352080

    • Normalised article numbler
      a6628s, b000912180, cal40483, dan1319, dra1458, f032116300, lra03954, 270600q170, 287564, 554641rid, 12090790, 225539100, 1042113480, 1042113481, 1612352080, 2353541002
