HC-Cargo Alternator

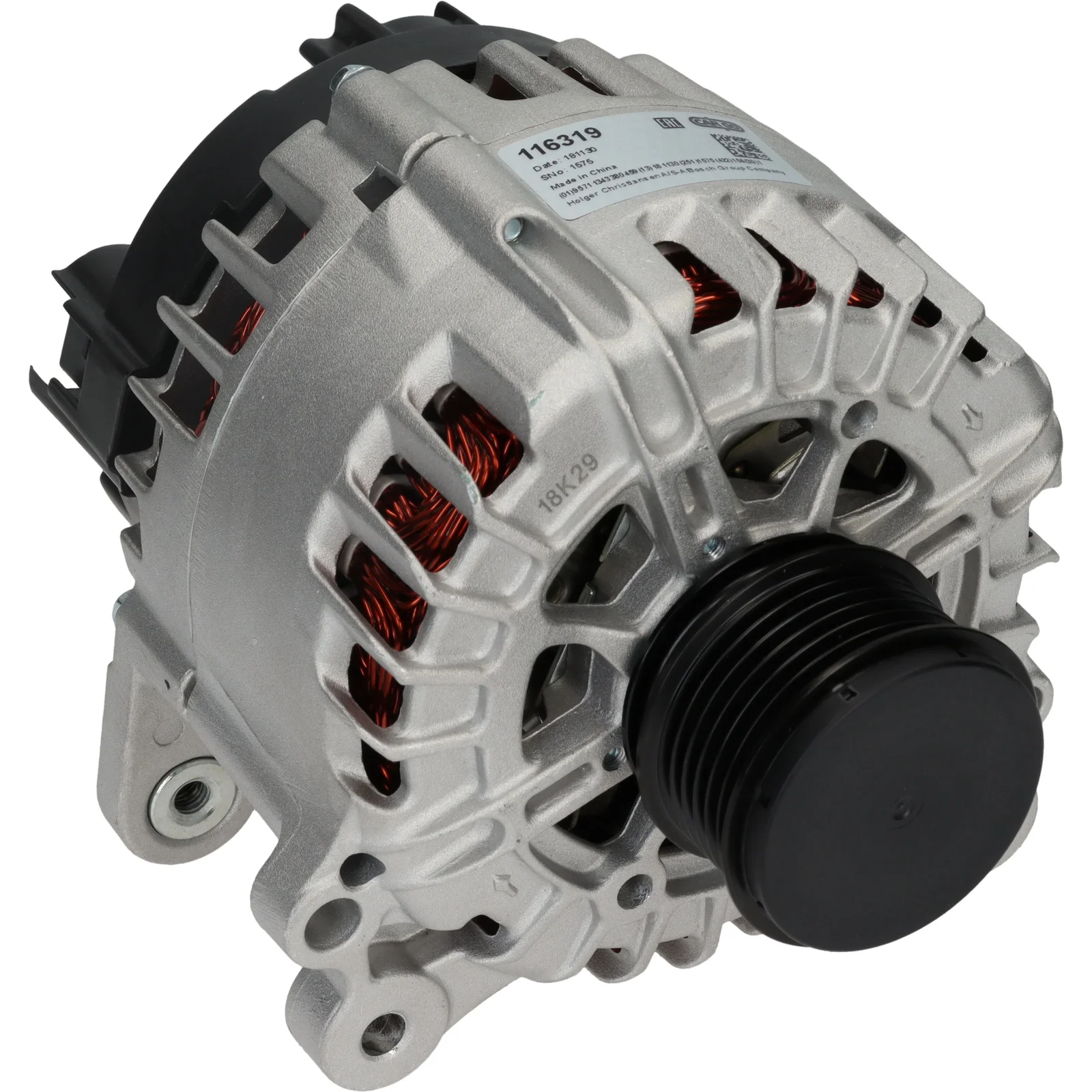

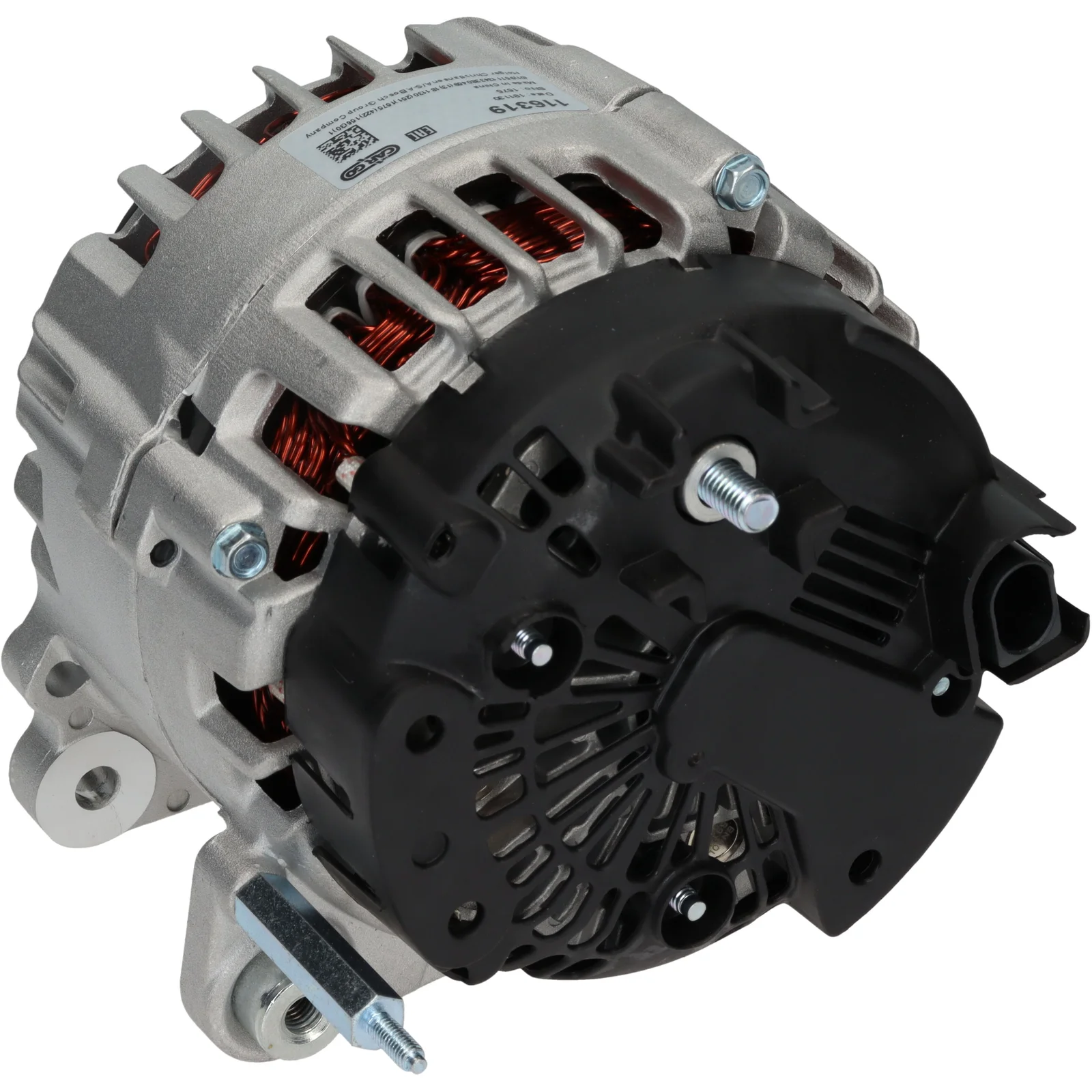

HC-Cargo Alternator
Article no.: F032116319

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 180, Rotation: CW, Mounting bracket distributor: 61.00

Description

Voltage: 14
Amp: 180
Pulley dist.: 39.00
Width/holder arm: 14.00
Mounting bracket dist.: 61.00
Bracket hole: 8.50
Belt adjustment bracket hole position.: 45
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 56.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 53
Rotation: CW
Plug no.: PL125
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Product info: BN
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116319, FG18T051, FG18T119, 03l903023b, 03L903023BX, 03L903024K, 03L903024KX, 1986A01487, 2608426A, 2617864A

  • Normalised article numbler
    a3146, a3146valeo, a3310pr, cal15431, f032116319, fg18t051, fg18t119, lra03402, 03l903023b, 03l903023bx, 03l903024k, 03l903024kx, 1986a01487, 20350nos, 209191, 209191a, 209271, 209271a, 286514, 439718, 439721, 439837, 440308, 2608426a, 2617864a, 9090743, 305570180, 305911180, 0986084330, 0986086900, 2113741802
  • Description
    Voltage: 14
    Amp: 180
    Pulley dist.: 39.00
    Width/holder arm: 14.00
    Mounting bracket dist.: 61.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position.: 45
    Belt adjustment bracket hole 1: 8.50
    Pulley diameter: 56.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 53
    Rotation: CW
    Plug no.: PL125
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Regulator type: IR
    Product info: BN
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116319, FG18T051, FG18T119, 03l903023b, 03L903023BX, 03L903024K, 03L903024KX, 1986A01487, 2608426A, 2617864A

    • Normalised article numbler
      a3146, a3146valeo, a3310pr, cal15431, f032116319, fg18t051, fg18t119, lra03402, 03l903023b, 03l903023bx, 03l903024k, 03l903024kx, 1986a01487, 20350nos, 209191, 209191a, 209271, 209271a, 286514, 439718, 439721, 439837, 440308, 2608426a, 2617864a, 9090743, 305570180, 305911180, 0986084330, 0986086900, 2113741802
