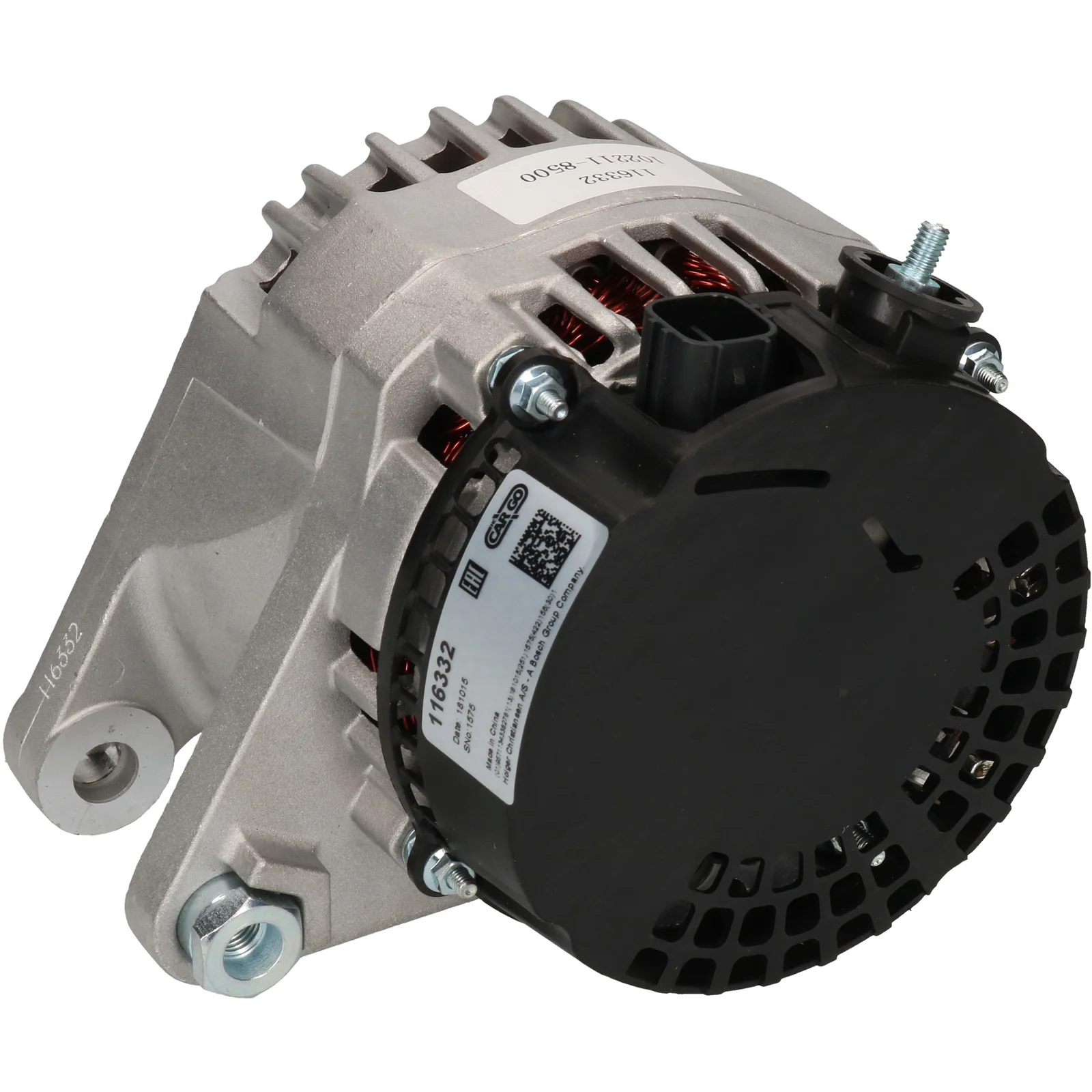

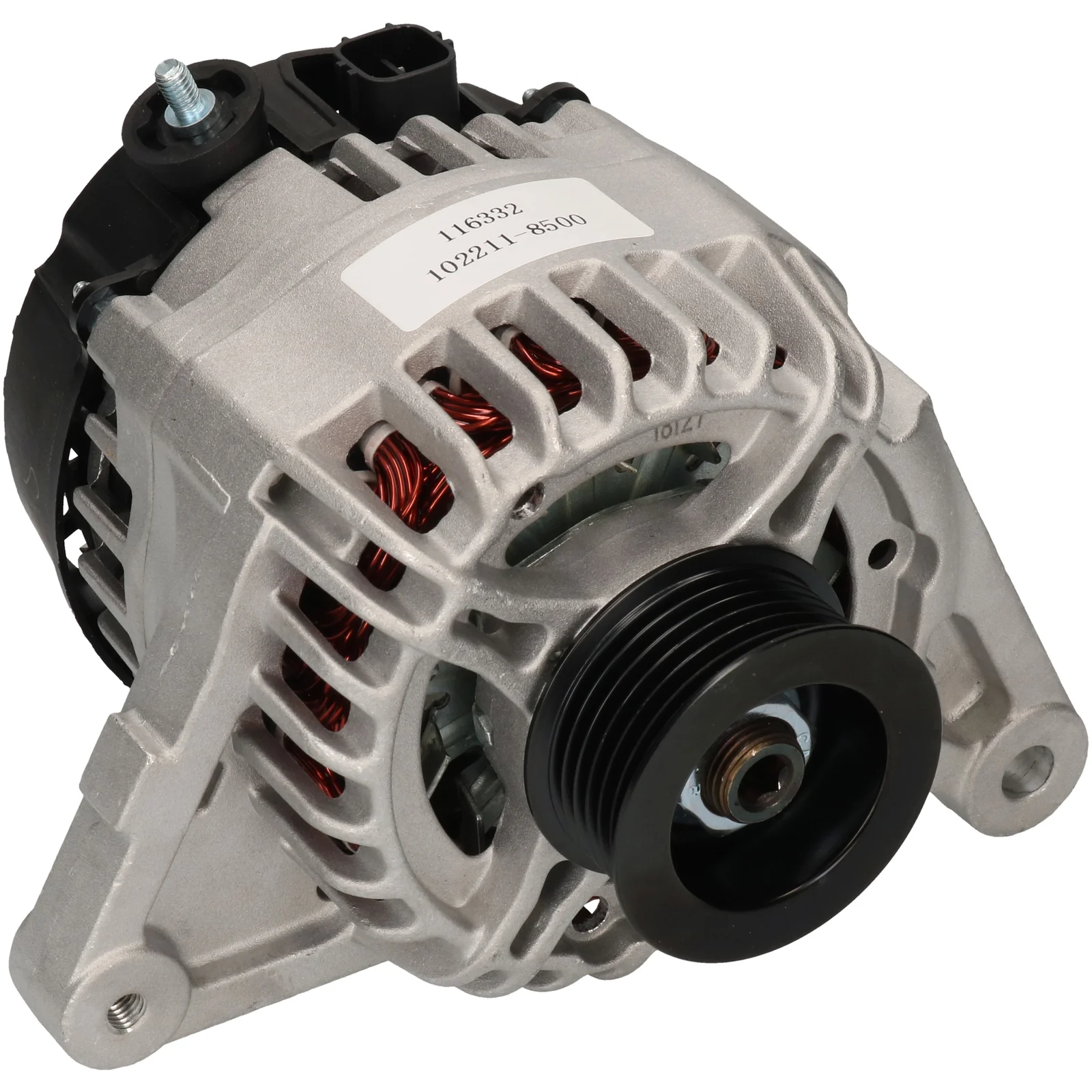

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116332

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 90, Rotation: CW, Mount. bracket distributor: 40.00

Description

Voltage: 14
Amp: 90
Pulley dist.: 34.50
Width/holder arm: 18.00
Mount. bracket dist.: 40.00
Bracket hole: 11.00
Belt. adj. brackethole pos.: 50
Belt. adj. bracket hole 1: M8
Pulley dia.: 55.00
Grooves/pulley: 6
Radius: 98.00
Radius 2: 98.00
B+: M6
Position/B+ in min.: 55
D+ Size: Plug
Rotation: CW
Plug no.: PL78
Total length mm: 163.00
Terminal type: S-IG-L-DF/DFM
Pulley: Alternator pulley
Fan: Cooling fan

Files

  • OEM
    F032116332, 27060-0D140, 27060-0D170, 27060-0D190, 27060-0D191, 27060-0D300, 101210-0890, 101210-0891, 102211-8500, 102211-9280, 0124325079, 0124325080

  • Normalised article numbler
    a0257, a6067, a6067denso, a6122, cal40297, dan1021, dendan1021, drb6110, f032116332, 8el011712191, 9320, 111554, 210980, 210980a, 270600d140, 270600d170, 270600d190, 270600d191, 270600d300, 285520, 285594, 401894ri, 440838, 443082, 12060771, 12060930, 0124325079, 0124325080, 195945090, 235182902, 0986046110, 0986046113, 1012100890, 1012100891, 1022118500, 1022119280, 063377542010
  • Description
    Voltage: 14
    Amp: 90
    Pulley dist.: 34.50
    Width/holder arm: 18.00
    Mount. bracket dist.: 40.00
    Bracket hole: 11.00
    Belt. adj. brackethole pos.: 50
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 55.00
    Grooves/pulley: 6
    Radius: 98.00
    Radius 2: 98.00
    B+: M6
    Position/B+ in min.: 55
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL78
    Total length mm: 163.00
    Terminal type: S-IG-L-DF/DFM
    Pulley: Alternator pulley
    Fan: Cooling fan

    Files

  • Suitable for these vehicles

    • OEM
      F032116332, 27060-0D140, 27060-0D170, 27060-0D190, 27060-0D191, 27060-0D300, 101210-0890, 101210-0891, 102211-8500, 102211-9280, 0124325079, 0124325080

    • Normalised article numbler
      a0257, a6067, a6067denso, a6122, cal40297, dan1021, dendan1021, drb6110, f032116332, 8el011712191, 9320, 111554, 210980, 210980a, 270600d140, 270600d170, 270600d190, 270600d191, 270600d300, 285520, 285594, 401894ri, 440838, 443082, 12060771, 12060930, 0124325079, 0124325080, 195945090, 235182902, 0986046110, 0986046113, 1012100890, 1012100891, 1022118500, 1022119280, 063377542010
