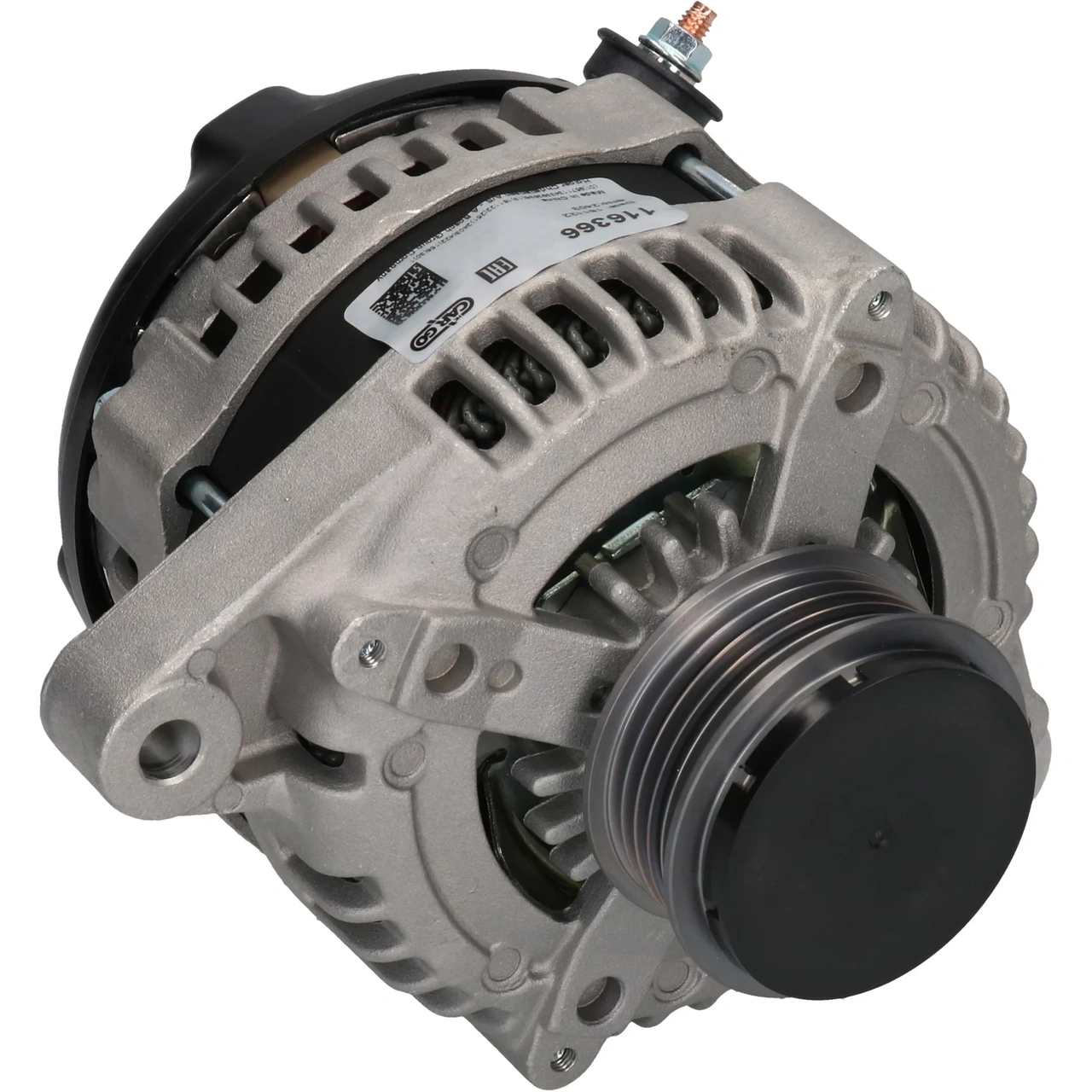

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116366

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 130, Rotation: CW, Pulley dia.: 58.20

Description

Voltage: 14
Amp: 130
Pulley dist.: 92.50
Width/holder arm: 53.00
Bracket hole: 10.20
Belt. adj. brackethole pos.: 55
Belt. adj. bracket hole 1: 9.80
Pulley dia.: 58.20
Grooves/pulley: 5
Radius: 90.00
Radius 2: 86.00
B+: M6
Position/B+ in min.: 44
D+ Size: Plug
Rotation: CW
Plug no.: PL78
Total length mm: 165.00
Terminal type: S-IG-L-DF/DFM
Pulley: FW
Fan: IF
Regulator type: IR

Files

  • OEM
    F032116366, 1986A01192, 27060-27040, 104210-3050, 104210-3051, 104210-3052

  • Normalised article numbler
    a6027, a6027denso, a6027pr, a6676s, cal40147, dan1345, dra0857, dra4275, f032116366, j5112132, lra02298, 8el011711281, 1986a01192, 112297, 210859, 210859a, 285852, 401721ri, 9212488, 12060813, 1042103050, 1042103051, 1042103052, 2351901302, 2353281302, 2706027040, 944390904070
  • Description
    Voltage: 14
    Amp: 130
    Pulley dist.: 92.50
    Width/holder arm: 53.00
    Bracket hole: 10.20
    Belt. adj. brackethole pos.: 55
    Belt. adj. bracket hole 1: 9.80
    Pulley dia.: 58.20
    Grooves/pulley: 5
    Radius: 90.00
    Radius 2: 86.00
    B+: M6
    Position/B+ in min.: 44
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL78
    Total length mm: 165.00
    Terminal type: S-IG-L-DF/DFM
    Pulley: FW
    Fan: IF
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032116366, 1986A01192, 27060-27040, 104210-3050, 104210-3051, 104210-3052

    • Normalised article numbler
      a6027, a6027denso, a6027pr, a6676s, cal40147, dan1345, dra0857, dra4275, f032116366, j5112132, lra02298, 8el011711281, 1986a01192, 112297, 210859, 210859a, 285852, 401721ri, 9212488, 12060813, 1042103050, 1042103051, 1042103052, 2351901302, 2353281302, 2706027040, 944390904070
