HC-Cargo Alternator

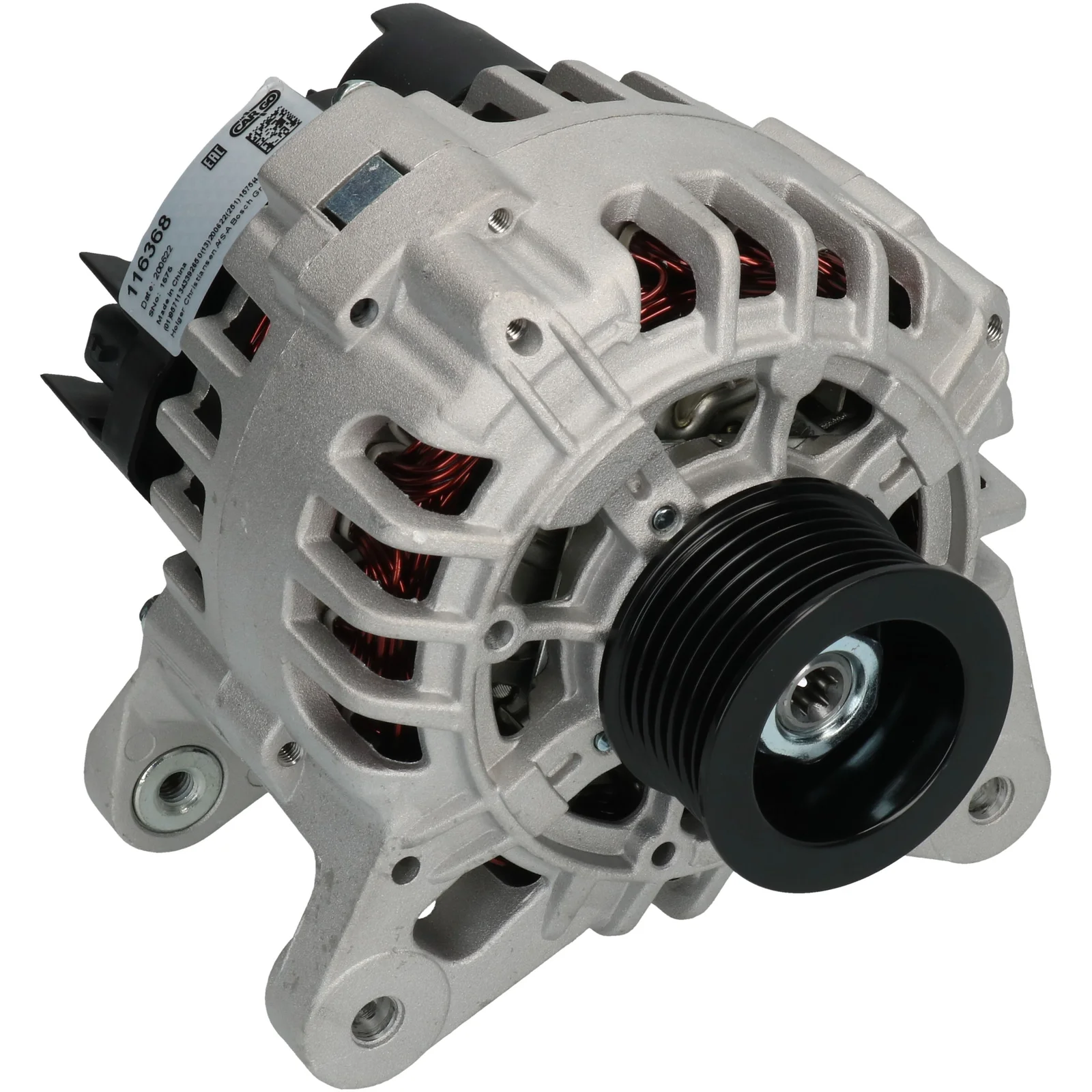

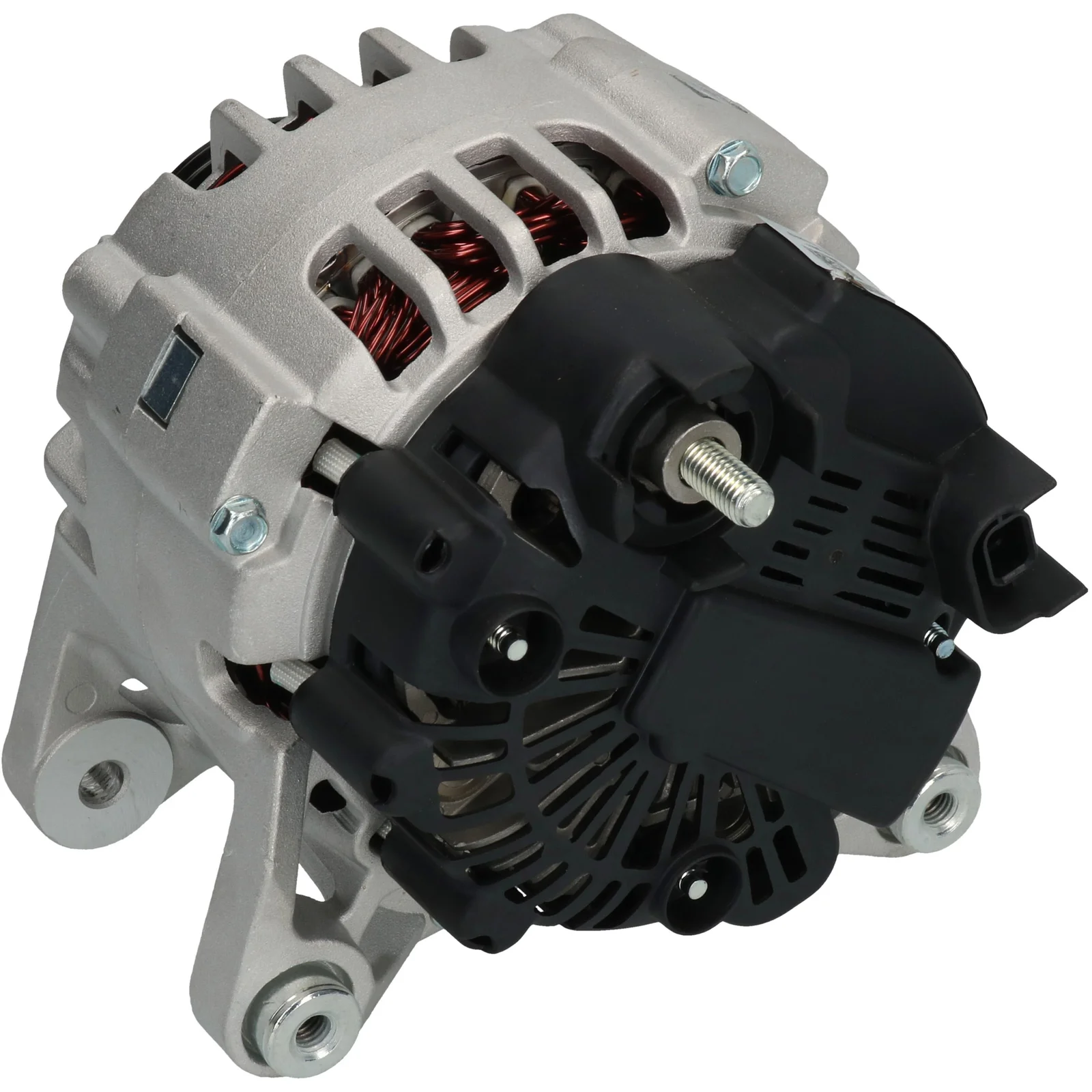

HC-Cargo Alternator
Article no.: F032116368

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 90, Rotation: CW, Mounting bracket distributor: 61.00

Description

Voltage: 14
Amp: 90
Pulley dist.: 32.00
Width/holder arm: 14.20
Mounting bracket dist.: 61.00
Bracket hole: 8.70
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 8.70
Pulley diameter: 57.00
Grooves/pulley: 7
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 10
Rotation: CW
Plug number: PL124
Total length mm: 182.00
Terminal type: COM
Pulley: SP
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116368, TG9B041, TG9B042, 1866ir, 2543486, 2543509, 2543509a, 2543509B, 2543509C, 7711497091, 8200654541

  • Normalised article numbler
    cal15321, drb6440x, f032116368, tg9b041, tg9b042, 1866ir, 4674, 112646, 210696, 210696a, 439625, 440185, 443041, 553245ri, 747115, 2543486, 2543509, 2543509a, 2543509b, 2543509c, 12046440, 12090369, 230329902, 7711497091, 8200654541
  • Description
    Voltage: 14
    Amp: 90
    Pulley dist.: 32.00
    Width/holder arm: 14.20
    Mounting bracket dist.: 61.00
    Bracket hole: 8.70
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 8.70
    Pulley diameter: 57.00
    Grooves/pulley: 7
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 10
    Rotation: CW
    Plug number: PL124
    Total length mm: 182.00
    Terminal type: COM
    Pulley: SP
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116368, TG9B041, TG9B042, 1866ir, 2543486, 2543509, 2543509a, 2543509B, 2543509C, 7711497091, 8200654541

    • Normalised article numbler
      cal15321, drb6440x, f032116368, tg9b041, tg9b042, 1866ir, 4674, 112646, 210696, 210696a, 439625, 440185, 443041, 553245ri, 747115, 2543486, 2543509, 2543509a, 2543509b, 2543509c, 12046440, 12090369, 230329902, 7711497091, 8200654541
