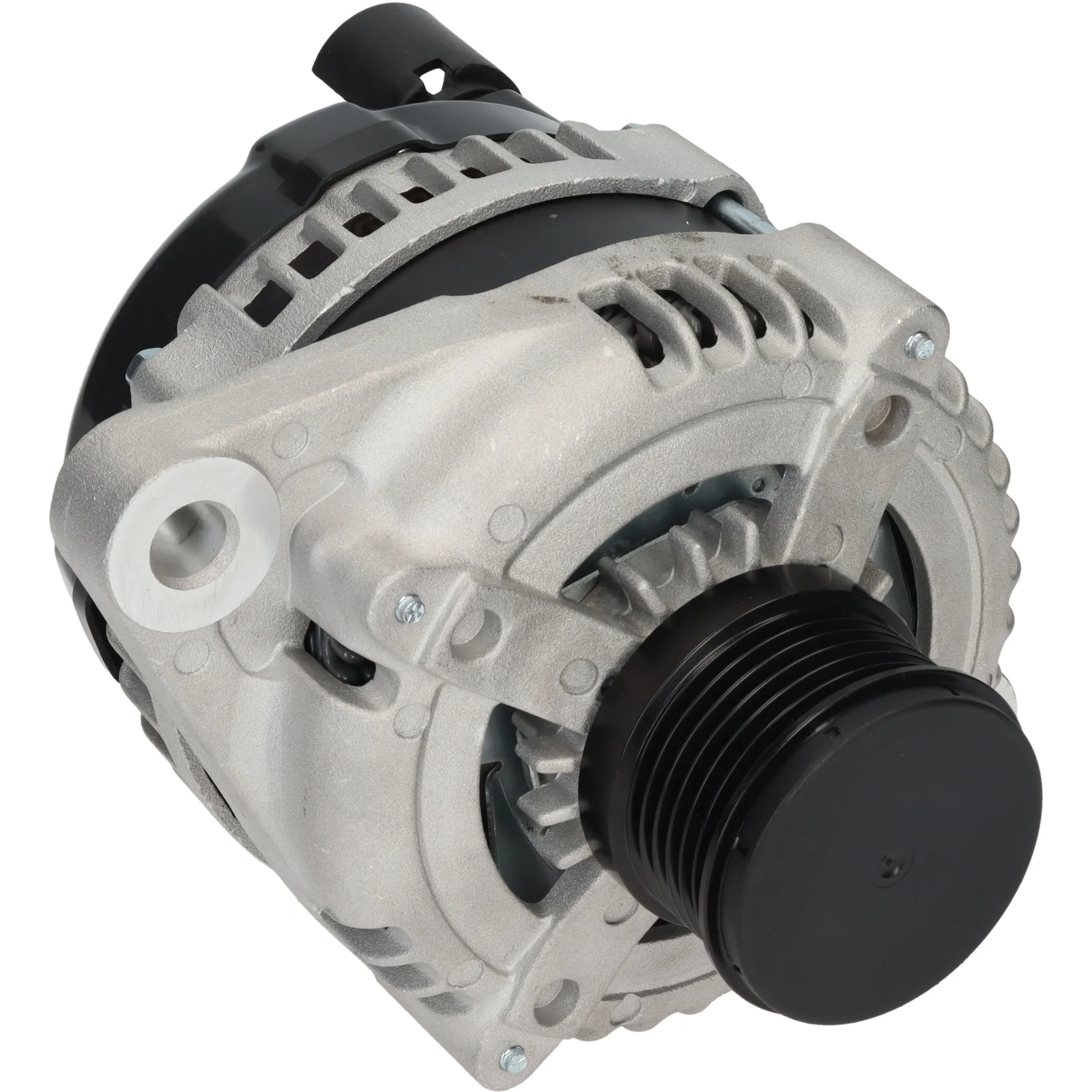

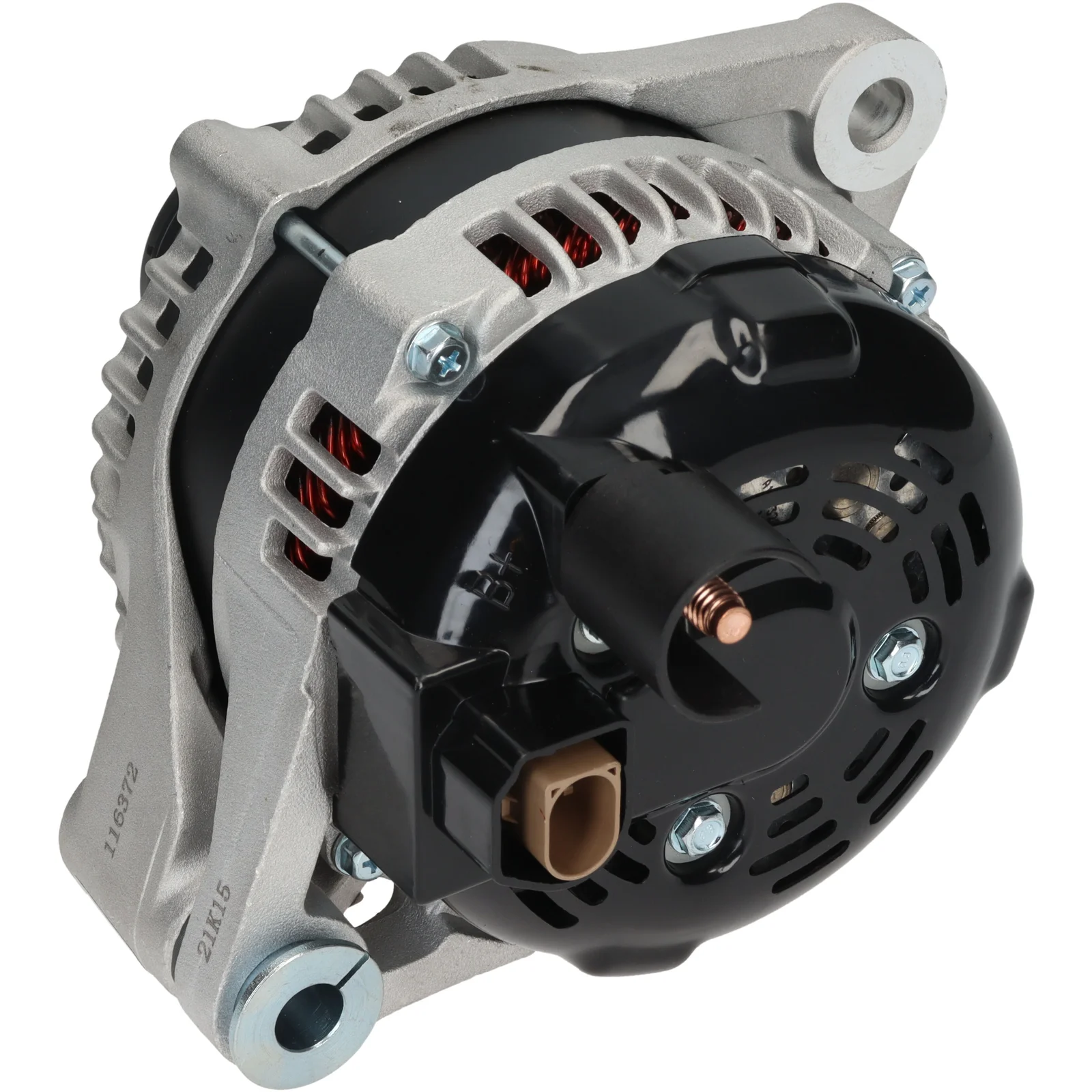

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116372

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 150, Rotation: CW, Pulley diameter: 54.00

Description

Voltage: 14
Amperage: 150
Pulley dist.: 113.00
Width/holder arm: 61.00
Bracket hole: 14.00
Belt. adj. bracket hole position: 60
Belt. adj. bracket hole 1: 12.00
Pulley diameter: 54.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 45
Rotation: CW
Plug no.: PL174
Total length mm: 196.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116372, 104210-8660, 104211-8660, 51929089

  • Normalised article numbler
    dan1146, f032116372, 21184os, 209456, 209456a, 849219, 12090784, 51929089, 105517150, 1042108660, 1042118660
  • Description
    Voltage: 14
    Amperage: 150
    Pulley dist.: 113.00
    Width/holder arm: 61.00
    Bracket hole: 14.00
    Belt. adj. bracket hole position: 60
    Belt. adj. bracket hole 1: 12.00
    Pulley diameter: 54.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 45
    Rotation: CW
    Plug no.: PL174
    Total length mm: 196.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116372, 104210-8660, 104211-8660, 51929089

    • Normalised article numbler
      dan1146, f032116372, 21184os, 209456, 209456a, 849219, 12090784, 51929089, 105517150, 1042108660, 1042118660
