HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116373

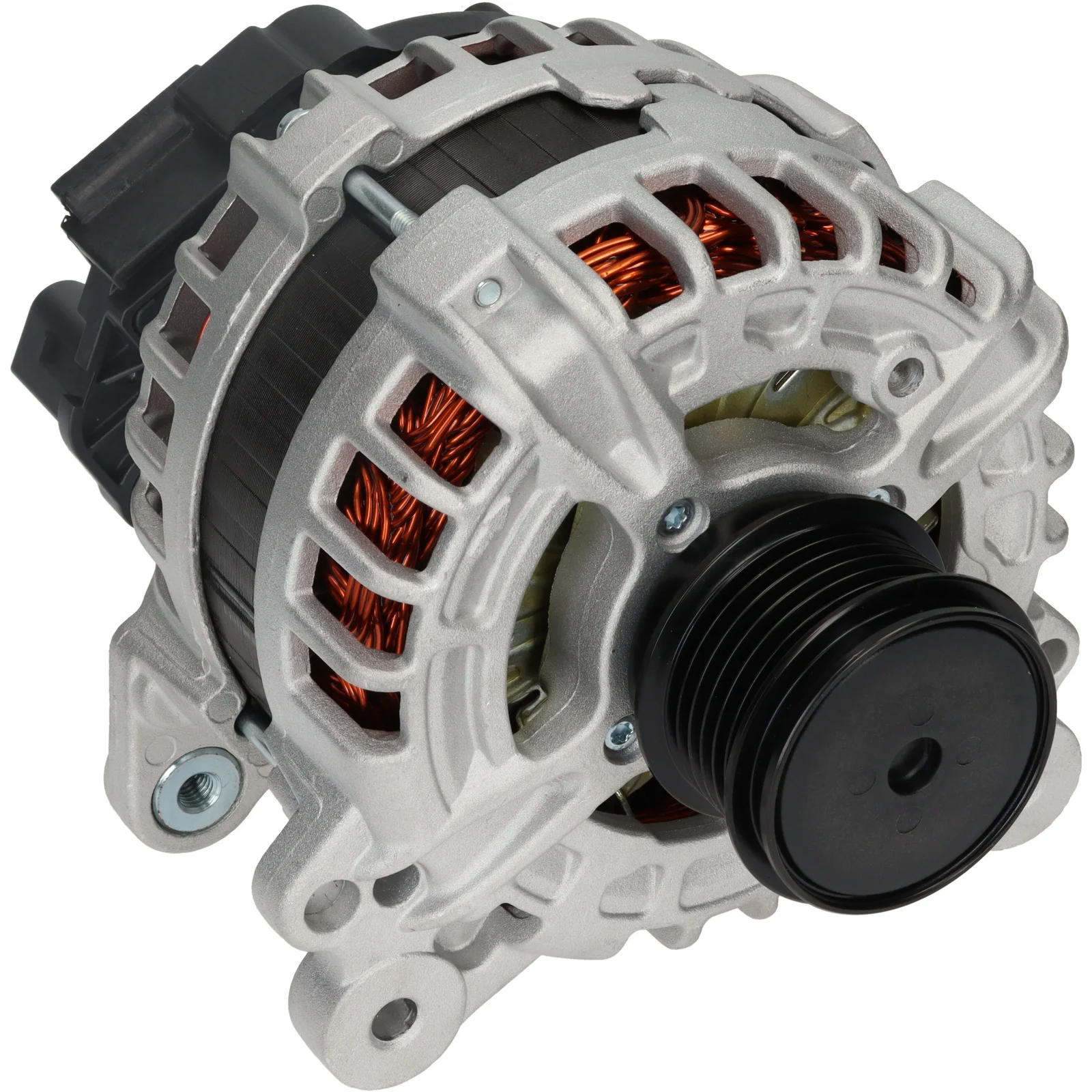

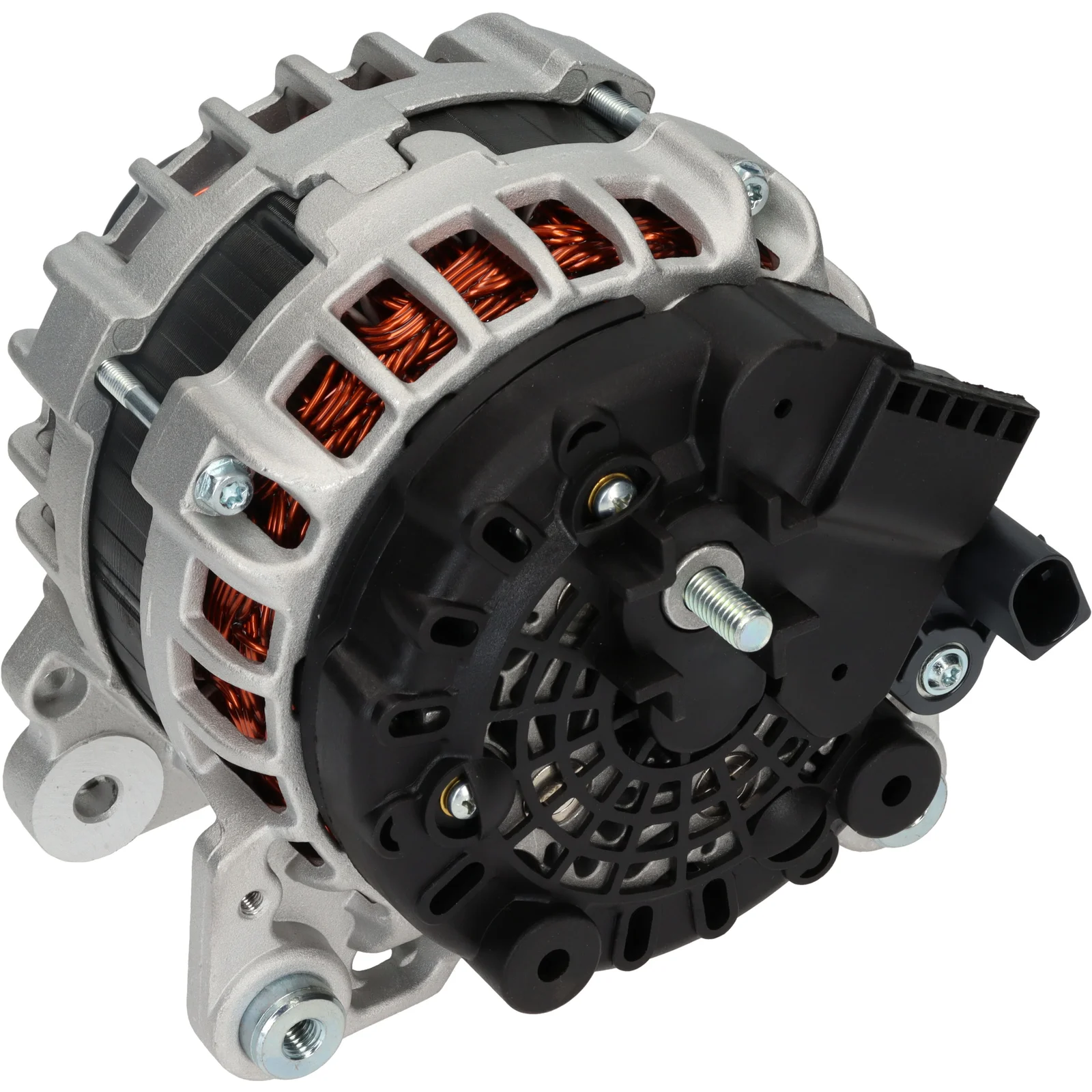

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 140, Rotation: CW, Mounting bracket distributor: 61.00

Description

Voltage: 14
Amp: 140
Pulley diameter: 40.00
Width/holder arm: 14.00
Mounting bracket distance: 61.00
Bracket hole: 8.50
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 8.50
Belt adjustment bracket hole 2: M8
Pulley diameter: 52.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 55
Rotation: CW
Plug number: PL125
Total length mm: 192.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Fan: IF
Voltage regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F000BL08G7, F000BL08G8, F032116373, 04L903021G, 04L903023K, 04L903023KX

  • Normalised article numbler
    cal10564, f000bl08g7, f000bl08g8, f032116373, 04l903021g, 04l903023k, 04l903023kx, 12090702, 0986085830
  • Description
    Voltage: 14
    Amp: 140
    Pulley diameter: 40.00
    Width/holder arm: 14.00
    Mounting bracket distance: 61.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 8.50
    Belt adjustment bracket hole 2: M8
    Pulley diameter: 52.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 55
    Rotation: CW
    Plug number: PL125
    Total length mm: 192.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Voltage regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F000BL08G7, F000BL08G8, F032116373, 04L903021G, 04L903023K, 04L903023KX

    • Normalised article numbler
      cal10564, f000bl08g7, f000bl08g8, f032116373, 04l903021g, 04l903023k, 04l903023kx, 12090702, 0986085830
