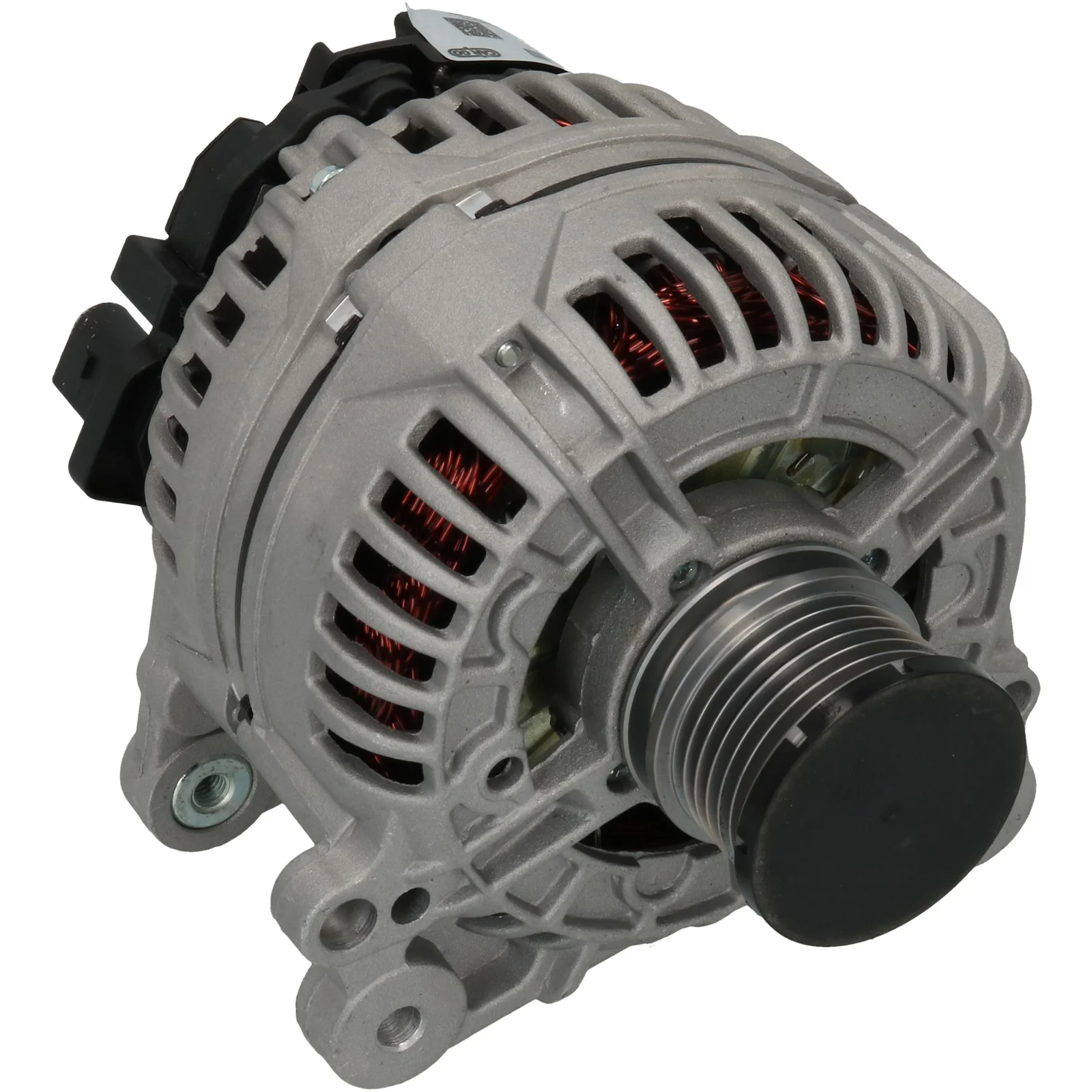

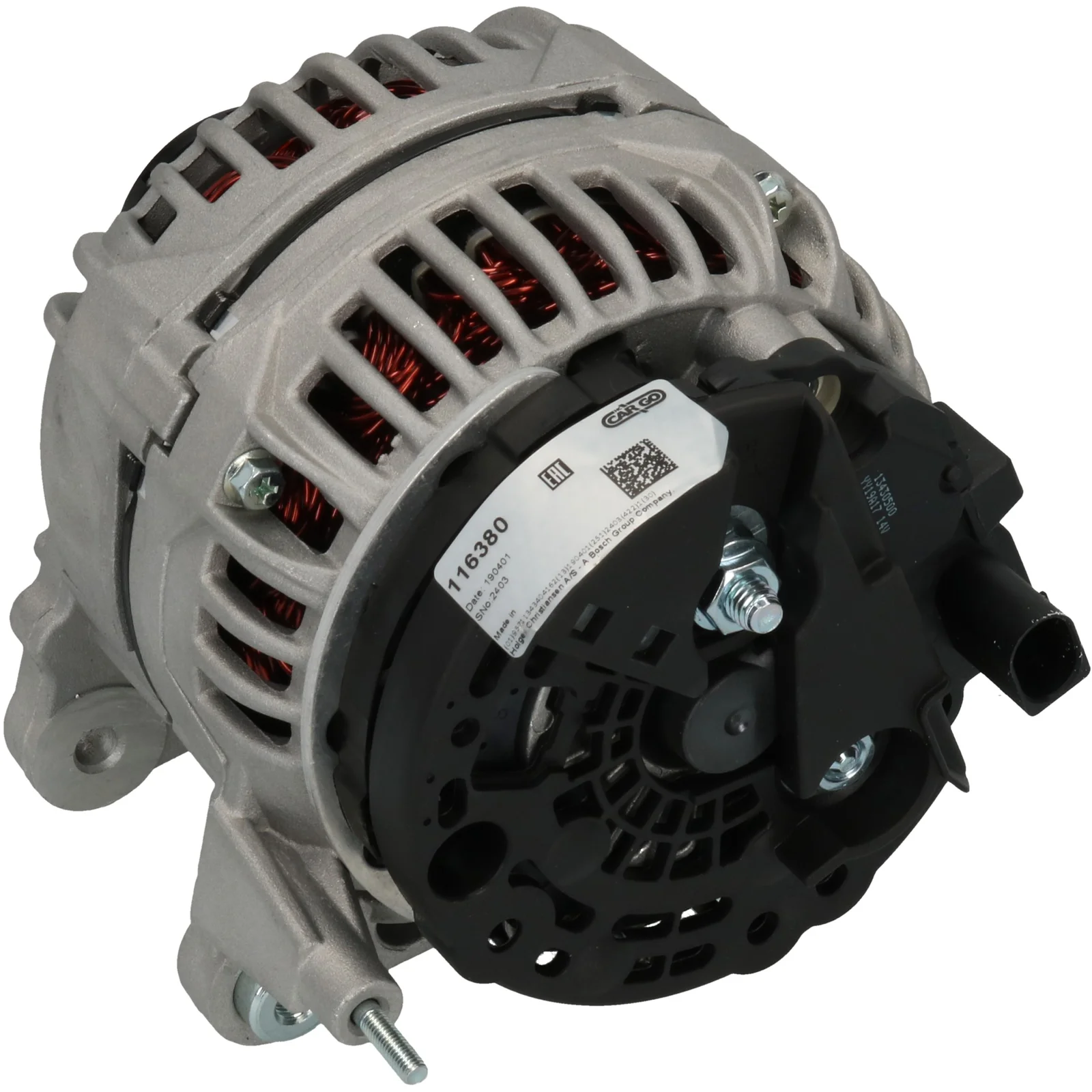

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116380

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 140, Rotation: CW, Mounting bracket distributor: 61.00

Description

Voltage: 14
Amperage: 140
Pulley dist.: 40.00
Width/holder arm: 14.00
Mounting bracket dist.: 61.00
Bracket hole: 8.50
Belt adjustment bracket hole position.: 45
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 49.50
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in minutes.: 50
Rotation: clockwise
Plug no.: PL86
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Servicing: Audi
Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116380, 03g903016b, 03G903016BX, 03g903016e, 03G903016EX, 03G903016GX, 04L903021HX, 04L903023LX, 1986A00896, 2627025C, 0124525114, 0124525530

  • Normalised article numbler
    a0429pr, a0429s, a0473pr, a0473s, a3299pr2, cal10379, cal15418, dra0314, f032116380, 03g903016b, 03g903016bx, 03g903016e, 03g903016ex, 03g903016gx, 04l903021hx, 04l903023lx, 8el012430791, 1986a00896, 113096, 210706, 210706a, 301986ri, 440864, 443152, 2627025c, 9090657, 0124525114, 0124525530, 205519140, 205539140, 0986081340, 2113571402
  • Description
    Voltage: 14
    Amperage: 140
    Pulley dist.: 40.00
    Width/holder arm: 14.00
    Mounting bracket dist.: 61.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position.: 45
    Belt adjustment bracket hole 1: 8.50
    Pulley diameter: 49.50
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in minutes.: 50
    Rotation: clockwise
    Plug no.: PL86
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Regulator type: IR
    Servicing: Audi
    Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.
