HC-Cargo Alternator
Article no.: F032116383

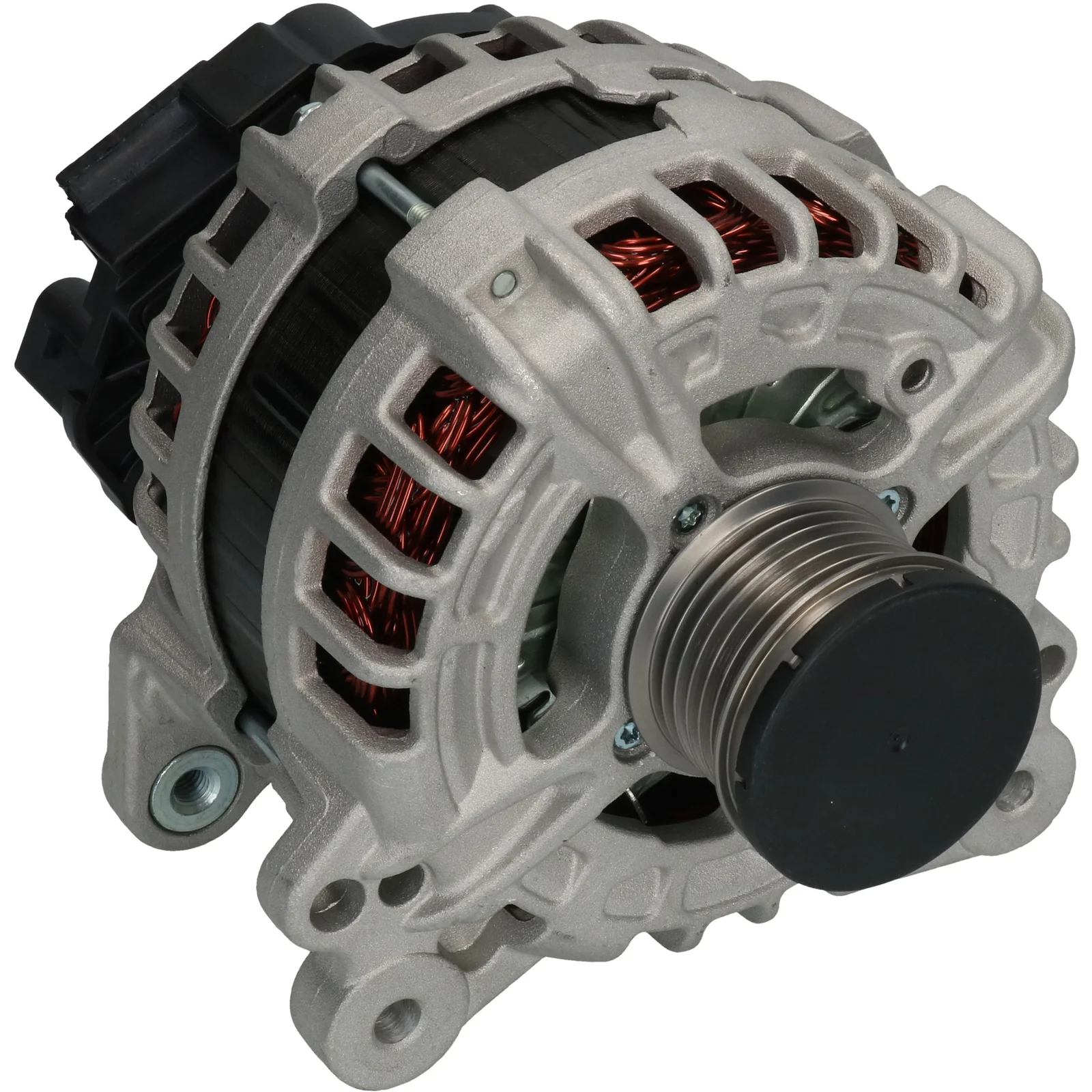

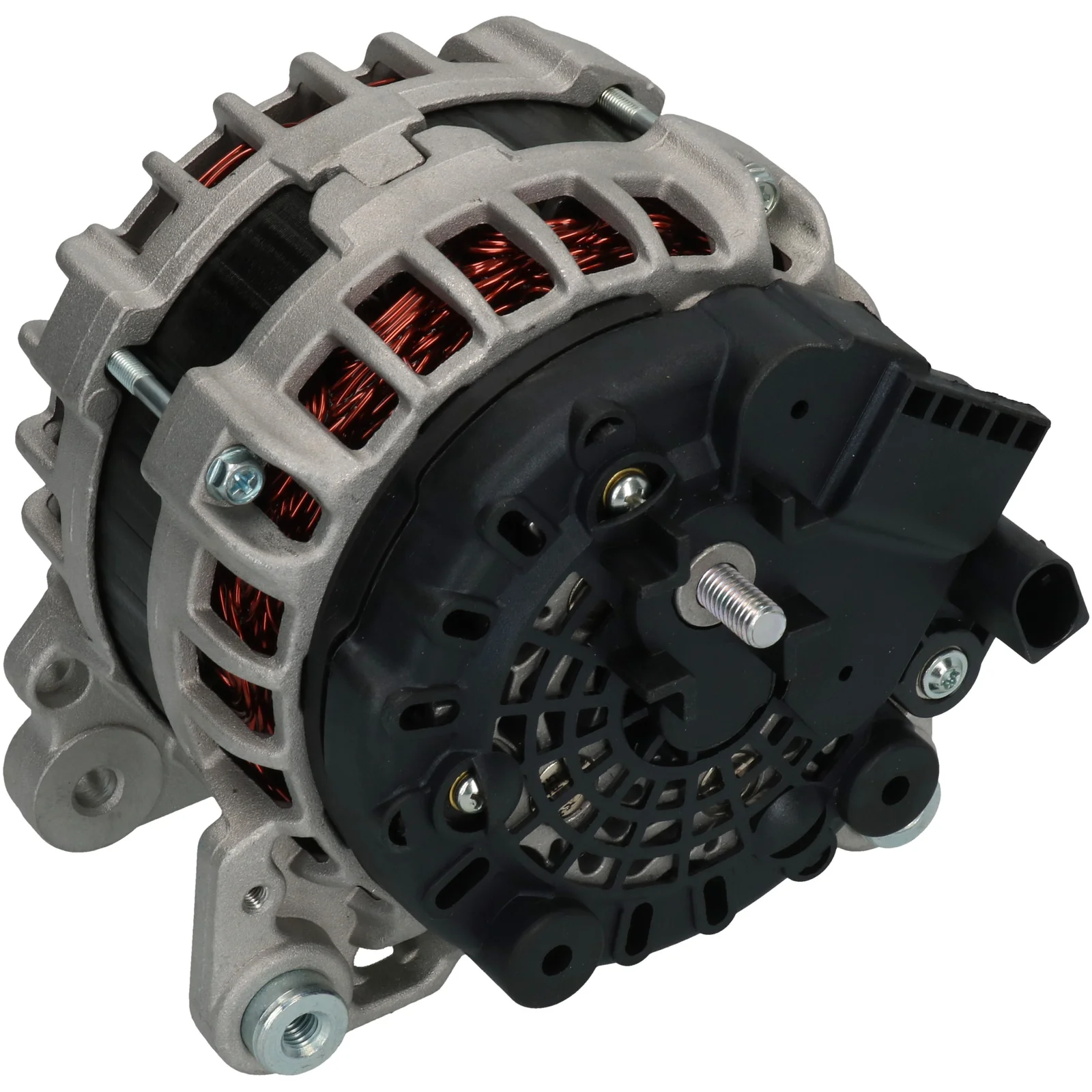

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 140, Rotation: CW, Mounting bracket distributor: 61.00

Description

Voltage: 14
Amp: 140
Pulley: Pulley dist.: 29.50
Width/holder arm: 14.00
Mounting bracket dist.: 61.00
Bracket hole: 8.50
Bracket hole 2: M8
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 8.50
Belt adjustment bracket hole 2: M8
Pulley diameter: 49.30
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 52
Rotation: CW
Plug no.: PL125
Total length mm: 185.00
Terminal type: COM
Communication: LIN
Alternator: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F000BL0801, F000BL0802, F000BL08A1, F000BL08J1, F000BL08J2, F032116383, 04C903023C, 04C903023CX, 04E903024Q, 1986A01375

  • Normalised article numbler
    a0592s, cal10549, dra1536, f000bl0801, f000bl0802, f000bl08a1, f000bl08j1, f000bl08j2, f032116383, 04c903023c, 04c903023cx, 04e903024q, 1986a01375, 209260, 209260a, 287570, 443304, 443392, 444217, 444275, 12090733, 12091034, 32118301, 305932140, 0986086090, 0986086220, 2115301402
  • Description
    Voltage: 14
    Amp: 140
    Pulley: Pulley dist.: 29.50
    Width/holder arm: 14.00
    Mounting bracket dist.: 61.00
    Bracket hole: 8.50
    Bracket hole 2: M8
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 8.50
    Belt adjustment bracket hole 2: M8
    Pulley diameter: 49.30
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 52
    Rotation: CW
    Plug no.: PL125
    Total length mm: 185.00
    Terminal type: COM
    Communication: LIN
    Alternator: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F000BL0801, F000BL0802, F000BL08A1, F000BL08J1, F000BL08J2, F032116383, 04C903023C, 04C903023CX, 04E903024Q, 1986A01375

    • Normalised article numbler
      a0592s, cal10549, dra1536, f000bl0801, f000bl0802, f000bl08a1, f000bl08j1, f000bl08j2, f032116383, 04c903023c, 04c903023cx, 04e903024q, 1986a01375, 209260, 209260a, 287570, 443304, 443392, 444217, 444275, 12090733, 12091034, 32118301, 305932140, 0986086090, 0986086220, 2115301402
