HC-Cargo Alternator

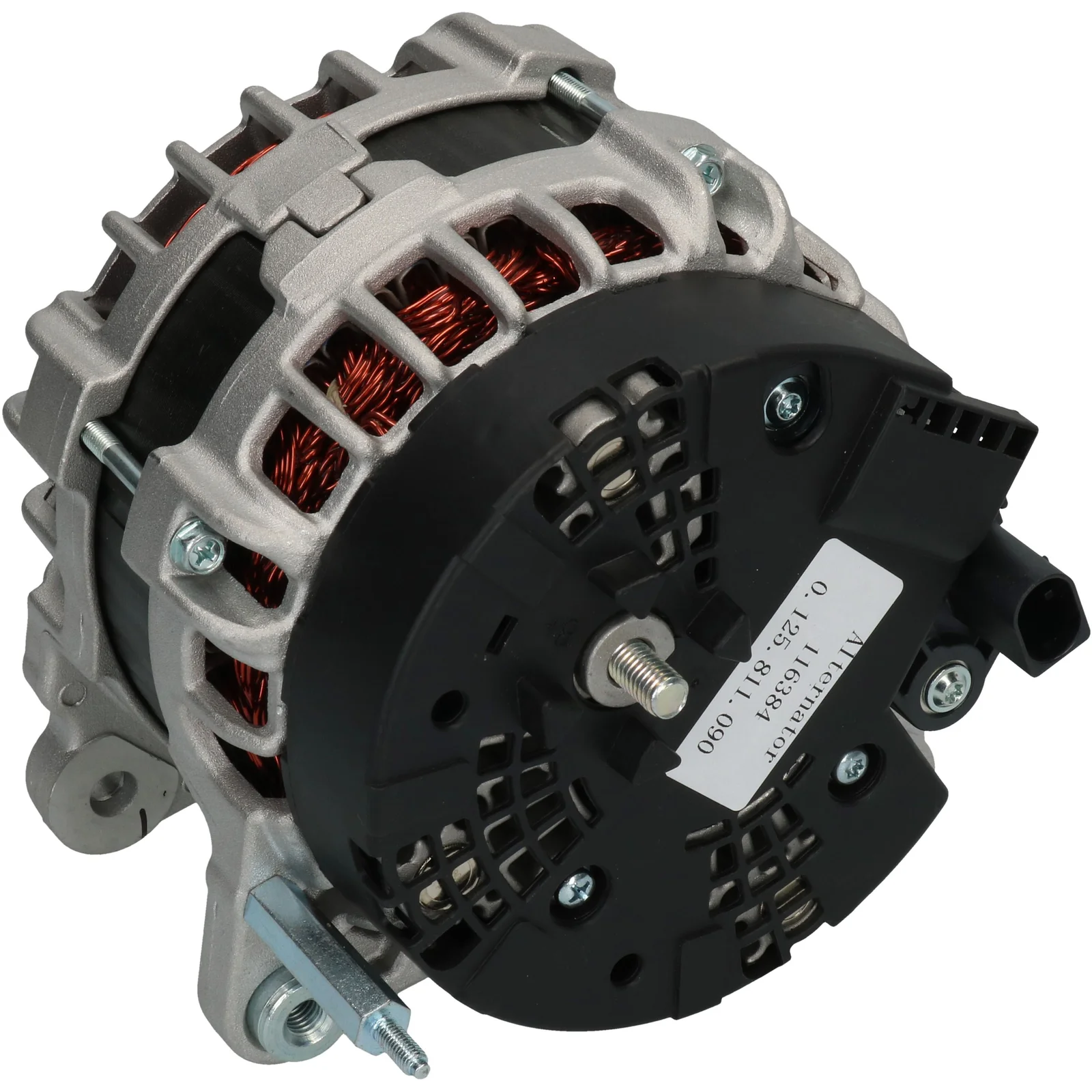

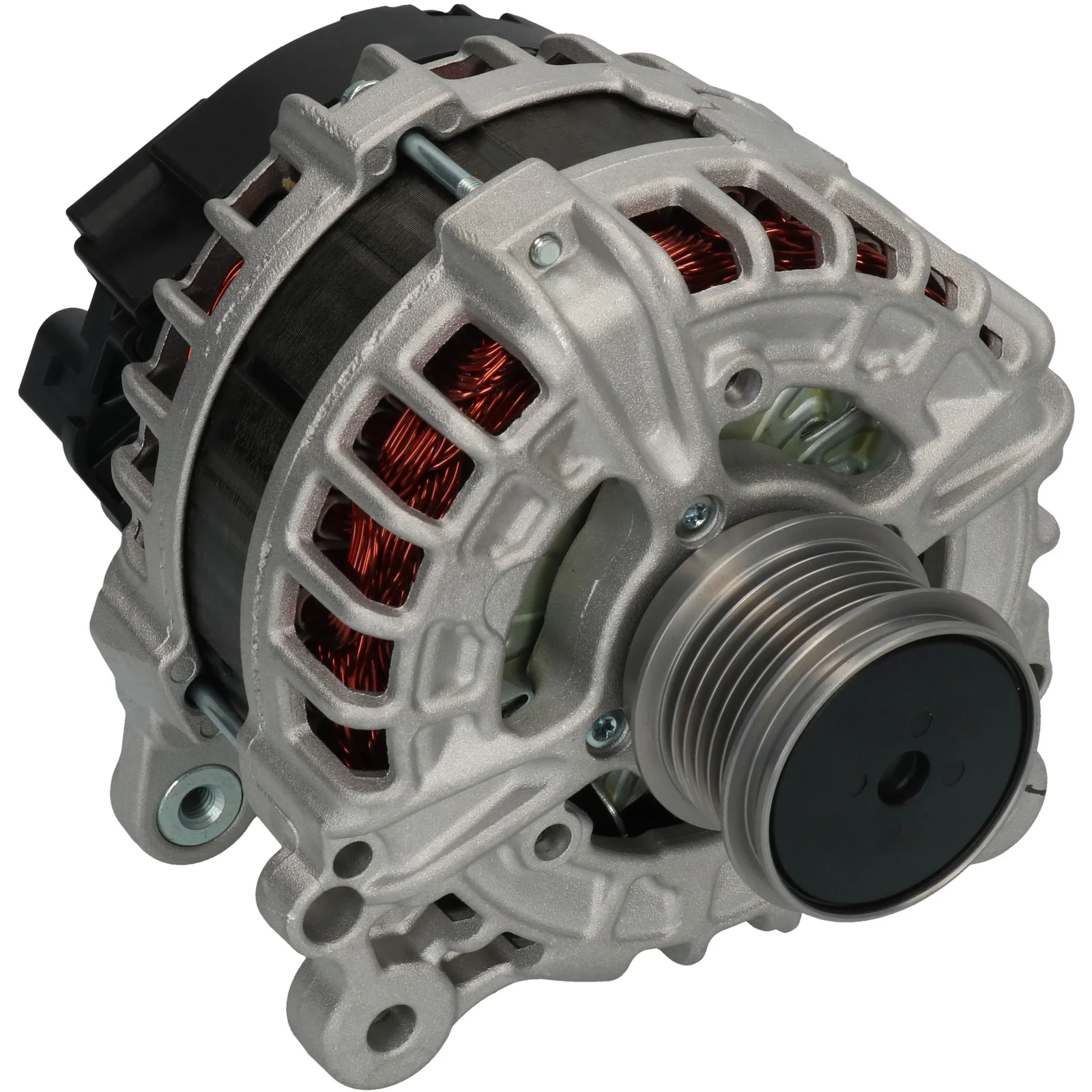

HC-Cargo Alternator
Article no.: F032116384

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 180, Rotation: CW, Mounting bracket distributor: 61.00

Description

HC-Cargo Alternator 12V - 180A, 6-pole, flanged (LIN) ID code 40

Voltage: 14
Amp: 180
Pulley dist.: 39.50
Width/holder arm: 14.00
Mounting bracket dist.: 61.00
Bracket hole: 8.70
Belt tensioner bracket hole position: 45
Belt tensioner bracket hole 1: 8.70
Belt tensioner bracket hole 2: M8
Pulley diameter: 52.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 7
Rotation: CW
Plug no.: PL125
Total length mm: 197.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number be used to check suitability before ordering.

Files

  • OEM
    F032116384, 04L 903 021J, 04L 903 023J, 04L 903023JX, 04L903021J, 04L903021JX, 04L903023J, 04L903023JX, 0125 811 089, 0125 811 090, 0125 811 153, 0986 085 840, 0986 085 980, 1986 A00 622, 1986 A01 372, 1986A00622, 1986A01222, 1986A01372, 116384, 0125811089, 0125811090, 0125811153, 0125811172

  • Normalised article numbler
    a0791s, a3371pr, cal10527, f032116384, 04l903021j, 04l903021jx, 04l903023j, 04l903023jx, 8el015630861, 1986a00622, 1986a01222, 1986a01372, 20803n, 20803os, 116384, 12090783, 32000005, 0125811089, 0125811090, 0125811153, 0125811172, 305336180, 0986085840, 0986085980
  • Description
    HC-Cargo Alternator 12V - 180A, 6-pole, flanged (LIN) ID code 40

    Voltage: 14
    Amp: 180
    Pulley dist.: 39.50
    Width/holder arm: 14.00
    Mounting bracket dist.: 61.00
    Bracket hole: 8.70
    Belt tensioner bracket hole position: 45
    Belt tensioner bracket hole 1: 8.70
    Belt tensioner bracket hole 2: M8
    Pulley diameter: 52.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 7
    Rotation: CW
    Plug no.: PL125
    Total length mm: 197.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number be used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116384, 04L 903 021J, 04L 903 023J, 04L 903023JX, 04L903021J, 04L903021JX, 04L903023J, 04L903023JX, 0125 811 089, 0125 811 090, 0125 811 153, 0986 085 840, 0986 085 980, 1986 A00 622, 1986 A01 372, 1986A00622, 1986A01222, 1986A01372, 116384, 0125811089, 0125811090, 0125811153, 0125811172

    • Normalised article numbler
      a0791s, a3371pr, cal10527, f032116384, 04l903021j, 04l903021jx, 04l903023j, 04l903023jx, 8el015630861, 1986a00622, 1986a01222, 1986a01372, 20803n, 20803os, 116384, 12090783, 32000005, 0125811089, 0125811090, 0125811153, 0125811172, 305336180, 0986085840, 0986085980
