HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116389

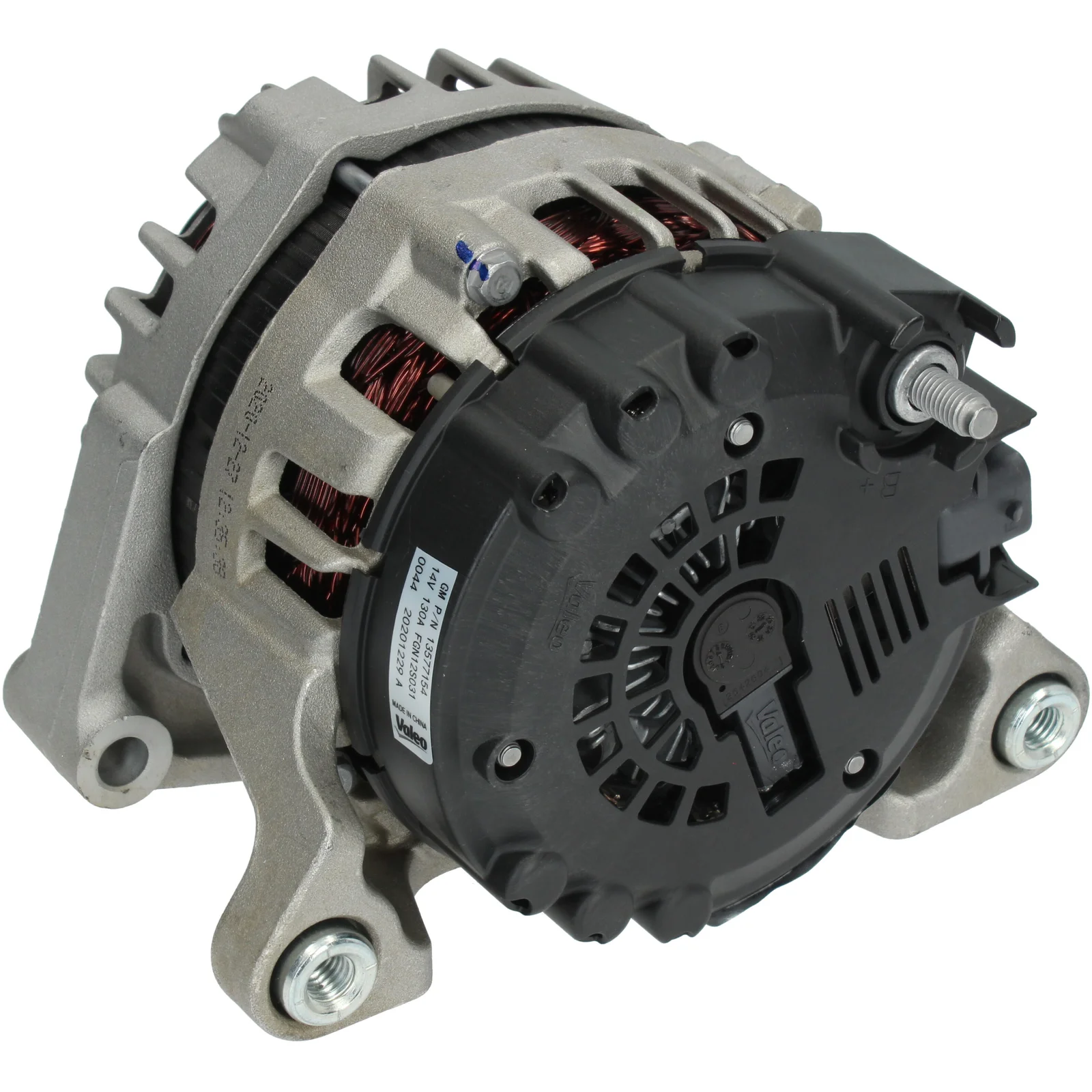

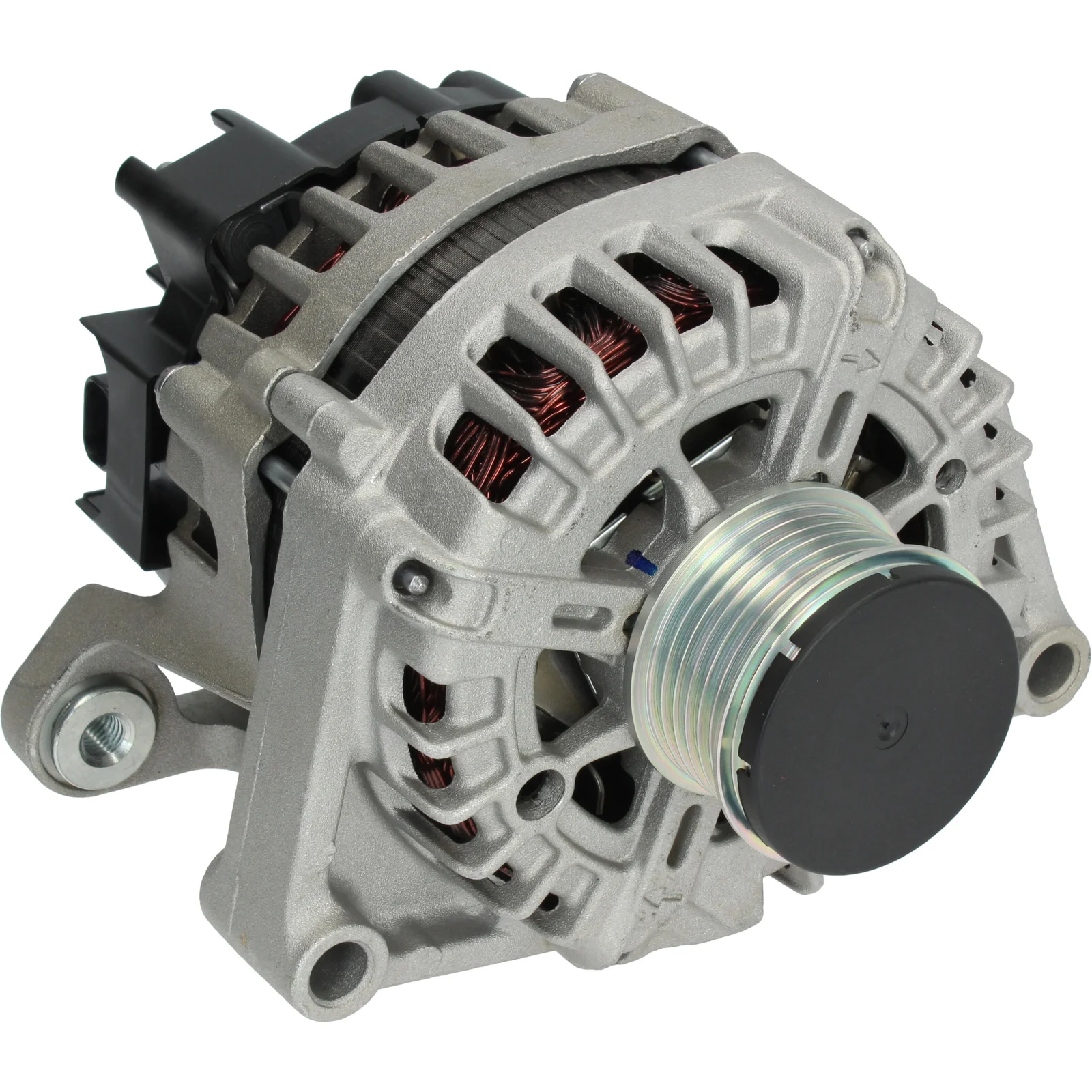

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 120, Rotation: CW, Mount. bracket dist.: 60.50

Description

Voltage: 14
Amp: 120
Pulley dist.: 54.40
Width/holder arm: 33.40
Mounting bracket dist.: 60.50
Bracket hole: 10.70
Belt adjustment bracket hole position.: 50
Belt adjustment bracket hole 1: 10.60
Pulley diameter: 53.60
Grooves/pulley: 6
Radius: 92.00
Radius 2: 92.00
B+: M8
Position/B+ in min.: 56
D+ Size: Plug
Rotation: CW
Plug no.: PL180
Total length mm: 187.00
Terminal type: L-F
Communication: PWM
Pulley: SP/FW
Fan: IF
Voltage regulator type: IR
Remarks: This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • Description
    Voltage: 14
    Amp: 120
    Pulley dist.: 54.40
    Width/holder arm: 33.40
    Mounting bracket dist.: 60.50
    Bracket hole: 10.70
    Belt adjustment bracket hole position.: 50
    Belt adjustment bracket hole 1: 10.60
    Pulley diameter: 53.60
    Grooves/pulley: 6
    Radius: 92.00
    Radius 2: 92.00
    B+: M8
    Position/B+ in min.: 56
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL180
    Total length mm: 187.00
    Terminal type: L-F
    Communication: PWM
    Pulley: SP/FW
    Fan: IF
    Voltage regulator type: IR
    Remarks: This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles
