HC-Cargo Alternator

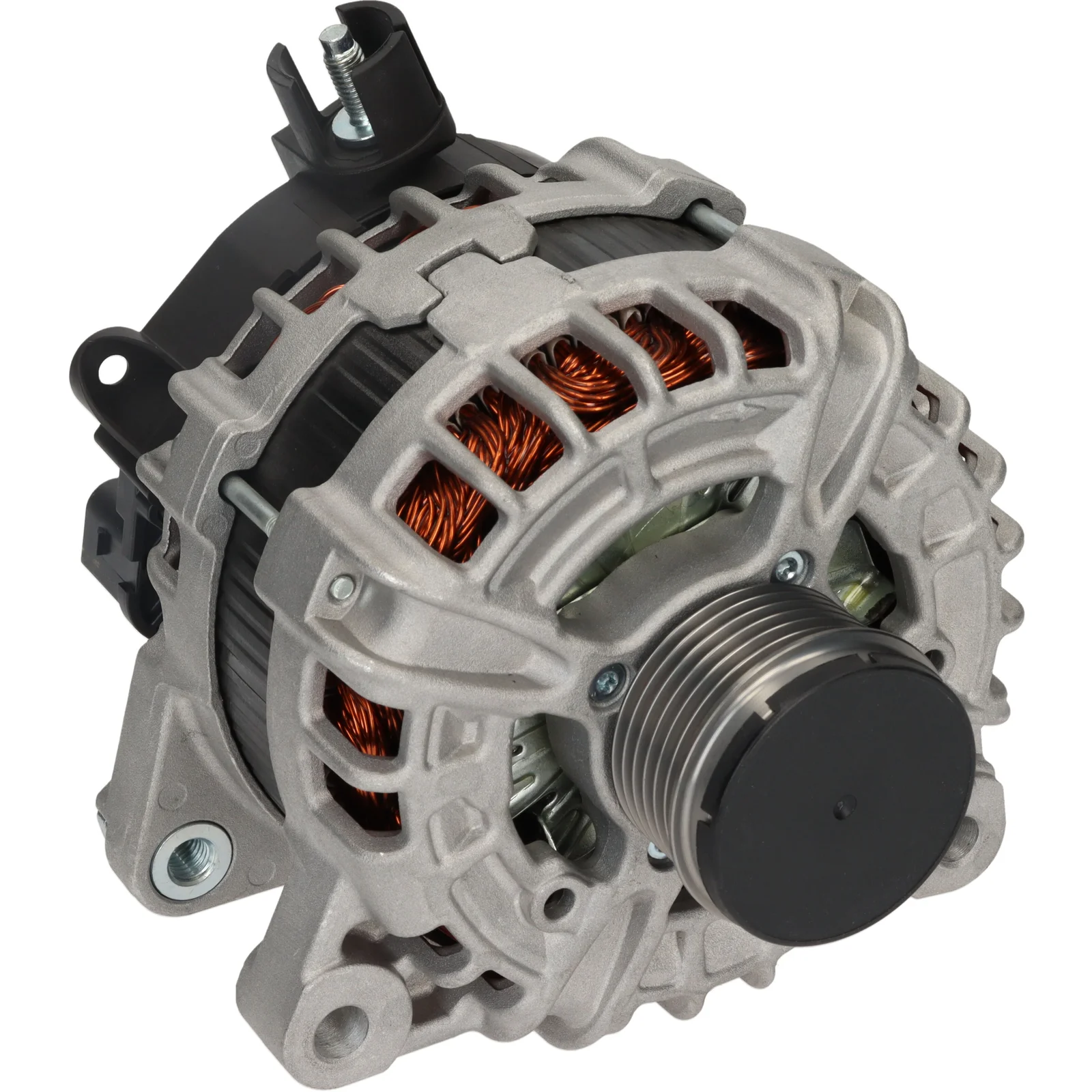

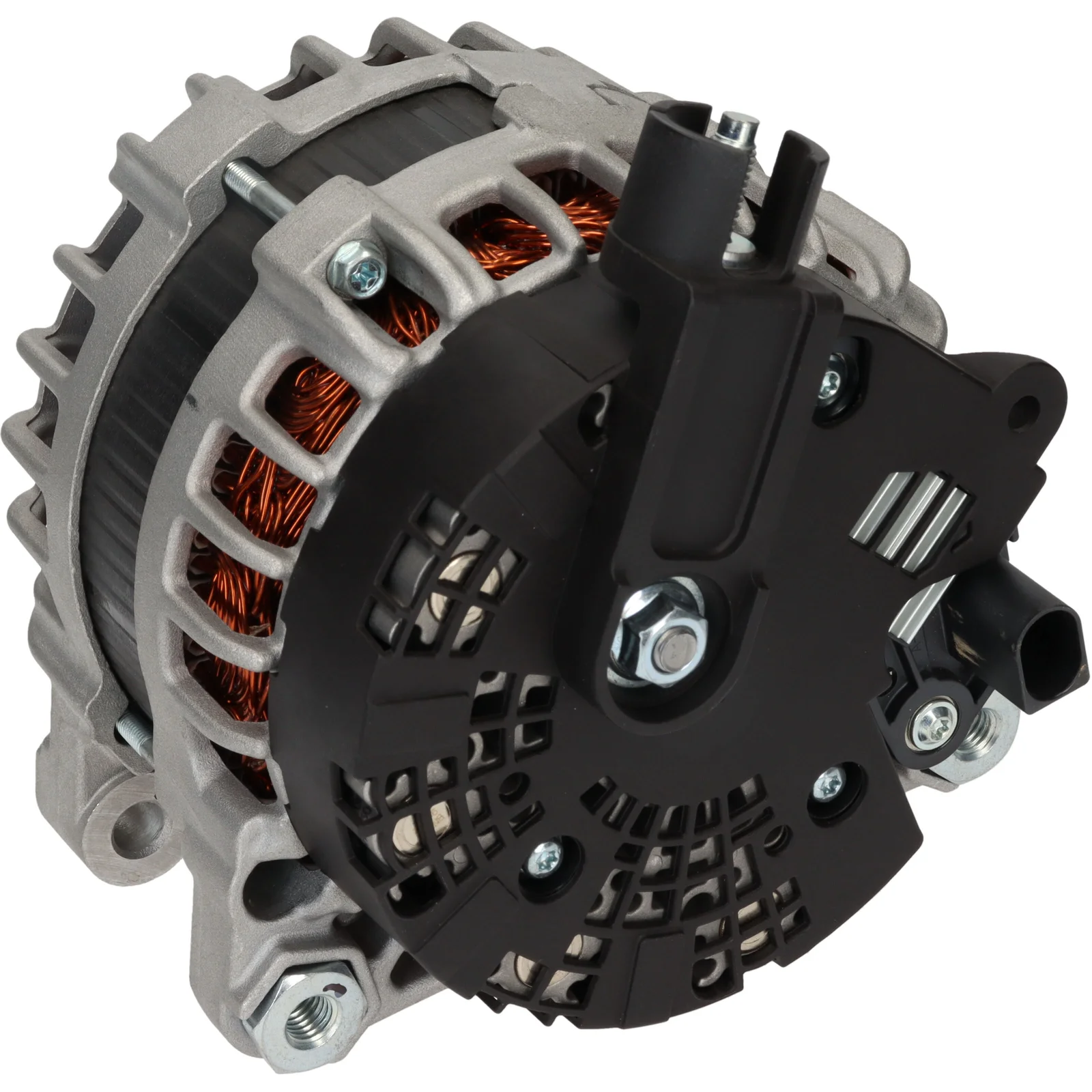

HC-Cargo Alternator
Article no.: F032116408

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 210, Rotation: CW, Mount. bracket dist.: 44.50

Description

Voltage: 14
Amp: 210
Pulley diameter: 42.80
Width/holder arm: 21.50
Mounting bracket distance: 44.50
Bracket hole: 10.20
Belt adjustment bracket hole position: 47
Belt adjustment bracket hole 1: 10.60
Pulley diameter: 54.60
Grooves/pulley: 6
Radius: 88.50
Radius 2: 91.50
B+: M8
Position/B+ in minutes: 53
Rotation: CW
Plug no.: PL174
Total length mm: 183.00
Terminal type: COM
ID Code: 88
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    EJ3210300AC, EJ3210300AD, F032116408, LR047576, LR047579, LR077394, 0125812013, 0125812014, 0125812061, 0125812062

  • Normalised article numbler
    dra1494, ej3210300ac, ej3210300ad, f032116408, lr047576, lr047579, lr077394, 20742noe, 287672, 444254, 12090706, 32009002, 0125812013, 0125812014, 0125812061, 0125812062
  • Description
    Voltage: 14
    Amp: 210
    Pulley diameter: 42.80
    Width/holder arm: 21.50
    Mounting bracket distance: 44.50
    Bracket hole: 10.20
    Belt adjustment bracket hole position: 47
    Belt adjustment bracket hole 1: 10.60
    Pulley diameter: 54.60
    Grooves/pulley: 6
    Radius: 88.50
    Radius 2: 91.50
    B+: M8
    Position/B+ in minutes: 53
    Rotation: CW
    Plug no.: PL174
    Total length mm: 183.00
    Terminal type: COM
    ID Code: 88
    Communication: LIN
    Pulley: SP/FW
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      EJ3210300AC, EJ3210300AD, F032116408, LR047576, LR047579, LR077394, 0125812013, 0125812014, 0125812061, 0125812062

    • Normalised article numbler
      dra1494, ej3210300ac, ej3210300ad, f032116408, lr047576, lr047579, lr077394, 20742noe, 287672, 444254, 12090706, 32009002, 0125812013, 0125812014, 0125812061, 0125812062
