HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116409

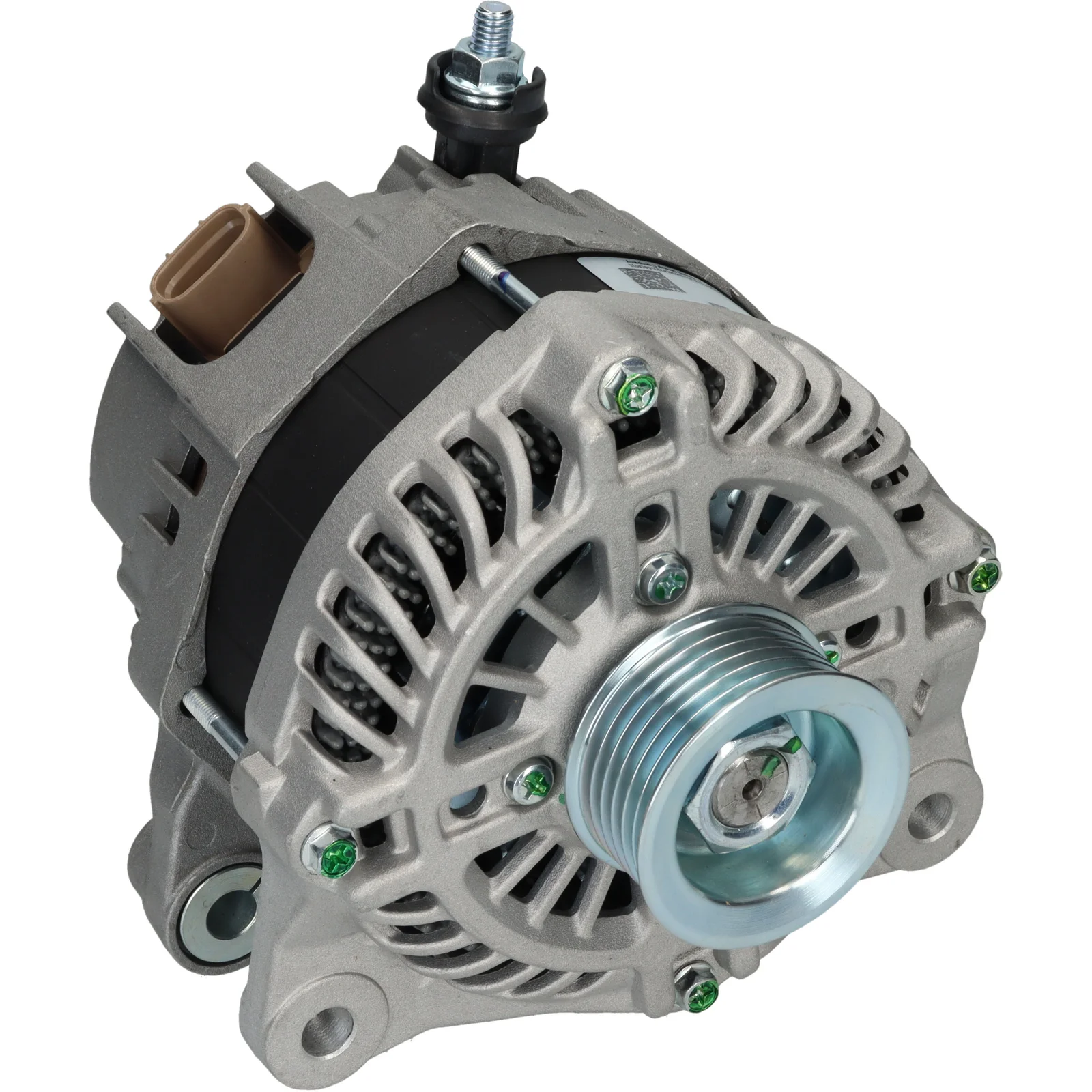

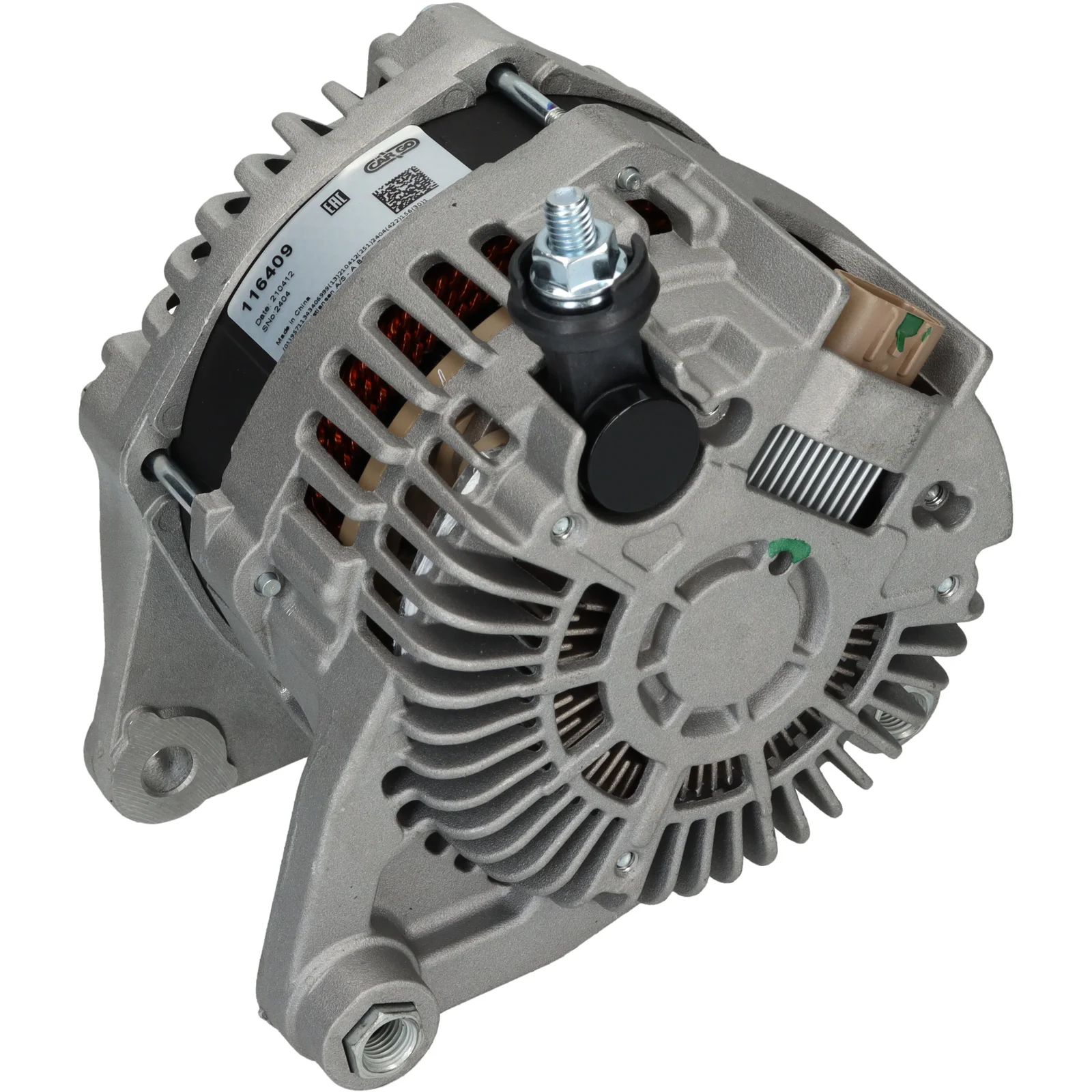

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 150, Mount. bracket dist.: 66.50, Pulley dia.: 51.00

Description

Voltage: 14
Amp: 150
Pulley distance: 44.50
Width/holder arm: 13.00
Mounting bracket distance: 66.50
Bracket hole: 10.50
Belt adjustment bracket hole position: 46
Belt adjustment bracket hole 1: 10.50
Pulley diameter: 51.00
Grooves/pulley: 6
Radius: 93.00
Radius 2: 86.00
B+: M8
Position/B+ in min.: 48
D+ Size: Plug
Plug no.: PL136
Total length mm: 160.00
Pulley: SP

Files

  • OEM
    A002TX9091, A2TX9091, F032116409, P58G-18-300, P5AC-18-300, PSLE-18-300, PY1C-18-300

  • Normalised article numbler
    a002tx9091, a2tx9091, a5389s, cal35421, f032116409, p58g18300, p5ac18300, psle18300, py1c18300, 287616, 12061186, 0986086370
  • Description
    Voltage: 14
    Amp: 150
    Pulley distance: 44.50
    Width/holder arm: 13.00
    Mounting bracket distance: 66.50
    Bracket hole: 10.50
    Belt adjustment bracket hole position: 46
    Belt adjustment bracket hole 1: 10.50
    Pulley diameter: 51.00
    Grooves/pulley: 6
    Radius: 93.00
    Radius 2: 86.00
    B+: M8
    Position/B+ in min.: 48
    D+ Size: Plug
    Plug no.: PL136
    Total length mm: 160.00
    Pulley: SP

    Files

  • Suitable for these vehicles

    • OEM
      A002TX9091, A2TX9091, F032116409, P58G-18-300, P5AC-18-300, PSLE-18-300, PY1C-18-300

    • Normalised article numbler
      a002tx9091, a2tx9091, a5389s, cal35421, f032116409, p58g18300, p5ac18300, psle18300, py1c18300, 287616, 12061186, 0986086370
