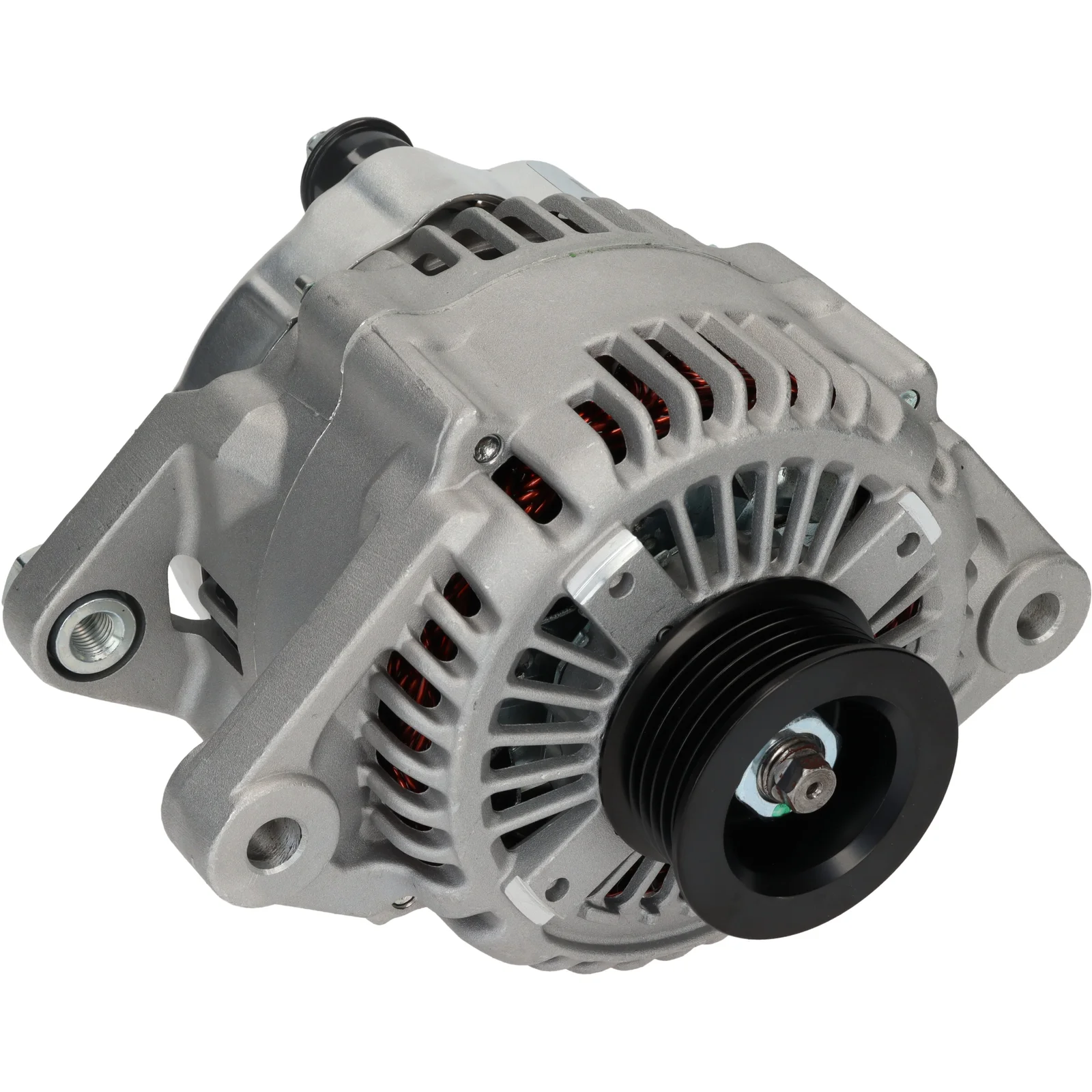

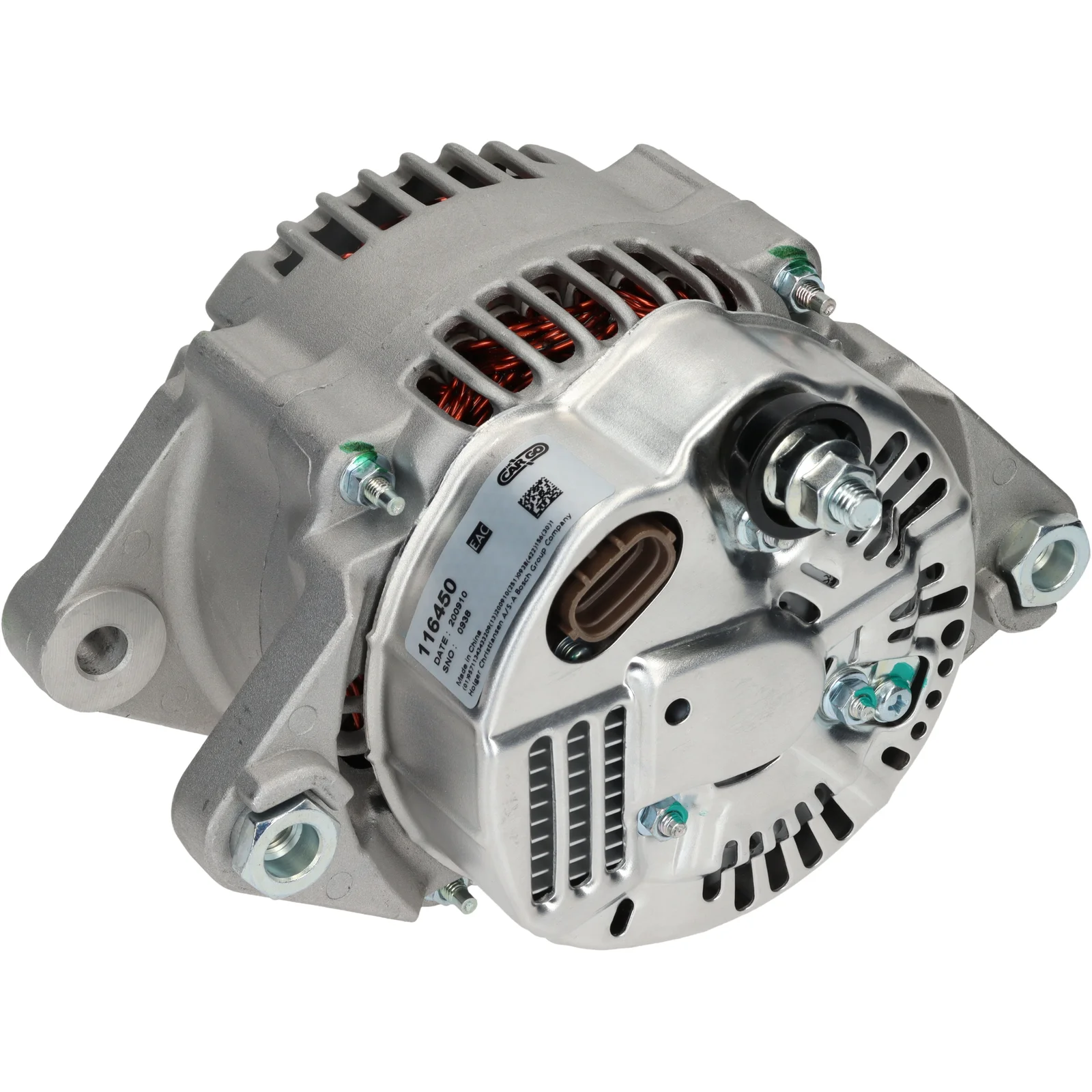

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116450

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 130, Rotation: CW, Mounting bracket distributor: 56.00

Description

Voltage: 14
Amps: 130
Pulley dist.: 42.00
Width/holder arm: 20.00
Mounting bracket dist.: 56.00
Bracket hole: 10.50
Belt adjustment bracket hole position: 57
Belt adjustment bracket hole 1: 10.50
Belt adjustment bracket hole 2: M10-1.25
Pulley diameter: 57.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 46
D+ Size: Plug
Rotation: CW
Plug no.: PL133
Total length mm: 189.00
Terminal type: FR-L
Pulley: SP
Fan: IF
Regulator type: IR

Files

  • OEM
    F032116450, 02131-9271, 37300-3e100

  • Normalised article numbler
    a9356s, cal32153, dra1083, f032116450, 11190n, 286998, 373003e100, 12061007, 021319271, 155592130, 2243211302
  • Description
    Voltage: 14
    Amps: 130
    Pulley dist.: 42.00
    Width/holder arm: 20.00
    Mounting bracket dist.: 56.00
    Bracket hole: 10.50
    Belt adjustment bracket hole position: 57
    Belt adjustment bracket hole 1: 10.50
    Belt adjustment bracket hole 2: M10-1.25
    Pulley diameter: 57.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 46
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL133
    Total length mm: 189.00
    Terminal type: FR-L
    Pulley: SP
    Fan: IF
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032116450, 02131-9271, 37300-3e100

    • Normalised article numbler
      a9356s, cal32153, dra1083, f032116450, 11190n, 286998, 373003e100, 12061007, 021319271, 155592130, 2243211302
