HC-Cargo Alternator
Article no.: F032116452

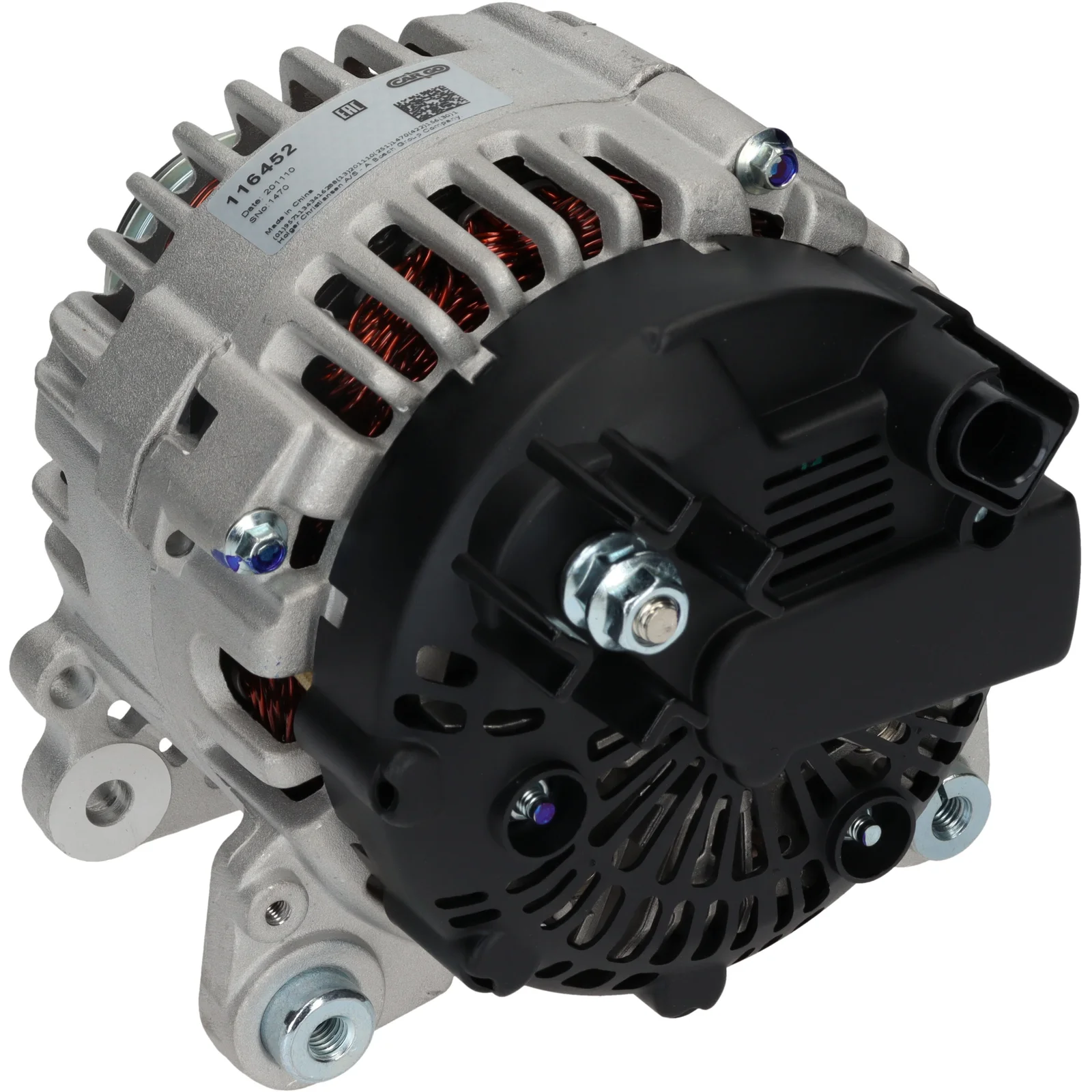

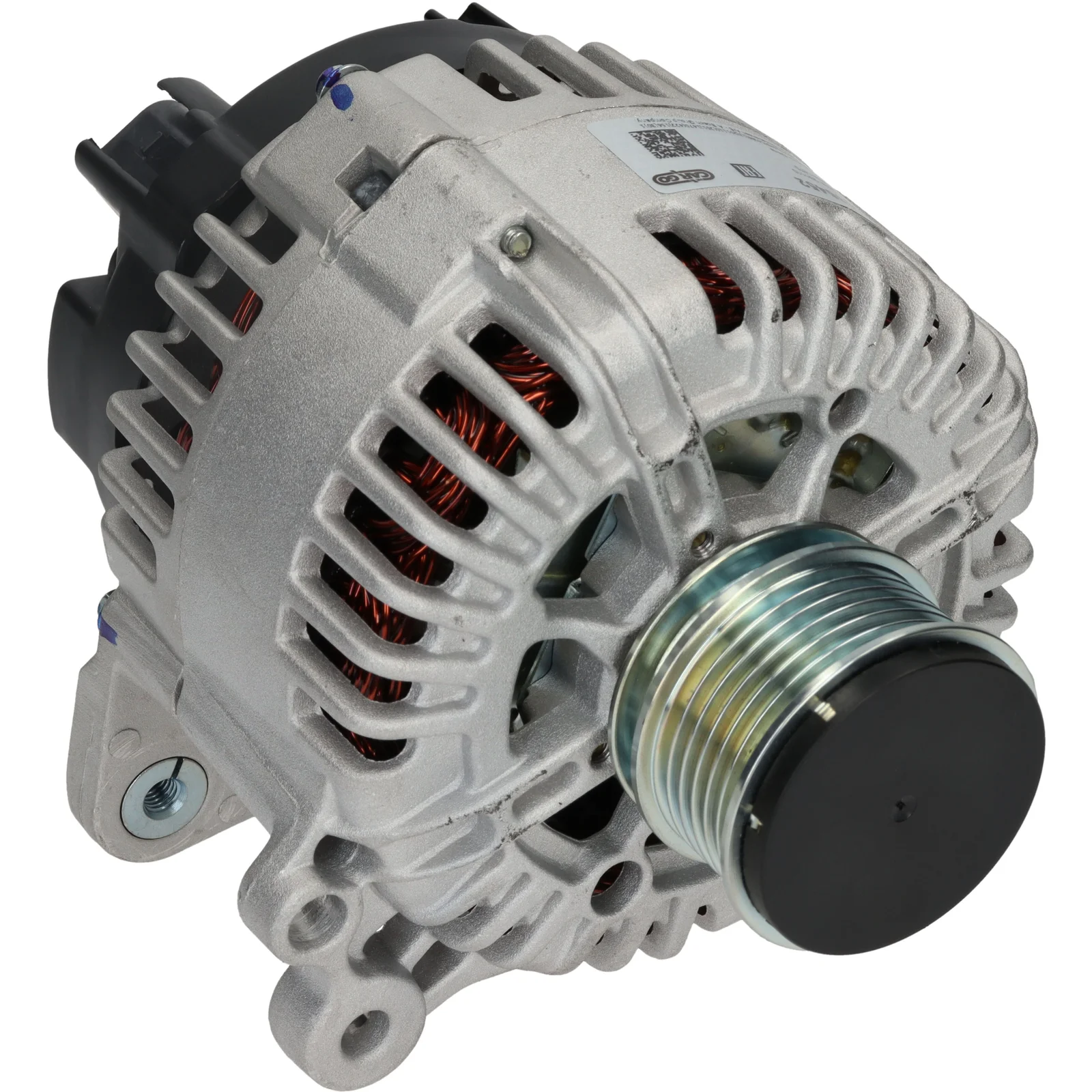

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 140, Rotation: CW, Mounting bracket distributor: 61.00

Description

Voltage: 14
Amp: 140
Pulley|Remsk. dist.: 40.00
Width/holder arm: 13.70
Mounting bracket|Kopplingsfäste|Bracket|Bracket dist.: 61.00
Bracket hole: 8.50
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 8.50
Belt adjustment bracket hole 2: M8
Pulley diameter: 56.00
Grooves|Motiv|Pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in minutes: 46
Rotation: CW
Plug number: PL181
Total length mm: 189.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator|Regul. type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    A3273, A3273(VALEO), A3273PR, F032116452, TG14C031, 03L903023, 03L903023A, 03L903023AX, 03L903023X, 03L903024, 03L903024M, 03L903024MX, 03L903024X, 03L906023, 3L903023, 3L903023A, 3L903023AX, 3L903023X, 3L903024M, 04B903023B, 04B903023BX, 04B903023D, 04B903023DX, 04B903024, 04B903024X, 8EL012241-261, 28-5954, 305.988.140, 200232, 439724, 2608901A, 2608901C

  • Normalised article numbler
    a3273, a3273pr, a3273valeo, f032116452, tg14c031, 03l903023, 03l903023a, 03l903023ax, 03l903023x, 03l903024, 03l903024m, 03l903024mx, 03l903024x, 03l906023, 3l903023, 3l903023a, 3l903023ax, 3l903023x, 3l903024m, 04b903023b, 04b903023bx, 04b903023d, 04b903023dx, 04b903024, 04b903024x, 8el012241261, 200232, 285954, 439724, 2608901a, 2608901c, 305988140
  • Description
    Voltage: 14
    Amp: 140
    Pulley|Remsk. dist.: 40.00
    Width/holder arm: 13.70
    Mounting bracket|Kopplingsfäste|Bracket|Bracket dist.: 61.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 8.50
    Belt adjustment bracket hole 2: M8
    Pulley diameter: 56.00
    Grooves|Motiv|Pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in minutes: 46
    Rotation: CW
    Plug number: PL181
    Total length mm: 189.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Regulator|Regul. type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      A3273, A3273(VALEO), A3273PR, F032116452, TG14C031, 03L903023, 03L903023A, 03L903023AX, 03L903023X, 03L903024, 03L903024M, 03L903024MX, 03L903024X, 03L906023, 3L903023, 3L903023A, 3L903023AX, 3L903023X, 3L903024M, 04B903023B, 04B903023BX, 04B903023D, 04B903023DX, 04B903024, 04B903024X, 8EL012241-261, 28-5954, 305.988.140, 200232, 439724, 2608901A, 2608901C

    • Normalised article numbler
      a3273, a3273pr, a3273valeo, f032116452, tg14c031, 03l903023, 03l903023a, 03l903023ax, 03l903023x, 03l903024, 03l903024m, 03l903024mx, 03l903024x, 03l906023, 3l903023, 3l903023a, 3l903023ax, 3l903023x, 3l903024m, 04b903023b, 04b903023bx, 04b903023d, 04b903023dx, 04b903024, 04b903024x, 8el012241261, 200232, 285954, 439724, 2608901a, 2608901c, 305988140
