HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116468

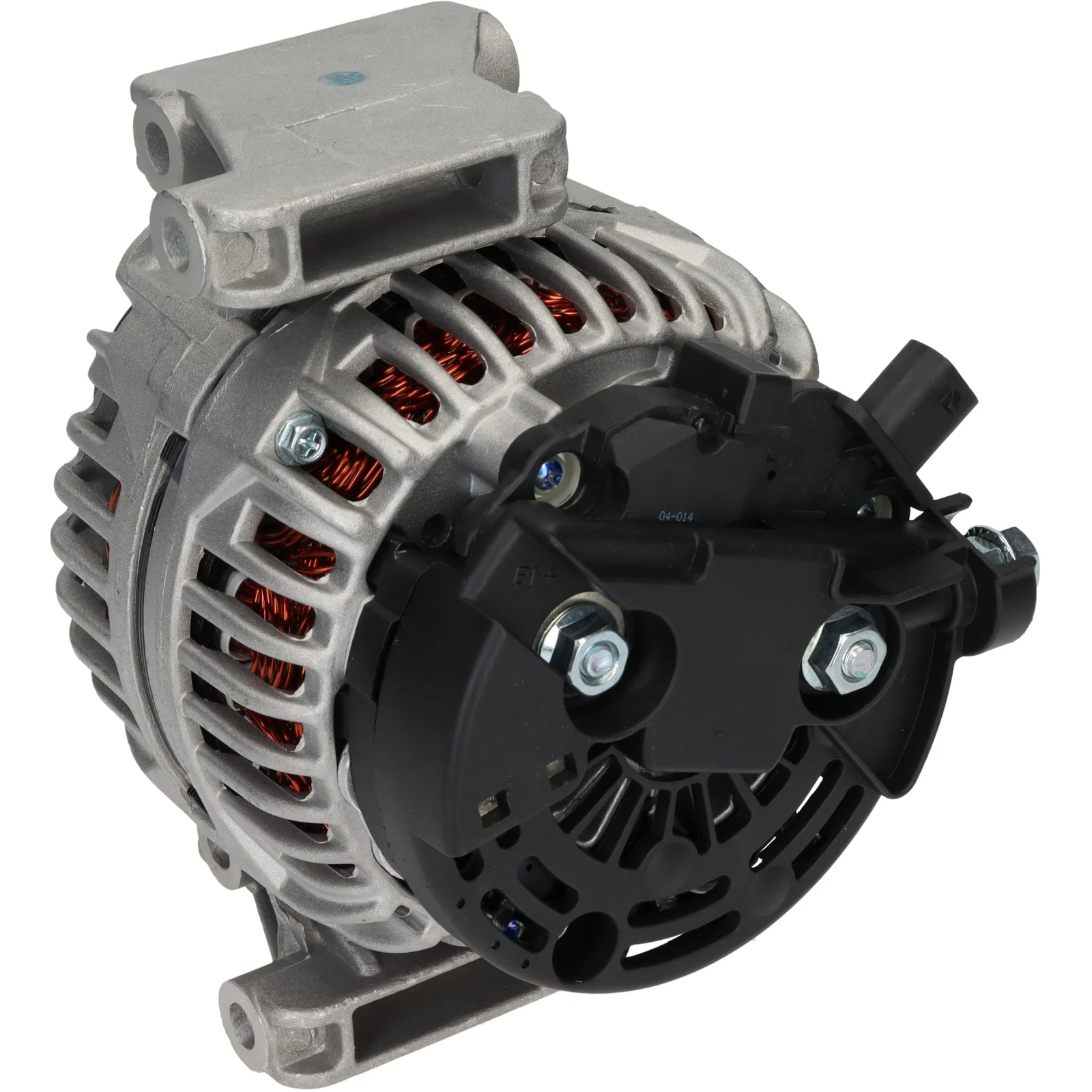

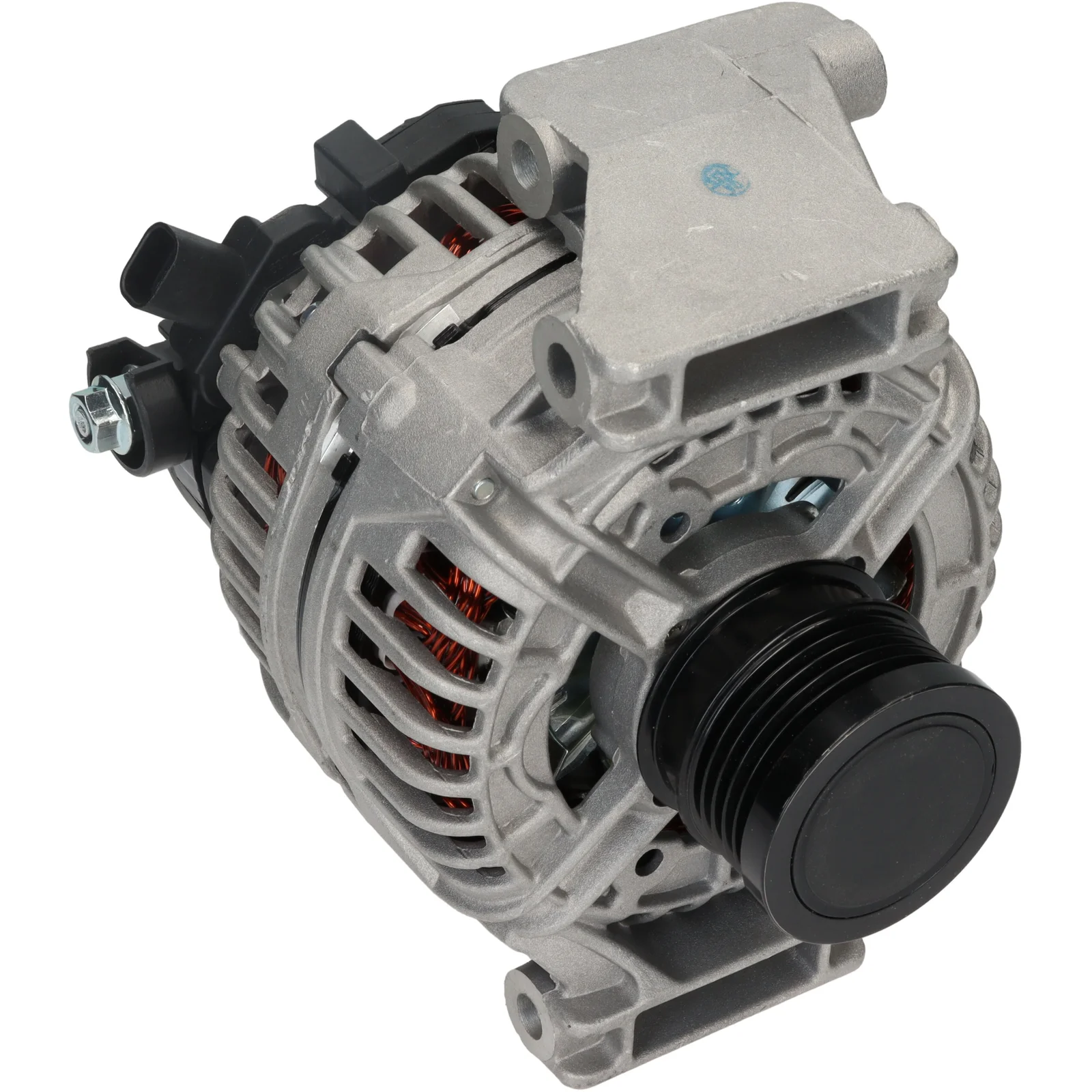

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 100, Rotation: CW, Mounting bracket distributor: 56.00

Description

Voltage: 14
Amp: 100
Pulley: Alternator
Dist.: 32.00
Width/holder arm: 79.00
Mounting bracket distance: 56.00
Bracket hole: 9.00
Belt adjustment bracket hole 1: 9.00
Belt adjustment bracket hole 2: 9.00
Pulley diameter: 56.80
Grooves/pulley: 5
Radius: 83.00
Radius 2: 83.00
B+: M8
Position/B+ in min.: 13
D+ size: Plug
Rotation: CW
Plug no.: PL75
Total length mm: 191.00
Terminal type: L-DFM
Lamp type: Active
Pulley: SP/FW
Fan: IF
Regulator type: IR

Files

  • OEM
    F032116468, 1858ir, 24455913, 93172075, 0124415026

  • Normalised article numbler
    a0640pr, a0640s, cal10299, drb4011, f032116468, 1858ir, 209078, 209078a, 284715, 301858ri, 12090482, 24455913, 93172075, 0124415026, 135541100
  • Description
    Voltage: 14
    Amp: 100
    Pulley: Alternator
    Dist.: 32.00
    Width/holder arm: 79.00
    Mounting bracket distance: 56.00
    Bracket hole: 9.00
    Belt adjustment bracket hole 1: 9.00
    Belt adjustment bracket hole 2: 9.00
    Pulley diameter: 56.80
    Grooves/pulley: 5
    Radius: 83.00
    Radius 2: 83.00
    B+: M8
    Position/B+ in min.: 13
    D+ size: Plug
    Rotation: CW
    Plug no.: PL75
    Total length mm: 191.00
    Terminal type: L-DFM
    Lamp type: Active
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032116468, 1858ir, 24455913, 93172075, 0124415026

    • Normalised article numbler
      a0640pr, a0640s, cal10299, drb4011, f032116468, 1858ir, 209078, 209078a, 284715, 301858ri, 12090482, 24455913, 93172075, 0124415026, 135541100
