HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116487

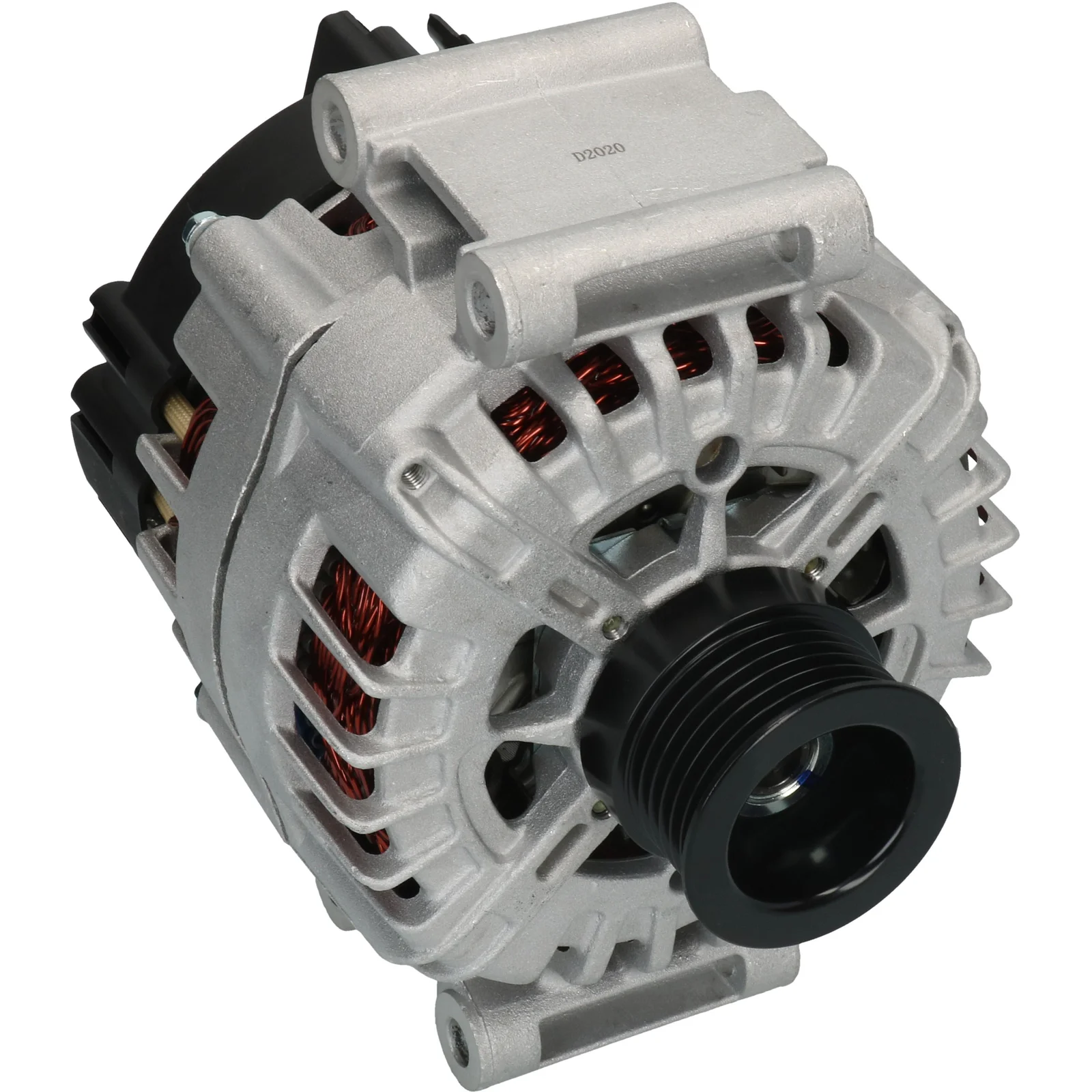

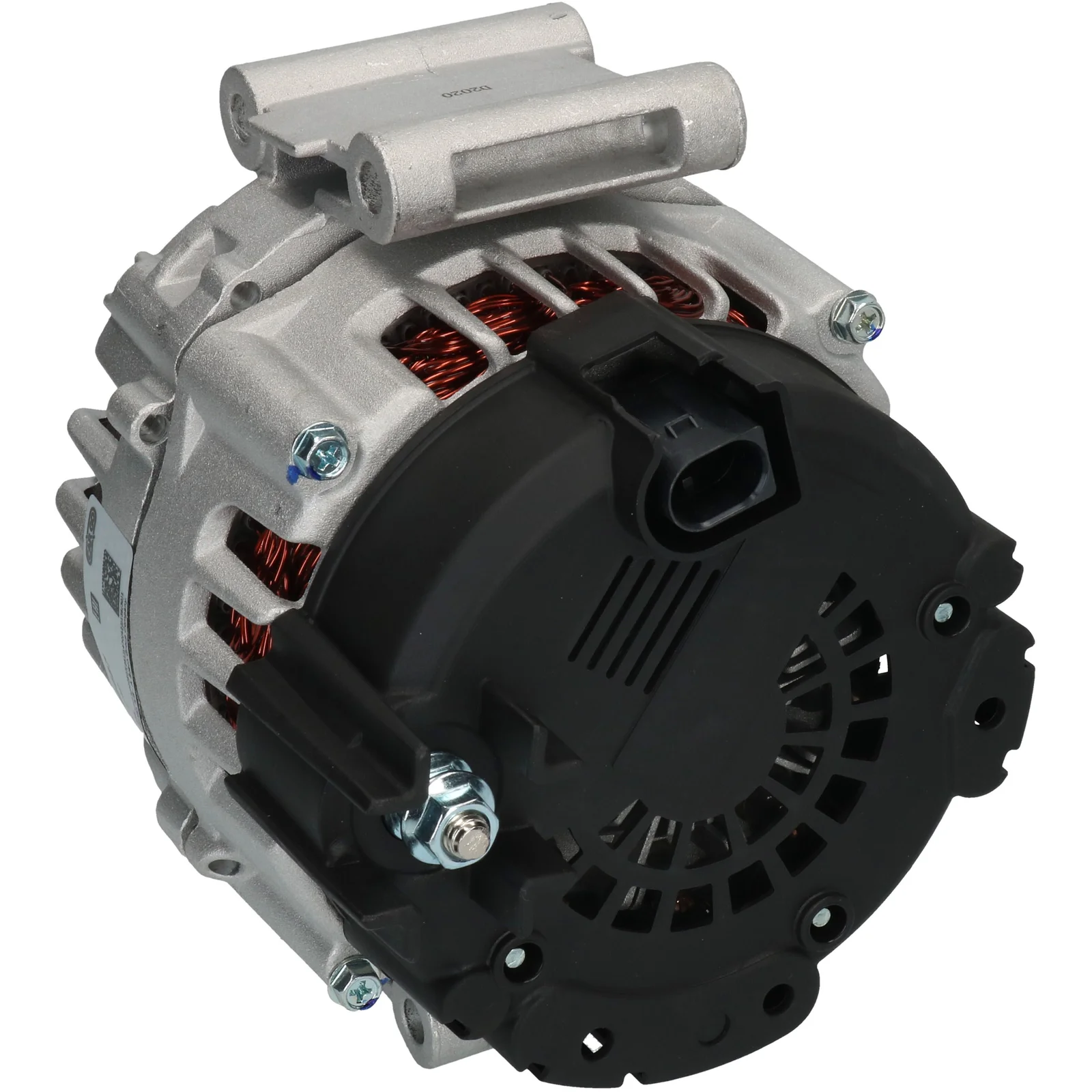

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 180, Mounting bracket distance: 56.00, Pulley diameter: 49.50

Description

Voltage: 14
Amp: 180
Pulley dist.: 31.50
Width/holder arm: 70.00
Mount. bracket dist.: 56.00
Bracket hole: 9.20
Belt. adj. bracket hole 1: 9.20
Pulley dia.: 49.50
Grooves/pulley: 6
Radius: 77.50
Radius 2: 85.00
B+: M8
Position/B+ in min.: 45
Plug no.: PL125
Total length mm: 191.00
Terminal type: COM
Communication: LIN
Pulley: SP
Fan: IF
Voltage regulator type: IR
Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    a0141540402, F00E100550, F032116487, FG18S016, FGN18S016, 1986A00041, 2543467A, 0141540402

  • Normalised article numbler
    a0141540402, a3430s, cal15384, dra1269, f00e100550, f032116487, fg18s016, fgn18s016, lra03435, 1986a00041, 200221, 286547, 439649, 440219, 2543467a, 12091048, 0141540402, 555973180, 0986047651, 2253011802
  • Description
    Voltage: 14
    Amp: 180
    Pulley dist.: 31.50
    Width/holder arm: 70.00
    Mount. bracket dist.: 56.00
    Bracket hole: 9.20
    Belt. adj. bracket hole 1: 9.20
    Pulley dia.: 49.50
    Grooves/pulley: 6
    Radius: 77.50
    Radius 2: 85.00
    B+: M8
    Position/B+ in min.: 45
    Plug no.: PL125
    Total length mm: 191.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP
    Fan: IF
    Voltage regulator type: IR
    Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      a0141540402, F00E100550, F032116487, FG18S016, FGN18S016, 1986A00041, 2543467A, 0141540402

    • Normalised article numbler
      a0141540402, a3430s, cal15384, dra1269, f00e100550, f032116487, fg18s016, fgn18s016, lra03435, 1986a00041, 200221, 286547, 439649, 440219, 2543467a, 12091048, 0141540402, 555973180, 0986047651, 2253011802
