HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116490

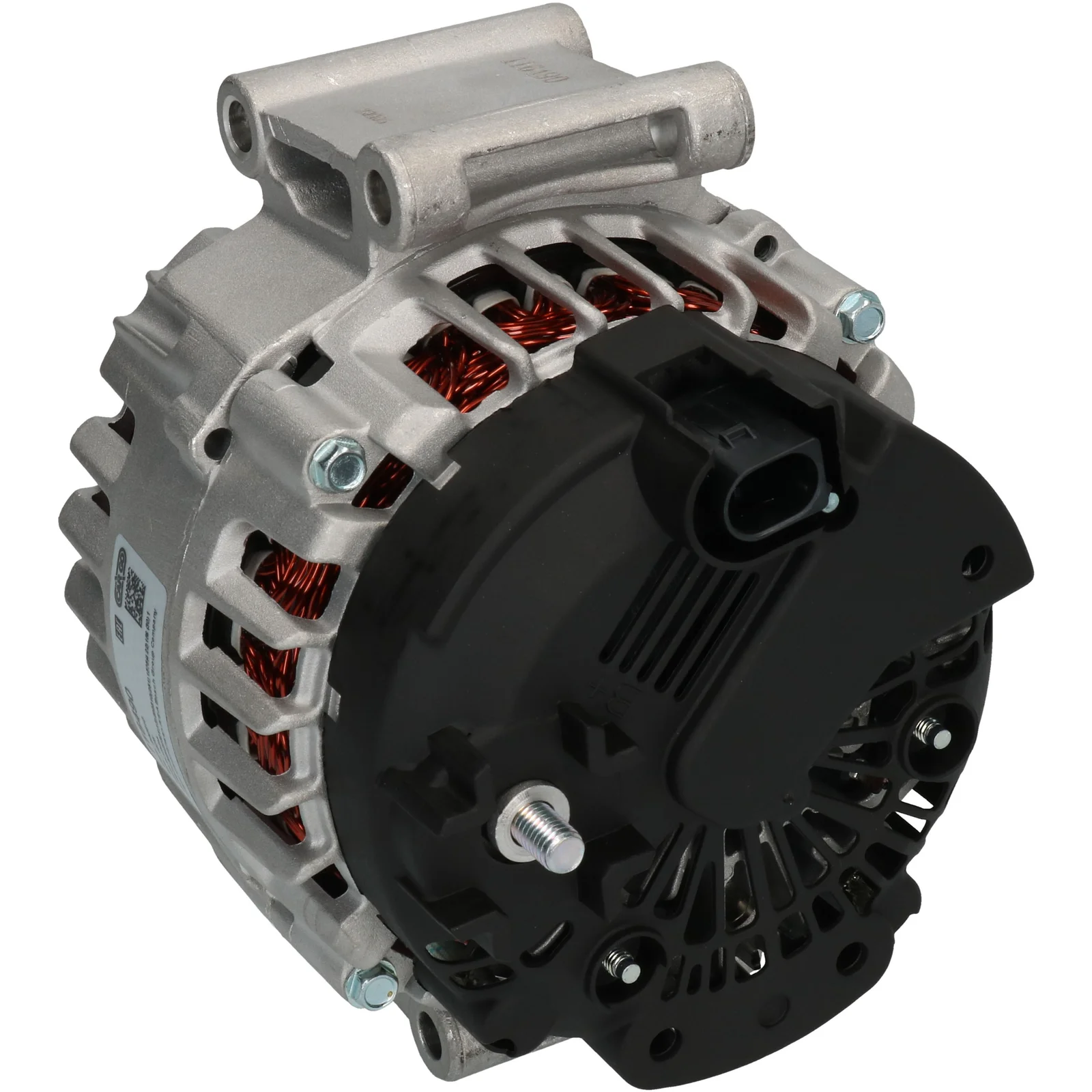

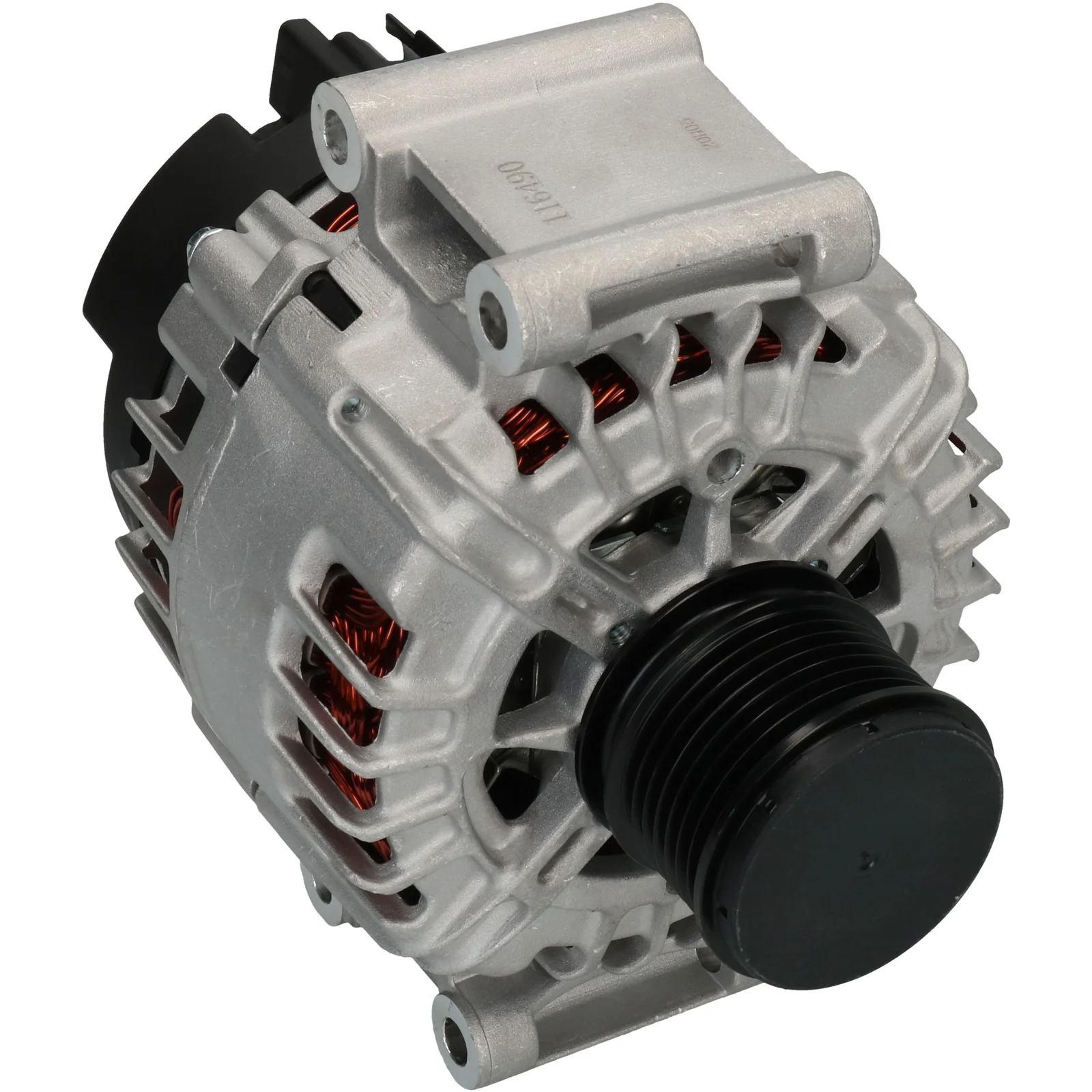

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 150, Rotation: CW, Mounting bracket distributor: 56.00

Description

HC-Cargo Alternator 14V-150A, 7r

Voltage: 14
Amperage: 150
Pulley diameter: 32.00
Width/holder arm: 70.00
Mounting bracket diameter: 56.00
Bracket hole: 9.50
Bracket hole 2: 9.50
V-belt adjustment bracket hole position: 60
V-belt adjustment bracket hole 1: 9.50
V-belt adjustment bracket hole 2: 9.50
Pulley diameter: 56.00
Grooves/pulley: 7
Radius: 81.50
Radius 2: 81.50
B+: M8
Position/B+ in minutes: 45
Rotation: CW
Plug number: PL86
Total length mm: 204.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Voltage regulator type: IR
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    A271 1541502, a2711541502, F032116490, TG15C075, TG15C163, 271 154 1502, 116490, 2543417, 2543417A, 2543417B, 2711541502

  • Normalised article numbler
    a2711541502, a3544s, cal15473, dra0632, f032116490, lra03454, tg15c075, tg15c163, 8el012240201, 24102n, 116490, 210965, 210965a, 286564, 439610, 440127, 442209, 554089ri, 2543417, 2543417a, 2543417b, 12090552, 32439610, 555559150, 2253021502, 2711541502
  • Description
    HC-Cargo Alternator 14V-150A, 7r

    Voltage: 14
    Amperage: 150
    Pulley diameter: 32.00
    Width/holder arm: 70.00
    Mounting bracket diameter: 56.00
    Bracket hole: 9.50
    Bracket hole 2: 9.50
    V-belt adjustment bracket hole position: 60
    V-belt adjustment bracket hole 1: 9.50
    V-belt adjustment bracket hole 2: 9.50
    Pulley diameter: 56.00
    Grooves/pulley: 7
    Radius: 81.50
    Radius 2: 81.50
    B+: M8
    Position/B+ in minutes: 45
    Rotation: CW
    Plug number: PL86
    Total length mm: 204.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Voltage regulator type: IR
    Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      A271 1541502, a2711541502, F032116490, TG15C075, TG15C163, 271 154 1502, 116490, 2543417, 2543417A, 2543417B, 2711541502

    • Normalised article numbler
      a2711541502, a3544s, cal15473, dra0632, f032116490, lra03454, tg15c075, tg15c163, 8el012240201, 24102n, 116490, 210965, 210965a, 286564, 439610, 440127, 442209, 554089ri, 2543417, 2543417a, 2543417b, 12090552, 32439610, 555559150, 2253021502, 2711541502
