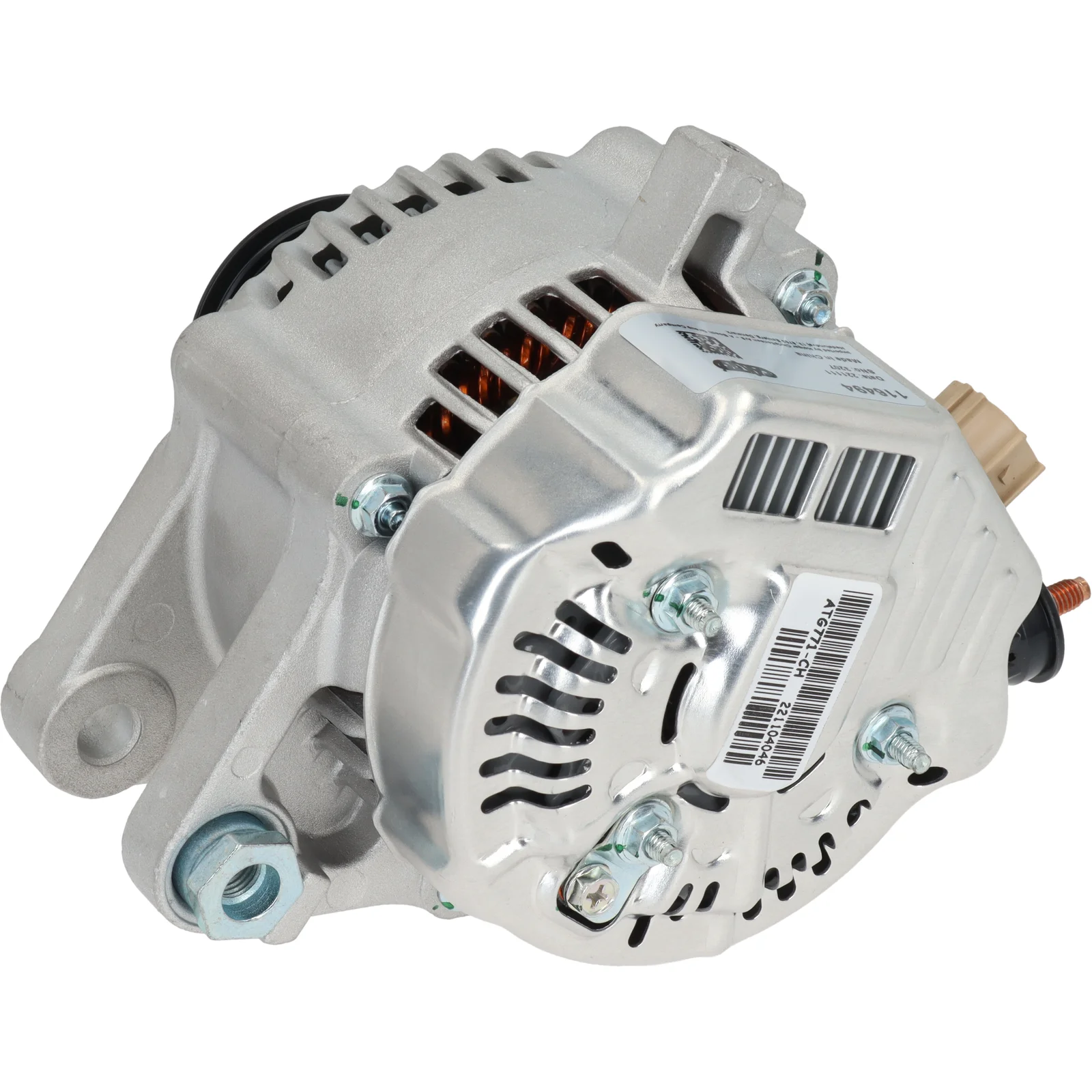

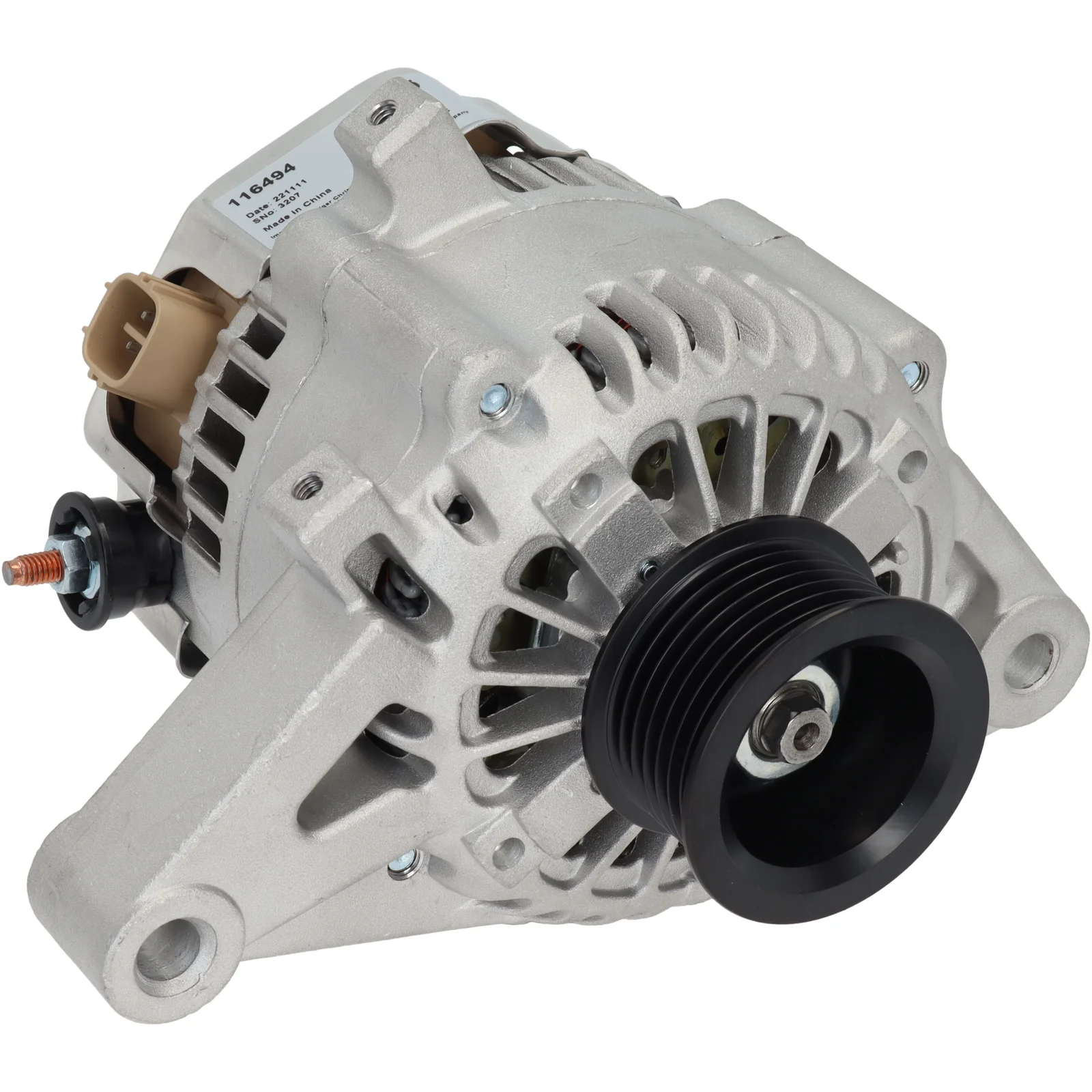

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116494

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 80, Rotation: CW, Mounting bracket distributor: 32.00

Description

Voltage: 14
Amp: 80
Pulley dist.: 40.00
Width/holder arm: 18.00
Mount. bracket dist.: 32.00
Bracket hole: 11.00
Belt. adj. brackethole pos.: 54
Belt. adj. bracket hole 1: 11.00
Pulley dia.: 52.00
Grooves/pulley: 7
Radius: 84.50
Radius 2: 102.50
B+: M6
Position/B+ in min.: 50
D+ Size: Plug
Rotation: CW
Plug no.: PL78
Total length mm: 162.00
Pulley: SP
Fan: IF
Regulator type: IR

Files

  • OEM
    F032116494, 27060-31010, 27060-31011, 104210-8040, 104210-8410, 104210-8411

  • Normalised article numbler
    a6439s, cal40383, cal40391, dan1080, f032116494, j5112156, 209427, 209427a, 287544, 12061153, 195960080, 235352802, 1042108040, 1042108410, 1042108411, 2706031010, 2706031011
  • Description
    Voltage: 14
    Amp: 80
    Pulley dist.: 40.00
    Width/holder arm: 18.00
    Mount. bracket dist.: 32.00
    Bracket hole: 11.00
    Belt. adj. brackethole pos.: 54
    Belt. adj. bracket hole 1: 11.00
    Pulley dia.: 52.00
    Grooves/pulley: 7
    Radius: 84.50
    Radius 2: 102.50
    B+: M6
    Position/B+ in min.: 50
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL78
    Total length mm: 162.00
    Pulley: SP
    Fan: IF
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032116494, 27060-31010, 27060-31011, 104210-8040, 104210-8410, 104210-8411

    • Normalised article numbler
      a6439s, cal40383, cal40391, dan1080, f032116494, j5112156, 209427, 209427a, 287544, 12061153, 195960080, 235352802, 1042108040, 1042108410, 1042108411, 2706031010, 2706031011
