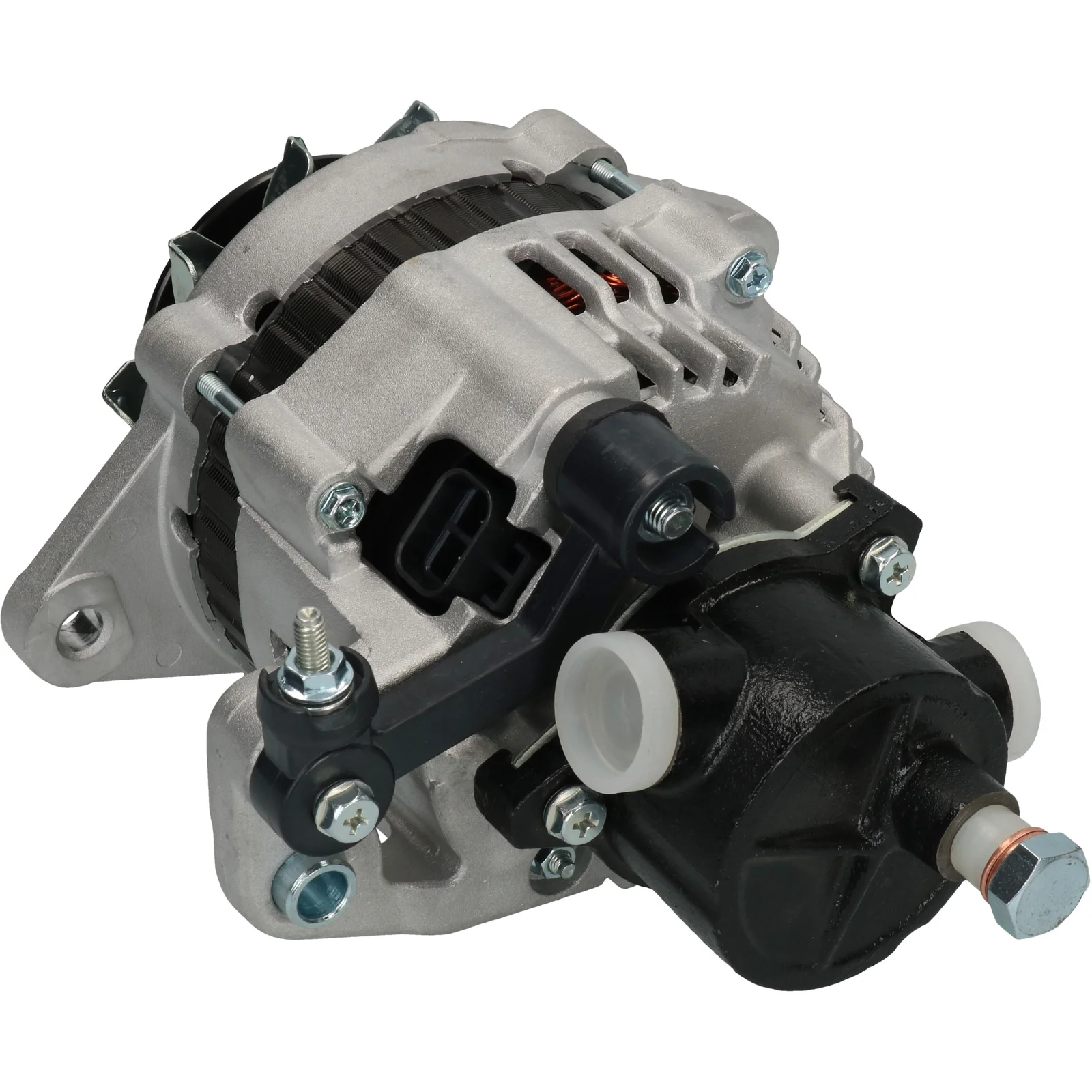

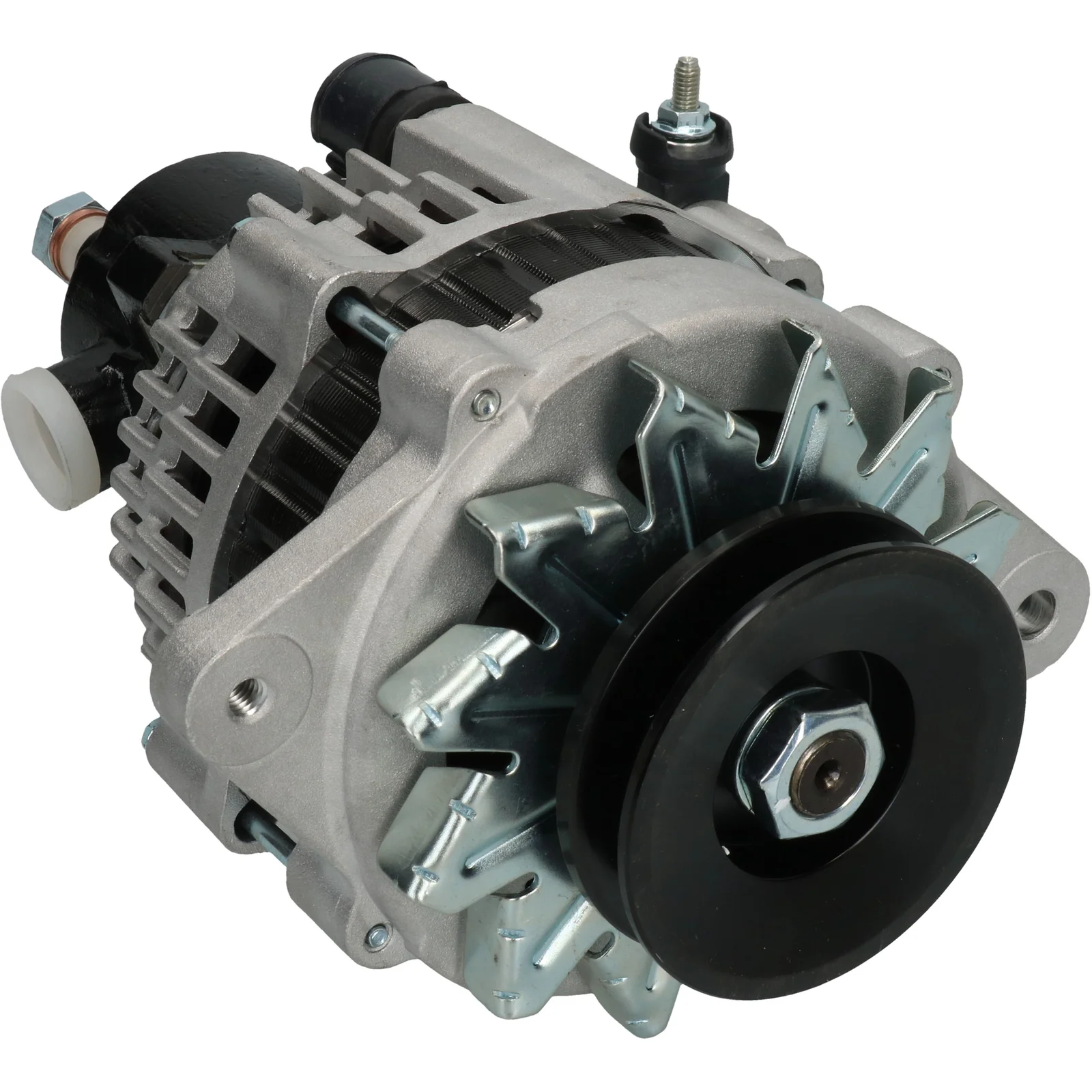

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116495

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 70, Rotation: CW, Mount. bracket dist.: 84.50

Description

Voltage: 14
Amp: 70
Pulley dist.: 50.60
Width/holder arm: 12.70
Mounting bracket dist.: 84.50
Bracket hole: 10.30
Belt adjustment bracket hole position.: 60
Belt adjustment bracket hole 1: 10.50
Pulley diameter: 84.00
Grooves/pulley: 1
Radius: 90.00
Radius 2: 85.00
B+: M6
Position/B+ in min.: 37
Rotation: CW
Plug no.: PL07
Total length mm: 258.00
Pulley: P
Fan: EF
Regulator type: IR
Vacuum pump: Yes

Files

  • OEM
    F032116495, LR170-510, LR170-510B, R2S2-18-300, R2S2-18-300B

  • Normalised article numbler
    a2078s, cal20230, f032116495, lr170510, lr170510b, lra02029, r2s218300, r2s218300b, 283942, 553926ri, 12060882, 145811070
  • Description
    Voltage: 14
    Amp: 70
    Pulley dist.: 50.60
    Width/holder arm: 12.70
    Mounting bracket dist.: 84.50
    Bracket hole: 10.30
    Belt adjustment bracket hole position.: 60
    Belt adjustment bracket hole 1: 10.50
    Pulley diameter: 84.00
    Grooves/pulley: 1
    Radius: 90.00
    Radius 2: 85.00
    B+: M6
    Position/B+ in min.: 37
    Rotation: CW
    Plug no.: PL07
    Total length mm: 258.00
    Pulley: P
    Fan: EF
    Regulator type: IR
    Vacuum pump: Yes

    Files

  • Suitable for these vehicles

    • OEM
      F032116495, LR170-510, LR170-510B, R2S2-18-300, R2S2-18-300B

    • Normalised article numbler
      a2078s, cal20230, f032116495, lr170510, lr170510b, lra02029, r2s218300, r2s218300b, 283942, 553926ri, 12060882, 145811070
