HC-Cargo Alternator

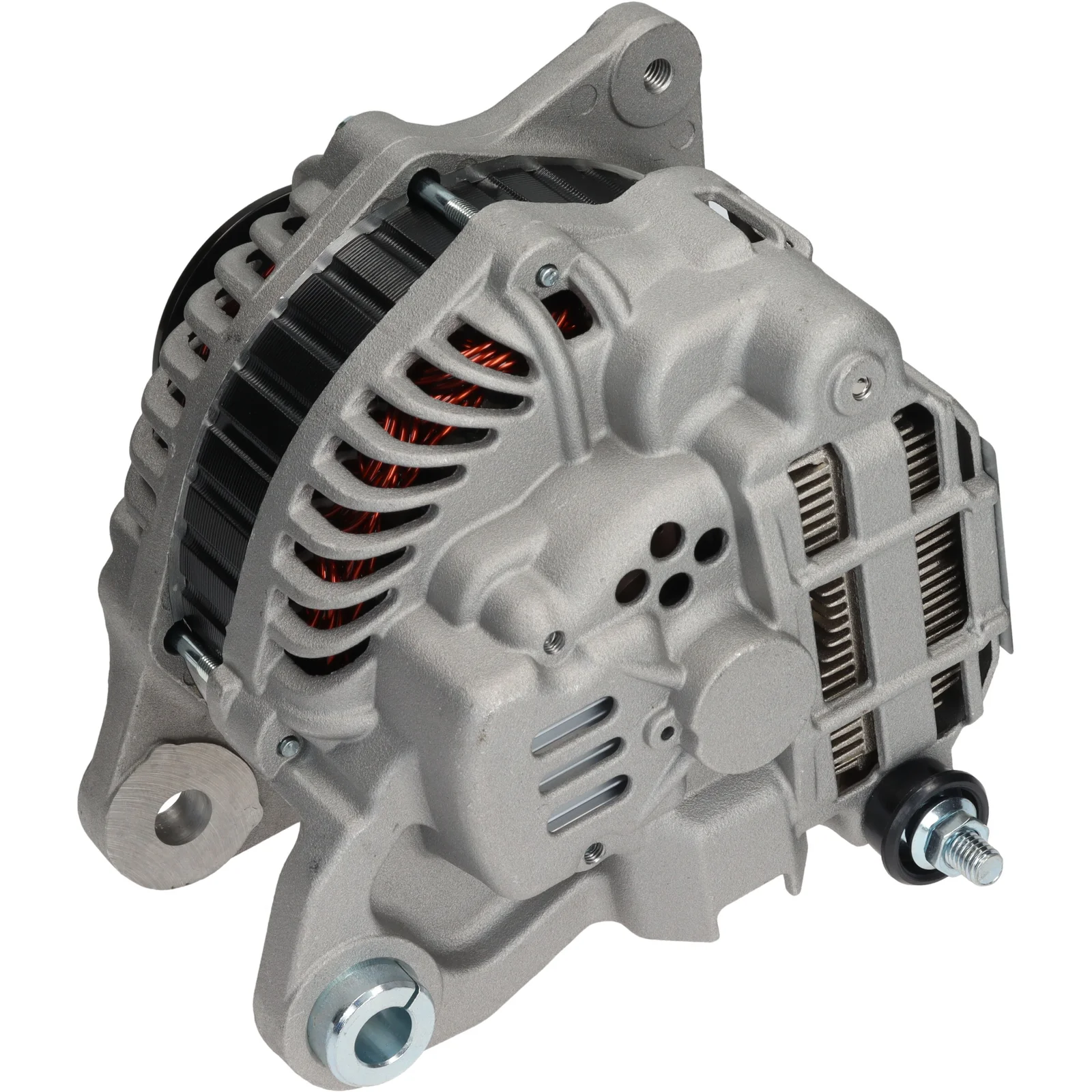

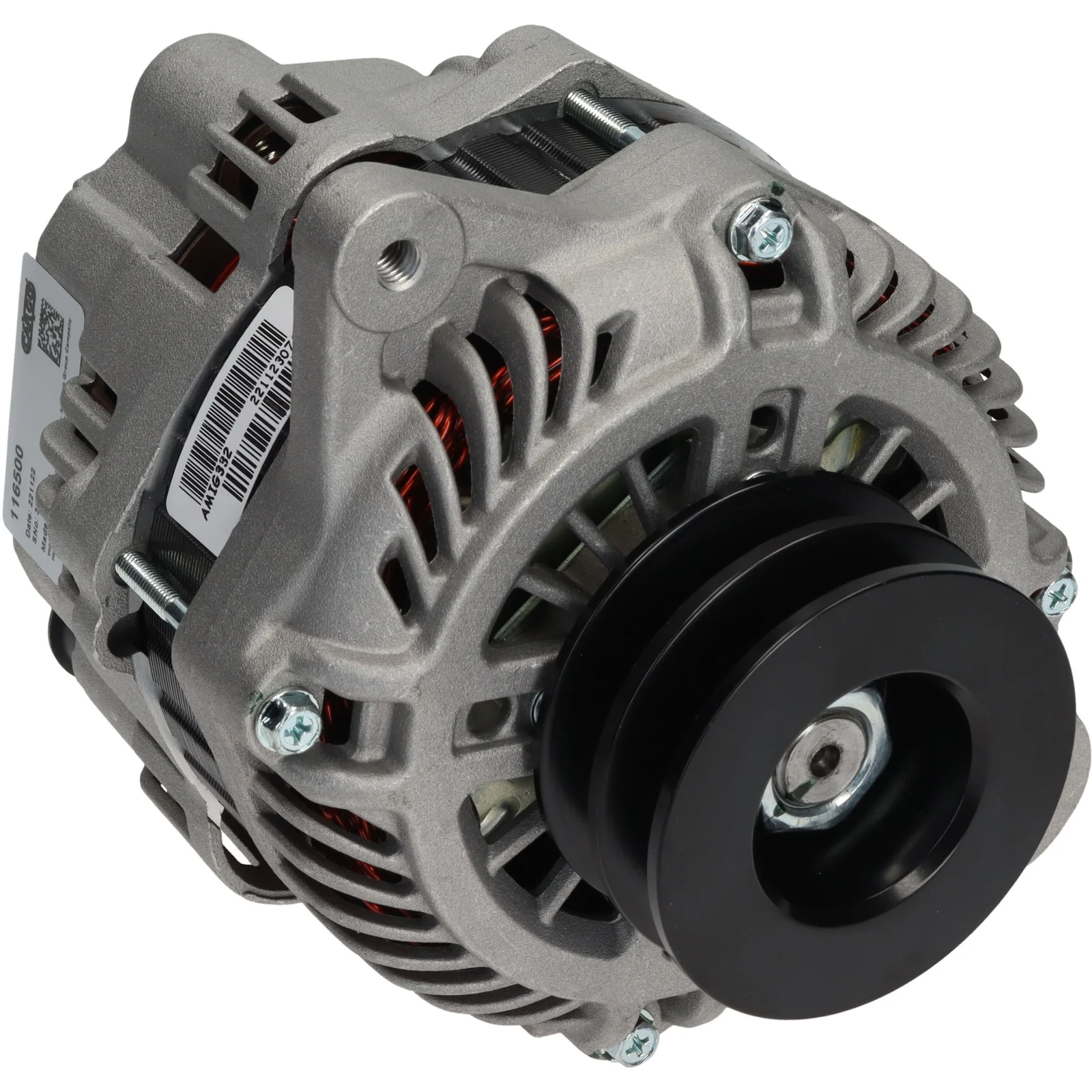

HC-Cargo Alternator
Article no.: F032116500

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 140, Rotation: CW, Mount. bracket dist.: 60.00

Description

HC-Cargo Alternator Voltage: 14 Amperage: 140 Pulley distance: 43.00 Width/holder arm: 13.00 Mounting bracket distance: 60.00 Bracket hole: 12.50 Belt adjustment bracket hole position: 3 Belt adjustment bracket hole 1: M8 Pulley diameter: 74.00 Grooves/Pulley: 2 Radius: 90.00 Radius 2: 87.50 B+: M8 Position/B+ in min.: 14 D+ size: Plug Rotation: CW Plug number: PL68 Total length mm: 188.00 Terminal type: G-S-L-F Pulley: DP Fan: IF Regulator type: IR

Files

  • OEM
    A003TG4579, A003TG4579AM, A003TG4579ZZ9, A3TG4579, F032116500, 1800A116, 116500

  • Normalised article numbler
    a003tg4579, a003tg4579am, a003tg4579zz9, a3tg4579, a5088, a5355, cal35286, f032116500, lra03536, 1800a116, 20337r, 113320, 113381, 116500, 209363, 209363a, 286646, 12061046, 155571120, 155571140, 2261911402
  • Description
    HC-Cargo Alternator Voltage: 14 Amperage: 140 Pulley distance: 43.00 Width/holder arm: 13.00 Mounting bracket distance: 60.00 Bracket hole: 12.50 Belt adjustment bracket hole position: 3 Belt adjustment bracket hole 1: M8 Pulley diameter: 74.00 Grooves/Pulley: 2 Radius: 90.00 Radius 2: 87.50 B+: M8 Position/B+ in min.: 14 D+ size: Plug Rotation: CW Plug number: PL68 Total length mm: 188.00 Terminal type: G-S-L-F Pulley: DP Fan: IF Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      A003TG4579, A003TG4579AM, A003TG4579ZZ9, A3TG4579, F032116500, 1800A116, 116500

    • Normalised article numbler
      a003tg4579, a003tg4579am, a003tg4579zz9, a3tg4579, a5088, a5355, cal35286, f032116500, lra03536, 1800a116, 20337r, 113320, 113381, 116500, 209363, 209363a, 286646, 12061046, 155571120, 155571140, 2261911402
