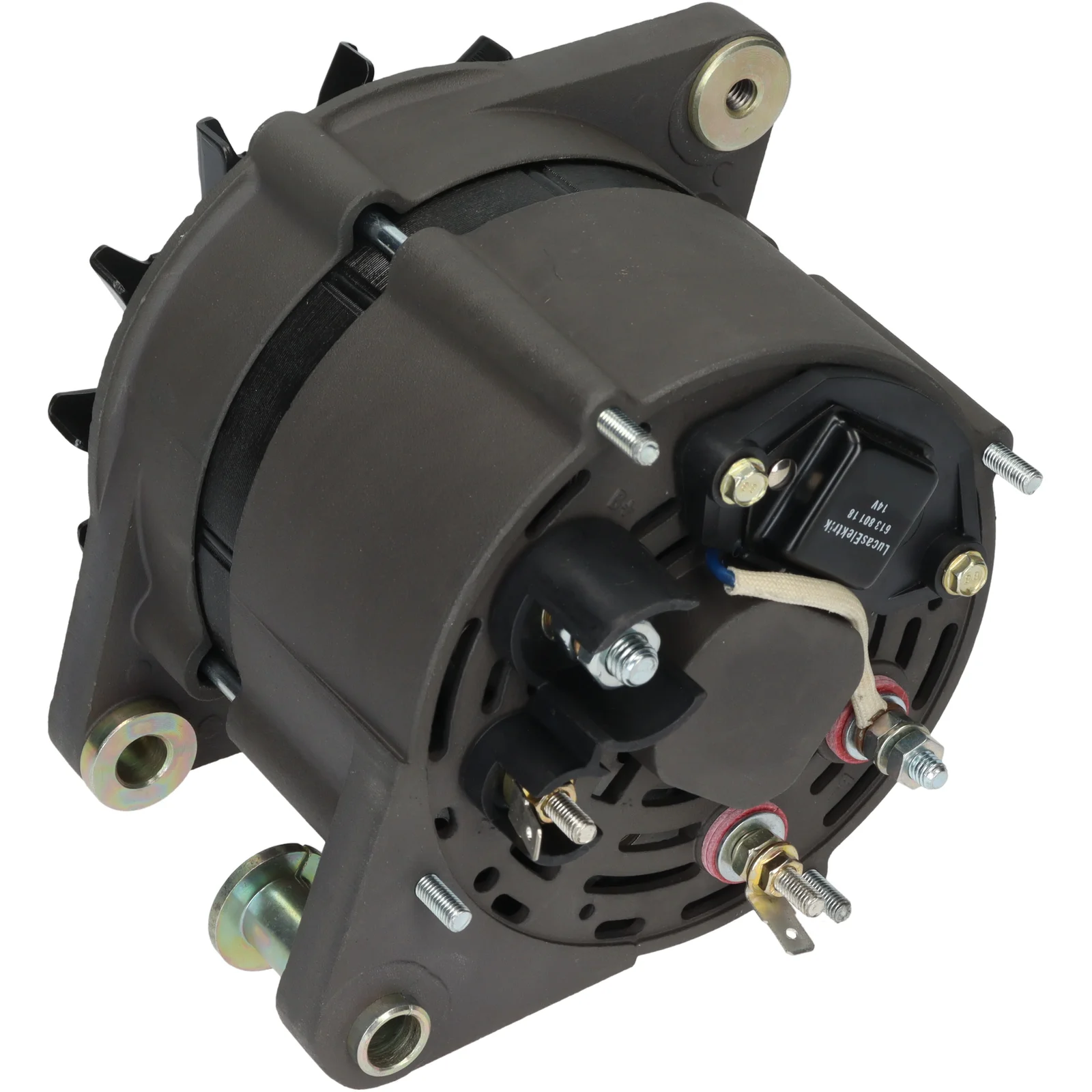

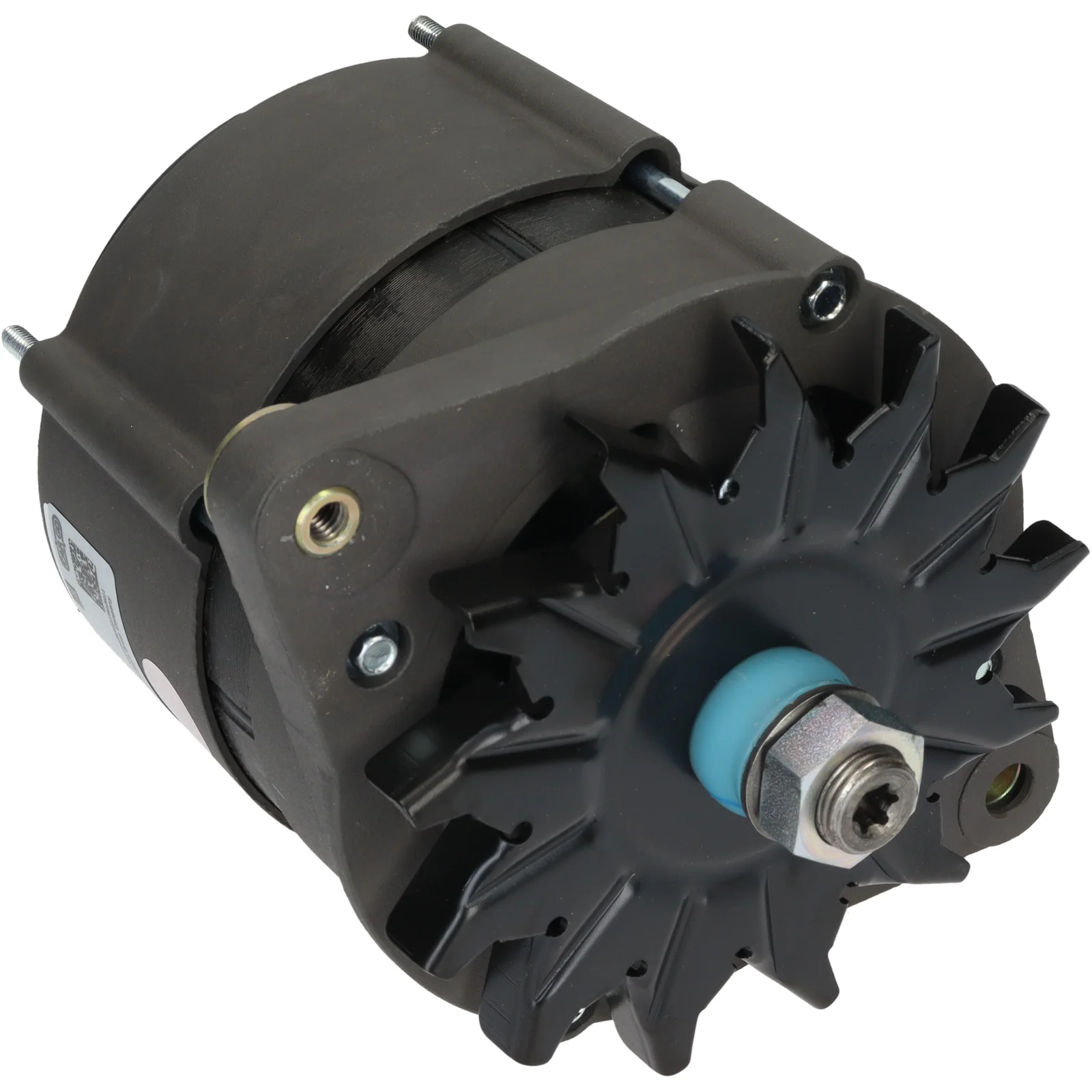

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116506

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 120, Rotation: CW, Mount. bracket dist.: 71.50

Description

Voltage: 14
Amp: 120
Insulated return: Yes
Width/holder arm: 20.20
Mounting bracket dist.: 71.50
Bracket hole: 10.20
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Radius: 85.00
Radius 2: 86.00
B+: M8
Position/B+ in min.: 43
D+ Size: M5-6.30
Rotation: CW
W plug type: M5-6.30
Total length mm: 192.00
Pulley: w/o
Fan: EF
Regulator type: IR
Remarks: Dustproof.

Files

  • OEM
    AAK1812, AAK4319, aak4937, F032116506, 11.203.324, 11.203.657, 11.204.686, 48201109, 48201171, 48201303

  • Normalised article numbler
    aak1812, aak4319, aak4937, cal21183, dra0748, f032116506, ia1181, lea0891, mg581, 286926, 554296ri, 11203324, 11203657, 11204686, 48201109, 48201171, 48201303, 705008100, 705008120, 5001951002
  • Description
    Voltage: 14
    Amp: 120
    Insulated return: Yes
    Width/holder arm: 20.20
    Mounting bracket dist.: 71.50
    Bracket hole: 10.20
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Radius: 85.00
    Radius 2: 86.00
    B+: M8
    Position/B+ in min.: 43
    D+ Size: M5-6.30
    Rotation: CW
    W plug type: M5-6.30
    Total length mm: 192.00
    Pulley: w/o
    Fan: EF
    Regulator type: IR
    Remarks: Dustproof.

    Files

  • Suitable for these vehicles

    • OEM
      AAK1812, AAK4319, aak4937, F032116506, 11.203.324, 11.203.657, 11.204.686, 48201109, 48201171, 48201303

    • Normalised article numbler
      aak1812, aak4319, aak4937, cal21183, dra0748, f032116506, ia1181, lea0891, mg581, 286926, 554296ri, 11203324, 11203657, 11204686, 48201109, 48201171, 48201303, 705008100, 705008120, 5001951002
