HC-Cargo Alternator

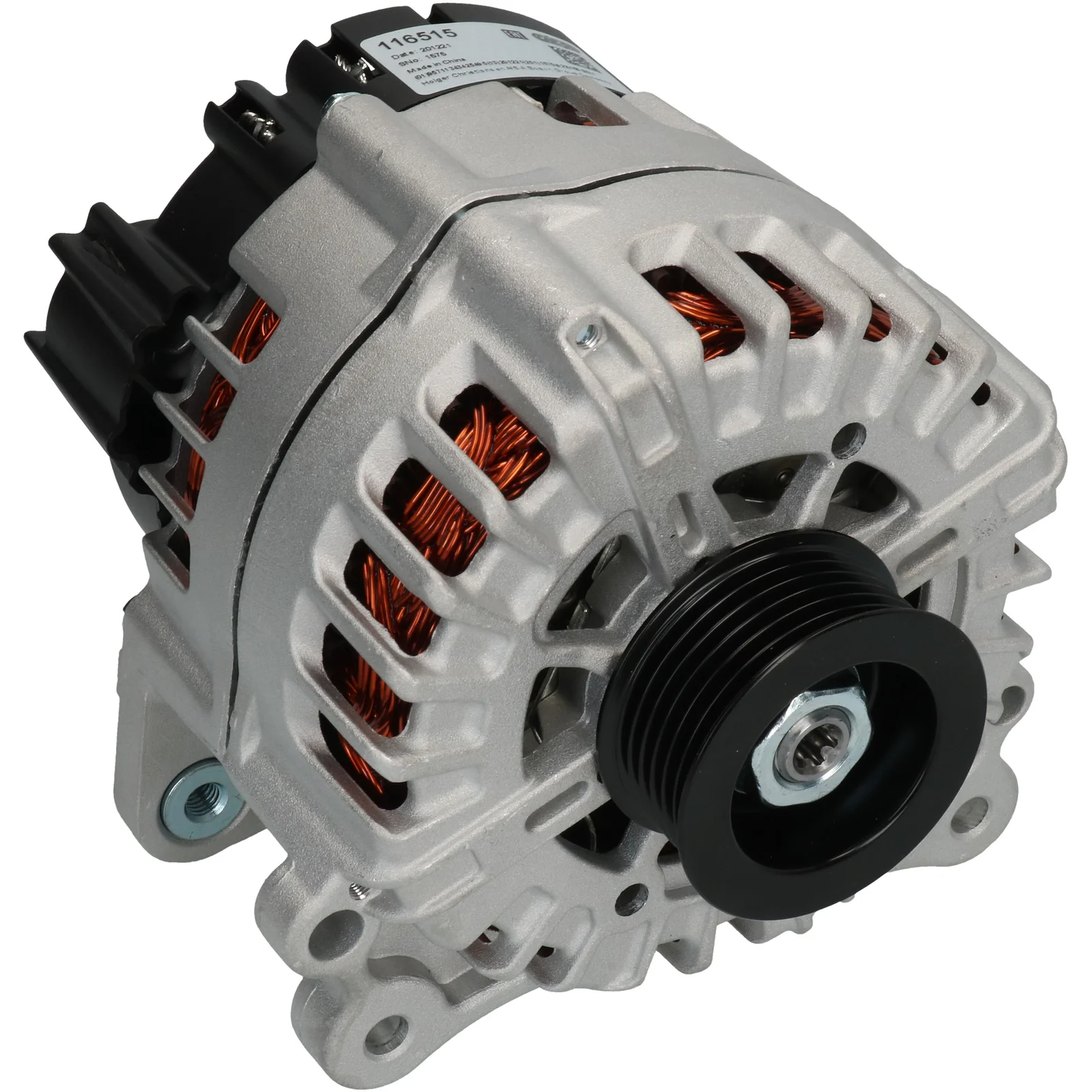

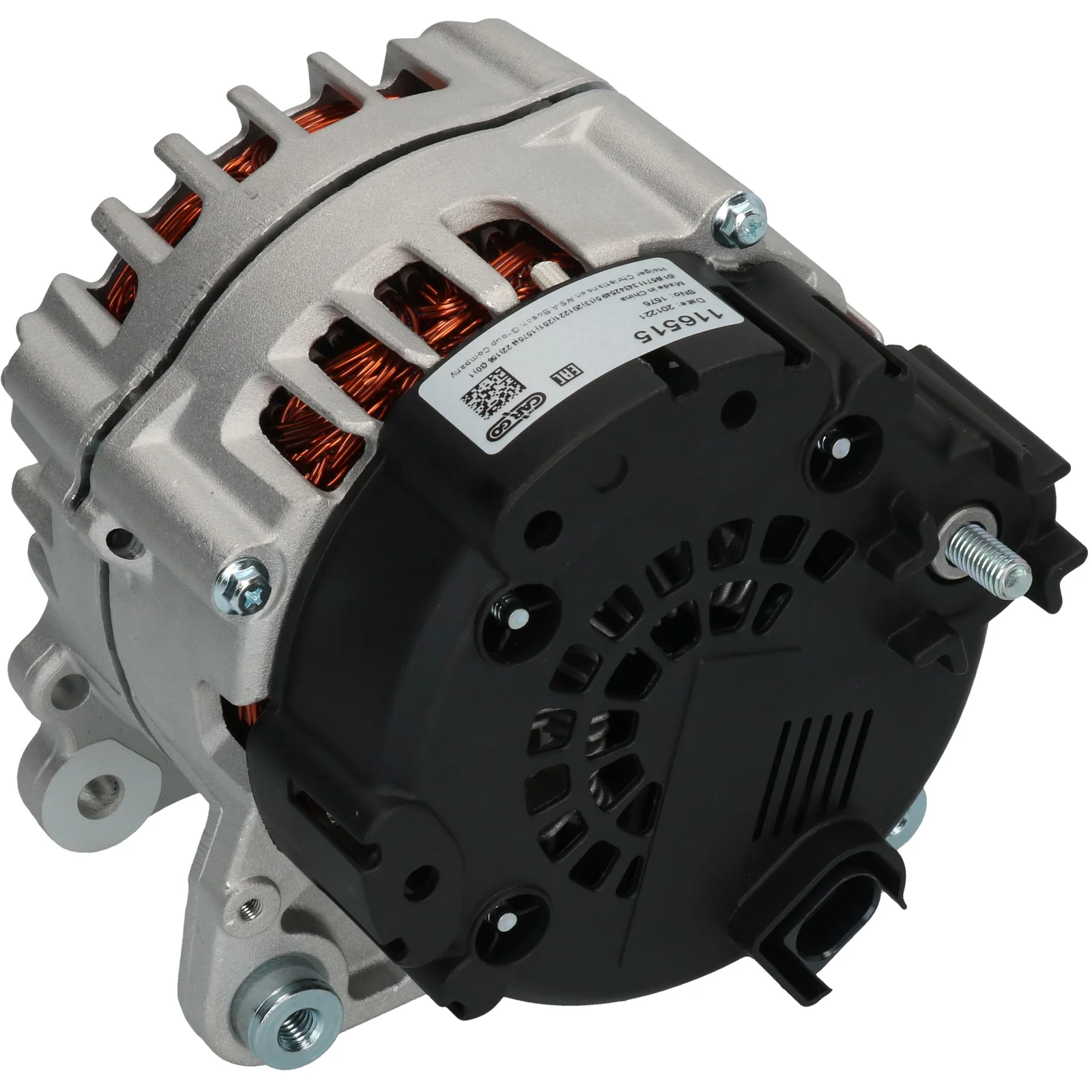

HC-Cargo Alternator
Article no.: F032116515

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 220, Rotation: CW, Mounting bracket distributor: 60.40

Description

Voltage: 14 Amp: 220 Pulley dist.: 29.70 Width/holder arm: 14.00 Mount. bracket dist.: 60.40 Bracket hole: 8.50 Belt. adj. brackethole pos.: 45 Pulley dia.: 60.00 Grooves/pulley: 6 Radius: 90.00 Radius 2: 90.00 B+: M8 Position/B+ in min.: 5 Rotation: CW Plug no.: PL86 Total length mm: 177.00 Terminal type: COM ID Code: 57 Communication: LIN Pulley: SP Fan: IF Regulator type: IR Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116515, FG23S031, FGN23S031, 2608240, 2608240A, 059903023j, 059903023JX, 95860312200

  • Normalised article numbler
    a3194pr, a3194s, a3194valeo, cal15436, dra0811, f032116515, fg23s031, fgn23s031, lra03322, 209205, 209205a, 285934, 439716, 440306, 553443ri, 2608240, 2608240a, 12090639, 059903023j, 059903023jx, 305589220, 2113552202, 95860312200
  • Description
    Voltage: 14 Amp: 220 Pulley dist.: 29.70 Width/holder arm: 14.00 Mount. bracket dist.: 60.40 Bracket hole: 8.50 Belt. adj. brackethole pos.: 45 Pulley dia.: 60.00 Grooves/pulley: 6 Radius: 90.00 Radius 2: 90.00 B+: M8 Position/B+ in min.: 5 Rotation: CW Plug no.: PL86 Total length mm: 177.00 Terminal type: COM ID Code: 57 Communication: LIN Pulley: SP Fan: IF Regulator type: IR Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116515, FG23S031, FGN23S031, 2608240, 2608240A, 059903023j, 059903023JX, 95860312200

    • Normalised article numbler
      a3194pr, a3194s, a3194valeo, cal15436, dra0811, f032116515, fg23s031, fgn23s031, lra03322, 209205, 209205a, 285934, 439716, 440306, 553443ri, 2608240, 2608240a, 12090639, 059903023j, 059903023jx, 305589220, 2113552202, 95860312200
