HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116523

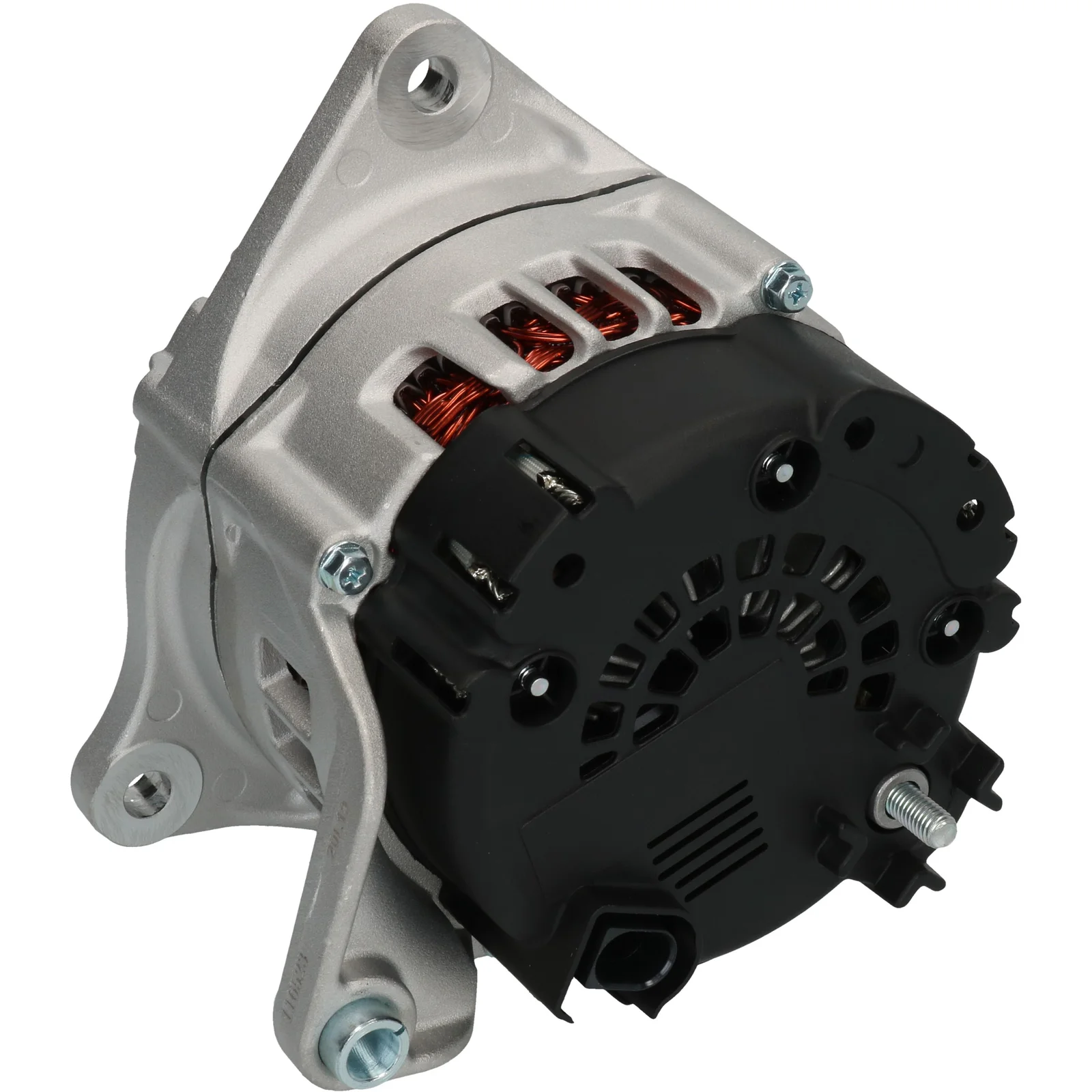

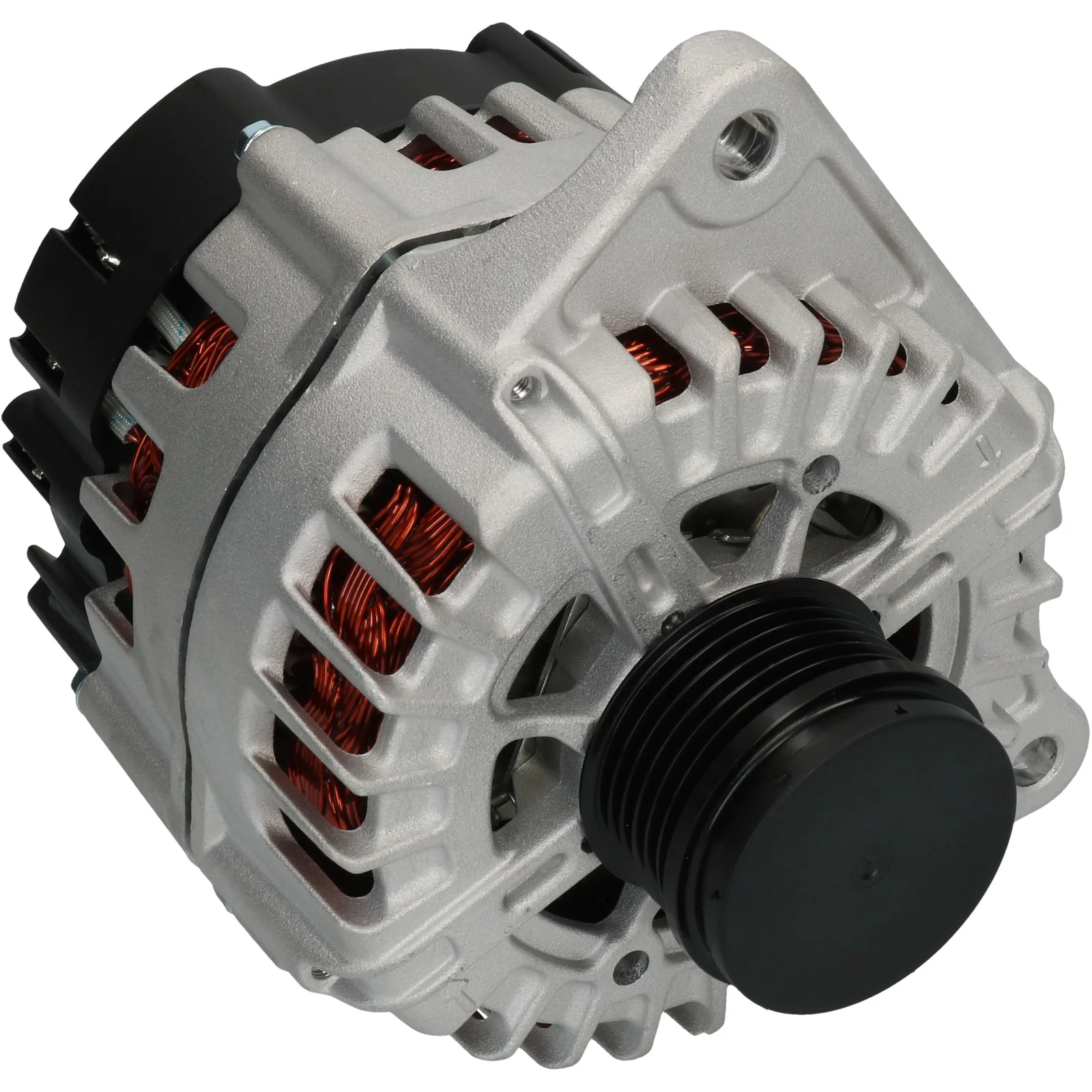

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 180, Rotation: CW, Mount. bracket dist.: 83.00

Description

Voltage: 14 Amp: 180 Pulley diameter: 37.00 Width/holder arm: 14.00 Mounting bracket diameter: 83.00 Bracket hole: 10.50 Belt adjustment bracket hole position: 11 Belt adjustment bracket hole 1: 11.00 Pulley diameter: 55.00 Grooves/pulley: 6 Radius: 96.50 Radius 2: 95.00 B+: M8 Position/B+ in minutes: 12 Rotation: CW Plug number: PL174 Total length mm: 187.00 Terminal type: COM ID Code: 17 Communication: LIN Pulley: SP/FW Fan: IF Regulator type: IR Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116523, FG18S135, FGN18S135, 2619328A, 2619328B, 5801580943

  • Normalised article numbler
    a3476s, cal15596, f032116523, fg18s135, fgn18s135, lra04095, 209462, 209462a, 287704, 439884, 440627, 554383ri, 2619328a, 2619328b, 12090866, 505599180, 5801580943
  • Description
    Voltage: 14 Amp: 180 Pulley diameter: 37.00 Width/holder arm: 14.00 Mounting bracket diameter: 83.00 Bracket hole: 10.50 Belt adjustment bracket hole position: 11 Belt adjustment bracket hole 1: 11.00 Pulley diameter: 55.00 Grooves/pulley: 6 Radius: 96.50 Radius 2: 95.00 B+: M8 Position/B+ in minutes: 12 Rotation: CW Plug number: PL174 Total length mm: 187.00 Terminal type: COM ID Code: 17 Communication: LIN Pulley: SP/FW Fan: IF Regulator type: IR Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116523, FG18S135, FGN18S135, 2619328A, 2619328B, 5801580943

    • Normalised article numbler
      a3476s, cal15596, f032116523, fg18s135, fgn18s135, lra04095, 209462, 209462a, 287704, 439884, 440627, 554383ri, 2619328a, 2619328b, 12090866, 505599180, 5801580943
