HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116538

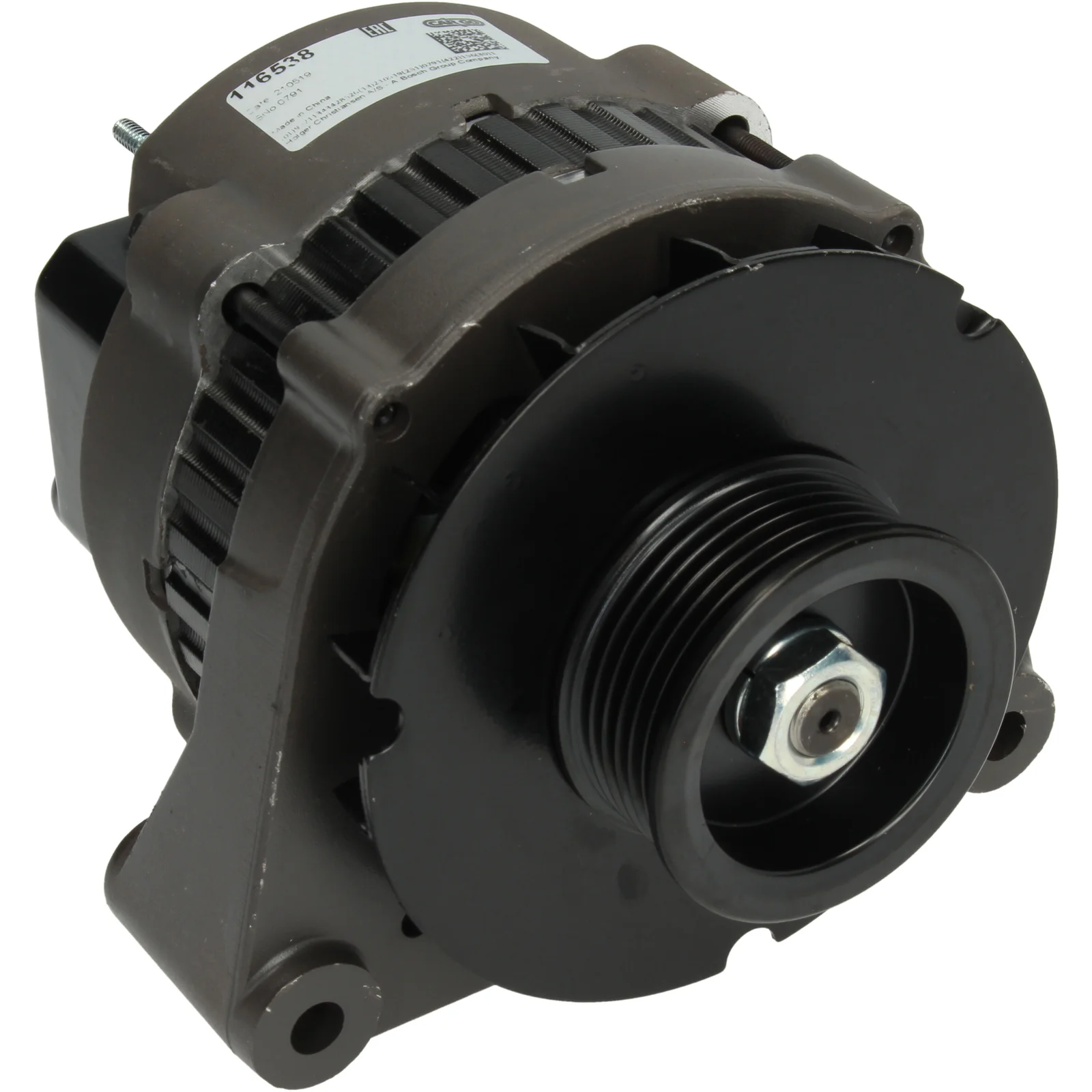

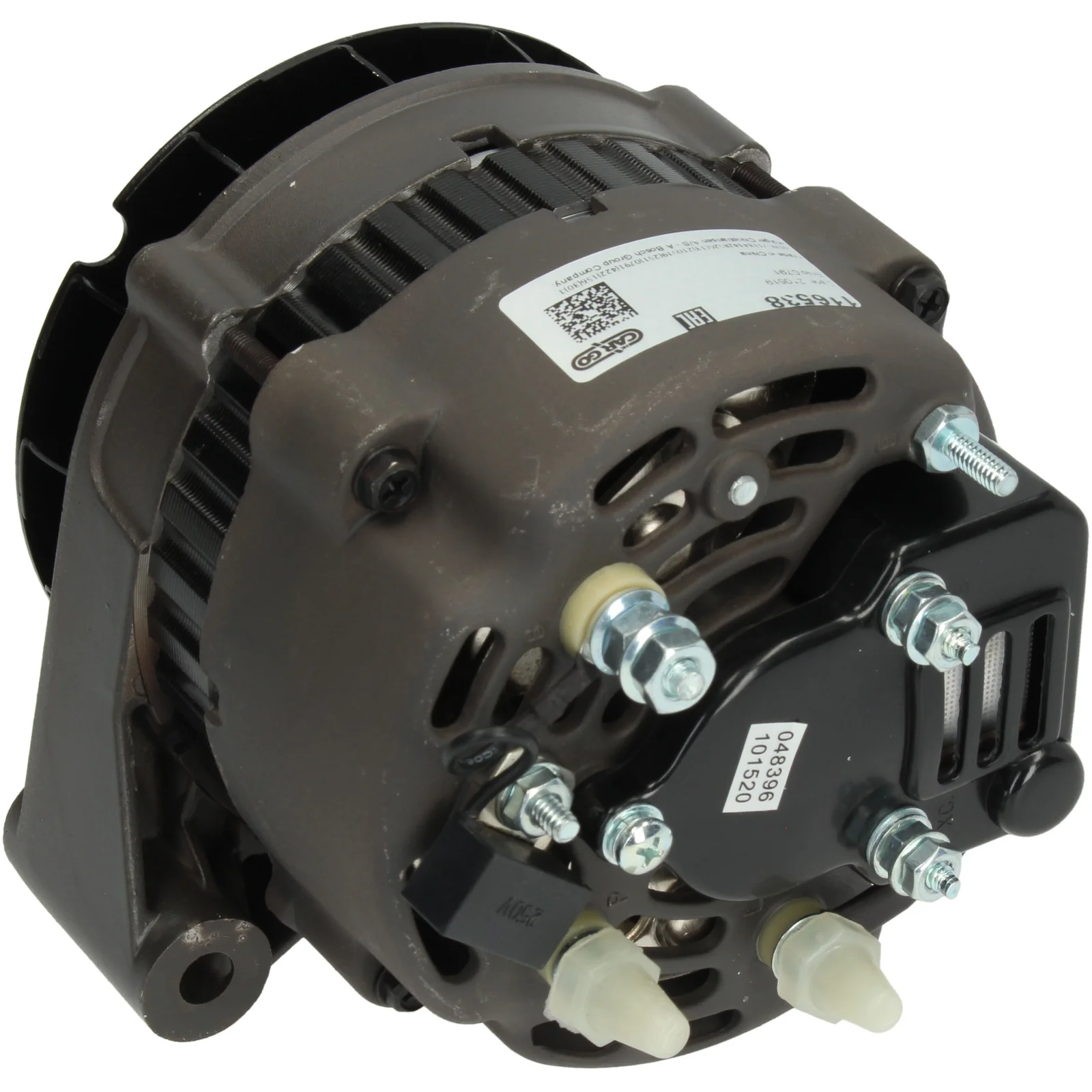

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 65, Rotation: CW, Mount. bracket dist.: 50.60

Description

Voltage: 14
Amp: 65
Pulley diameter: 72.40
Mounting bracket diameter: 50.60
Bracket hole: 9.70
Belt adjustment bracket hole 1: 9.70
Pulley diameter: 63.00
Grooves/pulley: 6
Radius: 89.00
Radius 2: 89.00
B+: 1/4" UNC
Position/B+ in minutes: 2
D+ Size: 10-24 UNC
Rotation: CW
Total length mm: 173.00
Fan: Electron Fan

Files

  • OEM
    F032116538, 165622, 3860082, 3860798

  • Normalised article numbler
    amn0018, cal32125, f032116538, lra03311, 12391n, 113427, 165622, 285923, 554282ri, 600090, 3860082, 3860798, 815022065
  • Description
    Voltage: 14
    Amp: 65
    Pulley diameter: 72.40
    Mounting bracket diameter: 50.60
    Bracket hole: 9.70
    Belt adjustment bracket hole 1: 9.70
    Pulley diameter: 63.00
    Grooves/pulley: 6
    Radius: 89.00
    Radius 2: 89.00
    B+: 1/4" UNC
    Position/B+ in minutes: 2
    D+ Size: 10-24 UNC
    Rotation: CW
    Total length mm: 173.00
    Fan: Electron Fan

    Files

  • Suitable for these vehicles

    • OEM
      F032116538, 165622, 3860082, 3860798

    • Normalised article numbler
      amn0018, cal32125, f032116538, lra03311, 12391n, 113427, 165622, 285923, 554282ri, 600090, 3860082, 3860798, 815022065
