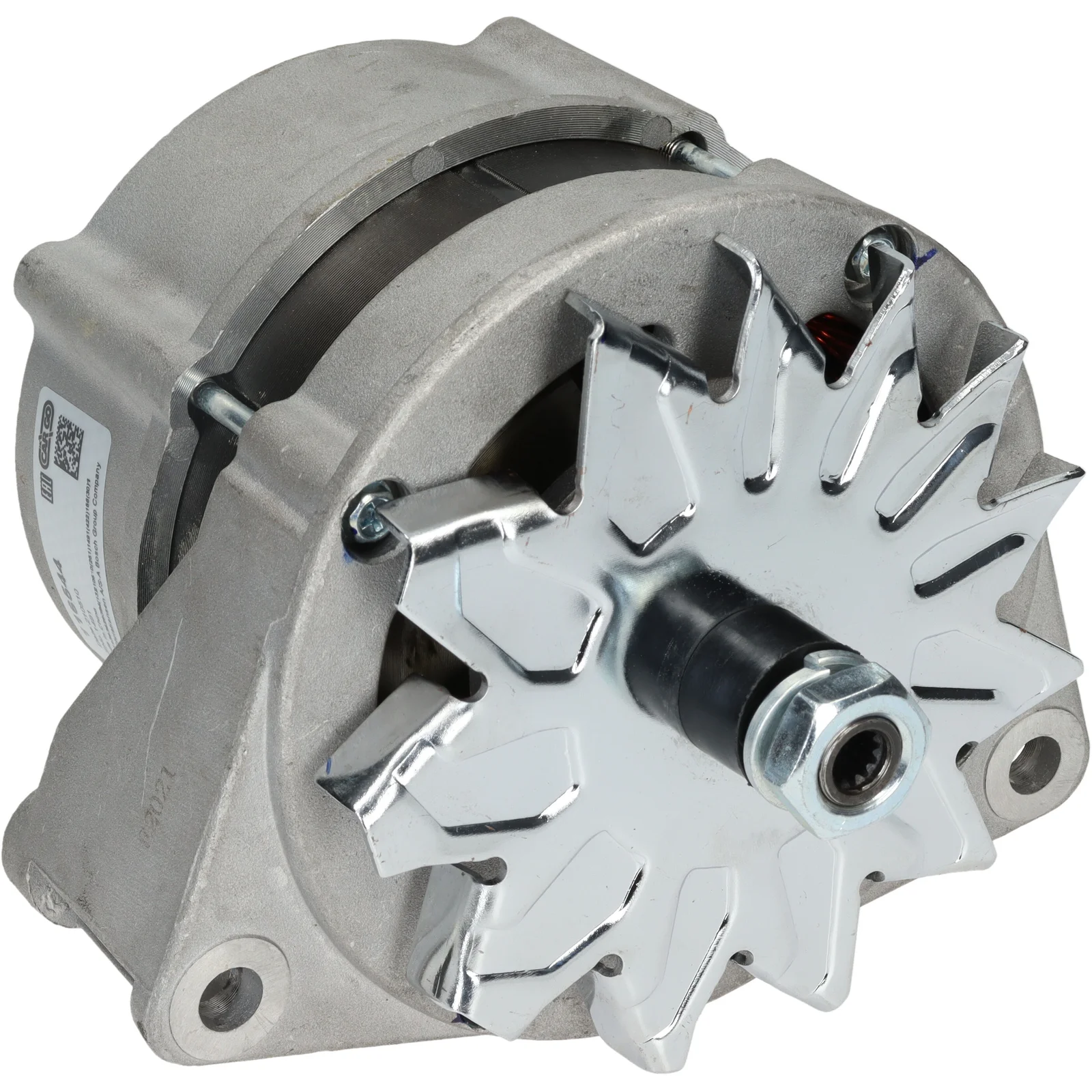

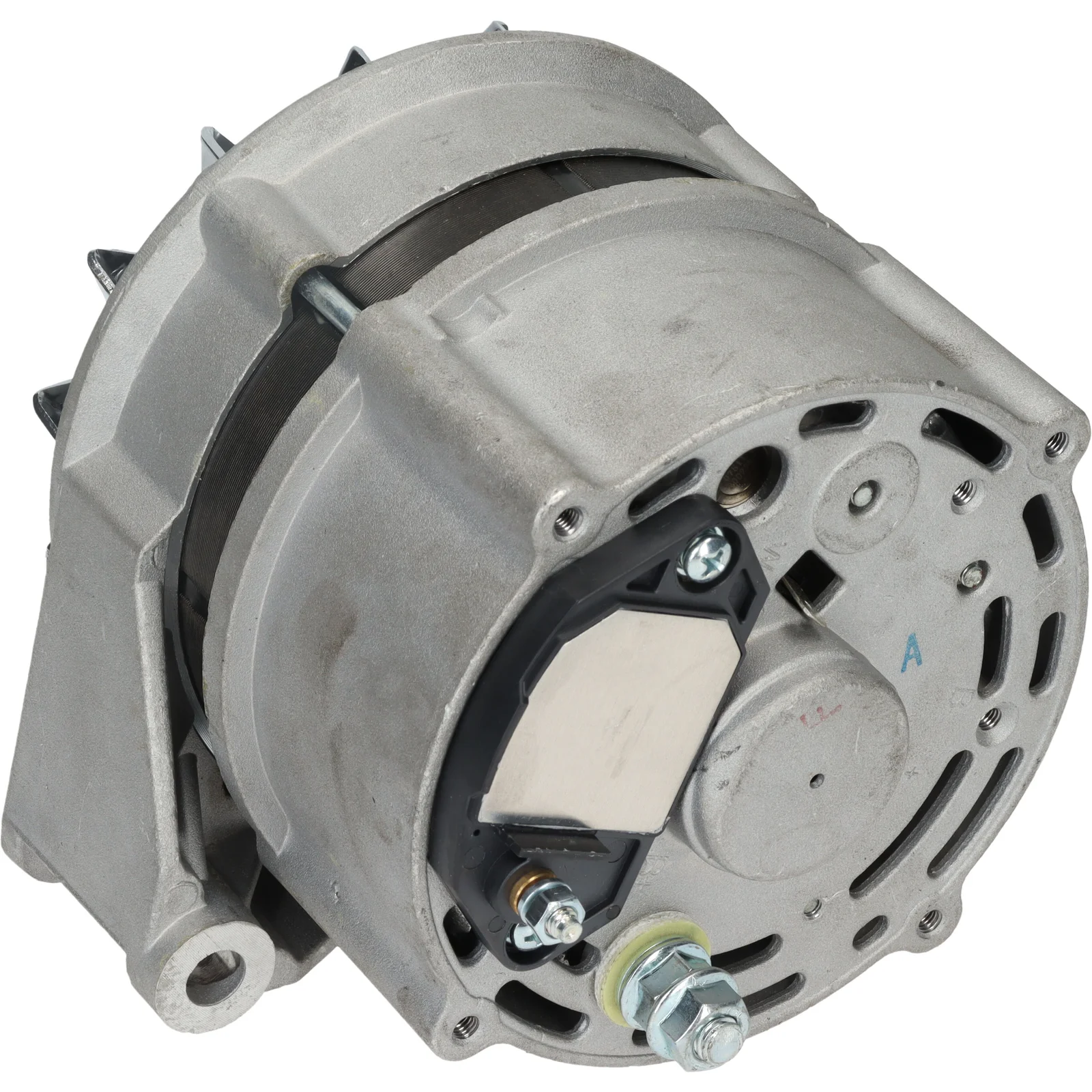

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116544

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 95, Rotation: CW, Radius: 90.00

Description

Voltage: 14
Amp: 95
Width/holder arm: 56.00
Bracket hole: 10.30
Belt. adj. bracket hole position: 10
Belt. adj. bracket hole 1: 10.30
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 45
D+ Size: M5
Rotation: CW
W plug type: 6.30
Total length mm: 170.00
Lamp type: Active
One Wire hookup (Self exciting): Yes
Fan: EF
Regulator type: IR

Files

  • OEM
    AAK3868, AAK4936, AAK4953, F032116544, 11.204.136, 11.204.685, 11.204.716, 01183866, 1183866, 01183885, 04123605, 4123605, 04124782, 4124782

  • Normalised article numbler
    aak3868, aak4936, aak4953, cal21174, f032116544, ia1472, lra04332, mg169, 14034n, 287941, 01183866, 1183866, 01183885, 04123605, 4123605, 04124782, 4124782, 11204136, 11204685, 11204716, 565013095
  • Description
    Voltage: 14
    Amp: 95
    Width/holder arm: 56.00
    Bracket hole: 10.30
    Belt. adj. bracket hole position: 10
    Belt. adj. bracket hole 1: 10.30
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 45
    D+ Size: M5
    Rotation: CW
    W plug type: 6.30
    Total length mm: 170.00
    Lamp type: Active
    One Wire hookup (Self exciting): Yes
    Fan: EF
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      AAK3868, AAK4936, AAK4953, F032116544, 11.204.136, 11.204.685, 11.204.716, 01183866, 1183866, 01183885, 04123605, 4123605, 04124782, 4124782

    • Normalised article numbler
      aak3868, aak4936, aak4953, cal21174, f032116544, ia1472, lra04332, mg169, 14034n, 287941, 01183866, 1183866, 01183885, 04123605, 4123605, 04124782, 4124782, 11204136, 11204685, 11204716, 565013095
