HC-Cargo Alternator

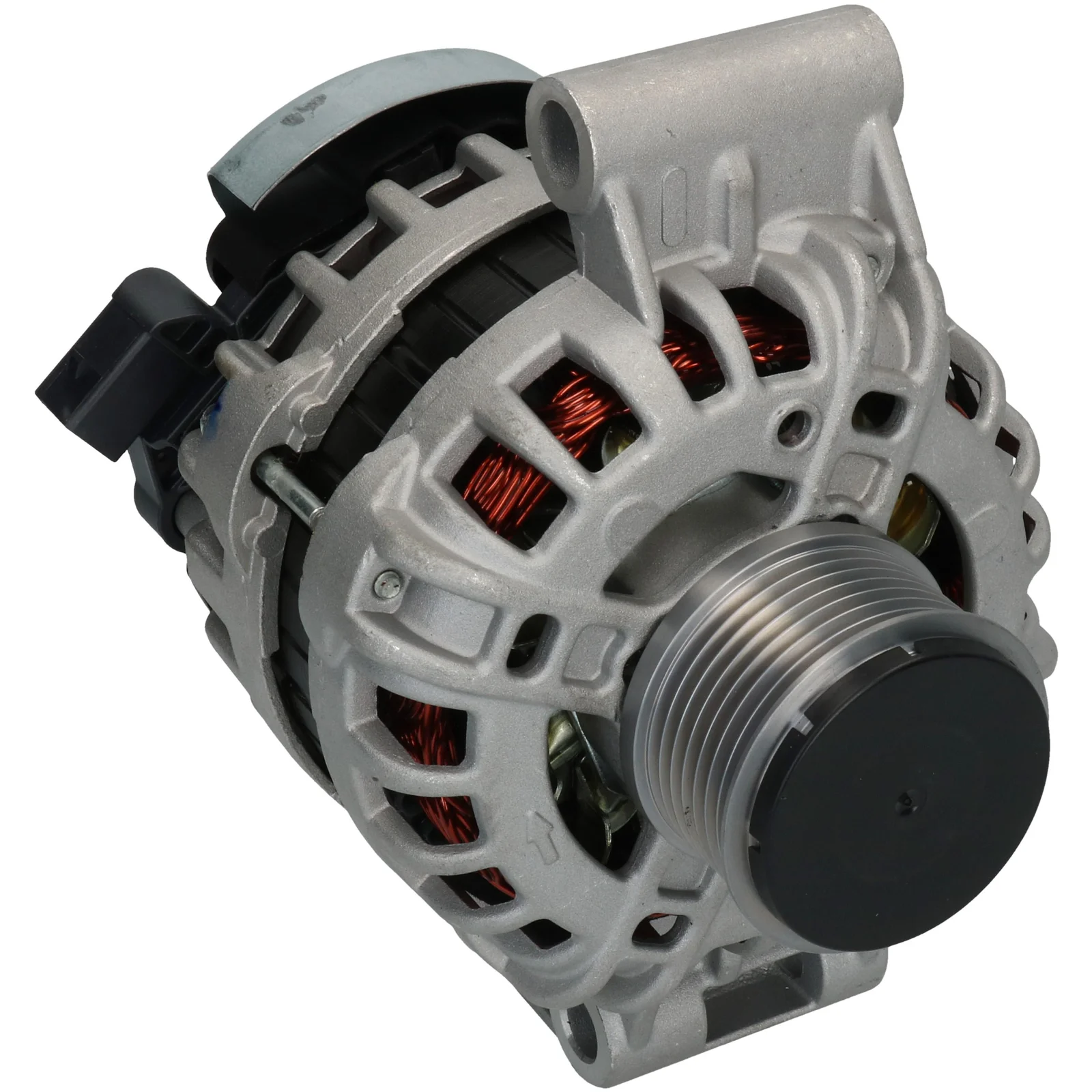

HC-Cargo Alternator
Article no.: F032116546

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 110, Rotation: CW, Mounting bracket distributor: 74.00

Description

HC-Cargo Alternator

Voltage: 14
Amperage: 110
Pulley diameter: 43.00
Width/holder arm: 61.00
Mounting bracket diameter: 74.00
Bracket hole: 10.40
Belt adjustment bracket hole 1: 11.00
Pulley diameter: 59.00
Grooves/pulley: 7
Radius: 87.50
Radius 2: 87.50
B+: M8
Position/B+ in minutes: 20
Rotation: CW
Plug number: PL137
Total length mm: 180.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    AB3910300AD, AB3910300AE, AB3910300AF, AB3910300AFFC, AB3910300AG, AB3910300BE, AB391030AG, F000BL0639, F000BL06BG, F000BL06BK, F000BL06BM, F000BL06EY, F032116546, UK01-18-400D, 1916724, 5215796, 5287955

  • Normalised article numbler
    a0588s, ab3910300ad, ab3910300ae, ab3910300af, ab3910300affc, ab3910300ag, ab3910300be, ab391030ag, cal10557, f000bl0639, f000bl06bg, f000bl06bk, f000bl06bm, f000bl06ey, f032116546, uk0118400d, 20499n, 444295, 586992, 1916724, 5215796, 5287955, 12090778, 32002317, 595901110, 595948110
  • Description
    HC-Cargo Alternator

    Voltage: 14
    Amperage: 110
    Pulley diameter: 43.00
    Width/holder arm: 61.00
    Mounting bracket diameter: 74.00
    Bracket hole: 10.40
    Belt adjustment bracket hole 1: 11.00
    Pulley diameter: 59.00
    Grooves/pulley: 7
    Radius: 87.50
    Radius 2: 87.50
    B+: M8
    Position/B+ in minutes: 20
    Rotation: CW
    Plug number: PL137
    Total length mm: 180.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      AB3910300AD, AB3910300AE, AB3910300AF, AB3910300AFFC, AB3910300AG, AB3910300BE, AB391030AG, F000BL0639, F000BL06BG, F000BL06BK, F000BL06BM, F000BL06EY, F032116546, UK01-18-400D, 1916724, 5215796, 5287955

    • Normalised article numbler
      a0588s, ab3910300ad, ab3910300ae, ab3910300af, ab3910300affc, ab3910300ag, ab3910300be, ab391030ag, cal10557, f000bl0639, f000bl06bg, f000bl06bk, f000bl06bm, f000bl06ey, f032116546, uk0118400d, 20499n, 444295, 586992, 1916724, 5215796, 5287955, 12090778, 32002317, 595901110, 595948110
