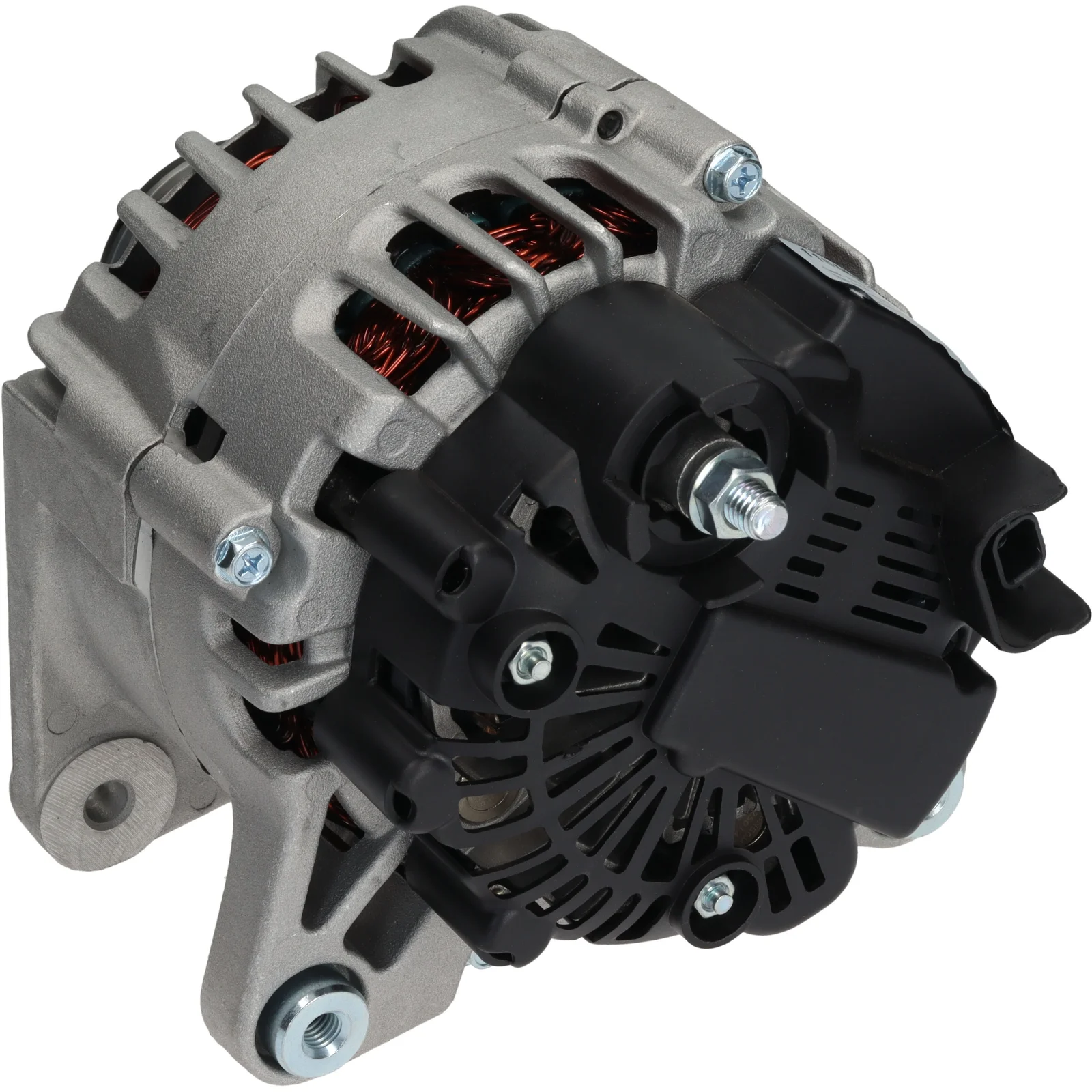

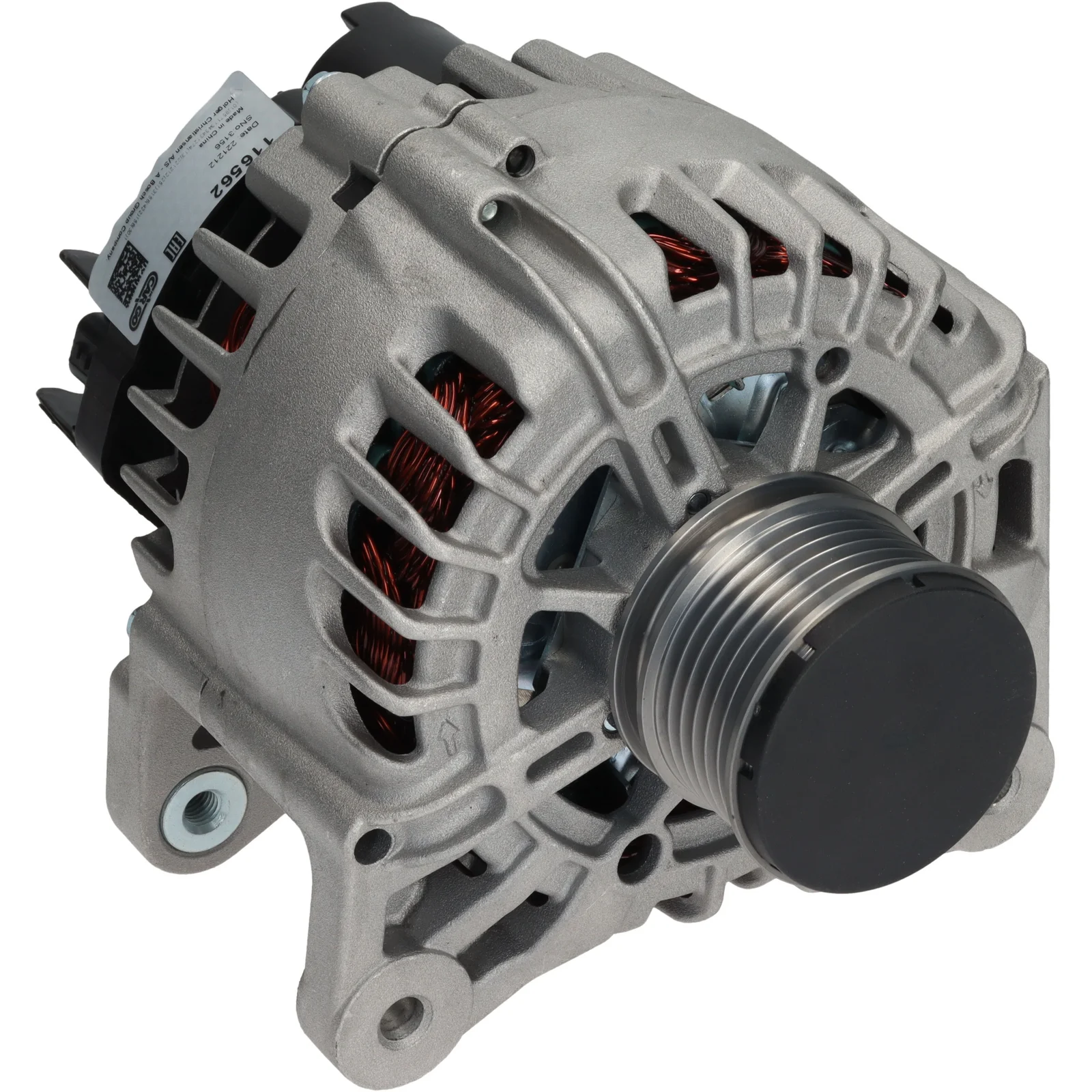

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116562

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 120, Rotation: CW, Mount. bracket dist.: 60.00

Description

Voltage: 14
Amp: 120
Pulley diameter: 38.80
Width/holder arm: 14.00
Mounting bracket diameter: 60.00
Bracket hole: 8.50
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 55.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in minutes: 52
Rotation: CW
Plug number: PL124
Total length mm: 196.00
Terminal type: COM
ID Code: 41
Communication: BSS
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F000BL078L, F032116562, TG12C073, TG12C078, TG12C150, TG12S273, 23100-0027R, 23100-4864R, 23100-6247R, 2606288, 2606288A, 231000027R, 231002151R, 231004864R

  • Normalised article numbler
    cal15534, f000bl078l, f032116562, lra03676, tg12c073, tg12c078, tg12c150, tg12s273, 8el011713961, 4294, 20638n, 286816, 439677, 440262, 553822ri, 2606288, 2606288a, 9090747, 12090478, 231000027r, 231002151r, 231004864r, 231006247r, 575942120
  • Description
    Voltage: 14
    Amp: 120
    Pulley diameter: 38.80
    Width/holder arm: 14.00
    Mounting bracket diameter: 60.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 8.50
    Pulley diameter: 55.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in minutes: 52
    Rotation: CW
    Plug number: PL124
    Total length mm: 196.00
    Terminal type: COM
    ID Code: 41
    Communication: BSS
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F000BL078L, F032116562, TG12C073, TG12C078, TG12C150, TG12S273, 23100-0027R, 23100-4864R, 23100-6247R, 2606288, 2606288A, 231000027R, 231002151R, 231004864R

    • Normalised article numbler
      cal15534, f000bl078l, f032116562, lra03676, tg12c073, tg12c078, tg12c150, tg12s273, 8el011713961, 4294, 20638n, 286816, 439677, 440262, 553822ri, 2606288, 2606288a, 9090747, 12090478, 231000027r, 231002151r, 231004864r, 231006247r, 575942120
